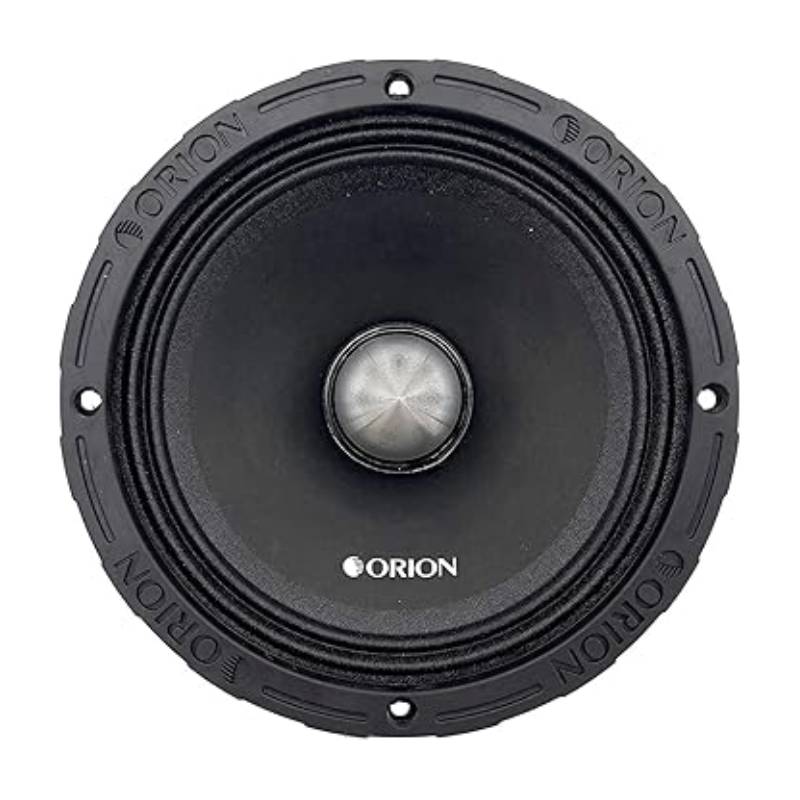

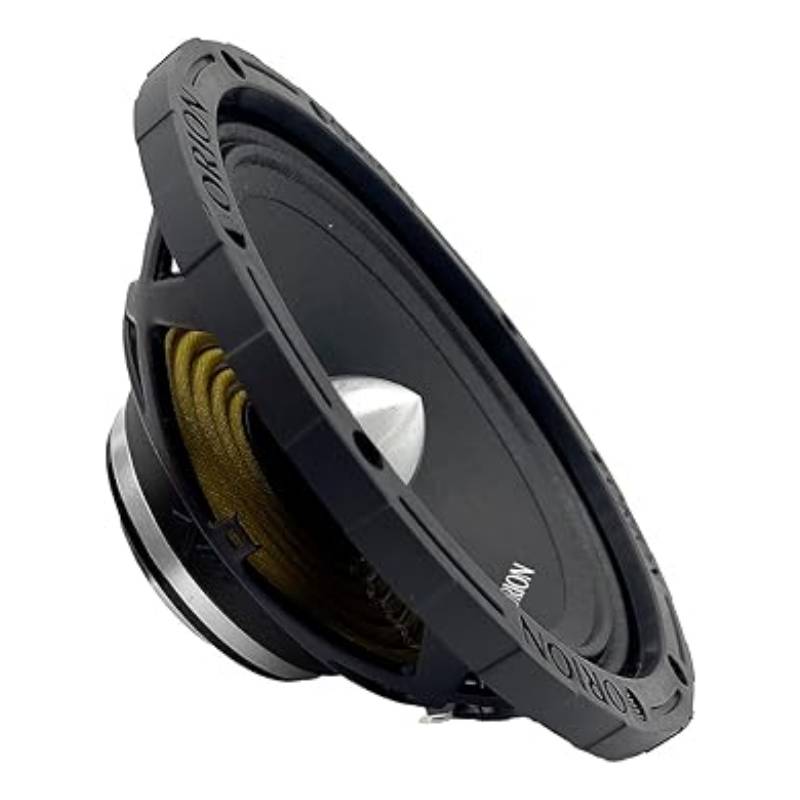

Orion XTR804NEO XTR Series 8" 1400W Peak Power Handling at 4-Ohms, Shallow Neodymium Midrange Speaker (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

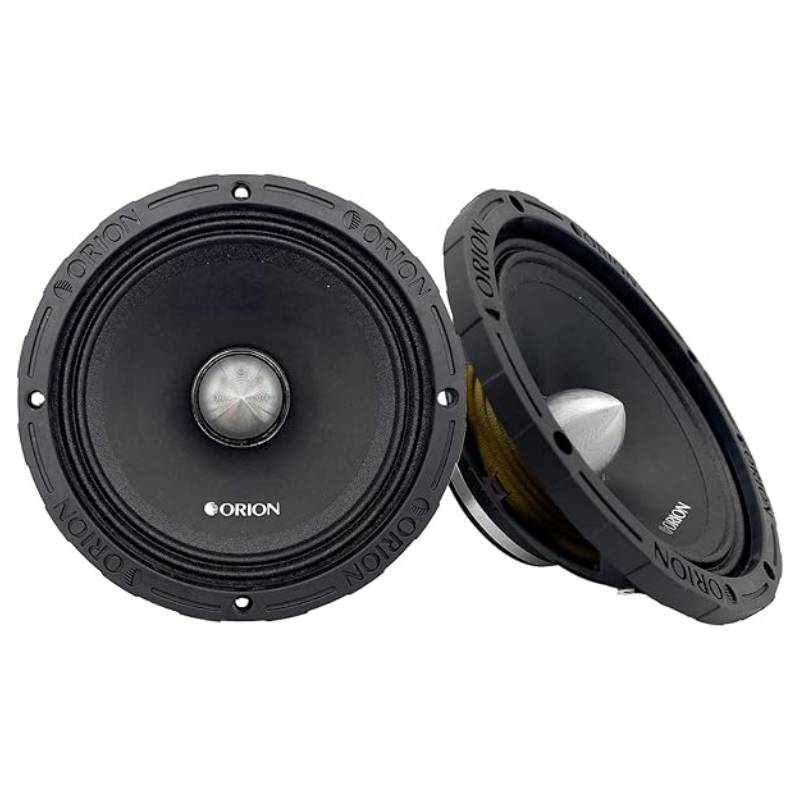

- • (2) 8" Shallow Neodymium Midrange Speaker
- • Owner's Manual
Engineered for Pure Sound Precision
Experience crystal-clear sound with a 4-Ohm midrange speaker engineered for seamless system integration and precise audio delivery. Enjoy distortion-free performance even at high volumes, thanks to the advanced bullet phase plug design. Built tough with a heavy-gauged steel frame, this speaker delivers lasting durability and superior sound stability for any setup.
Powerful Sound, Built to Last
Experience superior sound performance with unmatched heat resistance that keeps your speakers performing flawlessly, even under extreme conditions. The neodymium magnet delivers crystal-clear audio and powerful efficiency in a lightweight, compact design. With 350W RMS and 1400W peak power, enjoy bold, dynamic sound that transforms every drive into an audio experience.
Precision Sound, Built to Last
Experience crystal-clear midrange tones that bring your music to life with incredible accuracy. Built tough with premium materials, these speakers ensure long-lasting performance and precise sound reproduction. Enjoy every note in stunning detail across a wide frequency range for a truly immersive listening experience.
Frequently Asked Questions (FAQ)
- • Why do my XTR804NEO speakers sound quiet when connected to the factory radio?
Owners have reported that these speakers benefit from substantial amplifier power, so a factory head unit may not provide enough clean output to achieve the loudness expected from this high-power midrange design.
- • Why did my XTR804NEO lose some output after extended use?
One long-term user reported that two drivers failed after roughly two years of use, suggesting that sustained operation, amplifier setup, thermal conditions, and power levels are worth checking when diagnosing premature failure.
- • Can I mount the XTR804NEO in a shallow door location?
The speaker has a 2.66-inch mounting depth, but the required 7.26-inch cutout means the available opening and rear clearance should both be measured before installation.
- • Why does my XTR804NEO sound bright without producing much low bass?
The published 128 Hz–10 kHz response identifies it as a midrange driver rather than a deep-bass speaker, so a dedicated woofer or subwoofer should handle frequencies below its useful operating range.
- • What causes distortion when I push the XTR804NEO hard?
Clipping from an incorrectly adjusted amplifier, excessive equalization, or driving the speaker outside its intended frequency range can create distortion even when the speaker's rated power has not been reached.
- • Why does one XTR804NEO sound different from the other?
Unequal amplifier-channel levels, different mounting environments, polarity errors, or variations in crossover settings can cause a noticeable difference between two otherwise matching drivers.
- • Is the 1400-watt rating the amount of power I should send to each speaker?
No, the 1400-watt figure represents maximum/peak handling; the published continuous rating is 350 watts RMS, which is the more useful figure when selecting an amplifier.
- • Why does the speaker rattle after installation even though the cone works normally?
Loose mounting hardware, an improperly sized adapter ring, door-panel contact, or vibration from nearby trim can create rattling that sounds like a damaged speaker.
- • Can the XTR804NEO replace a conventional full-range 8-inch speaker by itself?
Because its specified range is centered on 128 Hz–10 kHz, it can provide strong midrange coverage but does not replace the separate high-frequency and deep-bass duties of a complete full-range system.
- • Why does the XTR804NEO perform better after I change the crossover settings?
Removing frequencies outside the driver's useful range can reduce unnecessary cone movement and overlap with other speakers, allowing the midrange driver to concentrate on the frequencies it was designed to reproduce.
- Diameter : 8 Inch
- Sensitivity : 92.5 dB
- Impedance : 4 Ohm
- Frequency Response : 128-10000 Hz
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 2.66 Inches
- Shallow Mount : Yes Inch
- RMS Power Handling : 350 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Heavy-Gauged Stamped Steel Frame: Provides exceptional strength and rigidity, reducing unwanted vibrations and resonance for improved sound clarity and long-lasting durability, even in high-performance applications.
- High-Temperature Coating: Enhances heat resistance, protecting the speaker components during extended use at high power levels, ensuring consistent performance and longevity in demanding environments.
- Neodymium Magnet: Delivers a powerful magnetic field in a compact size, enhancing sensitivity and efficiency for crisp, clear sound with reduced distortion, while maintaining a lightweight design for easier installation.
- High Power Handling: 350 Watts RMS and 1400 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 128 Hz to 10 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 92.5 dB
- Frequency Response: 128 Hz - 10 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity 2 Speakers
- Material: Heavy Gauge Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grilles Included: No

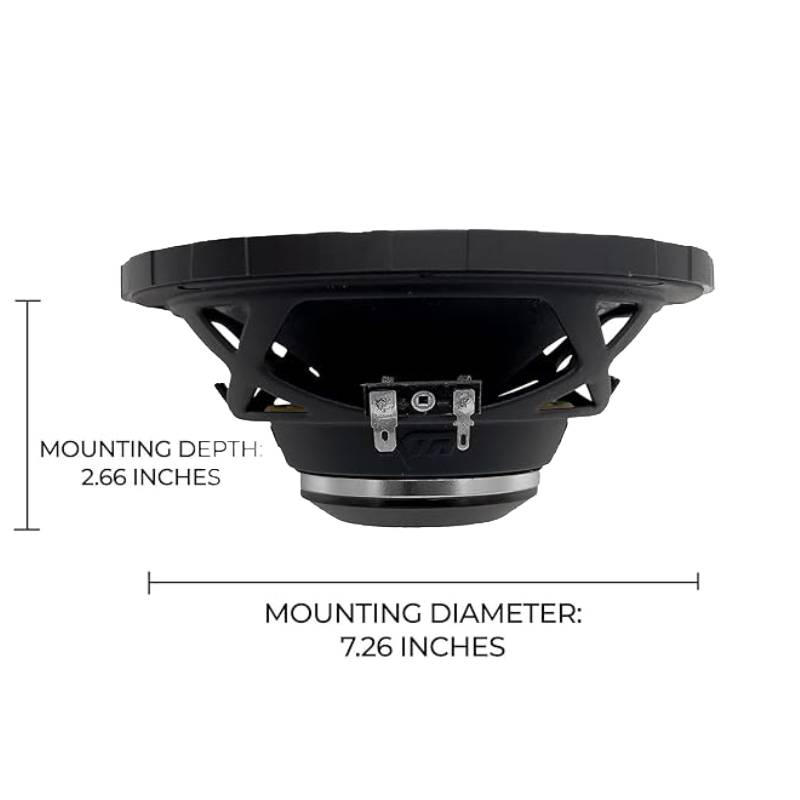

- Mounting Depth: 67.5mm / 2.66 (Inches)
- Overall Depth: 67.5mm / 2.66 (Inches)
- Cutout Diameter: 184.5mm / 7.26 (Inches)
- Overall Diameter: 209.4mm / 8.24 (Inches)
- UPC: 818550016484
- Weight: 4.79
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
