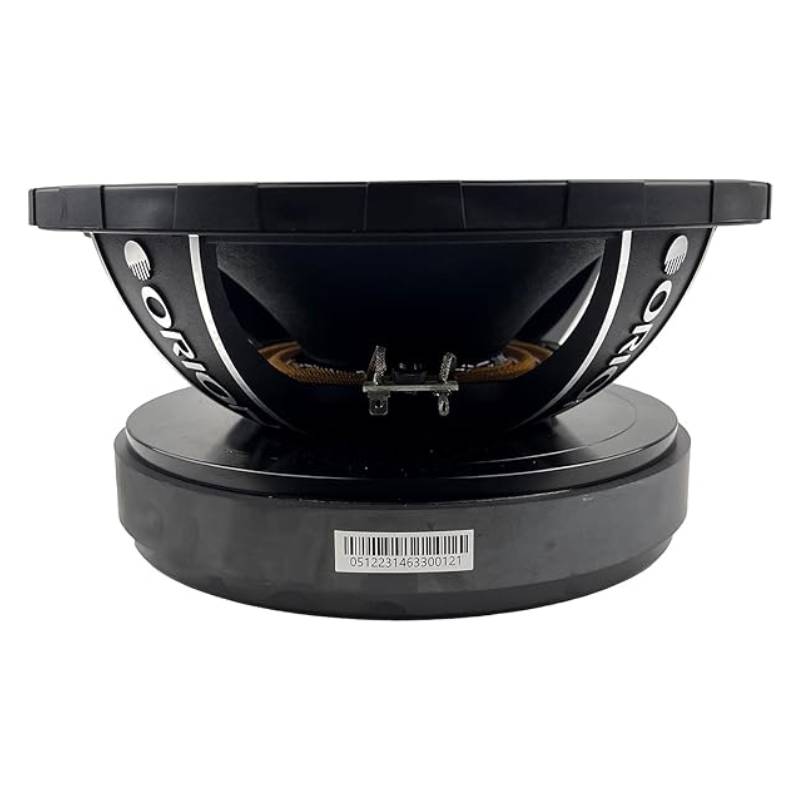

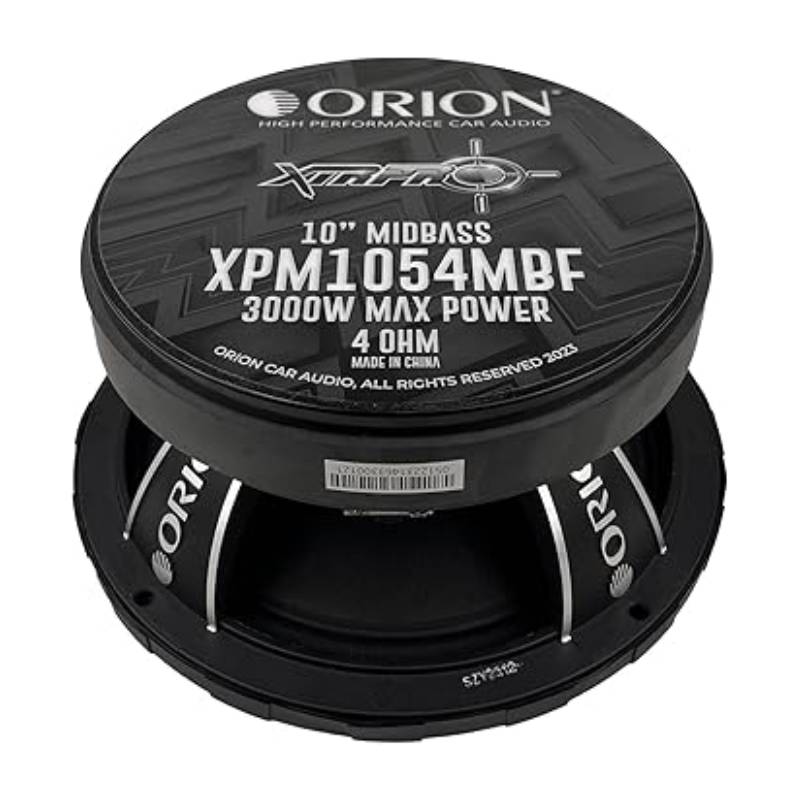

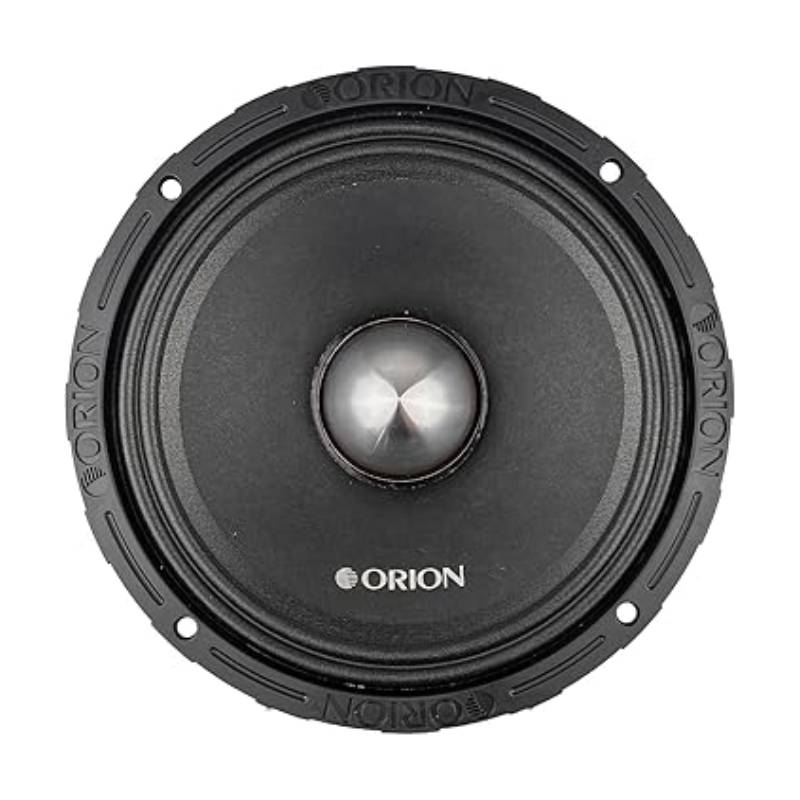

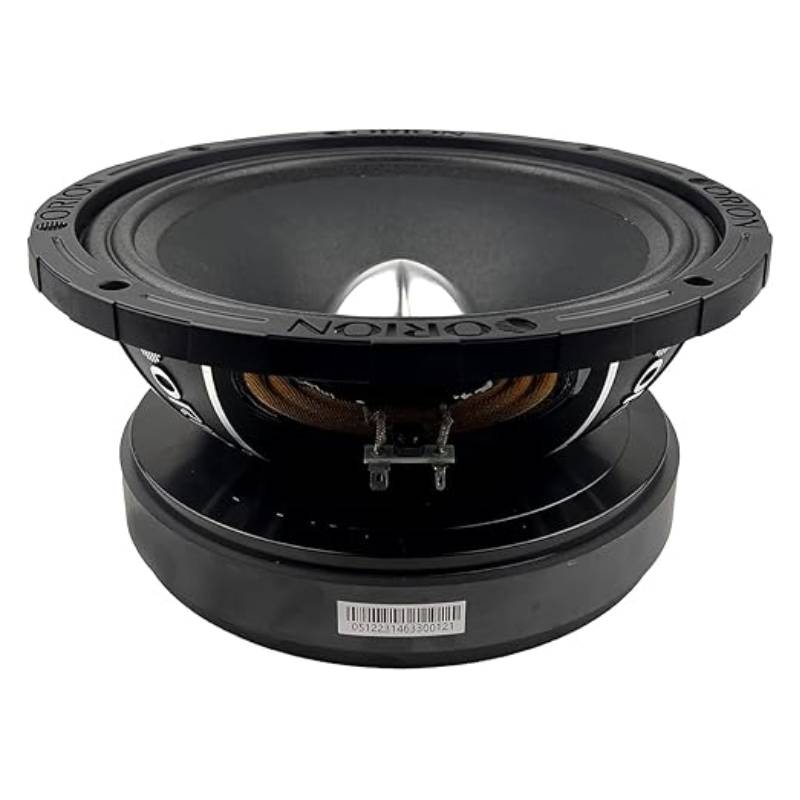

Orion XPM1054MBF XTR Series 10" 3000W Peak Power Handling at 4-Ohms, Aluminum Midbass Car Speaker (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Midbass Speaker
- • Owner's Manual
Thunderous Bass, Crystal Clarity
Feel the thunder of every beat with the XPM1054MBF, delivering commanding bass that brings your music to life. With 3000W of maximum power, experience low-frequency performance that hits hard and deep. Enjoy precise midbass clarity that captures every subtle note and detail exactly as the artist intended.
Premium Sound, Effortless Power
Experience lasting, high-quality sound with the XPM1054MBF speakers, built from premium materials for unmatched durability. Even during intense listening sessions, these speakers maintain consistent, powerful performance. Easily upgrade your car audio system with seamless installation and enjoy dynamic, crystal-clear sound instantly.
Immersive Power, Ultimate Drive
Transform every drive with the ORION XPM1054MBF 10" Midbass Speaker, delivering immersive and powerful sound that captivates your senses. Experience robust power handling and precise midbass performance that brings your music to life like never before. Elevate your car audio journey and feel every note with unmatched clarity, depth, and impact.
Frequently Asked Questions (FAQ)
- • Why does my XPM1054MBF not produce deep subwoofer-level bass?
The XPM1054MBF is designed as a midbass driver with a published response beginning around 140Hz, so it is intended to provide strong punch and upper-bass energy rather than reproduce the deepest sub-bass frequencies.
- • Why does my XPM1054MBF sound weak when I use a small amplifier?
The speaker is rated at 750W RMS, so an amplifier that cannot provide sufficient clean power may limit its available output and prevent the driver from reaching the performance expected from a high-power midbass system.
- • Why does my XPM1054MBF sound distorted when I turn it up?
Distortion at high volume can result from amplifier clipping, excessive gain, an incorrect crossover point, or driving the speaker beyond its intended operating range, so the complete system should be checked before blaming the speaker.
- • Why doesn't the XPM1054MBF fit my existing 10-inch speaker opening?
Although it is classified as a 10-inch speaker, the XPM1054MBF has an approximately 9.02-inch cutout diameter and 10.43-inch overall diameter, meaning the mounting opening and surrounding clearance need to be measured before installation.
- • Why does my XPM1054MBF need more mounting depth than expected?
The speaker has a 4.41-inch top-mount depth and approximately 4.96-inch overall depth, so checking clearance behind the mounting surface is important, particularly in doors, custom panels, or shallow enclosures.
- • Why does my XPM1054MBF sound different after changing the crossover?
The XPM1054MBF covers approximately 140Hz–5.5kHz, so the selected high-pass and low-pass points can significantly change whether the speaker sounds punchy, thin, muddy, or overly dominant within the rest of the audio system.
- • What should I check if my XPM1054MBF is vibrating excessively?
Check that the cast basket is firmly secured, the mounting surface is rigid, and all mounting hardware is tight, because unwanted mechanical movement can introduce vibration and reduce perceived clarity during high-output playback.
- • Why does my XPM1054MBF sound louder than another speaker with a similar power rating?
The XPM1054MBF is specified at 101.4 dB sensitivity, so its efficiency can contribute to strong acoustic output without relying solely on its 750W RMS power rating.
- • Can I use the XPM1054MBF as my only bass speaker?
The XPM1054MBF can provide substantial midbass impact, but its published 140Hz–5.5kHz operating range means a dedicated subwoofer may still be needed if the system is expected to reproduce very low bass frequencies.
- • Why does my XPM1054MBF sound different when installed in another vehicle?
Vehicle acoustics, mounting location, enclosure or baffle construction, amplifier power, crossover settings, and cabin response can all change the perceived performance of the same speaker, so results from one installation may not transfer directly to another.
- Diameter : 10 Inch
- Sensitivity : 101.4 dB
- Impedance : 4 Ohm
- Frequency Response : 140-5500 Hz
- Peak Power Handling : 3000 Watts
- Top Mount Depth : 4.41 Inches
- RMS Power Handling : 750 Watts
Features:
- Dominating Bass Authority: The XPM1054MBF is built to deliver commanding bass impact, making every beat resonate with power. With a maximum power handling of 3000 Watts, these speakers redefine low-frequency performance.
- Precision in Midbass: Immerse yourself in a world of sonic precision. These speakers excel at reproducing midbass frequencies with accuracy, allowing you to hear every note and detail as intended by the artist.
- Uncompromising Quality: Crafted with meticulous attention to detail, the XPM1054MBF speakers are constructed using high-quality materials to ensure lasting performance even during intense listening sessions.
- Seamless Integration: Designed for easy installation, these speakers seamlessly fit into your car's audio system, allowing you to upgrade your sound without hassle.
- Elevate Your Driving Experience: The ORION XPM1054MBF 10" Midbass Speaker is your gateway to an audio journey like no other. Whether you're a music enthusiast or a casual listener, these speakers provide an immersive and powerful auditory experience that captivates and resonates. With their robust power handling and precision, they redefine the boundaries of what's possible in car audio. Elevate your driving experience and immerse yourself in the world of sound with the ORION XPM1054MBF, where power and precision converge.
Specifications:
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 3000 Watts
- Power Handling (RMS): 750 Watts
- Sensitivity: 101.4 dB
- Frequency Response: 140 kHz - 5.5 kHz
- Voice Coil Diameter: 3" (Inches)
- Speaker Quantity 1 Speaker
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 128 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 112mm / 4.41 (Inches)
- Overall Depth: 126mm / 4.96 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 265mm / 10.43 (Inches)
- UPC: 818550014633
- Weight: 23.9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
