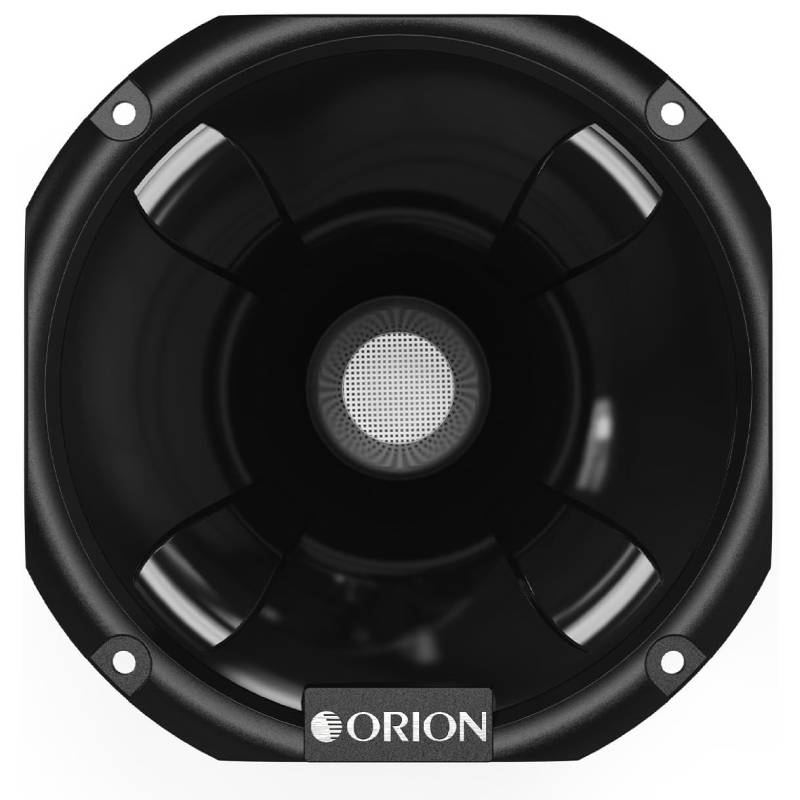

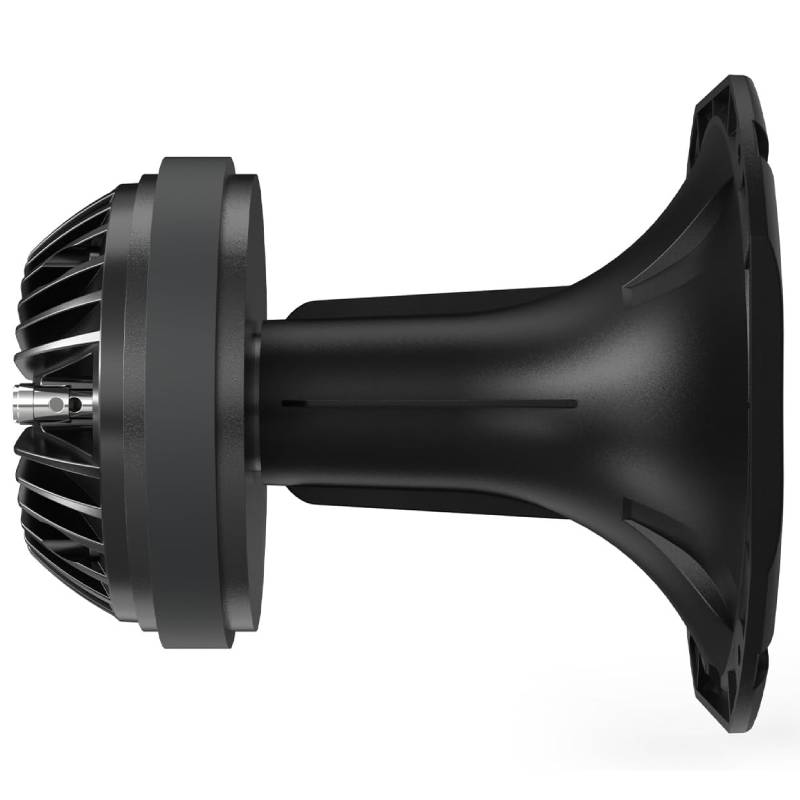

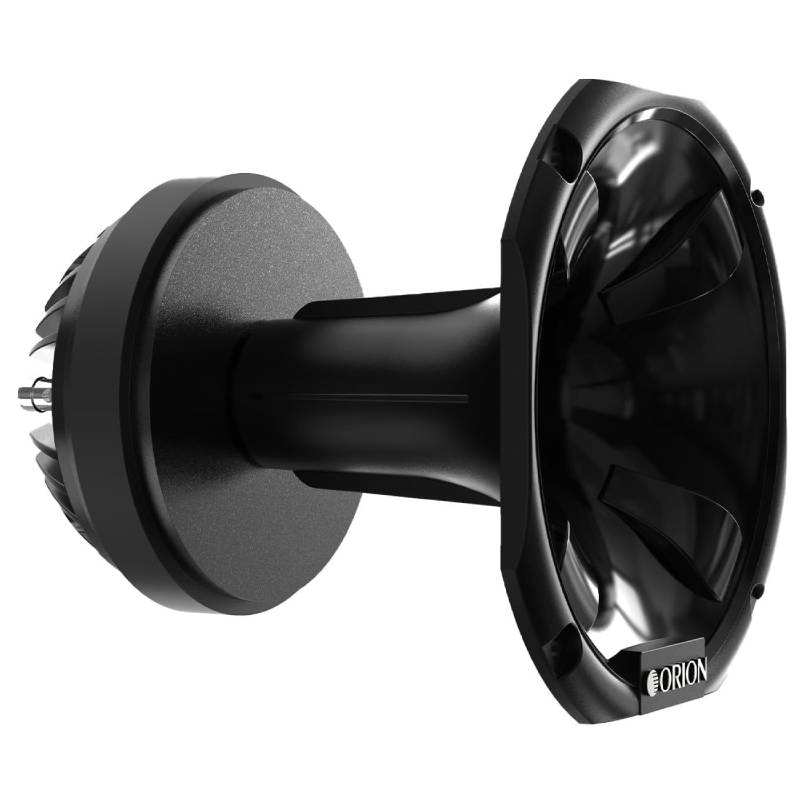

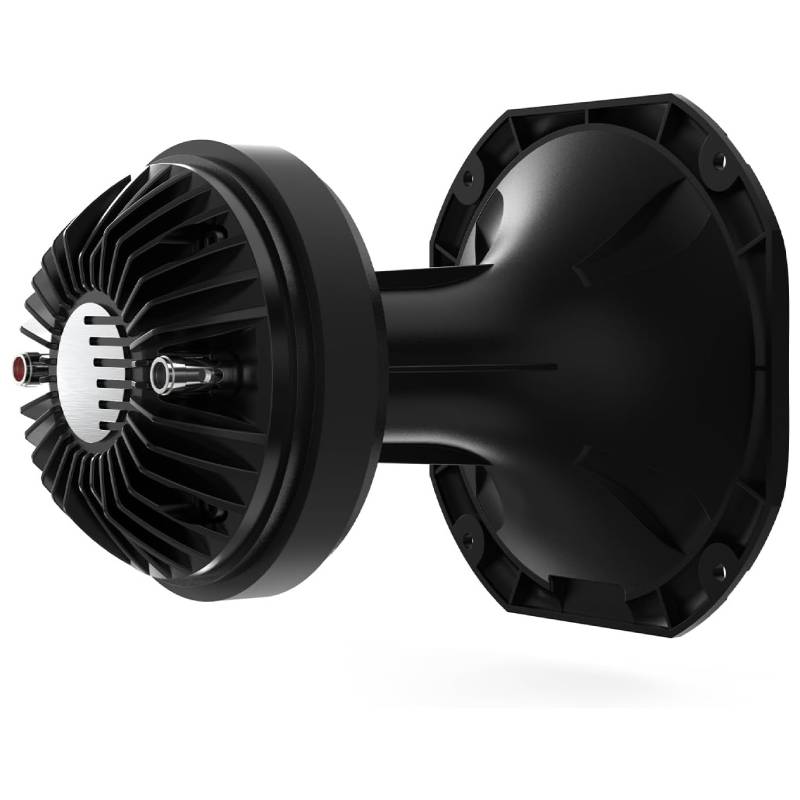

Orion XDK175 XTR Series 1.75" 600W Peak Power Handling at 8-Ohms, Compression Driver Kit with Horn (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1.75" Compression Driver Kit with Horn
- • Owner's Manual
Crystal Clarity and Powerful Precision
Experience stunning clarity and power with the Orion XDK175 compression driver, delivering crystal-clear highs that bring your music to life. Engineered to handle up to 600W of pure power, it delivers precise, dynamic sound that commands attention in any setup. With its titanium diaphragm and advanced CCAW voice coil, this driver ensures unmatched durability and audio accuracy for professional-grade performance.
Engineered for Power and Precision
Experience unmatched clarity and precision with the XDK175, delivering smooth, distortion-free highs across a wide frequency range. Its high 106 dB sensitivity ensures powerful, efficient sound projection that stands out in any environment. Built with a durable 30 oz ceramic magnet and optimized horn design, this driver offers long-lasting performance and perfectly balanced sound coverage.
Frequently Asked Questions (FAQ)
- • Why is my XDK175 much louder than the other speakers in my system?
Users have described the XDK175 as extremely loud and clear, which is consistent with its 106 dB sensitivity and horn-loaded design.
- • Why does my XDK175 sound harsh when the amplifier is turned up?
Because the driver is highly efficient and reaches into the upper frequencies, excessive amplifier gain or aggressive equalization can make the highs sound overly bright or harsh.
- • What amplifier should I use without overpowering the XDK175?
The XDK175 is rated at 150 watts RMS and 8 ohms, so an amplifier should be matched to its continuous power handling rather than its 600-watt maximum rating.
- • Why does my XDK175 work well with less power than I expected?
Its 106 dB sensitivity allows it to produce substantial acoustic output from relatively modest amplifier power, which matches customer reports of getting very high output while using only a fraction of its rated power.
- • Why are vocals and high frequencies missing when I connect the XDK175 by itself?
The XDK175 is a compression driver designed for high-frequency reproduction, with a specified response of approximately 1.2 kHz–20 kHz, so it needs to be integrated with appropriate midrange or midbass drivers.
- • Why does my XDK175 sound different when I move its horn position?
The included horn is designed around a 58° × 58° dispersion pattern, so changing its orientation can alter where the high-frequency energy is projected.
- • Why does the driver become unpleasantly loud after changing my crossover?
Lowering the crossover point can send more demanding lower-frequency content into a compression driver, so the XDK175 should be operated within an appropriate high-pass/crossover range.
- • Why doesn't my replacement horn line up with the original mounting position?
The XDK175 uses a specific 1.75-inch throat and compatible horn design, so replacement parts should be matched to the correct 1.75-inch compression-driver mounting configuration.
- • Why did my XDK175 arrive with signs of previous installation?
One online customer report described receiving a unit that appeared previously used, including remnants from an earlier installation; this appears to be an isolated product-condition complaint rather than a documented characteristic of the XDK175.
- • Why does my XDK175 sound clear even when I increase the volume substantially?
Customer reviews repeatedly describe the driver as loud and clear, while its high sensitivity and compression-driver construction are designed for efficient projection at high output levels.
- Diameter : 1.75 Inch
- RMS Power Range : 150 Watts
- Peak Power Handling : 600 Watts
- Tweeter Composition : Titanium
- Tweeter Type : Bullet
Features:
- CRYSTAL-CLEAR HIGHS: The Orion XDK175 compression driver with horn delivers superior high-frequency reproduction with remarkable detail, ensuring crisp and dynamic sound output in any system.
- POWERFUL PERFORMANCE: Built to handle 150W RMS and up to 600W Max Power, this 8-ohm driver projects sound with strength and precision, making it ideal for pro audio car builds and stage-quality setups.
- ADVANCED MATERIALS: Features a 1.75” CCAW voice coil with a titanium diaphragm, delivering exceptional durability, heat resistance, and audio accuracy even at high volumes.
- ENGINEERED FOR CLARITY: With a wide frequency response of 1.2kHz – 20kHz and a high sensitivity rating of 106 dB, the XDK175 ensures efficient sound dispersion and minimal distortion.
- DURABLE CERAMIC MAGNET STRUCTURE: Built with a robust 30 oz ceramic magnet and optimized horn design for balanced sound coverage (58º x 58º), this driver is engineered for reliable long-term performance.
Specifications:
- Size: 1.75"
- Peak Power Handling: 600W
- RMS Power Handling: 150W
- Color: Black
- Product Dimension: 9 x 7 x 6.75"
- Control Method: Voice
- Subwoofer Connectivity Technology: Wired
- UPC: 818550014831
- Weight: 4.9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
