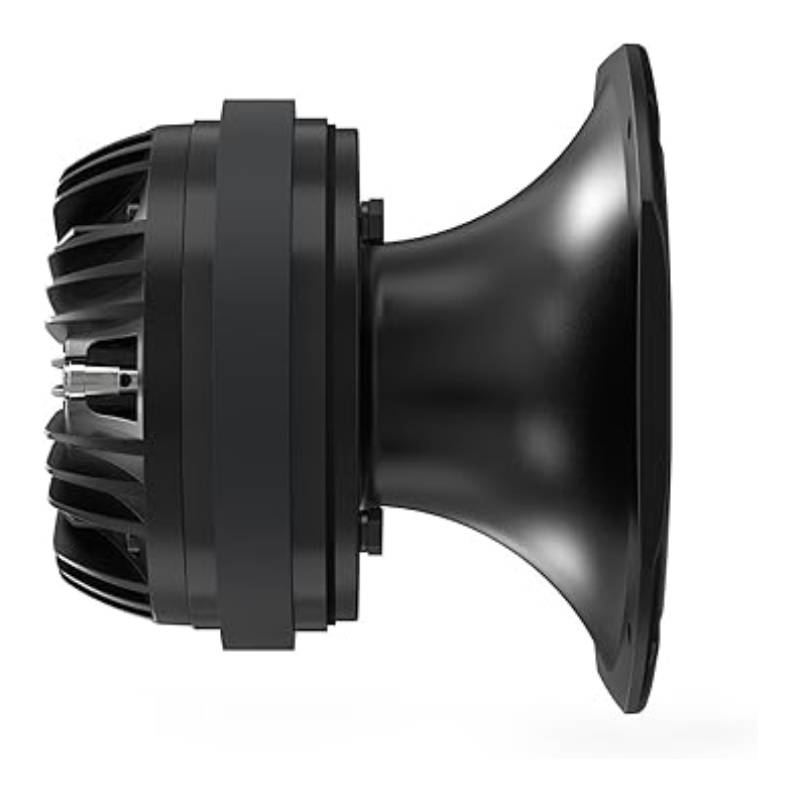

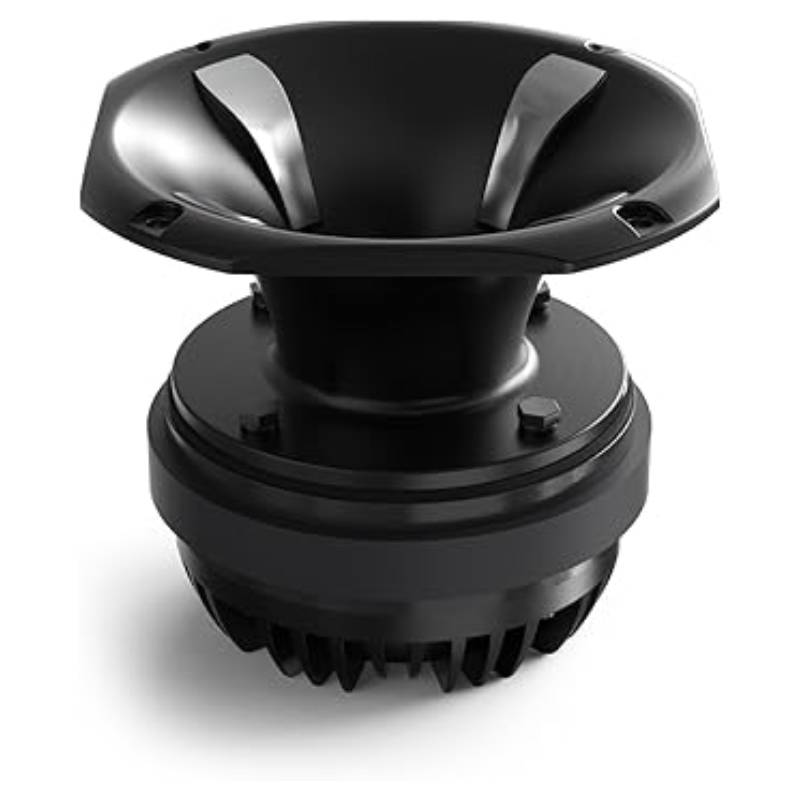

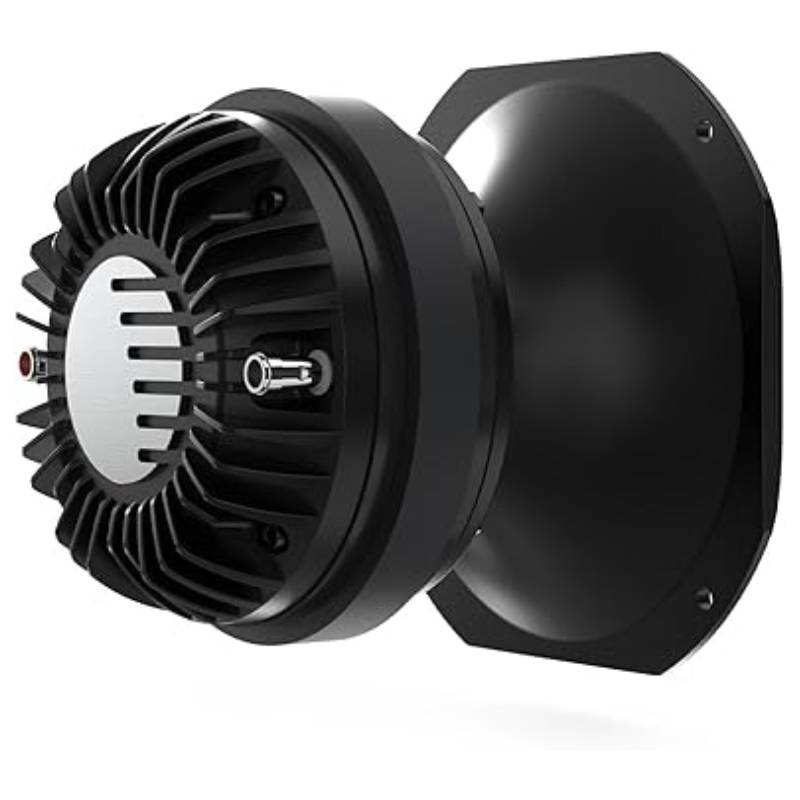

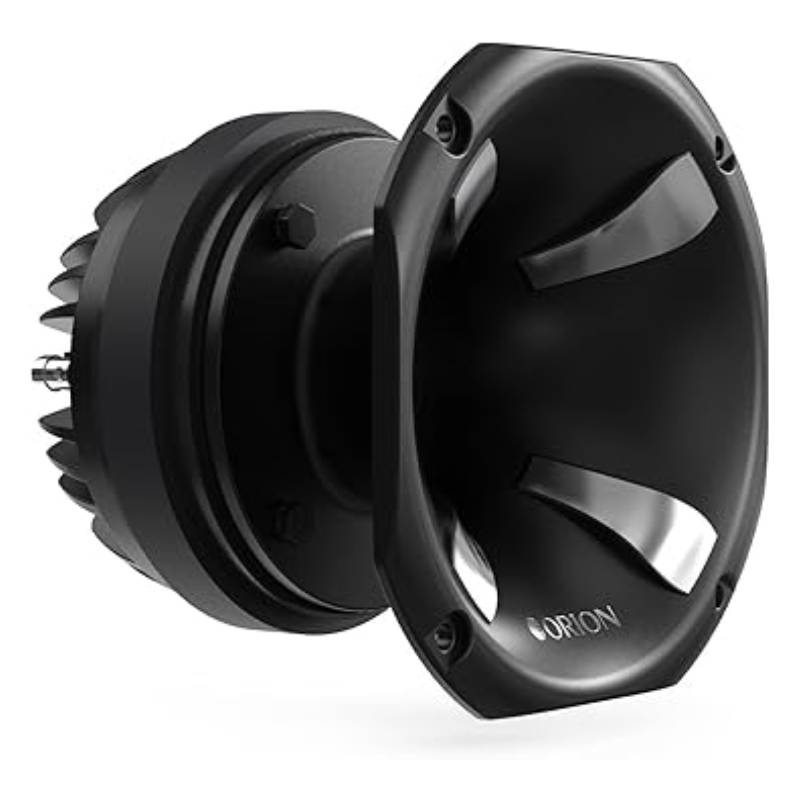

Orion XDK200 XTR Series 2" 800W Peak Power Handling at 8-Ohms, Compression Driver Kit with Horn (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2" Compression Driver Kit with Horn
- • Owner's Manual
Unleash Pure High-Frequency Power
Experience unmatched clarity and precision with the Orion XDK200, delivering crisp, high-frequency sound that elevates any audio setup. With up to 800W of powerful, distortion-free output, this driver ensures your music is heard loud and clear. Crafted with a titanium diaphragm and 2” CCAW voice coil, it delivers pro-level durability, accuracy, and lasting performance.
Precision Sound. Powerful Coverage.
Experience every detail of your music with the XDK200’s expanded frequency range, delivering precise and crystal-clear highs. Its impressive 108 dB sensitivity ensures wide, powerful sound coverage with minimal distortion. Built with a durable 33 oz ceramic magnet and optimized horn design, it offers balanced projection and reliable long-term performance.
Frequently Asked Questions (FAQ)
- • Why does the XDK200 sound much louder than the rest of my speakers?
Its approximately 108 dB sensitivity allows the compression driver to produce substantial output from relatively modest amplifier power.
- • What can make the XDK200 highs sound too aggressive?
Excessive gain, EQ boost, or an unsuitable crossover point can make the highly efficient titanium driver sound overly pronounced.
- • Why am I getting weak vocals even though the XDK200 is working?
The XDK200 is designed primarily for high-frequency reproduction, so it needs to be blended with midrange speakers rather than used as a full-range driver.
- • What should I check if the horn seems louder on one side?
Differences in horn aiming, mounting position, wiring, or channel gain can cause uneven sound coverage between two XDK200 units.
- • Can an amplifier rated for 4 ohms power the XDK200 correctly?
The XDK200 is an 8-ohm driver, so the amplifier should be checked to ensure it can safely operate at that impedance.
- • Why does the XDK200 distort when I push the volume higher?
Clipping, excessive amplifier gain, an improperly configured crossover, or sustained power beyond its 200W RMS rating can contribute to distortion.
- • What if the XDK200 does not physically fit my existing horn setup?
Mounting compatibility should be verified before installation because the compression driver and horn need to match mechanically as well as electrically.
- • Why does changing the horn position alter the sound so much?
The horn controls how the driver's high frequencies are dispersed, so its orientation and mounting location can noticeably change perceived coverage.
- • Is the XDK200 supposed to have strong bass output?
No, its purpose is high-frequency projection rather than bass reproduction, with its design intended to add clear and powerful upper-range detail.
- • What are owners saying about the XDK200's overall sound?
Available customer feedback is positive, including reports describing the driver as “nice and loud” with good sound quality and another owner saying two units produced powerful, clear sound.
- Diameter : 2 Inch
- RMS Power Range : 200 Watts
- Peak Power Handling : 800 Watts
- Tweeter Composition : Titanium
- Tweeter Type : Bullet
Features:
- HIGH-FREQUENCY PRECISION: The Orion XDK200 compression driver with horn is engineered to deliver crystal-clear highs and dynamic sound detail, perfect for pro-level car audio systems.
- POWERFUL OUTPUT: Handles 200W RMS and up to 800W Max Power at 8 ohms, making it capable of filling any system with loud, clean, and efficient sound projection.
- PRO AUDIO MATERIALS: Built with a 2” CCAW voice coil and titanium diaphragm, the XDK200 provides durability, thermal resistance, and superior frequency accuracy.
- EXPANDED FREQUENCY RANGE: With a response of 1kHz – 20kHz and a sensitivity of 108 dB, this driver ensures precise highs with wide coverage and minimal distortion.
- CERAMIC MAGNET & WIDE DISPERSION: Features a strong 33 oz ceramic magnet and optimized horn with a 62º x 62º coverage angle, offering balanced sound projection and long-lasting performance.
Specifications:
- Size: 2"
- Peak Power Handling: 800W
- RMS Power Handling: 200W
- Impedance: 8 Ohms
- Subwoofer Connectivity Technology: Wired
- Product Dimensions: 9 x 7 x 6.5"
- UPC: 818550014848
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
