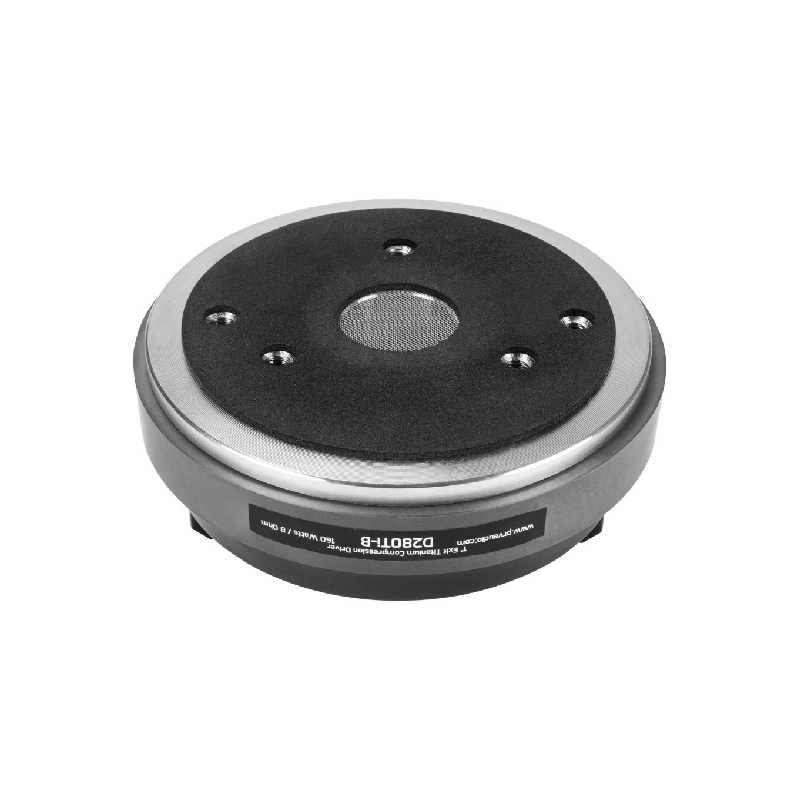

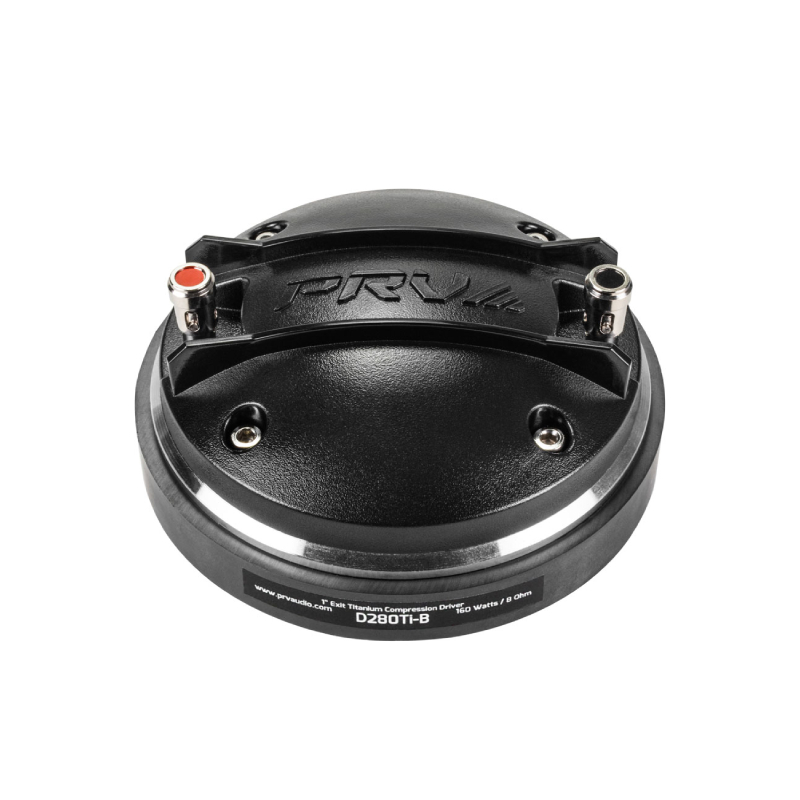

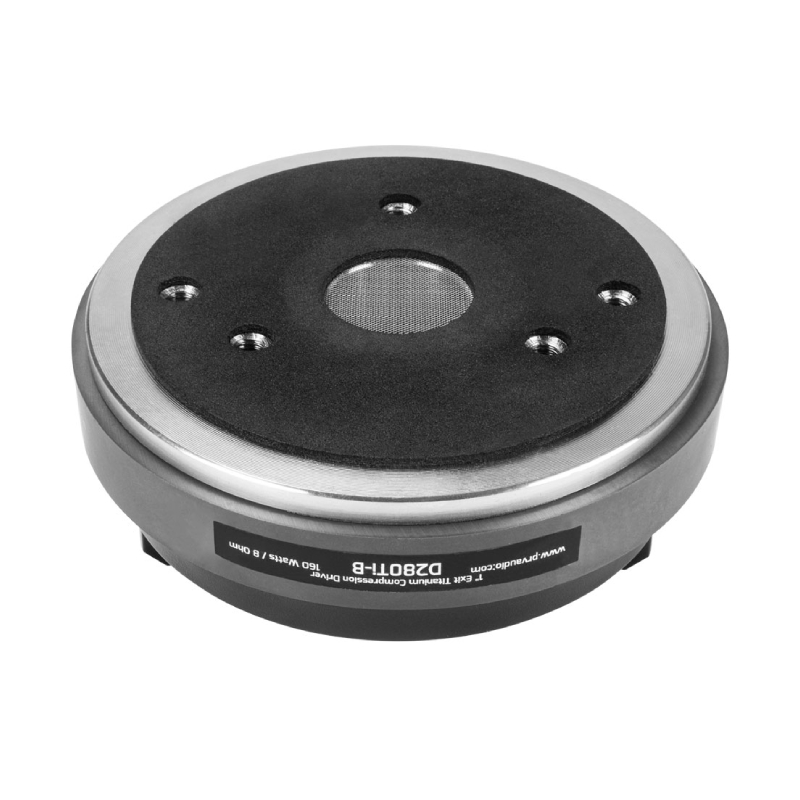

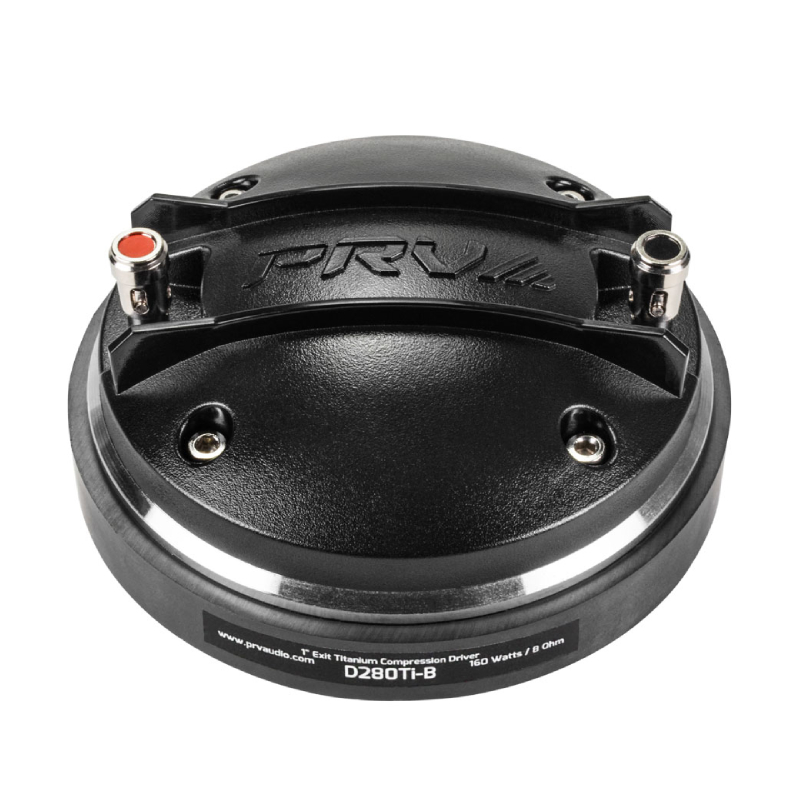

PRV Audio D280Ti-B Series 1" 160W RMS (320W Peak Power Handling) 8 Ohm, Exit Bolt-On Titanium Compression Driver (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1" D2 Series Exit Bolt-On Titanium Compression Driver
- • Owner's Manual
Clean Highs With Serious Output Control
The PRV Audio D280Ti-B is built for setups that need powerful, clean high frequency performance without losing control. With 109 dB sensitivity, it delivers detailed and efficient projection that easily cuts through loud environments in both car audio and professional systems. The bolt-on 1 inch exit configuration gives you a secure fit with a wide range of horn and cabinet setups, making installation solid and dependable.
Titanium Detail That Stays Sharp Under Pressure
This driver uses a titanium diaphragm designed to produce crisp, accurate highs with low distortion even when pushed hard. Covering 1,300 Hz to 20,000 Hz, it delivers extended high frequency response that keeps vocals and instruments bright and clear. The 1.75 inch CCAW high temperature voice coil ensures stable thermal handling, so performance stays consistent during long sessions at high volume.
Built for Flexible Installs and Real World Systems
Whether you are upgrading a car audio build, tuning a DJ rig, or working on a PA system, this driver is designed to fit right in. It supports up to 160 watts RMS program power, giving you strong and controlled output for demanding use. The included bolt-on to screw-on adapter adds installation flexibility across different setups, while DSP recommended crossover tuning helps keep everything clean, protected, and distortion free even at high output levels.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio D280Ti-B sound weak compared to my midrange speakers?
This is often caused by improper gain matching, incorrect crossover settings, or using a horn that does not complement the driver. Proper tuning can greatly improve output.
- • Can the PRV Audio D280Ti-B handle high volume for long periods?
Yes. When used within its recommended power range and protected by the proper crossover, it is designed to provide reliable performance during extended listening sessions.
- • Why is my PRV Audio D280Ti-B making a crackling sound?
Crackling can be caused by a damaged diaphragm, loose wiring, poor amplifier connections, or a clipped audio signal. Inspect each component before replacing the driver.
- • Do I need a horn adapter for the PRV Audio D280Ti-B?
The driver should be installed on a compatible screw on horn. Always verify the thread size and horn compatibility before installation.
- • Why did my PRV Audio D280Ti-B suddenly stop producing sound?
A blown diaphragm, disconnected wiring, failed crossover, or amplifier issue are the most common causes. Testing each part of the system can help identify the problem.
- • Can I pair the PRV Audio D280Ti-B with bullet tweeters?
Yes. Many users combine compression drivers with bullet tweeters, but proper crossover points and level matching are important to maintain a balanced sound.
- • Why do female vocals sound too bright on my PRV Audio D280Ti-B?
Overly bright vocals are usually the result of aggressive equalizer settings or crossover adjustments. Reducing high frequency boost can create a smoother response.
- • Is the PRV Audio D280Ti-B a good option for PA speaker builds?
Yes. It is commonly used in portable PA systems, stage speakers, and high efficiency audio setups where clear vocal reproduction is important.
- • How can I tell if the diaphragm in my PRV Audio D280Ti-B is damaged?
Signs include distorted sound, reduced output, intermittent audio, or complete loss of high frequencies. Inspecting or testing the diaphragm can confirm the issue.
- • What maintenance should I perform on the PRV Audio D280Ti-B?
Regularly check the mounting hardware, wiring, horn connection, and crossover components. Keeping the system properly tuned and free from amplifier clipping helps ensure dependable long term performance.
- Diameter : 1 Inch
- RMS Power Range : 160 Watts
- Peak Power Handling : 320 Watts
Features:
- High Power Handling Capability: Supports up to 160 watts RMS program power for strong and controlled output.
- Lightweight Performance Design: Optimized structure reduces cabinet weight while maintaining high output capability for mobile and touring systems.
- High Sensitivity Output: Delivers 109 dB efficiency for powerful and detailed high frequency projection in professional and car audio systems.
- Titanium Diaphragm Design: Produces sharp, accurate highs with low distortion and excellent rigidity under high power conditions.
- Wide Frequency Response Range: Covers 1,300 Hz to 20,000 Hz for clear and extended high frequency reproduction.
- Bolt-On 1 Inch Exit Configuration: Provides secure installation with compatibility for many professional horn and cabinet systems.
- High Temperature Voice Coil: Uses a 1.75 inch CCAW voice coil for stable thermal handling and consistent performance.

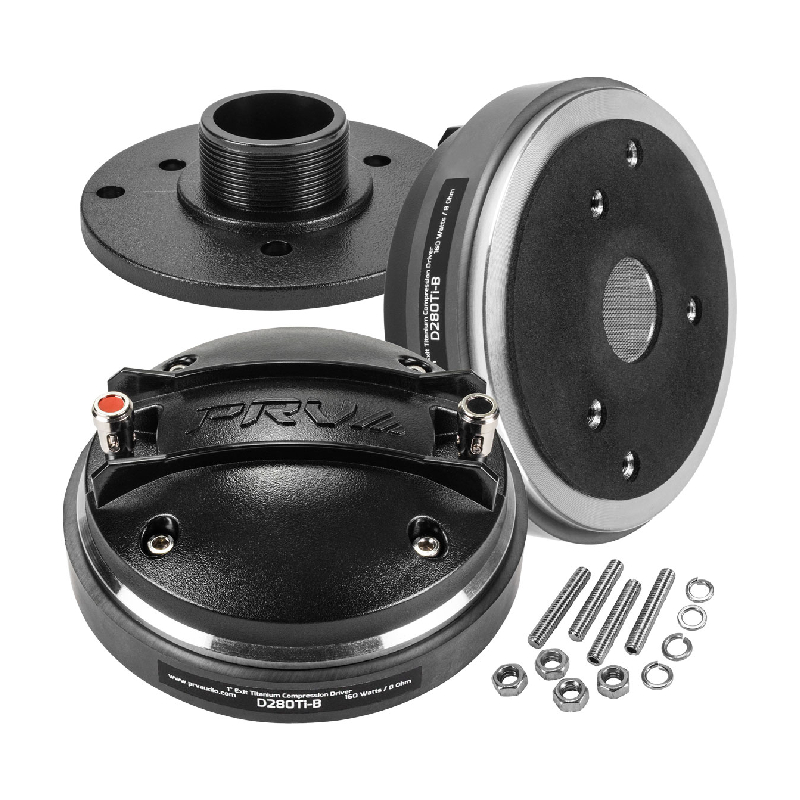

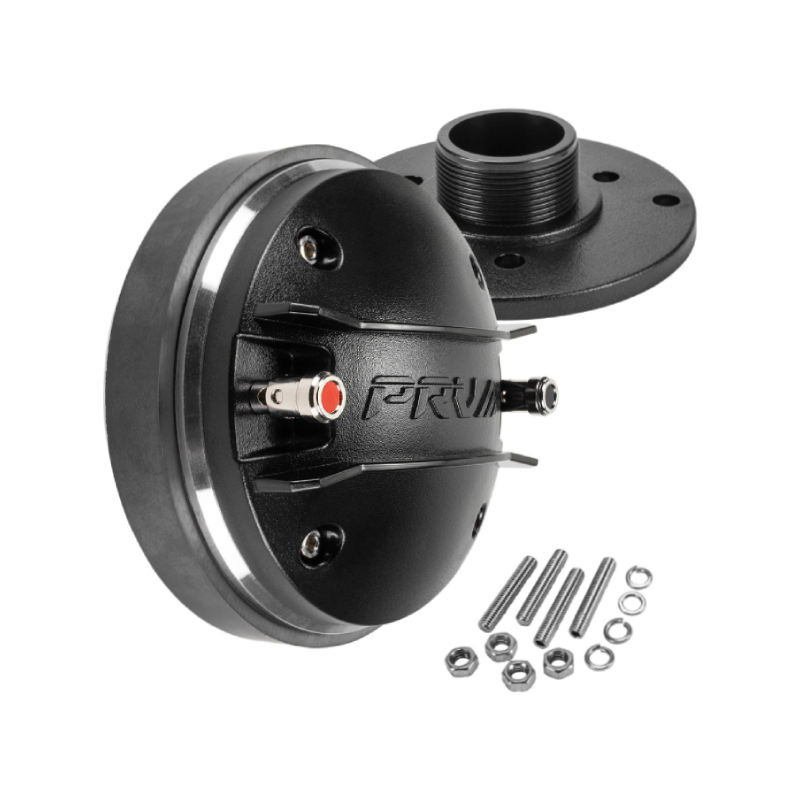

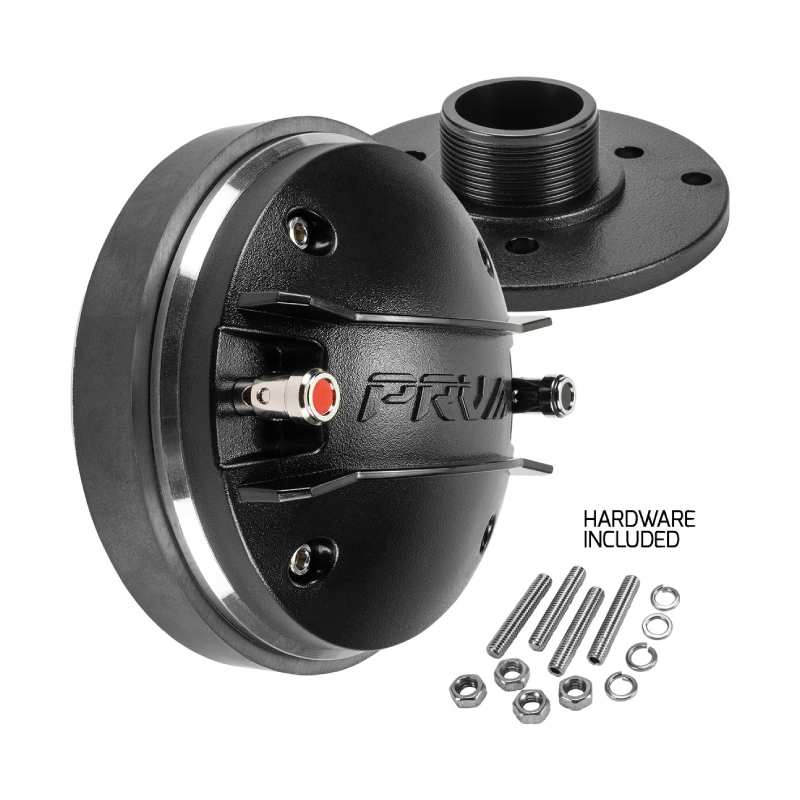

- Easy Upgrade Compatibility: Includes bolt-on to screw-on adapter for flexible installation in various pro audio setups.
- Optimized for Vocal Clarity: Designed for precise mid high reproduction in DJ, PA, and car audio applications.
- DSP Recommended Operation: Performs best with proper high pass crossover settings for clean, distortion free output.
Specifications:
- Exit Throat Diameter: 1” (25.4mm)
- Nominal impedance: 8 Ohm
- Nominal Power Handling: 80 Watts
- Continuous Program Power (RMS): 160 Watts
- Peak Power: 320 Watts
- Sensitivity 2.83V at 1m 109 dB
- Recommended Hi Pass Crossover For Full Power Handling: 1800 Hz 12db Per Octave Crossover
- Frequency Response at -10dB:1300 – 20,000 Hz
- Voice Coil Diameter: 1.75”(44.4 mm)
- Voice Coil Wire: CCAW
- Voice Coil Former Material Kapton
- Diaphragm Material Titanium
- Flux Density: 1.65 T
- Magnet Material: Ferrite
- UPC: 810075524918
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
