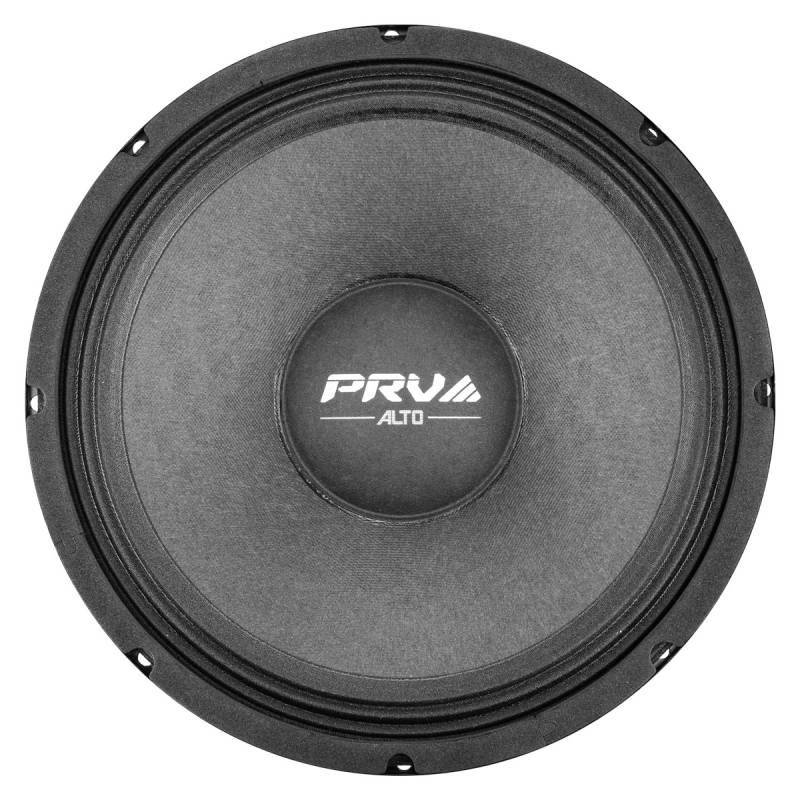

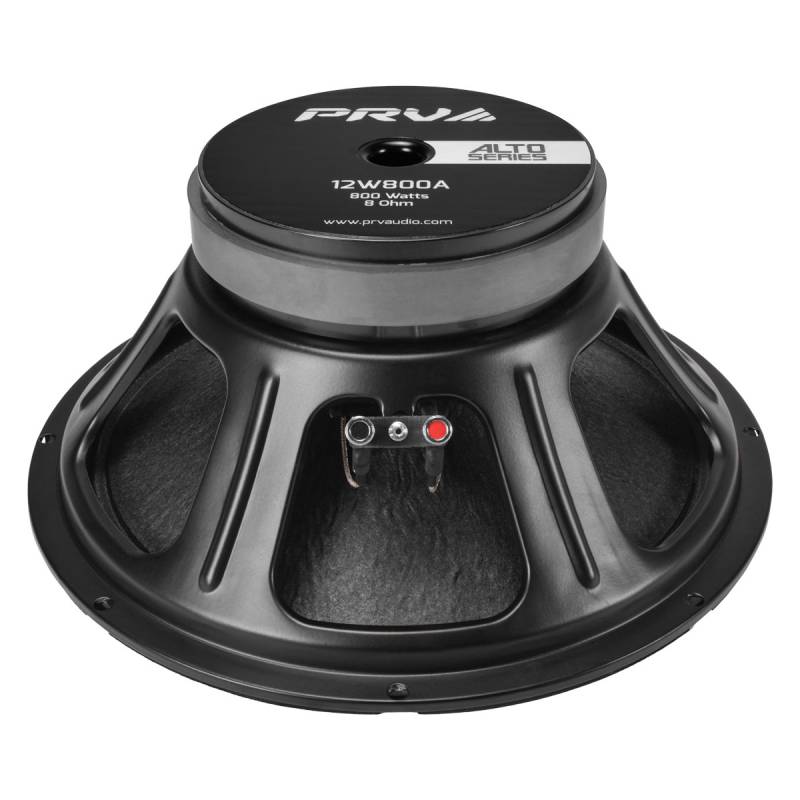

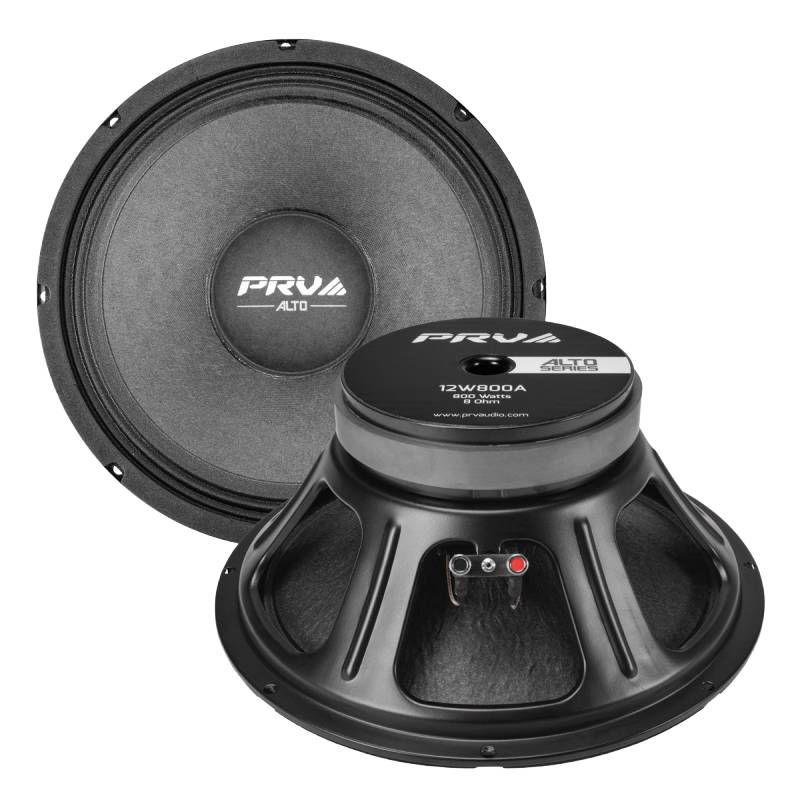

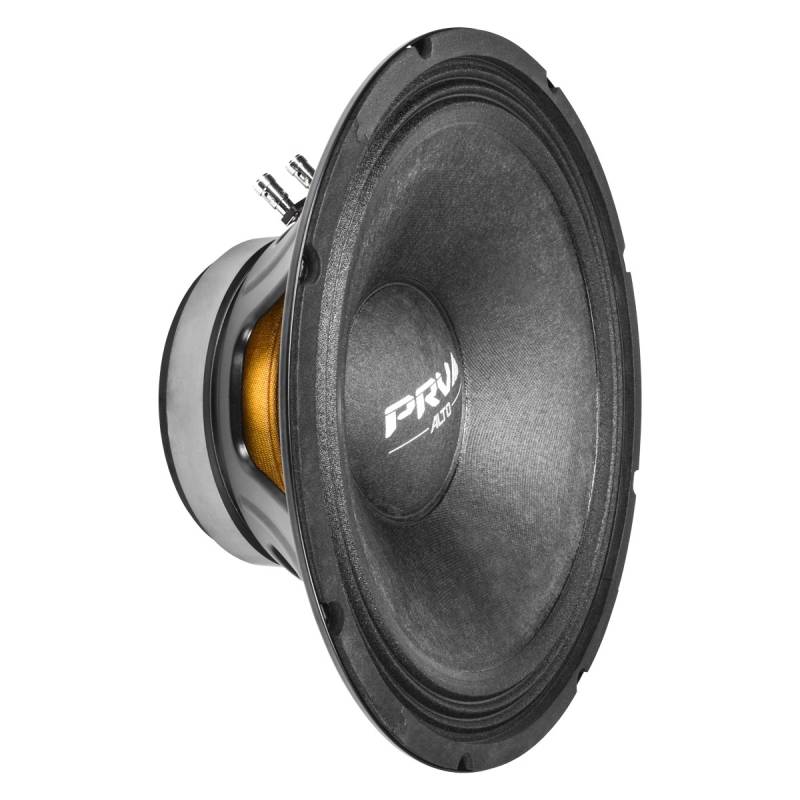

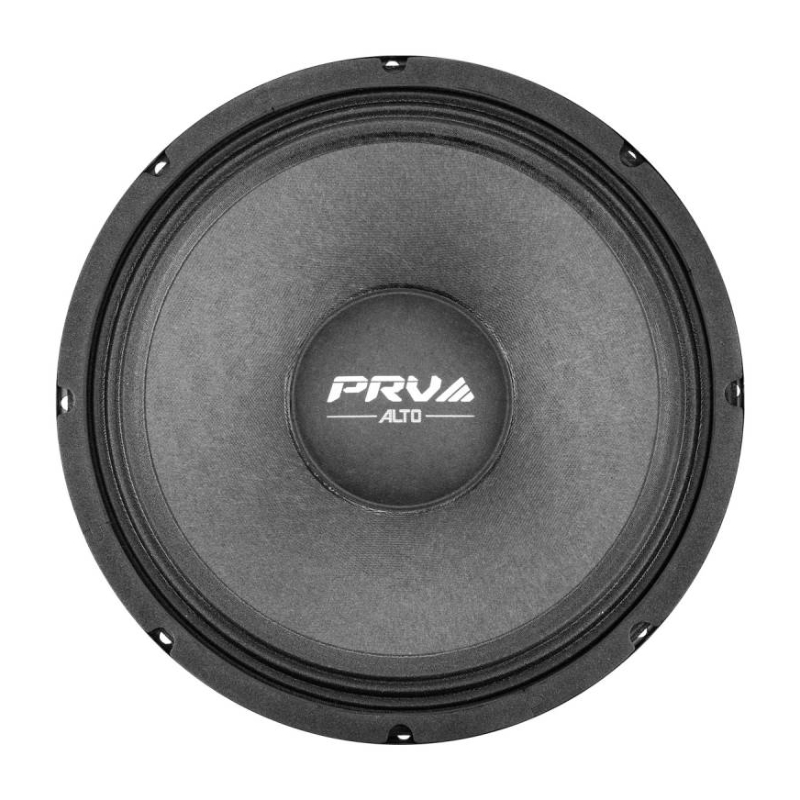

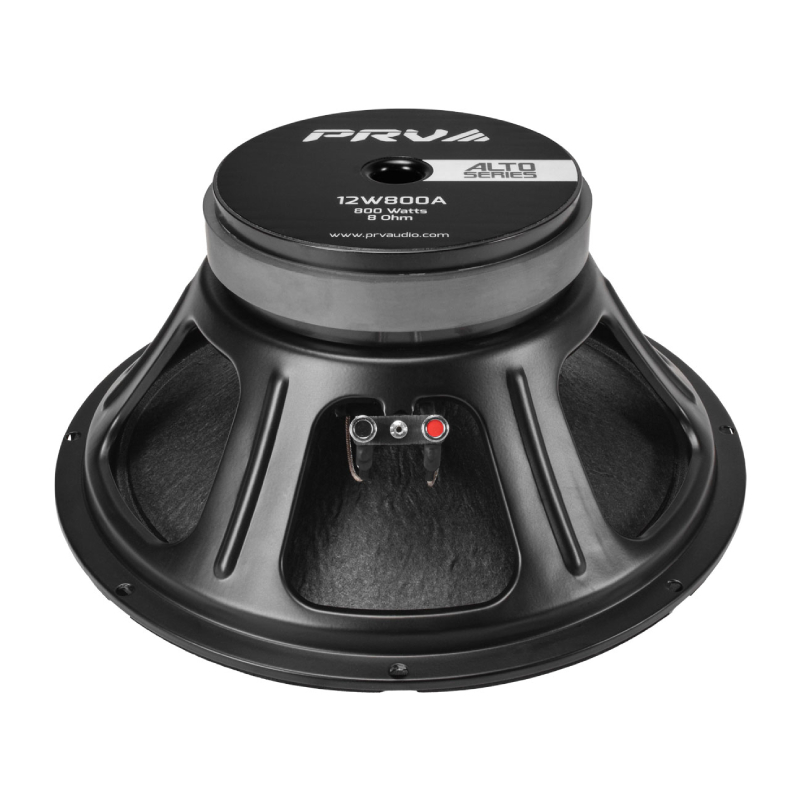

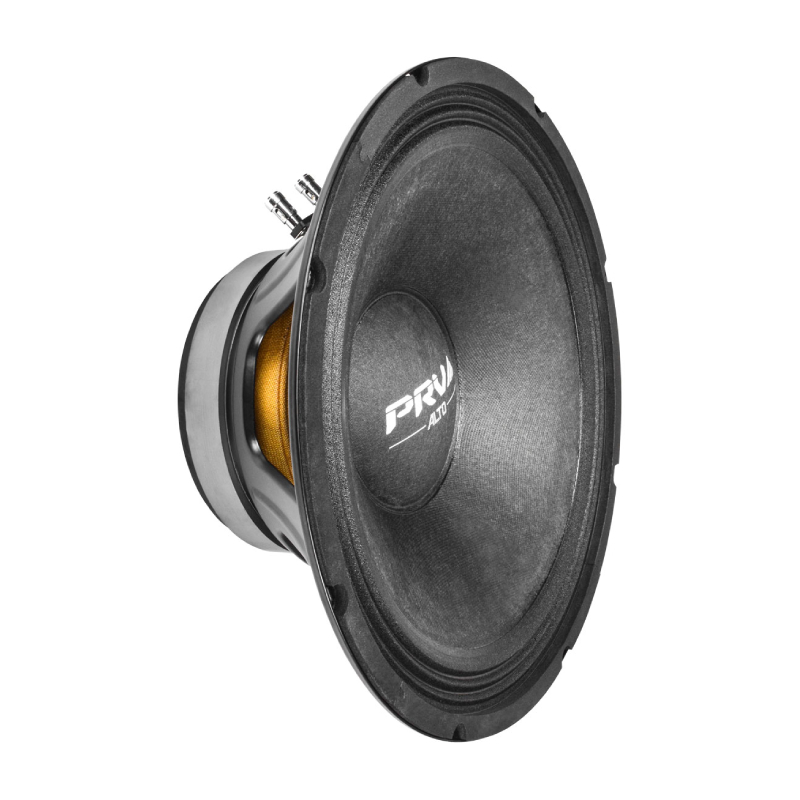

PRV Audio 12W800A ALTO Series 12" 800W RMS (1600W Peak Power Handling) at 8-Ohms, Midbass Car Speaker (Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" ALTO Series Midbass Car Speaker
- • Installation Accessories
- • Owner's Manual
Midbass Punch That Hits Clean and Hard
The PRV Audio 12W800A is built for car audio fans who want that strong midbass punch without losing clarity. It delivers powerful and controlled low frequency impact with upgraded excursion performance that keeps everything tight even when you crank it up. With 800 watts program power handling and 97 dB sensitivity, it gives you loud, efficient output that makes your system feel alive without overworking your amplifier.
Pro Level Control in a Compact Setup Friendly Design
This speaker is tuned for real world installs, especially compact ported enclosures where space is limited but performance still matters. Its extended 55 Hz to 5800 Hz range makes it flexible enough for midbass or midrange duties in two way or three way systems. The lightweight 2.5 inch CCAW voice coil with polyimide former keeps things responsive and efficient, while the multi roll surround and large spider system ensure stable cone movement even under heavy load. The result is clean, controlled sound that stays smooth even at high volume.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 12W800A sound weak even with a powerful amplifier?
Weak output is often caused by an enclosure that does not match the woofer's specifications, incorrect crossover settings, or amplifier gains that are not properly adjusted.
- • Can I use the PRV Audio 12W800A in a sealed enclosure instead of a ported one?
Yes. It can operate in a sealed enclosure, but the bass response and overall performance will vary depending on the enclosure design and your listening preferences.
- • Why does my 12W800A make a popping noise during heavy bass?
Popping usually indicates excessive cone movement caused by overpowering the woofer or sending frequencies below its recommended operating range. A properly adjusted high-pass filter can help.
- • Is the PRV Audio 12W800A a good choice for DJ speaker cabinets?
Yes. Many builders use it in portable PA and DJ systems because it delivers strong bass and high efficiency for live sound applications.
- • Why does my woofer vibrate the speaker box at certain frequencies?
Strong bass output can expose loose enclosure panels, mounting screws, or internal braces. Reinforcing the enclosure often eliminates unwanted vibrations.
- • Can I wire multiple PRV Audio 12W800A woofers to one amplifier?
Yes, provided the total speaker impedance is compatible with the amplifier and sufficient clean RMS power is available.
- • Why does my amplifier clip before the PRV Audio 12W800A reaches full output?
This may be caused by incorrect gain settings, low charging system voltage, or an amplifier that cannot provide enough continuous power.
- • Does the PRV Audio 12W800A require a custom enclosure for the best results?
Many users achieve the best bass performance by building an enclosure that follows the recommended dimensions and tuning specifications.
- • Why does my bass sound muddy instead of tight?
Muddy bass is often the result of poor enclosure design, excessive bass boost, or crossover settings that overlap with other speakers in the system.
- • How can I improve the bass performance of my PRV Audio 12W800A?
Use a properly designed enclosure, match the woofer with a quality amplifier, optimize the crossover settings, and eliminate air leaks to achieve tighter and more powerful bass.
- Diameter : 12 Inch
- Sensitivity : 97 dB
- Impedance : 8 Ohm
- Frequency Response : 55-5800 Hz
- Peak Power Handling : 1600 Watts
- RMS Power Handling : 800 Watts
Features:
- Enhanced High Output Midbass Performance: Delivers powerful and controlled low frequency impact with improved excursion and 800 watts program RMS handling for demanding audio systems.
- High Sensitivity Efficiency Design: Achieves 97 dB sensitivity for strong acoustic output with reduced amplifier load, ensuring clear and efficient sound reproduction.
- Extended Frequency Response Range: Covers 55 Hz to 5800 Hz, making it suitable for midbass and midrange applications in two way and three way speaker configurations.
- Improved 5.72 mm Xmax Capability: Provides increased cone travel for deeper bass response while maintaining clarity and stability under high output conditions.
- Lightweight 2.5 Inch Voice Coil System: Uses a CCAW voice coil with polyimide former to balance thermal durability, efficiency, and reduced moving mass.
- Precision Suspension Engineering: Features a multi roll surround and large spider assembly for controlled movement and consistent performance under load.
- Compact Enclosure Optimization: Designed for small ported boxes and custom car audio installations requiring strong output in limited space.
- Low Distortion Acoustic Tuning: Engineered for smooth and accurate sound reproduction even at high volume levels.
- ALTO Series Professional Design: Built for audio enthusiasts and professionals seeking a balance of high output, clarity, and tonal accuracy.
Specifcations:
- Nominal Diameter: 12″ (305 mm)
- Nominal impedance: 8 Ohm
- Nominal Power Handling: 400 Watts
- Continuous Program Power (RMS): 800 Watts
- Max Peak Power: 1600 Watts
- Sensitivity 2.83V at 1m: 97 dB
- Frequency Response at -10dB: 55 – 5800 Hz
- Voice Coil Diameter: 2.5″ (65 mm)
- Voice Coil Wire: CCAW
- Voice Coil Winding Depth: 16.2 mm
- Former Material: Polyimide
- Magnetic Gap Depth: 6.5 mm
- Frame Material: Stamped Steel
- Overall Diameter: 12.03” (305.5 mm)
- Front Mount Baffle Cutout: 11.06” (281 mm)
- Mounting Depth: 4.96” (126 mm)
- Overall Depth: 5.22” (132.5 mm)
- UPC: 0619620088338
- Weight: 10.8
