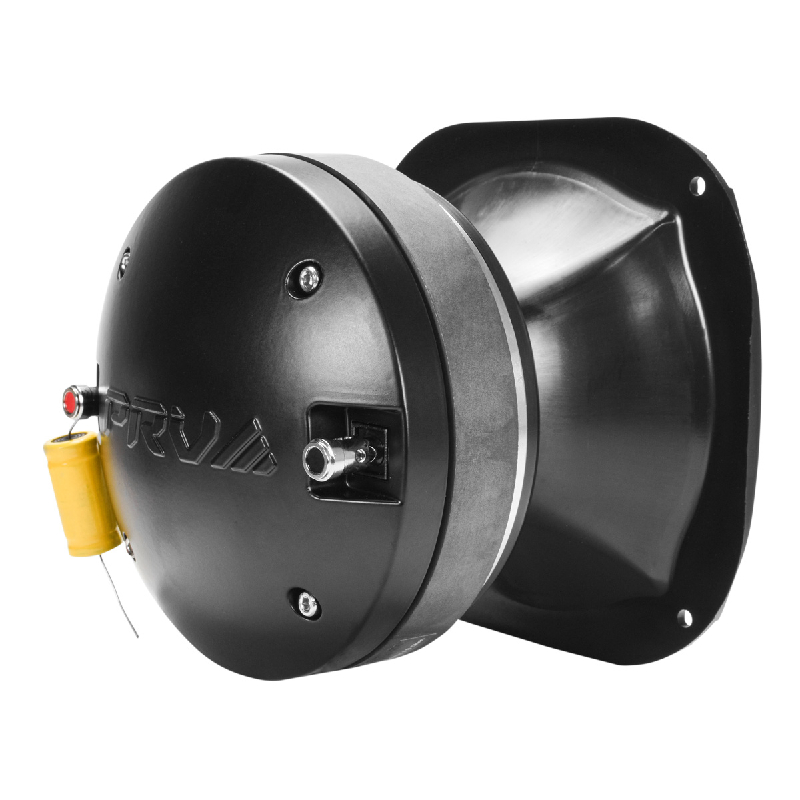

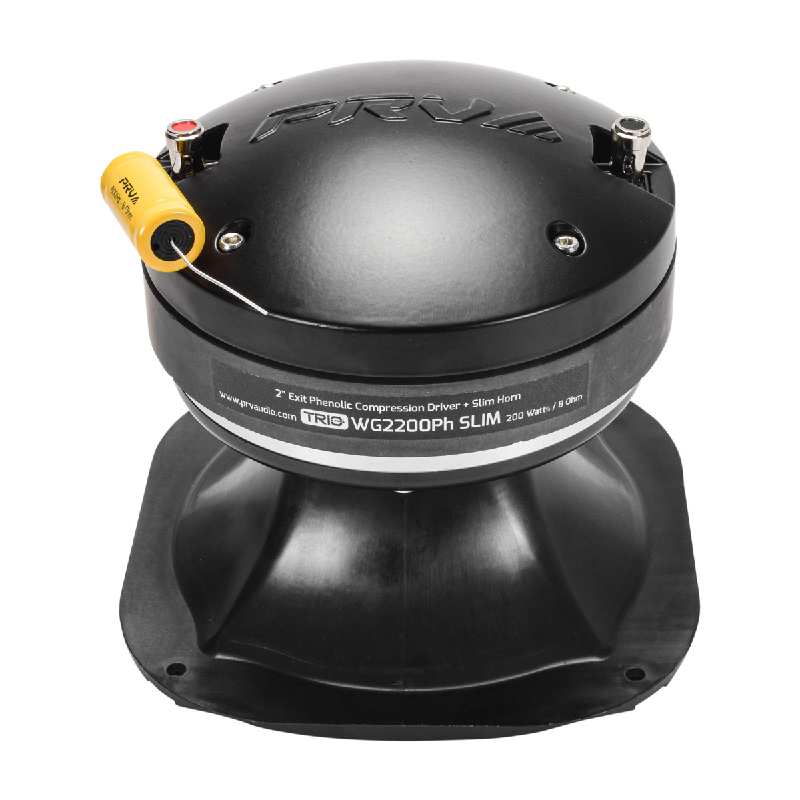

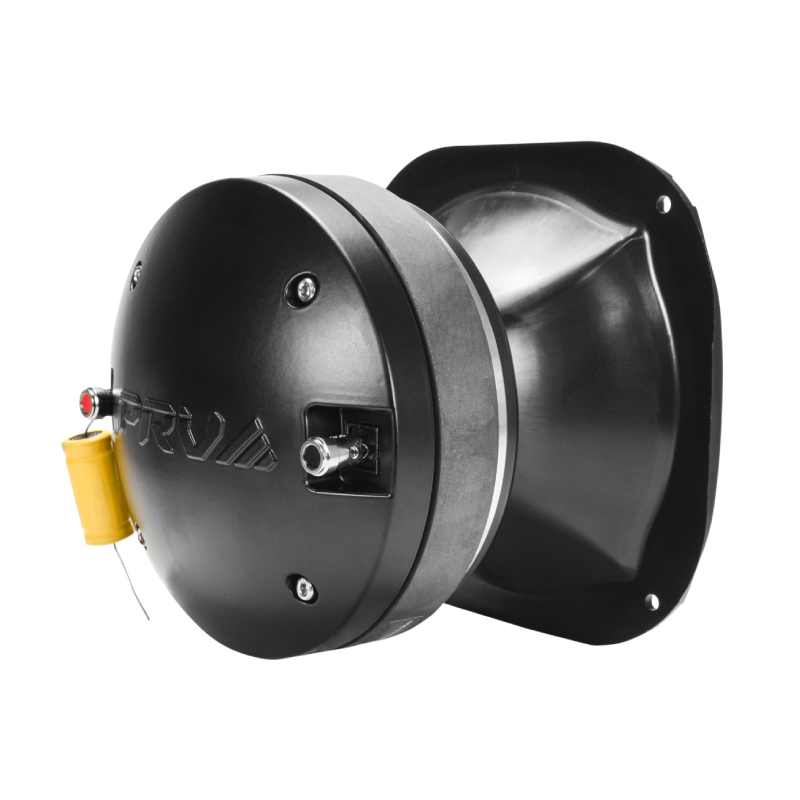

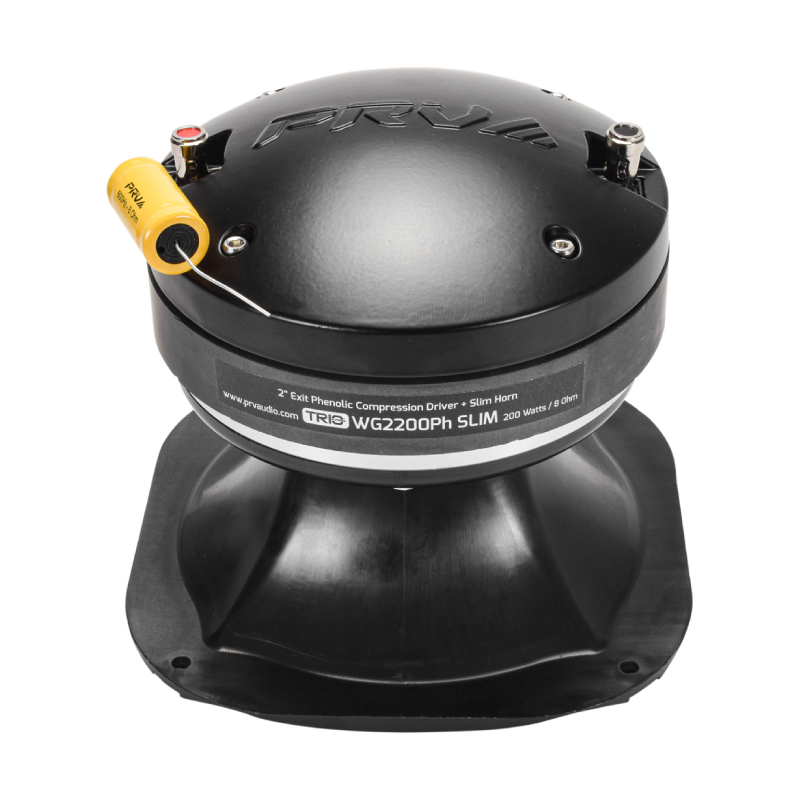

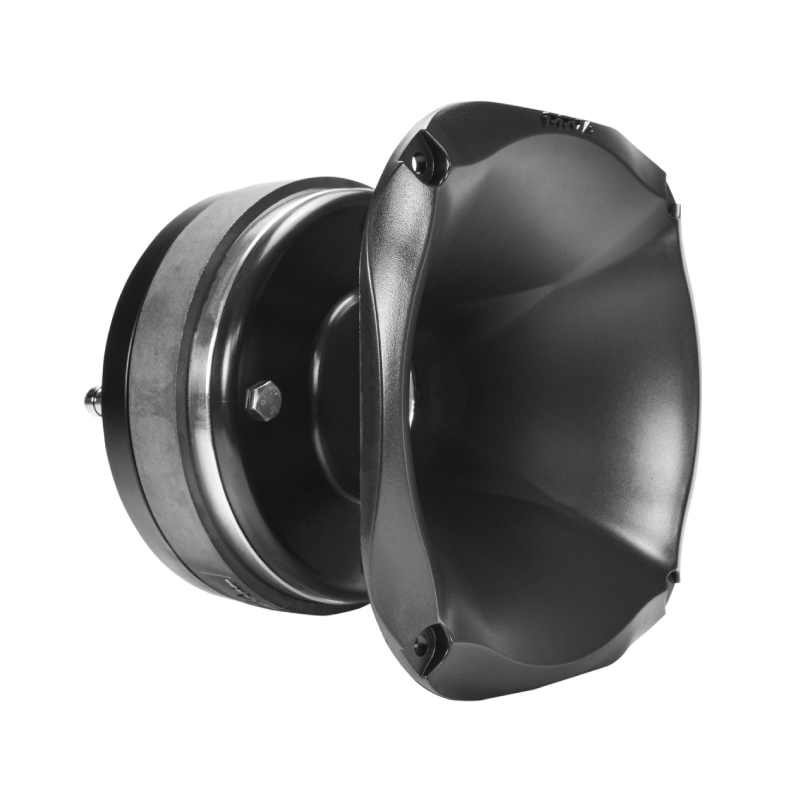

PRV Audio WG2200Ph SLIM Series 2" 200W RMS (400W Peak Power Handling) 8 Ohm, Phenolic Vocal Compression Horn Driver (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Slim Build, Loud Vocal Authority Anywhere
The PRV Audio WG2200Ph SLIM Vocal Compression Horn Driver is built for setups where space is tight but vocal impact still needs to be huge. Its compact high-output compression design makes it easy to integrate into custom car audio, home rigs, or full PRO systems without sacrificing presence. Even in a slim form factor, it delivers strong midrange projection that keeps vocals upfront and clear no matter how loud the system gets.
Smooth Phenolic Tone That Keeps Vocals Natural
This driver uses a phenolic diaphragm to bring out warm, natural vocal reproduction that stays easy to listen to even at high volume. With a dedicated tuning range from 800 Hz to 9,000 Hz, it focuses right where vocals live, making speech and singing sound full and intelligible. At 107 dB sensitivity, it delivers loud output with very little power demand, making it efficient and perfect for high-SPL builds that still need clarity.
Built Strong for Real-World Power and Easy Installation
Inside, a 2-inch copper-clad aluminum voice coil and ferrite motor system provide solid durability and stable performance under heavy use. It supports 100W RMS and up to 200W program power, giving you the headroom needed for demanding audio setups. The WGP14-50X slim waveguide improves output in tight spaces, while the front-mount design keeps installation simple and fast without removing the driver from the horn, making custom builds way easier to complete.
Frequently Asked Questions (FAQ)
- • Why won't my PRV Audio WG2200Ph SLIM fit in my custom door panel?
Even with its slim profile, installation space can vary between vehicles. Measure the available depth and mounting area before installing the horn.
- • Can I use the PRV Audio WG2200Ph SLIM with a compression driver from another brand?
Yes. It may be compatible if the compression driver uses the same mounting thread and specifications. Always verify compatibility before installation.
- • Why do my vocals sound more directional after installing the PRV Audio WG2200Ph SLIM?
The horn is designed to control sound dispersion. Adjusting its angle and position can improve coverage and create a more balanced listening experience.
- • Does the PRV Audio WG2200Ph SLIM affect the sound quality of my compression driver?
The horn influences sound dispersion and projection. When matched with a compatible compression driver and properly tuned, it can help deliver clear and efficient high frequency performance.
- • Why is my PRV Audio WG2200Ph SLIM vibrating at high volume?
Vibration is commonly caused by loose mounting hardware, an improperly secured compression driver, or flexible mounting surfaces that resonate during playback.
- • Can the PRV Audio WG2200Ph SLIM be installed in motorcycle audio systems?
Yes. Its slim design makes it a popular choice for motorcycles, UTVs, and other compact installations where mounting space is limited.
- • Why does one PRV Audio WG2200Ph SLIM sound louder than the other?
Uneven output is usually related to amplifier settings, crossover adjustments, wiring polarity, or differences in the connected compression drivers rather than the horn itself.
- • Can I customize the color of the PRV Audio WG2200Ph SLIM?
Yes. Many users paint the horn to match their custom audio build. Apply a light coat and avoid covering the horn opening or threaded mounting area.
- • Why is my compression driver difficult to thread onto the PRV Audio WG2200Ph SLIM?
This can happen if the threads are not aligned correctly, debris is present, or the driver uses a different thread specification. Never force the connection to avoid damaging the threads.
- • How do I keep the PRV Audio WG2200Ph SLIM performing like new?
Keep the horn clean, inspect the mounting hardware regularly, ensure the compression driver remains securely attached, and protect the assembly from impacts and prolonged exposure to moisture for reliable long term performance.
- Diameter : 2 Inch
- RMS Power Range : 200 Watts
- Peak Power Handling : 400 Watts
Features:
- Compact High-Output Vocal Compression Design: Engineered for powerful midrange vocal reinforcement in a slim form factor, ideal for tight custom installations in car, home, and PRO audio systems.
- Phenolic Diaphragm Smooth Vocal Accuracy: Utilizes a durable phenolic diaphragm to deliver warm, natural, and highly intelligible vocal reproduction with reduced harshness in critical listening ranges.
- Strong Midrange Sensitivity Performance: Achieves 107 dB sensitivity, enabling loud and efficient output with minimal power requirements for high-SPL applications.
- High Power Handling Capability: Supports 100W RMS and up to 200W continuous program power, ensuring stable performance under demanding audio conditions.
- Dedicated Vocal Frequency Range Tuning: Optimized for 800 Hz to 9,000 Hz operation, providing strong vocal projection and seamless integration in multi-way systems.
- Shallow Mount Waveguide Integration: Paired with the WGP14-50X slim horn design, allowing improved output in compact spaces without sacrificing performance.
- Front-Mount Installation Convenience: Designed for easy installation without removing the driver from the horn, simplifying custom build workflows.
- Durable PRO Audio Construction: Built with a 2” copper-clad aluminum voice coil and ferrite motor system for long-term reliability and consistent high-output performance.
Specifications:
- Exit Throat Diameter: 2” (50 mm)
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 100 W
- Continuous Program Power (RMS): 200 W
- Peak Power Handling: 400 W
- Sensitivity (2.83V @ 1m): 107 dB
- Recommended High-Pass Crossover: 800 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 800 – 9,000 Hz
- Voice Coil Diameter: 2” (51 mm)
- Voice Coil Wire Material: CCAW
- Voice Coil Former Material: Kapton

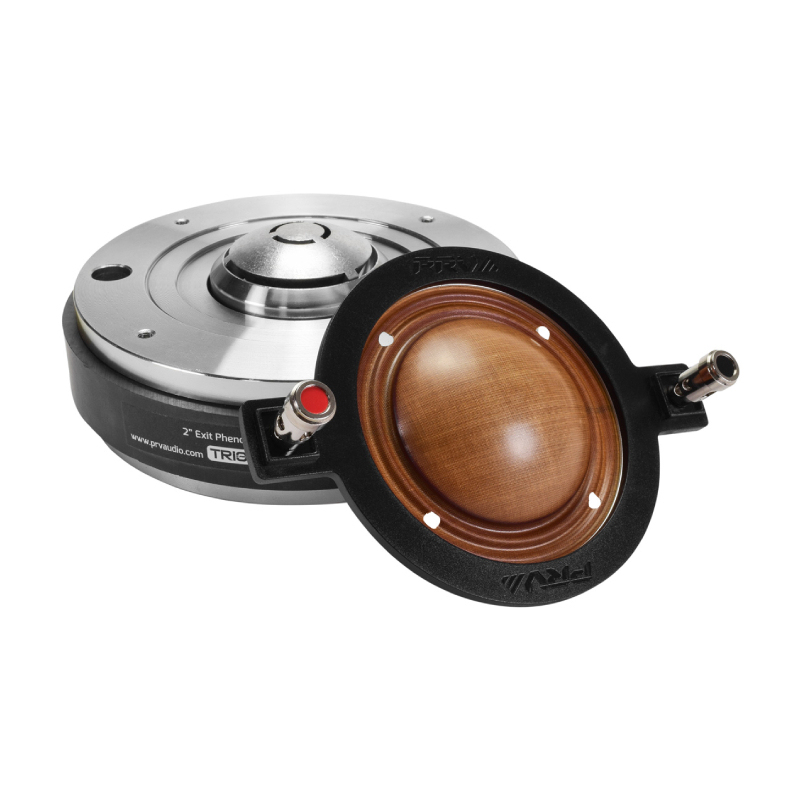

- Diaphragm Material: Phenolic
- Flux Density: 1.66 T
- Magnet Material: Ferrite
- Overall Depth: 5.44” (138.2 mm)

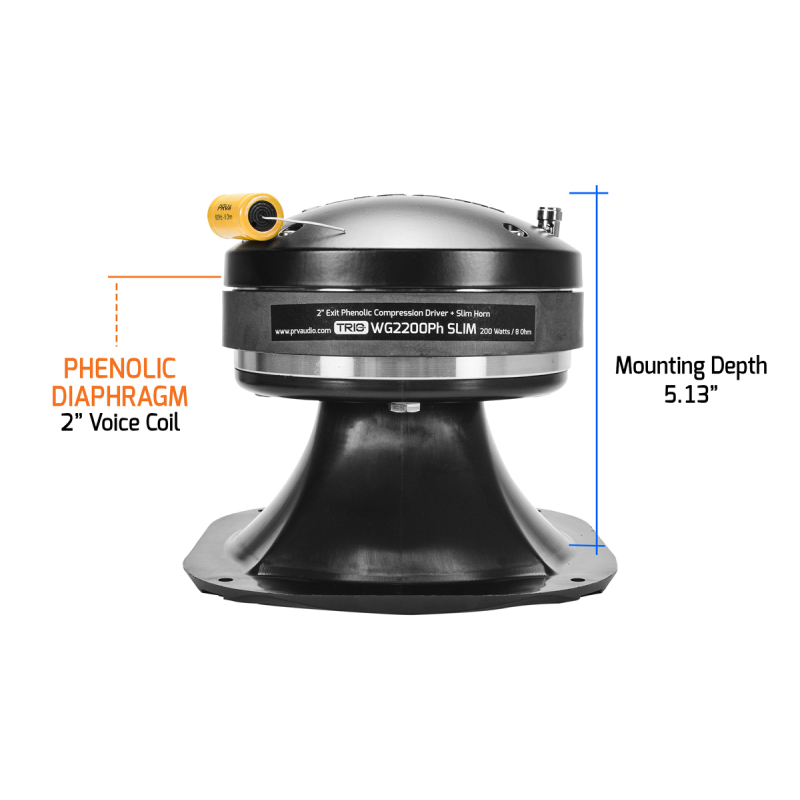

- Mounting Depth: 5.13” (130.2 mm)
- Overall Width: 6.14” (156 mm)
- Overall Height: 6.14” (156 mm)
- Baffle Cutout: 5.75” (146 mm)
- Carton Dimensions (W x L x H): 7.08” x 6.81” x 6.69” (180 x 173 x 170 mm)
- UPC: 810075523904
- Weight: 7.35
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
