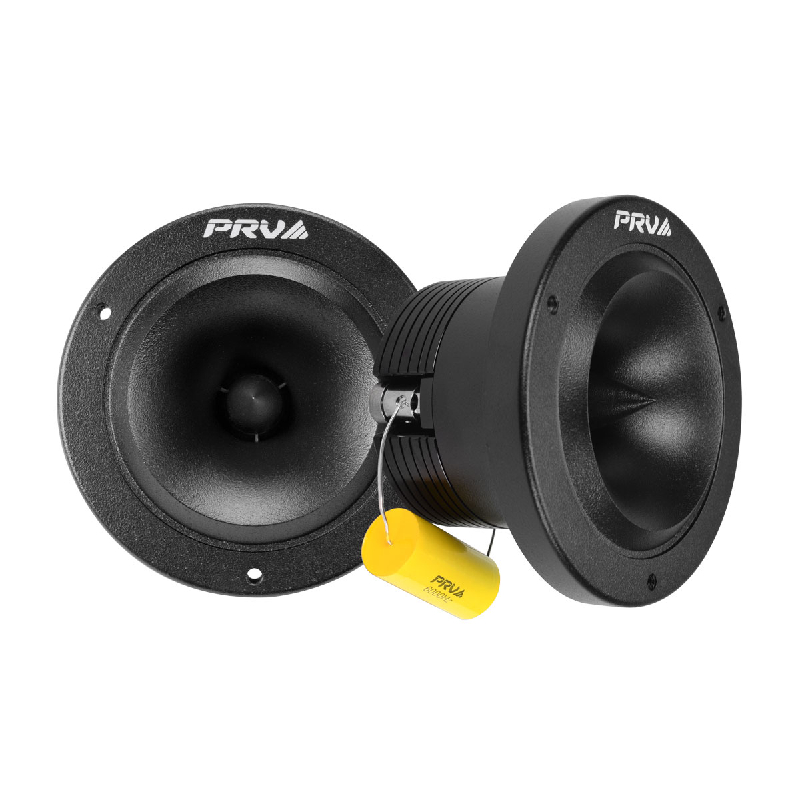

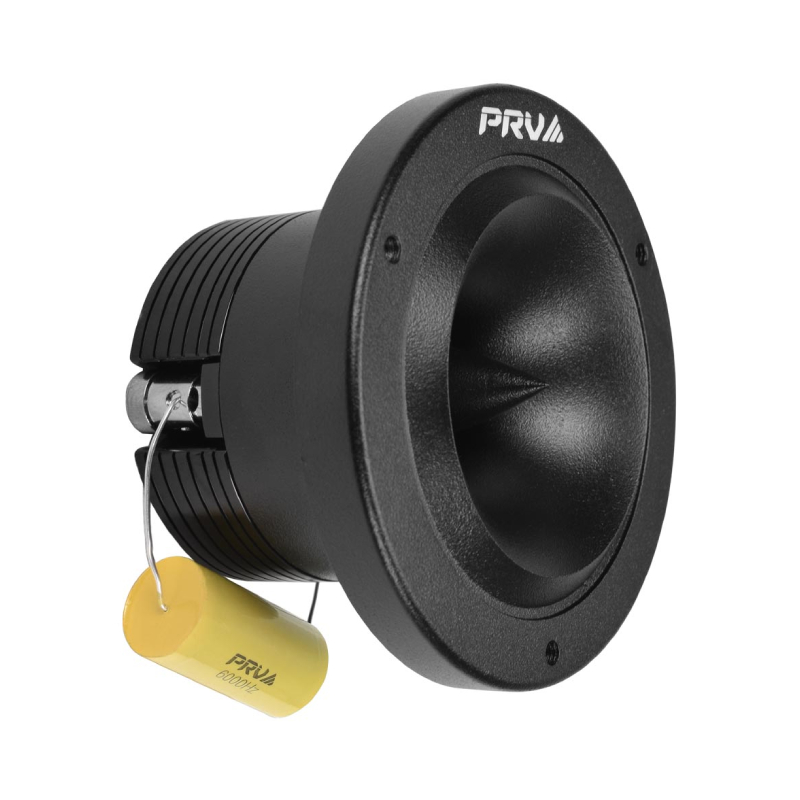

PRV Audio TW400Ti-Nd-4 PRO Series 1" 120W RMS (240W Peak Power Handling) 4 Ohm, Neodymium Titanium Bullet Super Car Tweeters (Pair)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 1" TW Series Neodymium Titanium Bullet Super Car Tweeters
- • Owner's Manual
Clean, Sharp Highs That Instantly Upgrade Your Sound
The PRV Audio TW400TI-Nd-4 PRO is built to bring your system’s top end to life with crisp, detailed highs that cut through effortlessly. Thanks to its precision titanium diaphragm, every note comes through with clarity and definition, whether it’s vocals, hi-hats, or synths. With a wide 4,500 Hz to 20,000 Hz frequency range, it delivers that bright, extended treble that makes your music feel more alive and complete.
High Output Performance Without the Bulk
This tweeter uses a compact neodymium motor design that keeps things lightweight and easy to install while still delivering serious output. With up to 106 dB sensitivity, it gets loud fast even with minimal power, making it perfect for both daily drivers and high-output builds. It also handles up to 120W RMS and 240W peak, so you can push your system confidently without losing control or clarity.
Smart Design for Clean Installs and Easy Maintenance

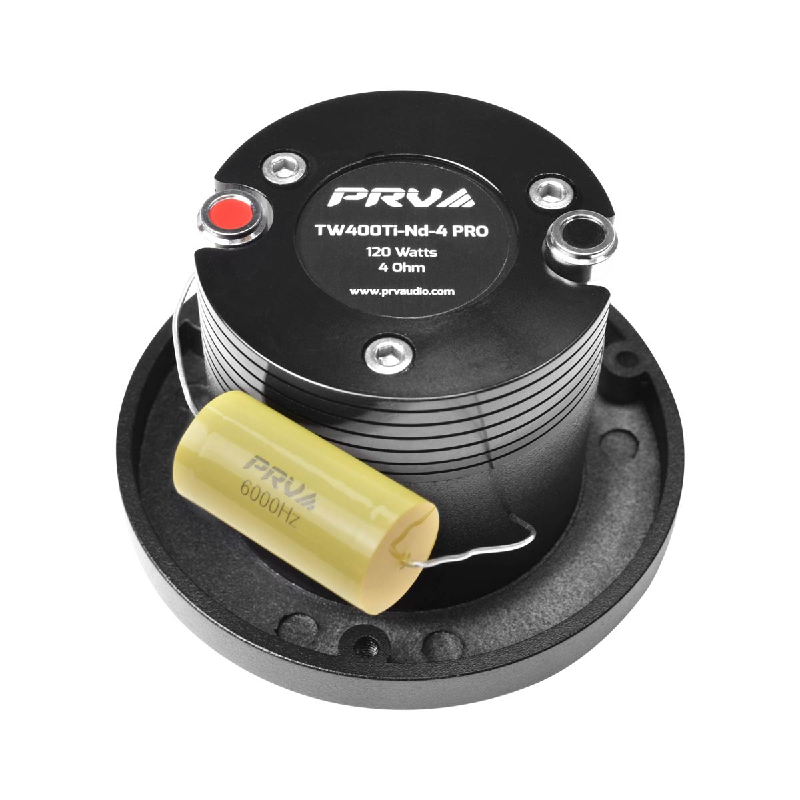

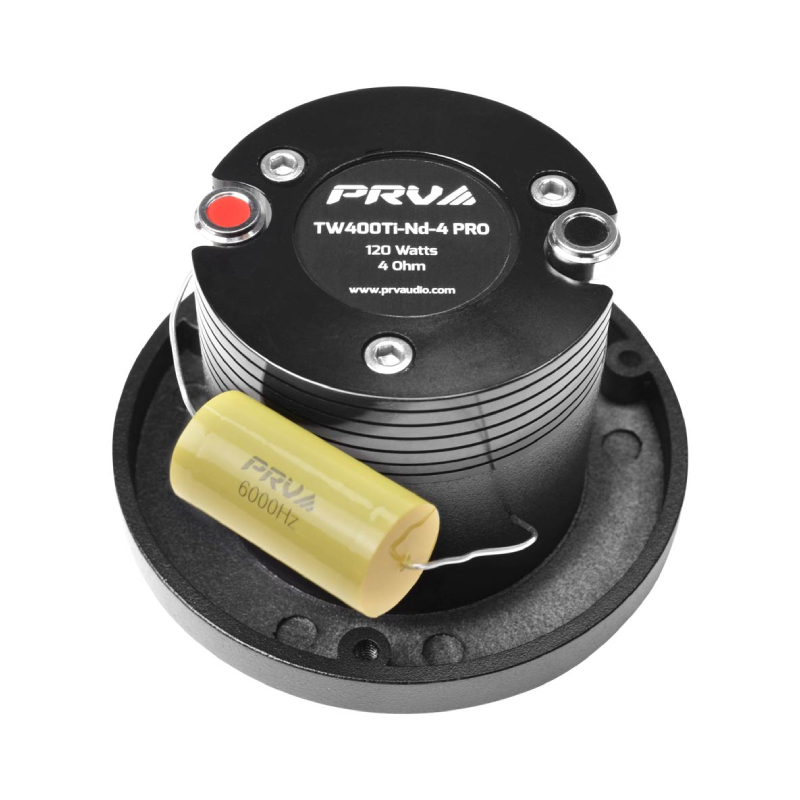

The slim body with hidden push terminals keeps your install looking clean and professional while saving valuable space in tight locations. A built-in capacitor protects the tweeter by filtering out unwanted low frequencies, helping maintain clean sound under heavy use. On top of that, the solderless diaphragm design makes servicing quick and simple, so you can keep your system running strong without the hassle of complicated repairs.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio TW400TI-Nd-4 PRO sound distorted at higher volume?
Distortion is usually caused by amplifier clipping, an incorrect crossover setting, or overpowering the tweeter. Set the recommended high pass crossover correctly and ensure your amplifier is delivering clean power.
- • Can I connect the TW400TI-Nd-4 PRO directly to my car stereo without a crossover?
It is not recommended. Running the tweeter without a proper high pass crossover can allow damaging low frequencies to reach the driver, reducing performance and lifespan.
- • Why do my tweeters sound much louder than my midrange speakers?
The tweeter's high sensitivity can make it overpower less efficient midrange speakers. Using an L pad, DSP, or amplifier gain adjustment can help achieve a balanced sound.
- • My TW400TI-Nd-4 PRO gets hot during long listening sessions. Is that normal?
Some heat is expected during extended high output use. Excessive heat may indicate incorrect crossover settings, amplifier clipping, or power levels beyond the tweeter's recommended limits.
- • Can the PRV Audio TW400TI-Nd-4 PRO be used in motorcycle or powersports audio systems?
Yes, many users install it in motorcycles, UTVs, and custom powersports builds. Make sure the installation protects the tweeter from direct water exposure unless it is mounted in a weather protected location.
- • Why do my tweeters have very little output after installation?
Check the wiring polarity, verify the crossover is connected correctly, and inspect all speaker connections. A wiring mistake or faulty crossover is a common cause of low output.
- • What amplifier size works best with the TW400TI-Nd-4 PRO?
Choose an amplifier that delivers clean power within the tweeter's recommended power handling range. A properly matched amplifier is safer than using an underpowered amp driven into clipping.
- • Is the TW400TI-Nd-4 PRO suitable for SQ and SPL audio systems?
Yes. Many users choose it for both sound quality and high output builds because it delivers detailed highs while maintaining strong performance at elevated listening levels when tuned properly.
- • Why do my tweeters sound harsh after upgrading to the TW400TI-Nd-4 PRO?
Harsh highs are often caused by poor tuning, incorrect crossover frequency, or aiming the tweeters directly at the listener. Fine tuning the crossover and adjusting the mounting angle usually improves the sound.
- • How can I make the TW400TI-Nd-4 PRO last longer?
Use a quality crossover, avoid amplifier clipping, mount the tweeter securely, and keep it within its rated operating range. Proper installation and tuning are the biggest factors in long term reliability.
- Diameter : 1 Inch
- RMS Power Range : 120 Watts
- Peak Power Handling : 240 Watts
Features:
- Wideband Frequency Response Range: Covers 4,500 Hz to 20,000 Hz, delivering crisp highs and extended frequency detail for enhanced audio definition.
- Integrated Crossover Protection System: Built-in capacitor helps attenuate unwanted low frequencies, improving sound clarity and protecting the tweeter under high-power use.
- Slim Installation with Hidden Terminals: Features a compact design with concealed push terminals, allowing clean installation while saving mounting space.
- Compact Neodymium Performance Architecture: Designed with a high-strength neodymium motor to deliver powerful output in a lightweight, space-saving form factor ideal for tight installations.
- Precision Titanium High-Frequency Reproduction: Utilizes a rigid titanium diaphragm for accurate, detailed treble response with excellent clarity across high-frequency ranges.
- High-Efficiency Output Capability: Achieves up to 106 dB sensitivity, ensuring strong and dynamic high-frequency performance with minimal amplifier demand.
- Professional Power Handling Capacity: Supports up to 120W RMS and 240W peak power, making it suitable for high-output car audio and Pro Audio On Wheels® systems.
- Service-Friendly Solderless Diaphragm Design: Engineered with an easy-replace diaphragm system, enabling quick maintenance and reduced downtime without soldering.
Specifications:
- Nominal Impedance: 4 Ohms
- Nominal Power Handling: 60 W
- Continuous Program Power (RMS): 120 W
- Max Peak Power: 240 W
- Sensitivity (2.00V @ 1m): 106 dB
- Recommended High-Pass Crossover: 6000 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 4,500 – 20,000 Hz
- Voice Coil Diameter: 1.0″ (25 mm)
- Voice Coil Wire: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.45 T
- Magnet Material: Neodymium

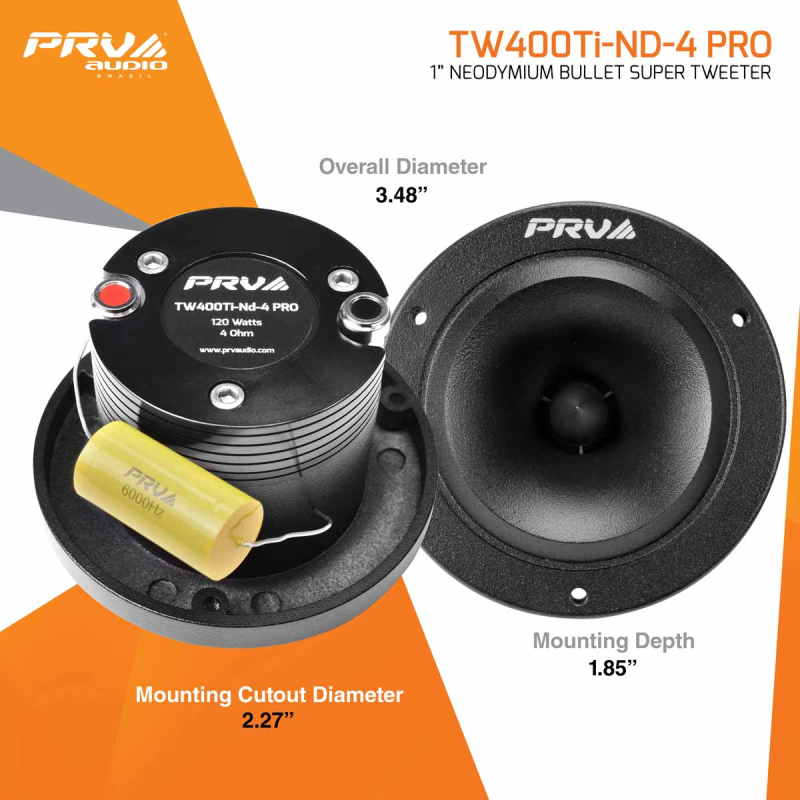

- Overall Depth: 2.38″ (60.5 mm)
- Mounting Depth: 1.85″ (47.7 mm)
- Overall Diameter: 3.48″ (88.5 mm)
- Cutout Diameter: 2.27″ (57.7 mm)
- Carton Dimensions (W×L×H): 7.95″ × 3.94″ × 2.76″ (202 × 100 × 70 mm)
- UPC: 810075521443
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
