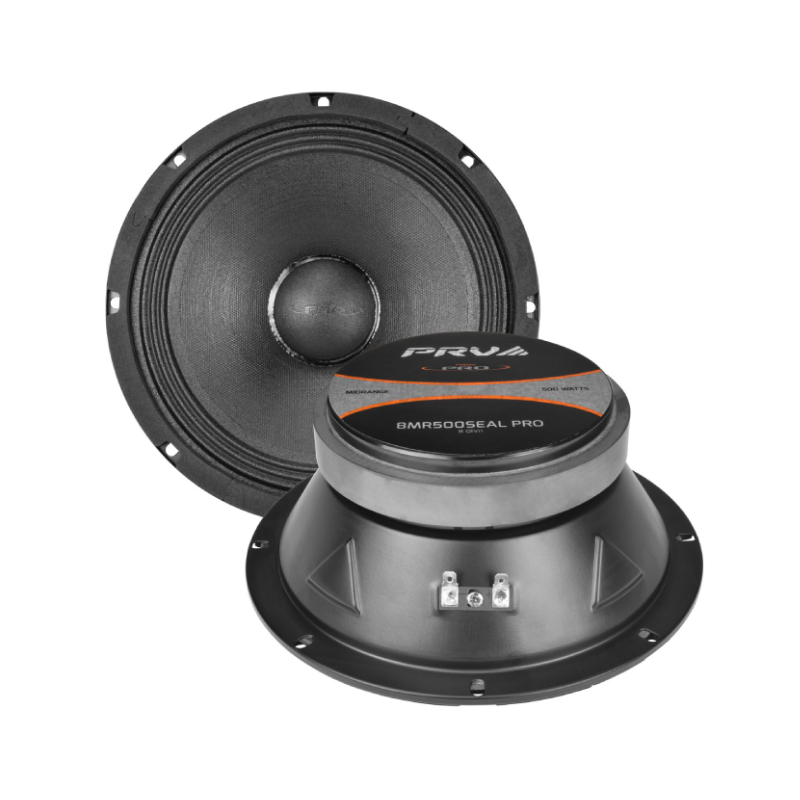

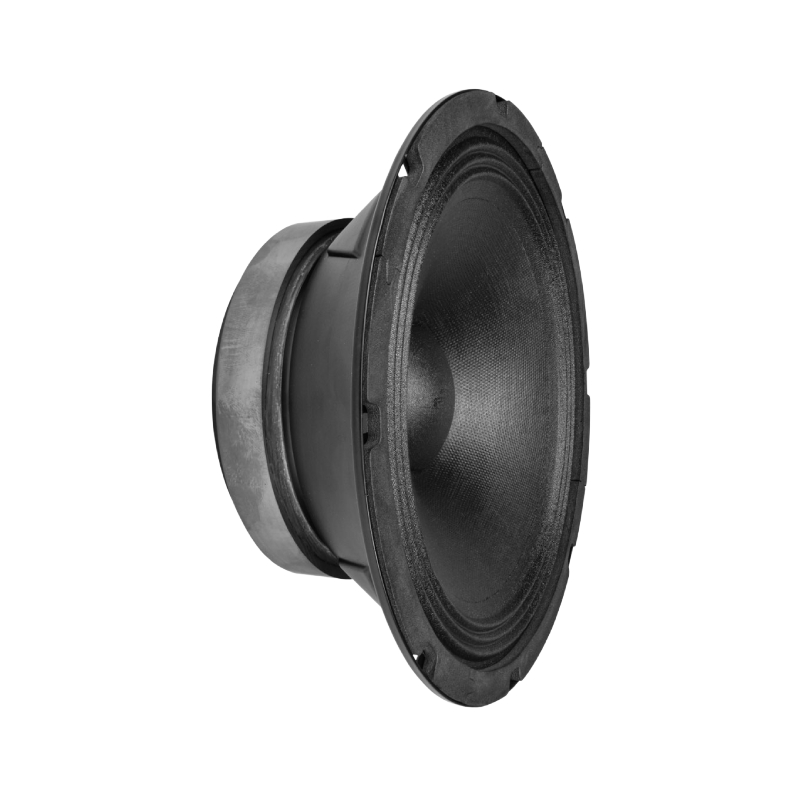

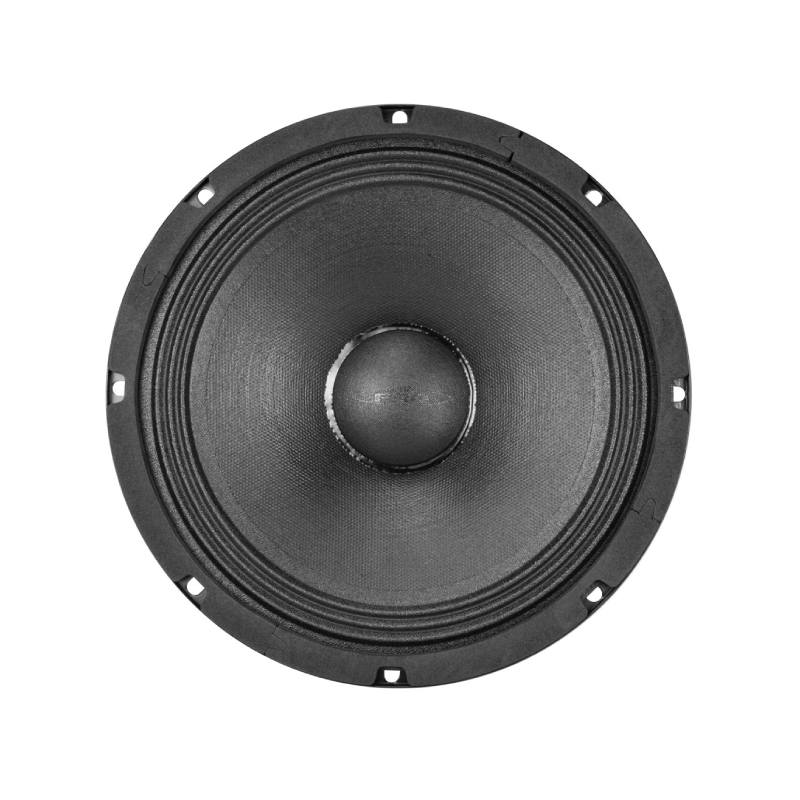

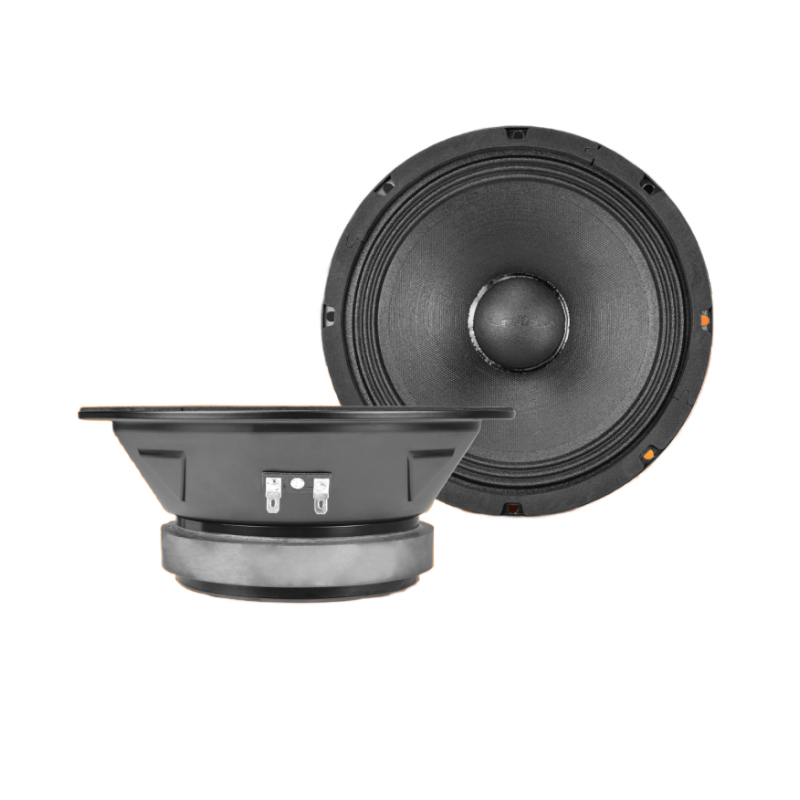

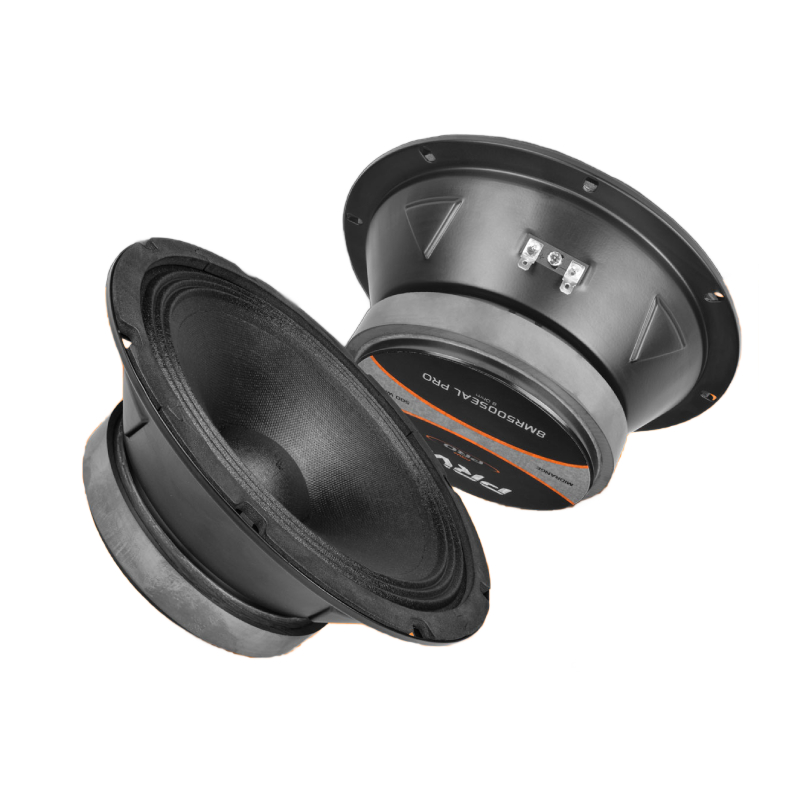

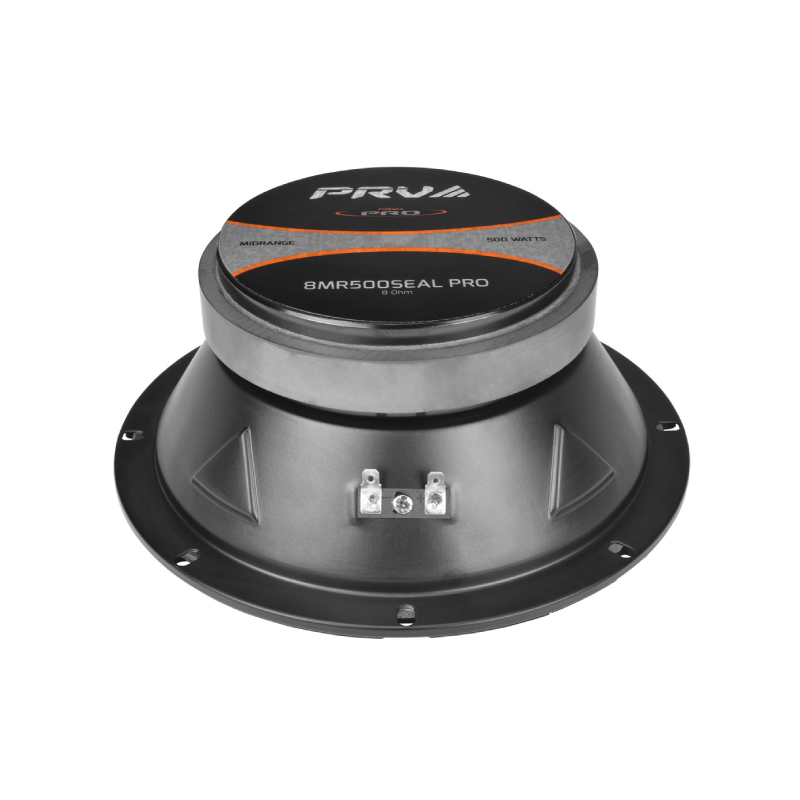

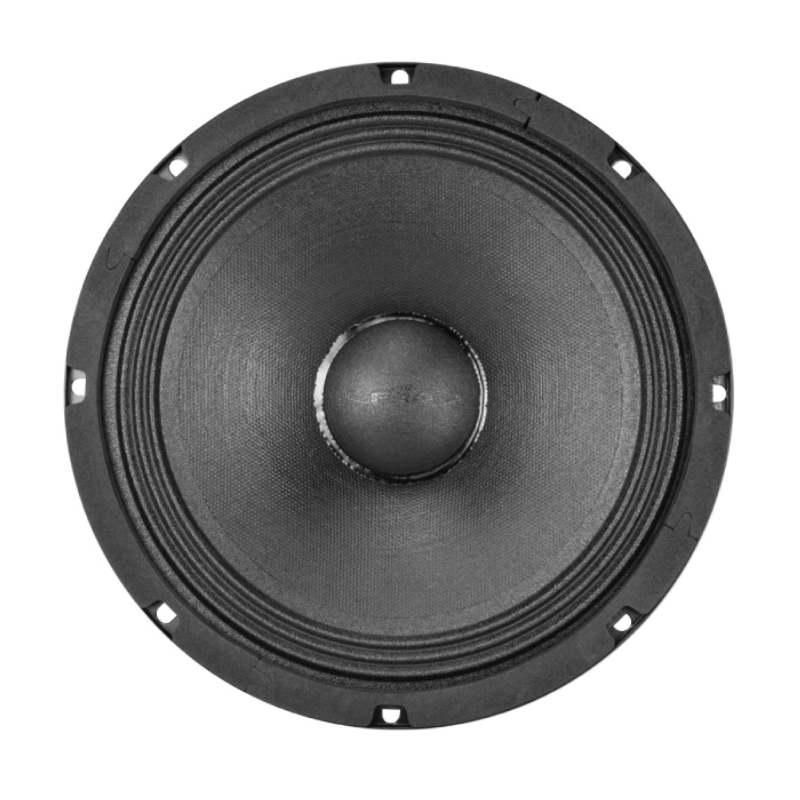

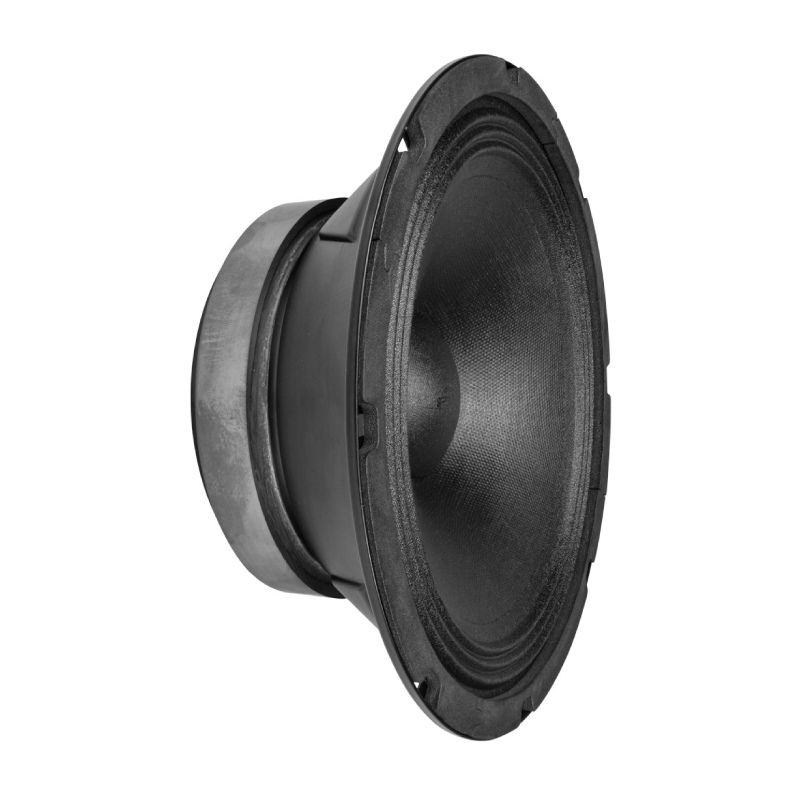

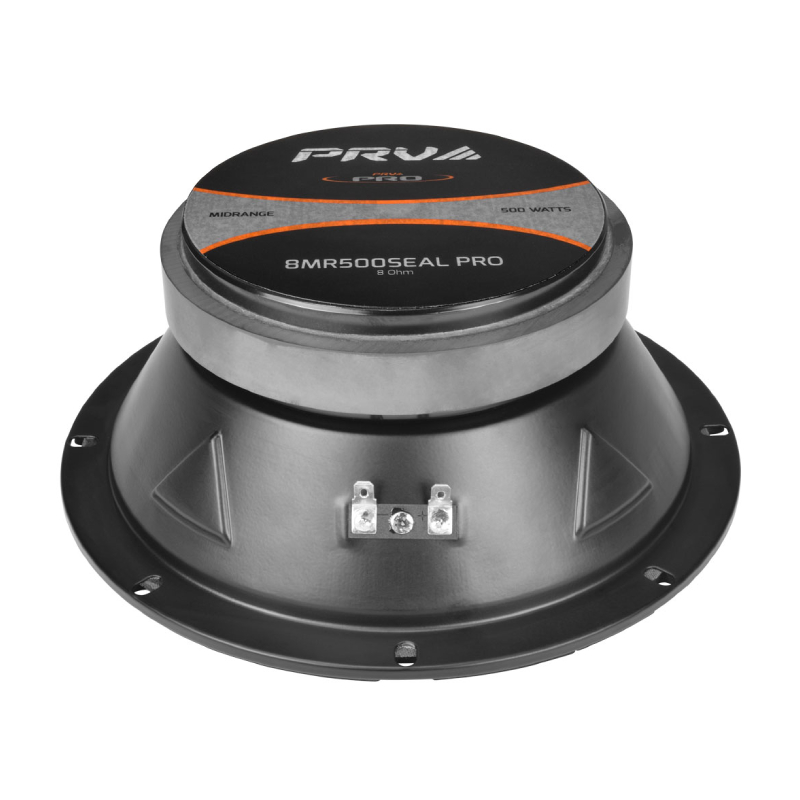

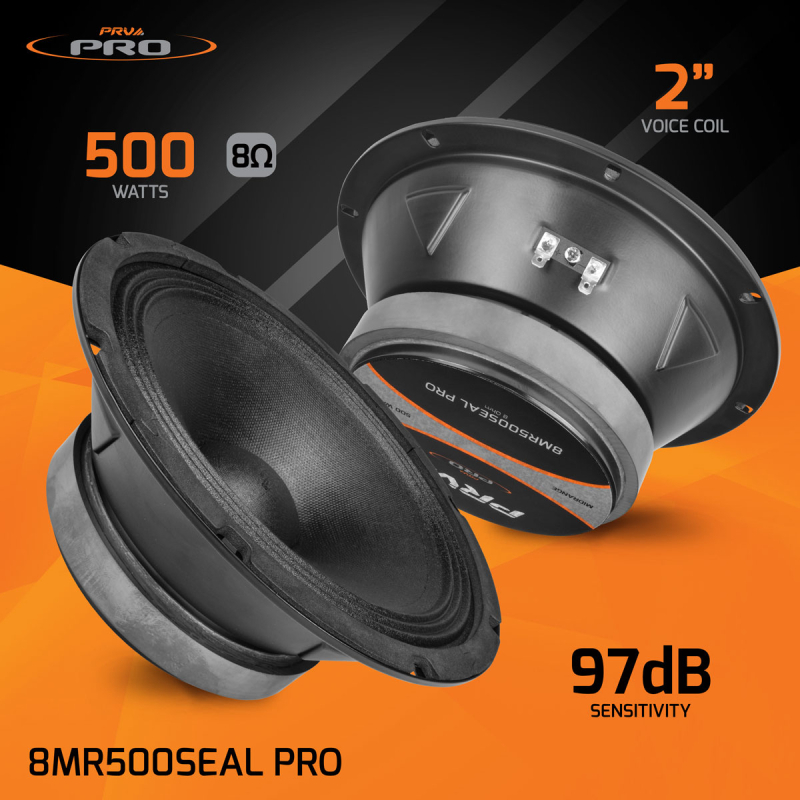

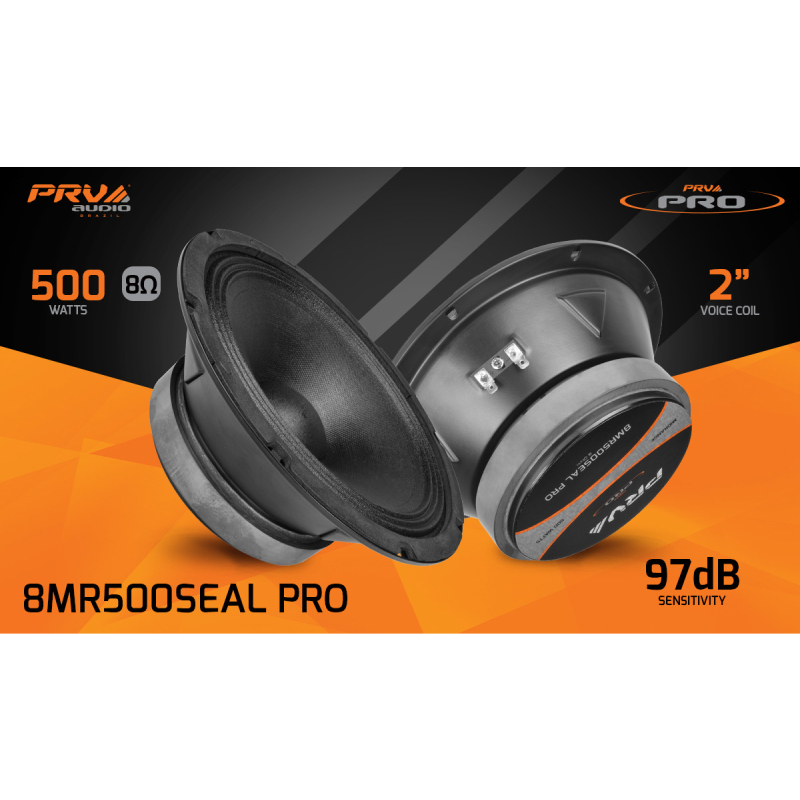

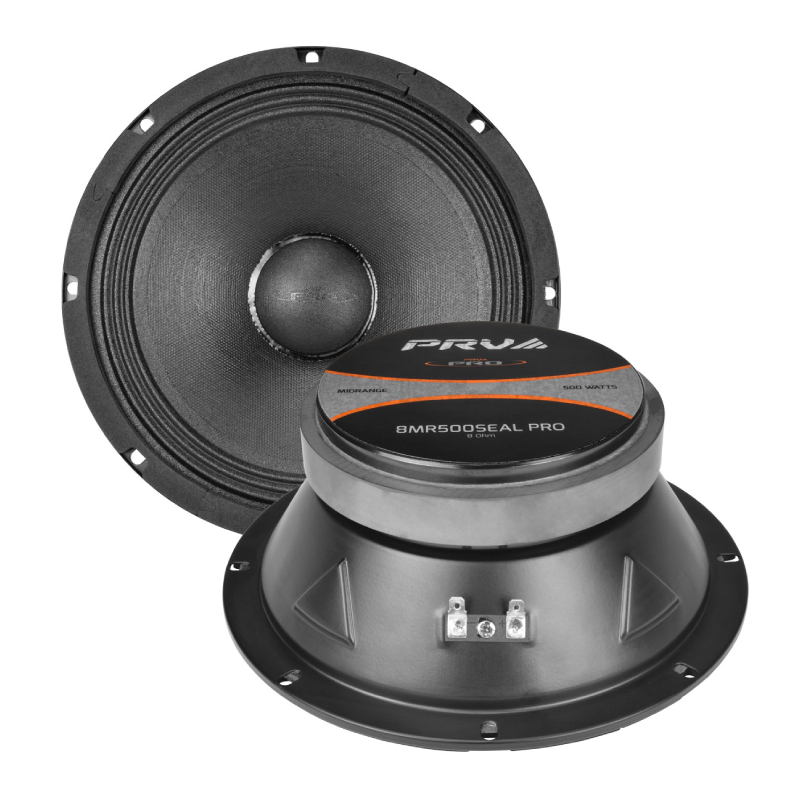

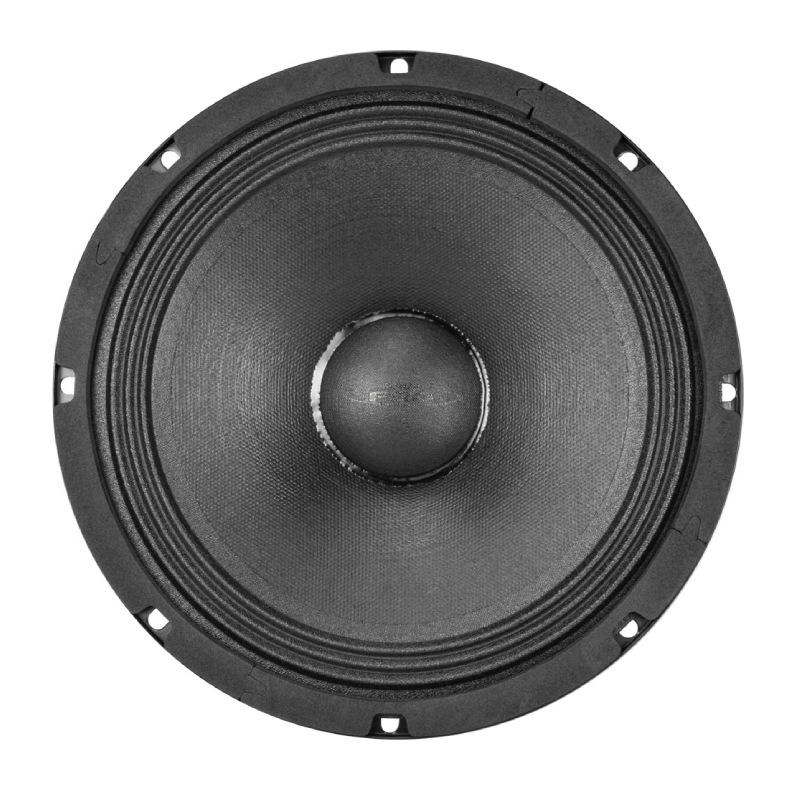

PRV Audio 8MR500SEAL PRO MR Seal Pro Series 8" 500W RMS (1000W Peak Power Handling) 8 Ohm, Mid Range Car Speaker (Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Built for Clean Installs and Serious Sound Pressure
If you want a midrange that makes system building easier without sacrificing performance, the PRV Audio 8MR500SEAL PRO Mid Range Car Speaker is a game changer. The sealed back basket design means you don’t need to worry about building separate rear enclosures, which saves time and keeps installation clean. It also eliminates back wave interference, so what you hear is tight, direct, and focused vocals every single time.
Power and Clarity That Hits Hard in the Right Range
This midrange is tuned for real performance with a wide 400 Hz to 9,000 Hz frequency coverage, giving you strong vocal projection and crisp detail where it matters most. With 500W RMS handling, including 250 watts nominal and up to 500 watts continuous program power, it’s built for demanding setups that don’t hold back. High efficiency at 97 dB means it gets loud fast with minimal amplifier strain, making it perfect for high SPL systems that need output without wasting power.
Rugged Build Quality for Pro Audio Level Systems
Inside, you get a large 2 inch CCAW voice coil on a Kapton former that delivers solid thermal control and consistent performance under heavy use. The waterproof coated paper cone helps it survive humidity and tough environments while keeping sound stable and controlled. A rigid steel basket keeps everything locked in place, while the woven cloth surround and durable spider ensure smooth cone movement with low distortion. Designed for optimized 3 way system integration, this midrange pairs perfectly with midbass and high frequency drivers to complete a full pro audio setup that feels loud, clean, and fully balanced.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 8MR500SEAL PRO sound quieter after getting wet?
While the speaker is built for demanding environments, water inside connectors or damaged wiring can reduce performance. Inspect all connections and allow the system to dry before further use.
- • Can I install the PRV Audio 8MR500SEAL PRO in a boat without an enclosure?
Yes. Many users install it in marine panels and other open mounting locations, but a solid mounting surface and proper sealing are important for the best sound quality.
- • Why do my vocals become distorted at high volume?
Distortion is usually caused by amplifier clipping, incorrect crossover settings, or excessive gain. Proper tuning helps keep vocals clean even during loud playback.
- • Is the PRV Audio 8MR500SEAL PRO suitable for UTV and ATV audio systems?
Yes. It is a popular choice for off road and powersports applications where durability and high-output midrange performance are important.
- • Why does my speaker vibrate the mounting panel during playback?
Strong midrange output can cause thin panels to resonate. Tightening the mounting hardware and adding reinforcement or sound damping material can reduce unwanted vibrations.
- • Can I use the PRV Audio 8MR500SEAL PRO with a factory stereo?
It can operate with a factory head unit, but an aftermarket amplifier is recommended to unlock the speaker's full performance and output.
- • Why is one 8MR500SEAL PRO louder than the other?
Uneven output is often caused by wiring polarity errors, different amplifier gain settings, or balance adjustments. Checking the entire signal path usually identifies the problem.
- • Does the PRV Audio 8MR500SEAL PRO need a break in period?
Some users notice minor changes after several hours of normal playback, but correct installation and proper tuning have a much greater impact on overall performance.
- • Why does my amplifier enter protection mode when using the 8MR500SEAL PRO?
Protection mode may indicate incorrect wiring, an impedance mismatch, overheating, or a failing amplifier. Verifying the installation is the best place to start troubleshooting.
- • How can I keep my PRV Audio 8MR500SEAL PRO performing at its best?
Regularly inspect the wiring, keep electrical connections clean, use the recommended crossover settings, and avoid amplifier clipping to maintain reliable long-term performance.
- Diameter : 8 Inch
- Sensitivity : 97 dB
- Impedance : 8 Ohm
- Frequency Response : 400-9000 Hz
- Peak Power Handling : 1000 Watts
- RMS Power Handling : 500 Watts
Features:
- Sealed Back Basket Design: Integrated rear enclosure eliminates back wave interference and simplifies custom cabinet construction.
- Wide Midrange Frequency Coverage: Optimized response from approximately 400 Hz to 9,000 Hz for clear vocal definition and strong projection.
- High Efficiency 97 dB Output: Produces loud sound levels with minimal amplifier power, ideal for high SPL system integration.
- 500W RMS High Power Handling: Supports 250 watts nominal and up to 500 watts continuous program power for demanding audio applications.
- Waterproof Coated Paper Cone: Treated cone material ensures stable performance in humid and harsh environmental conditions.
- Large 2 Inch Voice Coil System: CCAW voice coil on Kapton former delivers strong thermal handling and consistent performance under load.
- High Sensitivity Peak Response: Achieves strong output around mid frequencies for impactful vocal presence in competition style systems.
- Rigid Steel Basket Construction: Closed back pressed steel frame enhances durability and maintains structural integrity under heavy use.
- Controlled Suspension System: Woven cloth surround and durable spider design provide stable cone movement and reduced distortion.
- Optimized 3 Way System Integration: Designed to pair seamlessly with midbass and high frequency drivers for complete pro audio setups.
Specifications:

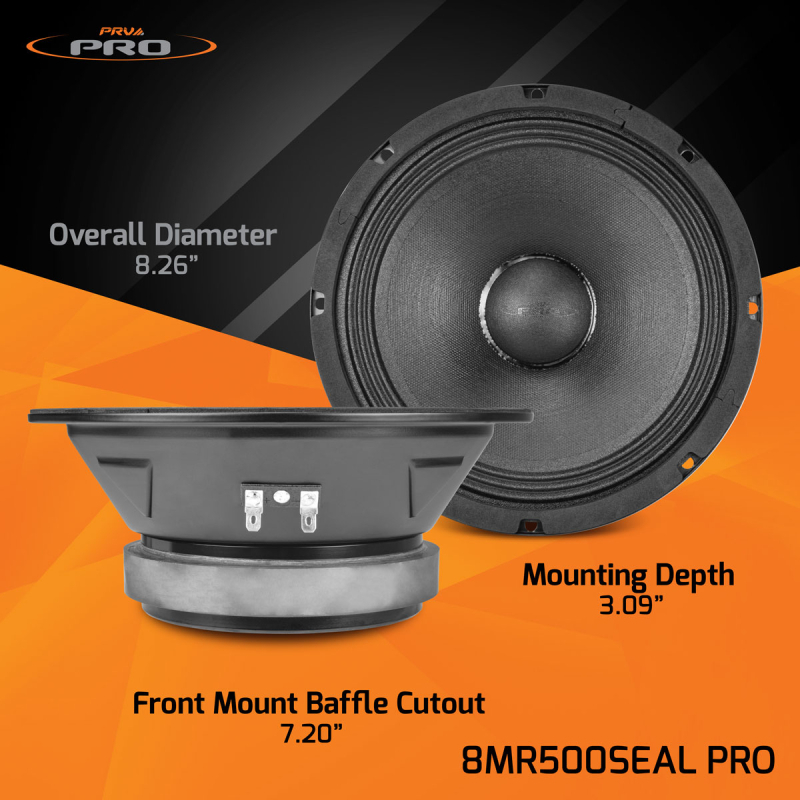

- Nominal Diameter: 8″ (203 mm)
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 250 Watts
- Continuous Program Power (RMS): 500 Watts
- Max Peak Power: 1000 Watts
- Sensitivity: 97 dB (2.83V @ 1m)
- Recommended Hi-Pass Crossover: 400 Hz, 12 dB/Octave
- Frequency Response (-10 dB): 400 – 9,000 Hz
- Voice Coil Diameter: 2″ (50 mm)
- Voice Coil Wire: Copper-Clad Aluminum (CCAW)
- Voice Coil Winding Depth: 12.0 mm
- Former Material: Kapton
- Magnetic Gap Depth: 8.0 mm
- Frame Material: Stamped Steel
- UPC: 810075525694
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
