We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

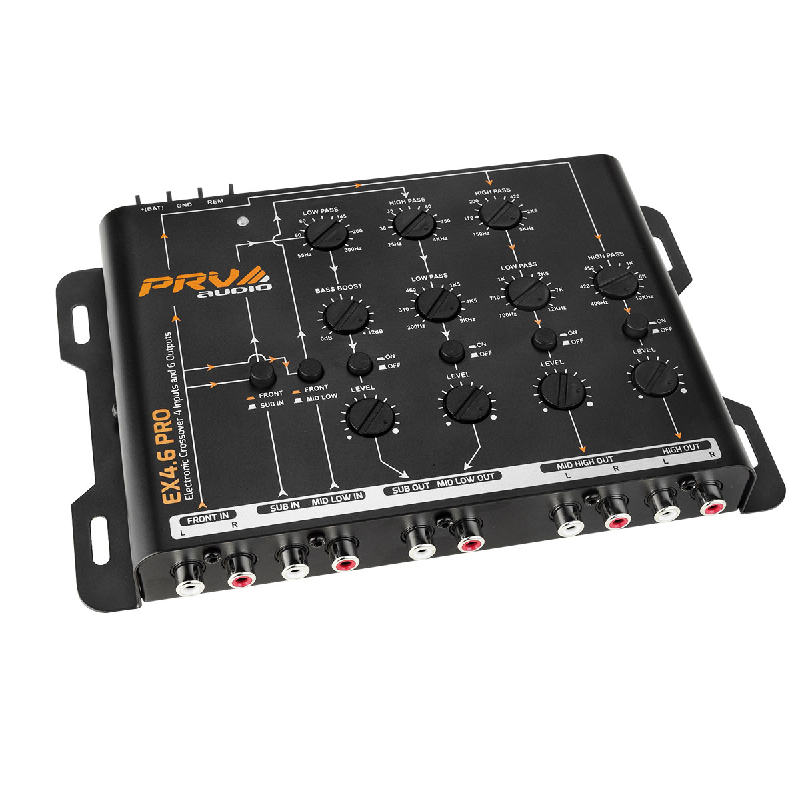

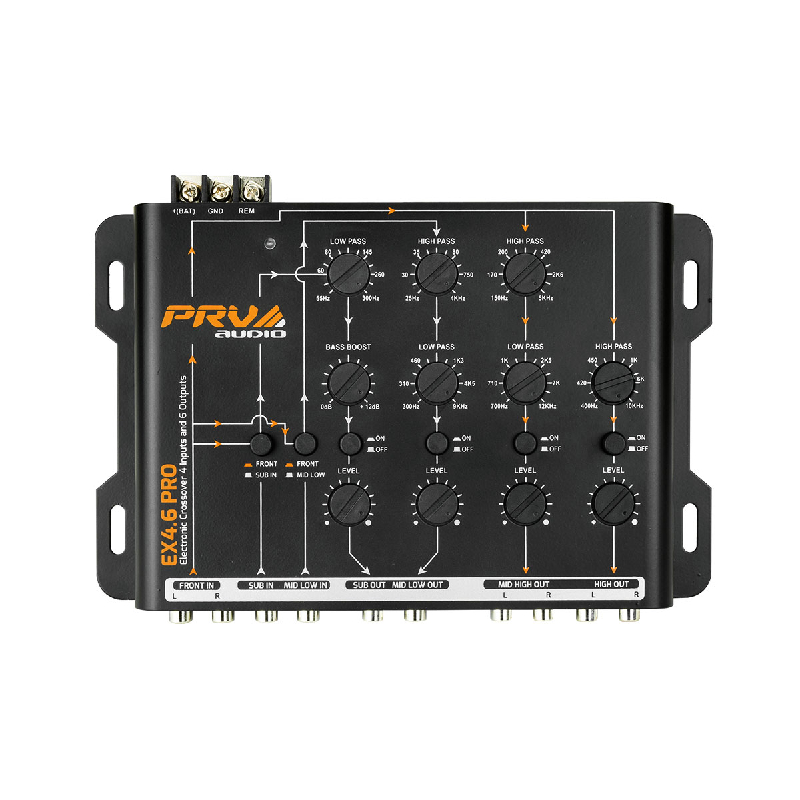

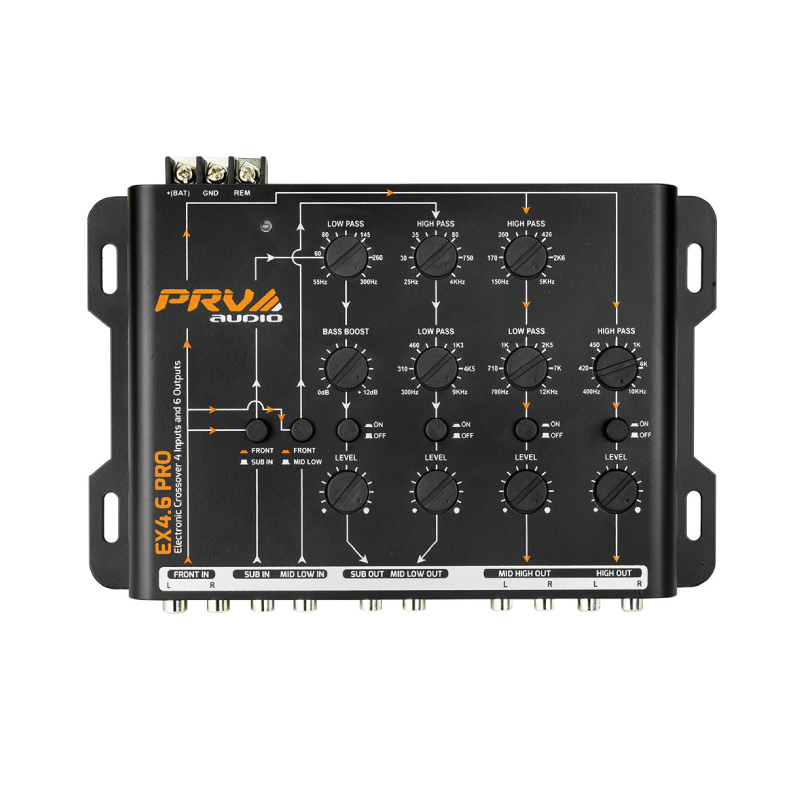

The EX4.6 PRO provides full system control with adjustable High-Pass and Low-Pass filters per channel, independent output level, and a dedicated Bass Boost to precisely tune any build. It supports 2 / 3 / 4 RCA input routing for seamless integration with factory or aftermarket sources and DSP outputs. A powerful 9-volt RMS output ensures a clean, high-strength signal to amplifiers, while the Sub Out channel includes an adjustable 0 to +12 dB boost at 45 Hz for added low-end impact.

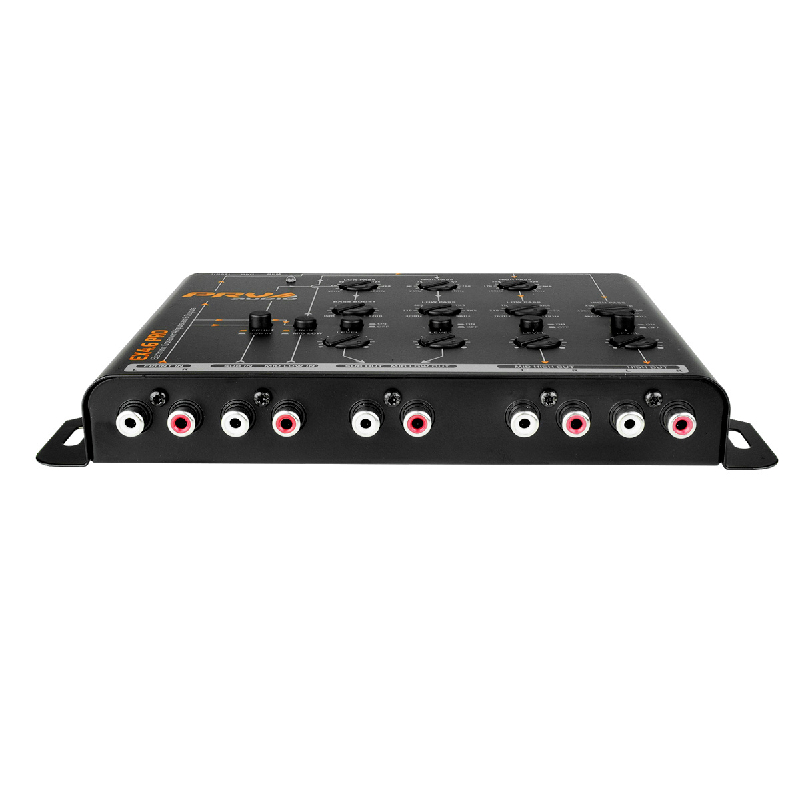

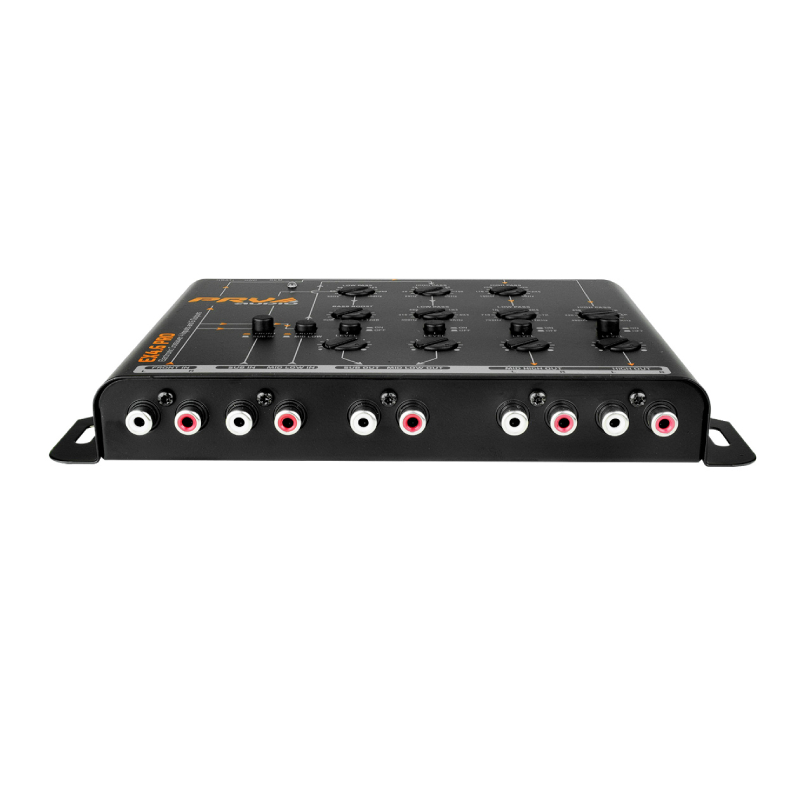

Independent channel muting allows instant A/B comparison during tuning, while 12 dB/Oct Butterworth crossovers provide smooth roll-off for accurate band separation without harsh overlap. A dedicated RCA topology accepts 2/3/4 inputs and delivers 6 RCA outputs across 4 channels (2 stereo + 2 mono), with the High Out channel offering a precise 400 Hz – 10 kHz High-Pass range for tweeters and compression drivers.
EX4.6 PRO provides true band-pass shaping with 150 Hz–5 kHz HPF plus 700 Hz–12 kHz LPF on the Mid-High Out for clean midrange and driver control, while the Mid-Low Out offers a wide 25 Hz–4 kHz HPF and 300 Hz–9 kHz LPF range ideal for woofers, mids, or phenolic drivers. A dedicated Sub Out channel includes a 55 Hz–300 Hz LPF with a centered 45 Hz Bass Boost for optimized low-end response, and each output features independent level trim for perfect gain alignment across multiple amplifiers.
Features:
Specifications:
