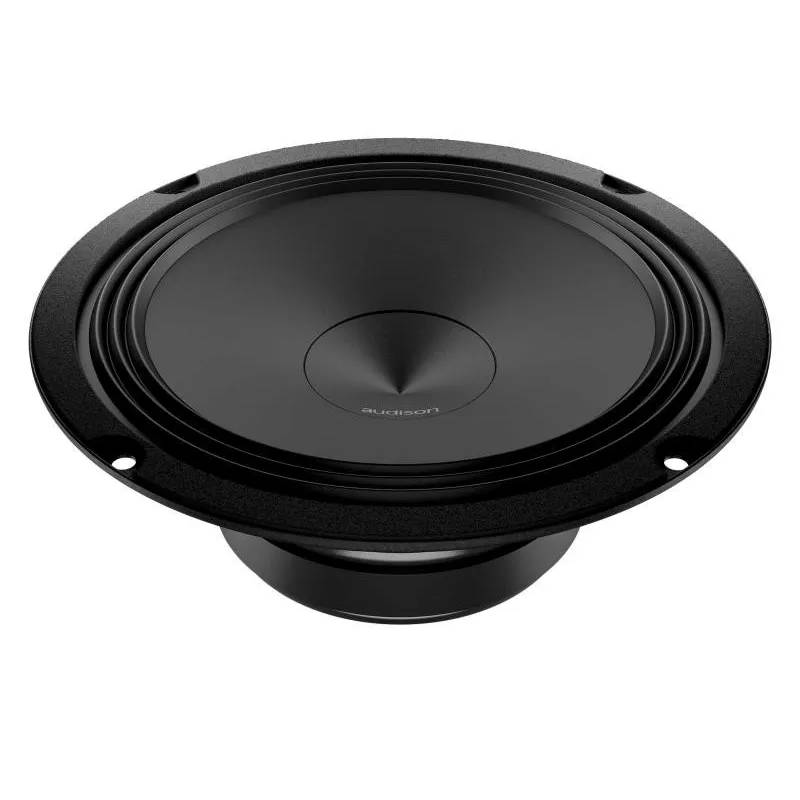

Audison AP6.5 2Ohms Single - PRIMA Series 6.5" 210W Peak Power Handling at 2-Ohms, Midrange Car Speaker (Single)
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 6.5" Midrange Speaker
- • Owner's Manual
High-Efficiency 6.5" 2-Ohm Midrange Speaker
Experience powerful, distortion-free sound with a 2-ohm impedance designed to unleash the full 65W per channel performance of the AP8.9 bit amplifier. Enjoy deep, rich bass reaching down to 50 Hz, thanks to a precision-engineered 75 Hz resonance frequency and advanced voice coil design. Built with a water-repellent paper cone optimized through FEM and Klippel technology, this speaker delivers superior clarity, durability, and efficiency at any volume.
Easy-Mount Durable OEM Midrange Speaker
Install with confidence using a reduced mounting depth that fits perfectly into OEM locations without modification. Enjoy smooth, precise sound thanks to the TPU “Triple Wave” surround and premium materials that ensure durability and linear performance. Built for reliability, it features a rugged coated basket, high-current terminals with short-circuit protection, and advanced Klippel engineering for flawless sound quality.
- Diameter : 6.5 Inch
- Sensitivity : 95 dB
- Impedance : 2 Ohm
- Frequency Response : 60-5000 Hz
- Peak Power Handling : 210 Watts
- RMS Power Handling : 70 Watts
Features:
- 2 impedance, to fully exploit the 65 W power per channel at 2 of the AP8.9 bit amplifier.
- 75 Hz resonance frequency, to extend the frequency range down to low frequencies up to 50 Hz and increase the SPL in the low range.
- 25 mm mobile voice coil to maximize efficiency achieving 95 dB.
- 10 mm winding height mobile voice coil to increase maximum linear excursion up to 2,8 mm and minimize distortion, even at high listening levels.
- Water-repellent treated paper cone, featuring profile developed with FEM simulation technology and optimized with the Klippel Scan Vibrometer.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive “Triple Wave” shallow profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating. Damping epoxy glue provides perfect coupling with the motor system.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specifications:
- Nominal diameter: 165 mm (6.5 in)
- Impedance: 2 Ohm
- Power Handling - Peak: 210 W
- Power Handling - Continuous: 70 W
- Sensitivity: 95 dB
- Frequency Response: 60 - 5k Hz
- Voice Coil Ø: 25 mm
- Magnet size D x d x h: 85 x 32 x 15 mm (in.)
- Xmax: 2.8 mm (0.11 in)
- Driver Displacement Volume: 95 l (3.355 ft)
- UPC:
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
