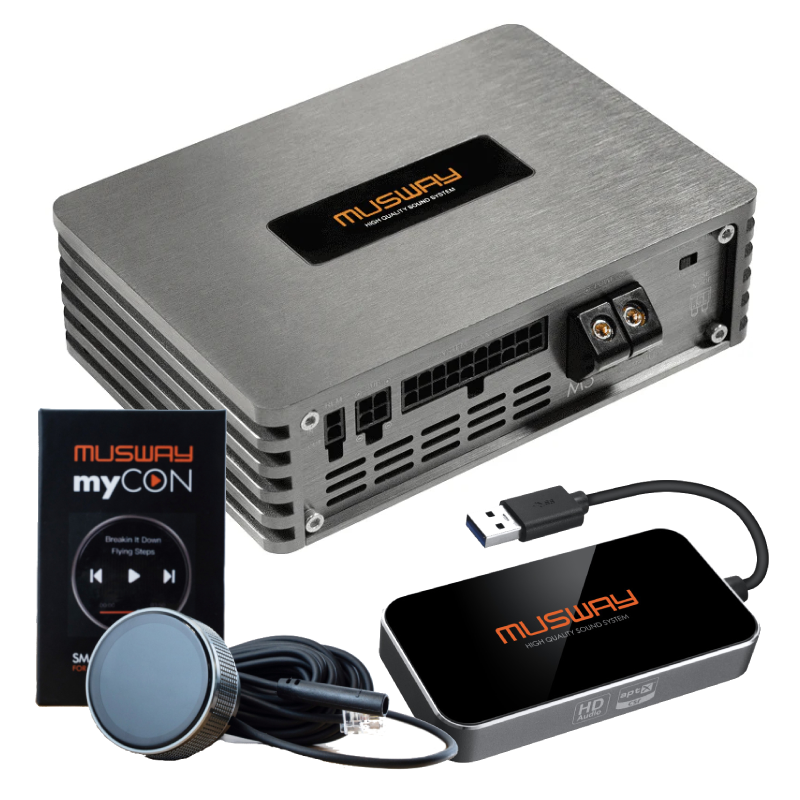

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)
Features:
- High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
- Premium Aluminum Housing: Durable and sleek design for a modern look
- Multi-Function Control: Rotate, press, and touch functions for intuitive operation
- DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
- Customizable Backlight: Choose from multiple color options to match your style
- Flexible Mounting: Includes a long cable for versatile installation locations
Specifications:
- Compatible with all Musway DSP Amps (v3 & Mini Series)
- High-Def AMOLED Touchscreen
- Premium Aluminum Housing
- Rotate • Press • Touch Controls
- Custom Backlight Colors
- Long Cable Included for Flexible Mounting
Bluetooth USB Dongle for HD Audio Streaming and App Control
Features:
- Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.
- Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.
- Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.
- Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.
- Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).
- Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.
Specifications:
- Only compatible with all MUSWAY DSP-512K models
- Integrated Bluetooth 5.1 receiver
- Supports music formats: aptX, aptX-LL, aptX-HD
- Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz
- Illuminated MUSWAY logo
- Incl. USB connection cable
5-Channel 50W RMS x 4 at 3 Ohm + 5th Sub Channel 300W RMS x 1 at 2 Ohm, Class-D Full Range Car Amplifier with Built-In 9-Channel Digital Sound Processor Output - German Engineered
Features:
- Start-Stop Compatible: Engineered to work flawlessly with vehicles equipped with start-stop technology
- Smart Protection: Features EPS – an intelligent high-level input error protection system
- Premium Design: Brushed aluminum heat sink and end panels for a sleek, durable finish
- Effortless Power-On: Auto turn-on via DC offset or signal sensing – no need for a remote wire
- Compact & Clean: 4-fold laminated circuit boards for a compact design and reduced EMI interference
- EMI Certified: Meets tough European EMI standards for noise-free performance
- Clipping Indicator: Output clipping LED helps you dial in the perfect sound without distortion
- Real-Time Tuning: Tune and configure in real time using easy MUSWAY PC software or the mobile app
- Bluetooth Ready: Add optional USB Bluetooth dongles for Hi-Res audio streaming and DSP control via smartphone
- Take Control: Optional DRC1 digital remote with OLED display puts system control at your fingertips
Musway DSP Software for Windows:
Specifications:
POWER SUPPLY
- Voltage: 7.5 – 17 VDC
- Idle Current: 1 A
- Switched Off: <0.1 mA
- Remote IN: 5 – 15 VDC (1 mA)
- Remote OUT: 8 – 15 VDC (300 mA)
- Fuse: 40 A
AMPLIFIER STAGE
- Distortion (THD, 1 kHz @ 4 Ω, 5 W): <0.015 %
- Bandwidth (-3 dB, 2 V RMS, 4 Ω): 10 Hz – 20 kHz
- S/N Ratio (@ A-weighted, 1 V, Max Power): >95 dB
- Damping Factor (@ 1 kHz, 2 V RMS, 4 Ω): >80
- Input Sensitivity: 6 – 18 V RMS (High-level), 2 – 6 V RMS (AUX Low-level)
- Input Impedance: 13 Ω (High-level), 47 kΩ (AUX Low-level)
Output Power @ 13.8 VDC, 1% THD
- CH1–CH4: 4 × 45 W RMS @ 4 Ω
- CH5 (Sub): 1 × 180 W RMS @ 4 Ω
- CH1–CH4: 4 × 50 W RMS @ 3 Ω
- CH5 (Sub): 1 × 300 W RMS @ 2 Ω
SIGNAL OUTPUTS
- RCA OUT CH6 / CH7 / CH8 / CH9: 5 V RMS Max.
- UPC:
- Weight: 12
- Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
