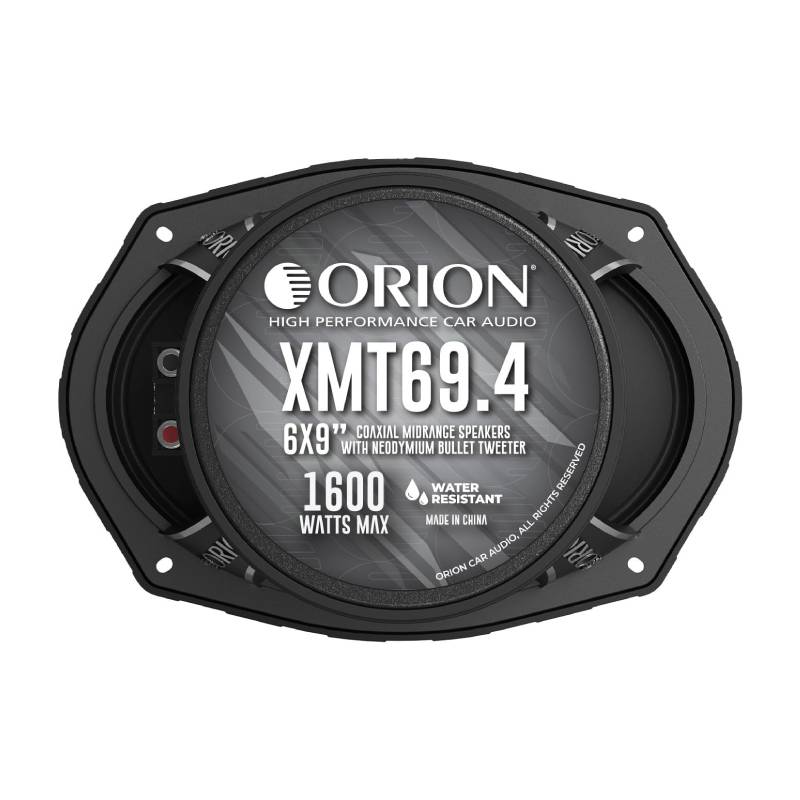

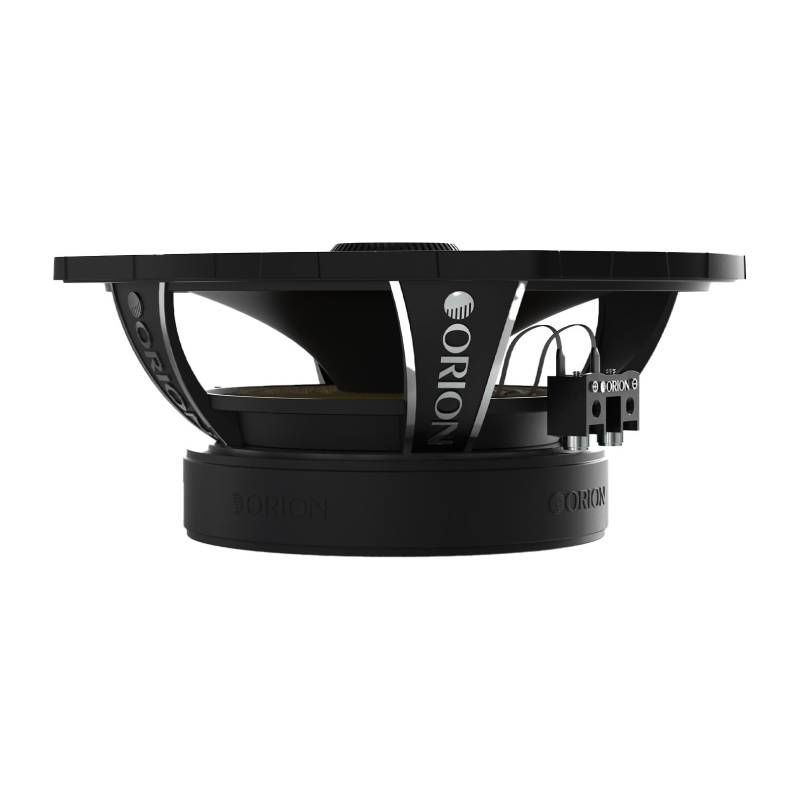

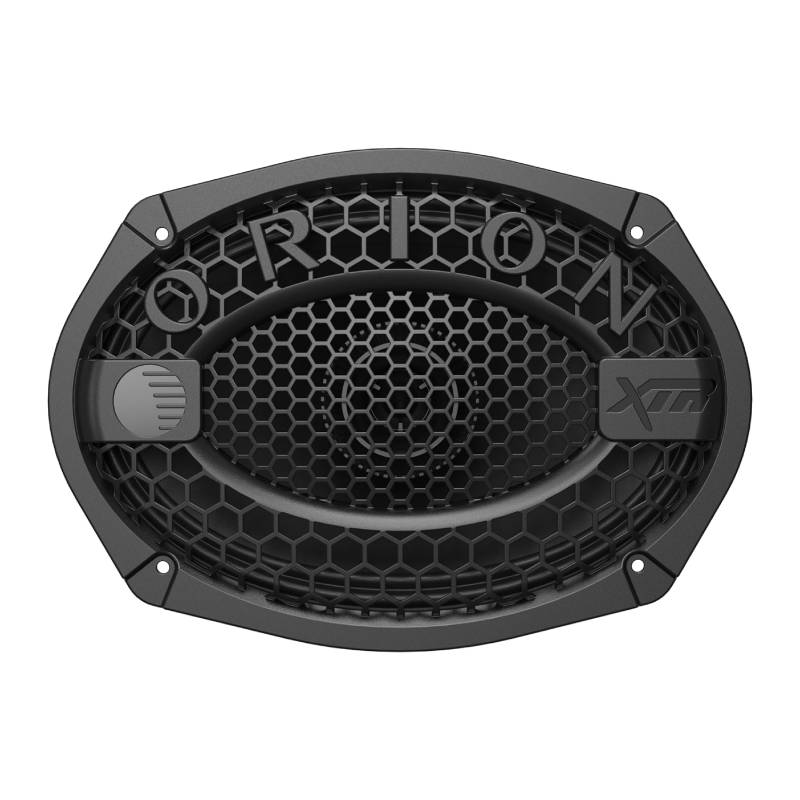

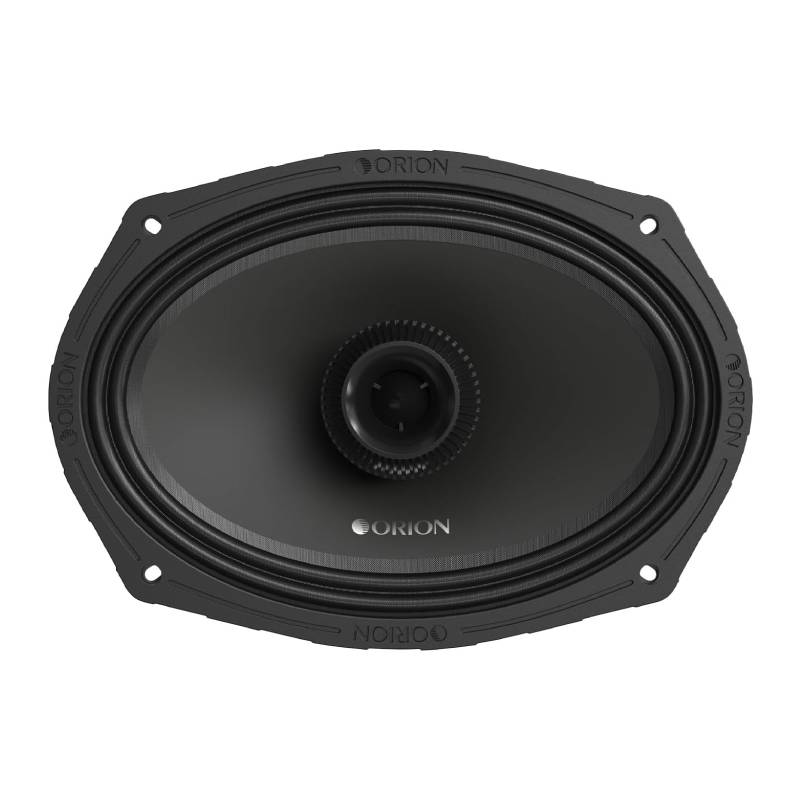

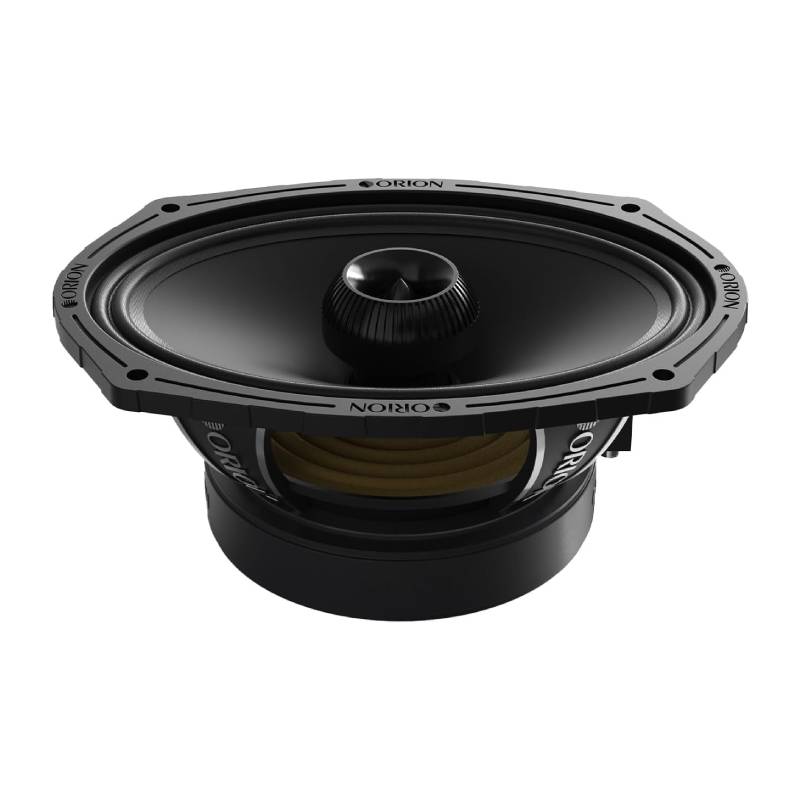

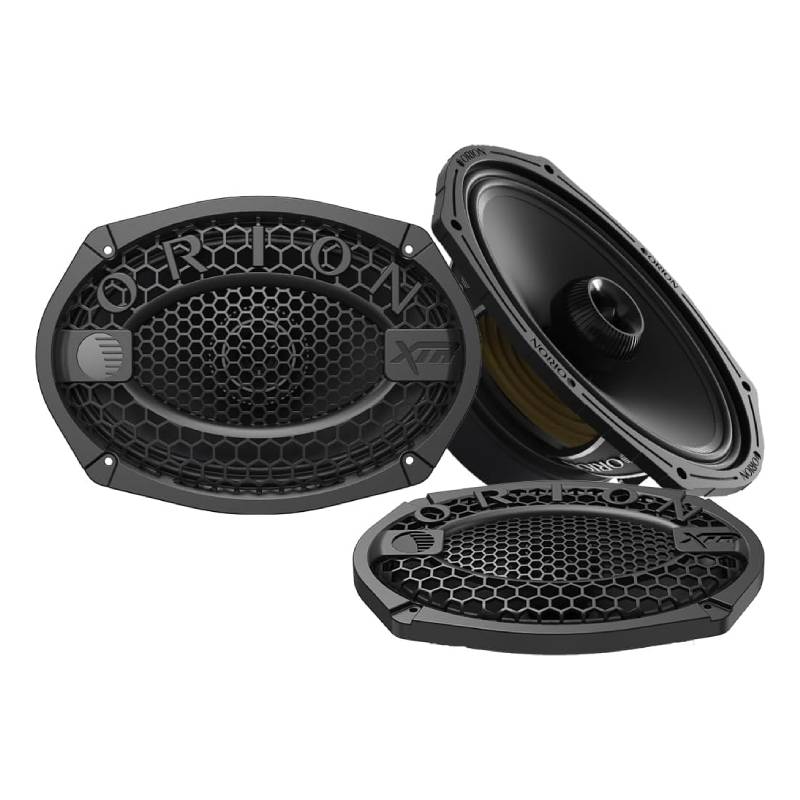

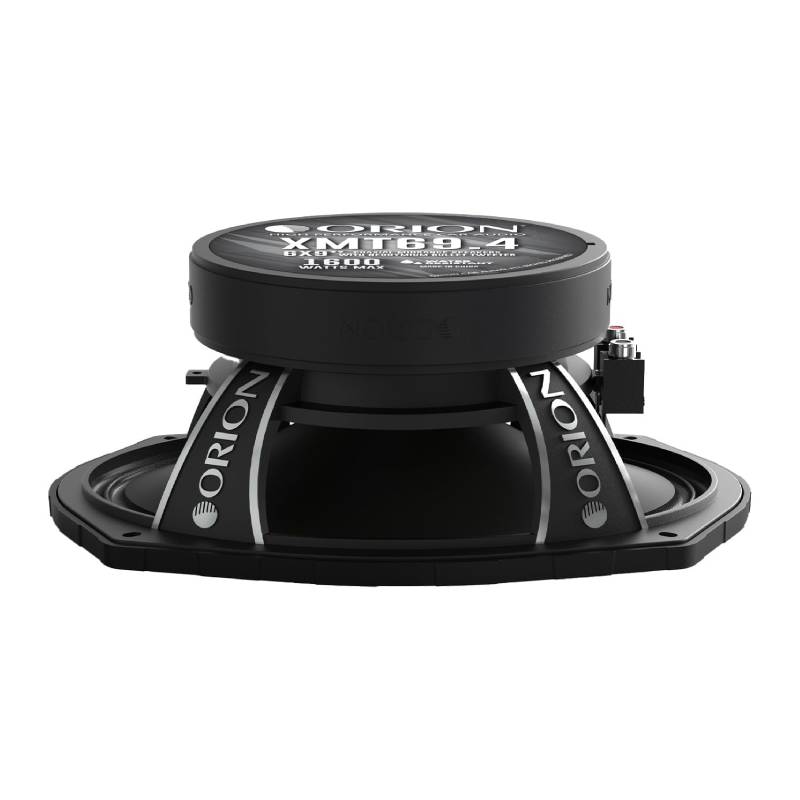

Orion XMT69.4 - XTR Series 6x9" 1600W Peak Power Handling at 4-Ohms, Midrange Car Speaker with Built-in Neodymium Bullet Tweeter
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 6x9" Midrange Car Speaker with Built-In Neodymium Bullet Tweeter
- • Owner's Manual
Durable All-Weather Midrange
Enjoy clear, powerful audio in any environment with this water-resistant coaxial midrange speaker, perfect for cars, boats, motorcycles, ATVs, UTVs, and outdoor powersports. Its moisture-resistant cone and components ensure reliable performance even in wet or humid conditions. Designed for versatility, it delivers consistent, dynamic sound wherever your adventures take you.
Crisp Highs, Powerful Output
Enjoy crisp, detailed highs with the built-in neodymium bullet tweeter, delivering excellent sound projection without the need for separate tweeters. With 400W RMS and 1600W peak power handling, this speaker provides strong, clear midrange output for professional audio setups. Perfect for pro audio builds, it combines clarity, power, and reliability in one compact design.
Powerful, Efficient Performance
Maximize your system’s output with 4-ohm impedance, designed for optimal amplifier efficiency and consistent, high-quality sound. The 1.5” high-temperature voice coil maintains reliable performance even during extended, high-volume sessions. Built for durability, this speaker delivers strong, distortion-free audio every time.
Frequently Asked Questions (FAQ)
- • Why do the XMT69.4 speakers sound brighter than my factory speakers?
The XMT69.4 has a built-in neodymium bullet tweeter and a 95 dB sensitivity rating, so its high-frequency output can sound noticeably more pronounced than a conventional factory speaker.
- • Why isn't the XMT69.4 producing much deep bass?
The speaker is designed primarily as a midrange coaxial and its published response starts at 75 Hz. A dedicated subwoofer may still be needed when deeper low-frequency bass is the goal.
- • Will a factory radio provide enough power for these 6x9s?
The XMT69.4 is rated for 400W RMS, so a factory head unit may not take advantage of its full power capability. An appropriately matched amplifier can provide considerably more usable output.
- • Why does one XMT69.4 seem louder than the other after installation?
Check the balance/fader settings, speaker polarity, wiring connections, and amplifier channels first. A loose terminal or incorrect connection can make two otherwise identical speakers produce noticeably different levels.
- • Can the 4-ohm XMT69.4 be connected to my existing amplifier?
Yes, provided the amplifier supports a 4-ohm speaker load. The XMT69.4 is specified as a 4-ohm speaker with a 1.5-inch high-temperature voice coil.
- • Why doesn't the speaker fit into my original 6x9 opening?
Being labeled 6x9 does not guarantee identical mounting dimensions across vehicles. The XMT69.4 has an overall size of approximately 245 × 173 mm and a 84.5 mm mounting depth, so the factory opening and rear clearance should be measured before installation.
- • Why do I hear vibration from the door or mounting panel after upgrading?
A higher-output speaker can make previously unnoticed door-panel or mounting-surface vibrations more obvious. Secure mounting and adding appropriate damping can help isolate those noises from the speaker itself.
- • Can I install the XMT69.4 in an exposed UTV or marine application?
The model is specifically described as water-resistant and intended for cars, boats, motorcycles, ATVs, UTVs, and other exposed environments. However, water-resistant does not mean the speaker should be treated as completely waterproof or submerged.
- • Why do the XMT69.4 highs become harsh when I turn up the amplifier?
Excessive gain or aggressive equalization can make the built-in bullet tweeter sound overly bright. Because the speaker already provides strong sensitivity and dedicated high-frequency output, amplifier tuning should be adjusted rather than simply increasing gain.
- • Are the XMT69.4 speakers suitable for a high-output powersports system?
They are designed for outdoor and powersports installations and carry a 400W RMS rating, 95 dB sensitivity, ruggedized construction, and water-resistant components. One customer reviewing the product reported returning to purchase four more speakers, indicating a positive buying experience, although that review does not provide detailed long-term performance data.
- Diameter : 6x9 Inch
- Sensitivity : 95 dB
- Impedance : 4 Ohm
- Frequency Response : 75-20000 Hz
- Peak Power Handling : 1600 Watts
- RMS Power Handling : 400 Watts
Features:
- Water-Resistant Coaxial Midrange: Engineered with a moisture-resistant cone and components, ideal for cars, boats, jet skis, motorcycles, ATVs, UTVs, and outdoor powersports systems.
- Built-In Neodymium Bullet Tweeter: Delivers crisp, detailed highs and excellent sound projection without requiring separate tweeters.
- High Power Handling: Provides 400W RMS and 1600W Max Power for strong, clear midrange output suitable for pro audio builds.
- 4-Ohm Impedance & 1.5” High-Temperature Voice Coil: Ensures maximum amplifier efficiency and powerful, reliable audio reproduction.
Specifications:
- Speaker Type: 6x9” Coaxial Midrange
- Power Handling: 400 RMS / 1600W Max
- Impedance: 4 Ohms
- Voice Coil: 1.5” High-Temperature
- Tweeter: Built-in Neodymium Bullet Tweeter
- Frequency Response: 75 Hz – 20 kHz
- Sensitivity: 95 dB
- Features: Water-Resistant Cone and Components
- Mounting Depth: 84.5mm
- Overall Depth: 99.6mm
- Overall Diameter: 245x173mm
- UPC: 818550010062
- Weight: 4.4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
