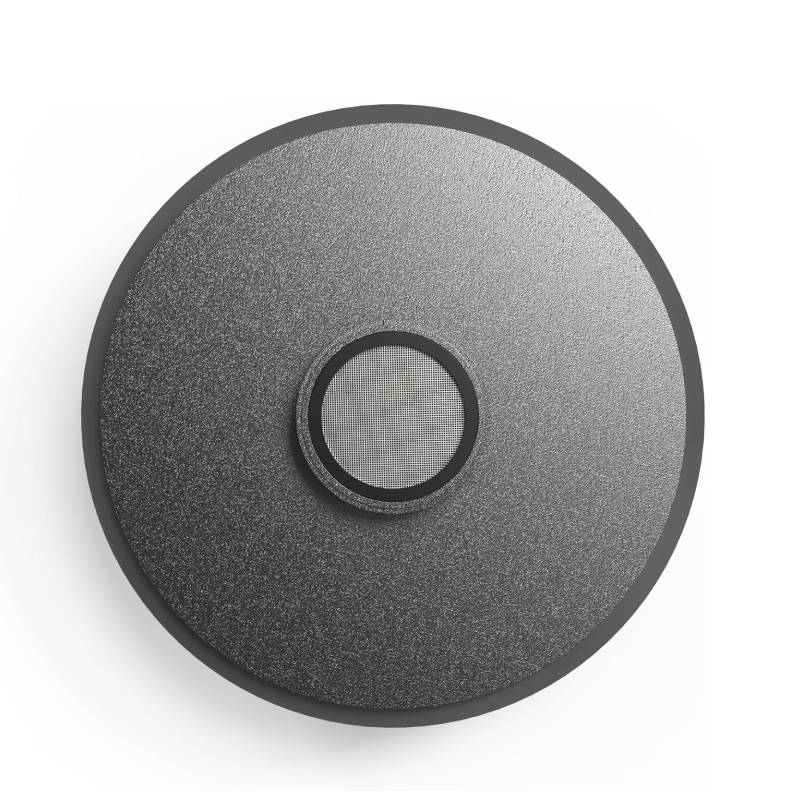

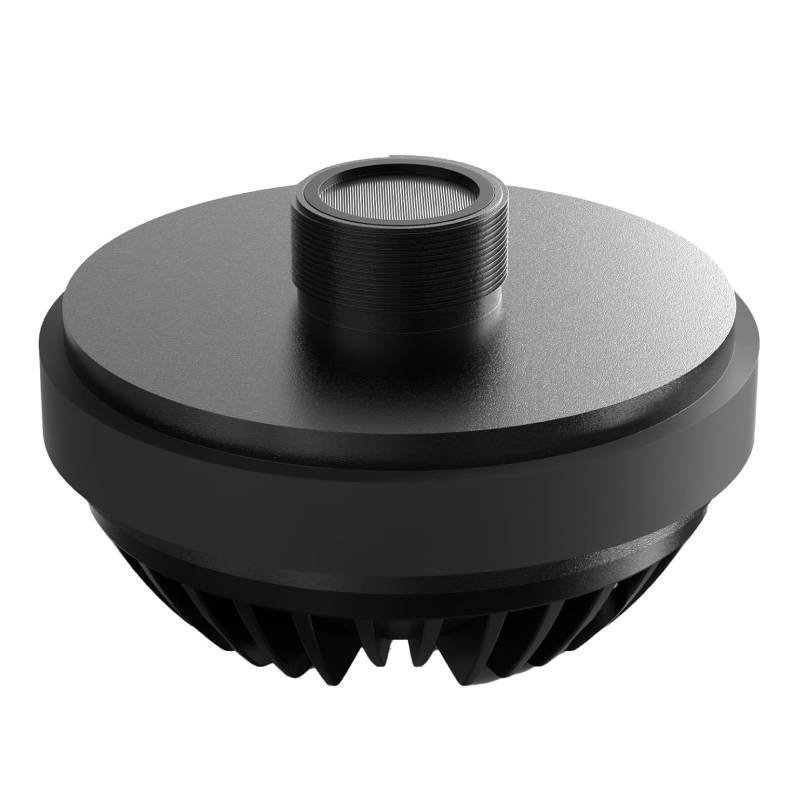

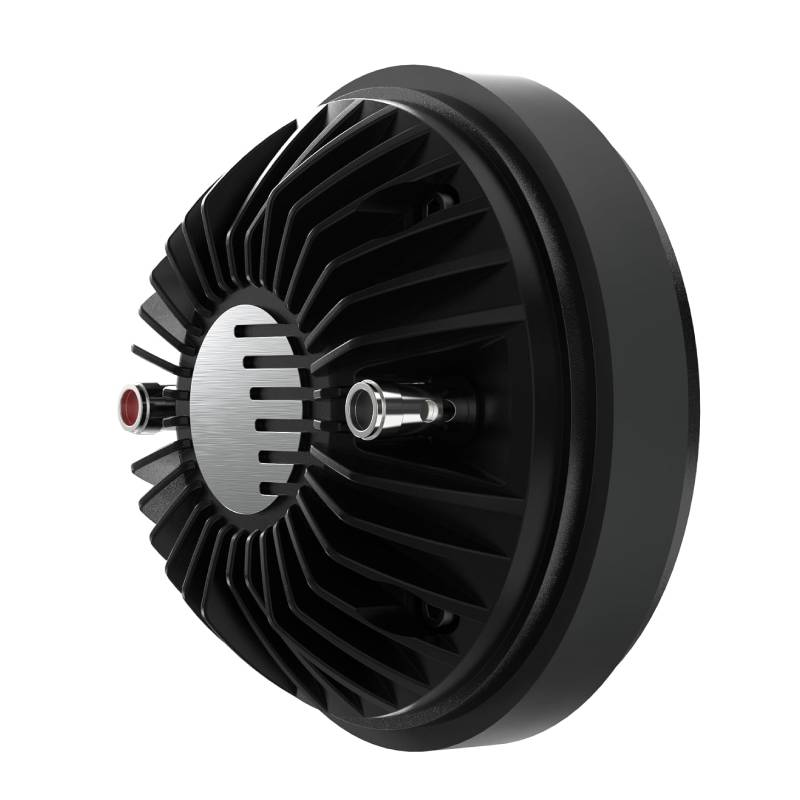

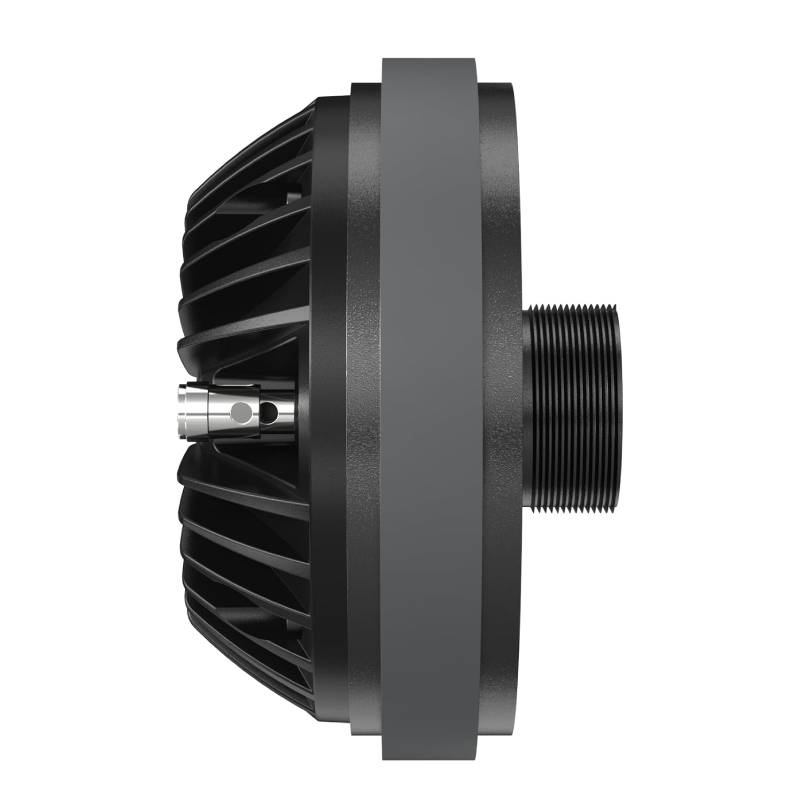

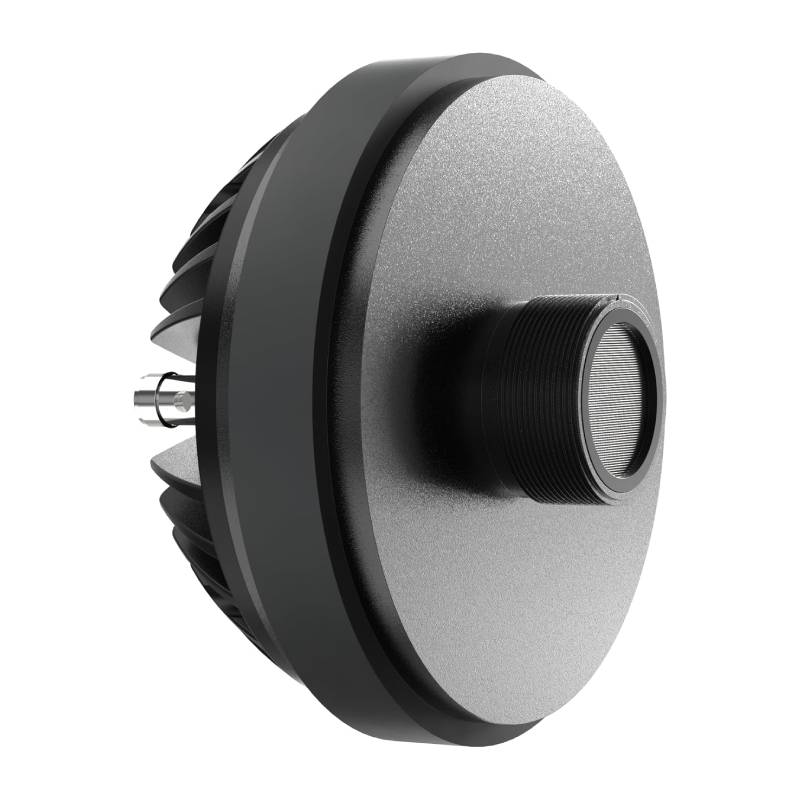

Orion X175D - XTR Series 1.75" 600W Max Power Handling at 8-Ohms Compression Driver
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1.75" 600W Compression Driver
- • Owner's Manual
Crisp, High-Powered Sound
Experience crystal-clear highs with the Orion X175D compression driver, delivering detailed, dynamic sound for car and pro audio systems. Built for 150W RMS and 600W max power, it provides powerful, precise audio projection. Perfect for high-output setups, it ensures your music sounds strong, clear, and immersive every time.
Durable, High-Clarity Driver
Built with a 1.75” CCAW voice coil and titanium diaphragm, the X175D delivers exceptional durability, heat resistance, and consistent audio performance. Its wide 1.2 kHz–20 kHz frequency response captures every detail with precision. With 106 dB sensitivity, it produces efficient, distortion-free sound for clear, powerful audio in any setup.
Powerful, Long-Lasting Performance
Built with a 30 oz ceramic magnet, this compression driver delivers exceptional motor strength for consistent, high-quality audio. Its durable structure ensures reliable long-term performance even in demanding environments. Perfect for pro audio and car audio setups, it combines power, clarity, and durability in one compact design.
Frequently Asked Questions (FAQ)
- • Why does the X175D enter protection when the volume gets high?
A protection shutdown can be related to excessive heat, an unsuitable speaker load, poor power delivery, or a wiring short. Orion amplifier users have reported protection activation during higher-volume operation.
- • Why does the amplifier turn on but my speakers produce no sound?
A lit power indicator does not necessarily mean the audio signal is reaching the output. Check the RCA/source signal, gain setting, speaker connections, and amplifier channel configuration.
- • Could a weak electrical connection cause the X175D to cut out?
Yes. Loose or poorly prepared power and ground connections can cause voltage problems under load. Real-world Orion installation discussions have specifically identified power/ground connections as an important troubleshooting area.
- • Why does the X175D seem to produce less power than I expected?
Actual output depends on the speaker impedance, supply voltage, signal level, gain adjustment, and installation. An amplifier's advertised maximum or peak figure should not be treated as its continuous output under every load.
- • Why does the sound become distorted after increasing the gain?
Excessive gain can overdrive the amplifier or the incoming signal. Instead of using gain as a volume control, match it to the source signal and verify that the speaker load is appropriate.
- • Why does the amplifier work normally when cold but stop after extended playback?
Heat buildup can cause an amplifier to shut down temporarily for protection. Give the unit adequate ventilation and make sure surrounding panels, carpeting, or equipment are not trapping heat.
- • What should I check if the X175D suddenly loses output while driving?
Inspect the power and ground terminals, remote turn-on wire, RCA connections, speaker wiring, and fuse first. An intermittent connection can cause the amplifier to stop producing audio even though the installation initially worked.
- • Can incorrect speaker impedance make the X175D behave strangely?
Yes. Connecting a load below the amplifier's supported impedance can increase current demand, heat, and protection events. Calculate the final impedance when multiple speakers or voice coils are connected.
- • Why does changing the head-unit settings affect the amplifier so much?
The amplifier reproduces the signal it receives. Excessive bass boost, overlapping filters, very low source output, or heavy equalization can make the system sound weak or distorted even when the amplifier itself is functioning.
- • Why does the amplifier need careful wiring even if it is relatively compact?
Compact dimensions do not eliminate the need for solid electrical connections. Real-world Orion installation discussions include cases where users initially suspected the amplifier but troubleshooting pointed toward power, ground, or signal connections.
- Diameter : 1.75 Inch
- Peak Power Handling : 600 Watts
Features:
- CRYSTAL-CLEAR HIGHS: The Orion X175D compression driver delivers superior high-frequency reproduction with remarkable detail, ensuring crisp and dynamic sound output in car audio and pro audio systems.
- POWERFUL PERFORMANCE: Built to handle 150W RMS and up to 600W Max Power, this 8-ohm compression driver projects sound with strength and precision, making it ideal for pro audio car builds and high-output setups.
- ADVANCED MATERIALS: Features a 1.75” CCAW voice coil paired with a titanium diaphragm, providing excellent durability, heat resistance, and consistent audio accuracy even at high volume levels.
- ENGINEERED FOR CLARITY: With a wide frequency response of 1.2kHz – 20kHz and a high 106 dB sensitivity, the X175D ensures efficient sound output with minimal distortion.
- DURABLE CERAMIC MAGNET STRUCTURE: Built with a robust 30 oz ceramic magnet, this compression driver delivers strong motor force and reliable long-term performance in demanding audio environments.
Specifications:
- Brand: ORION
- Mounting Type: Flush Mount
- Speaker Type: Diver
- Max Output Power: 600W
- Impedance: 8 Ohms
- Connectivity Technology: Coaxial
- UPC: 818550014879
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
