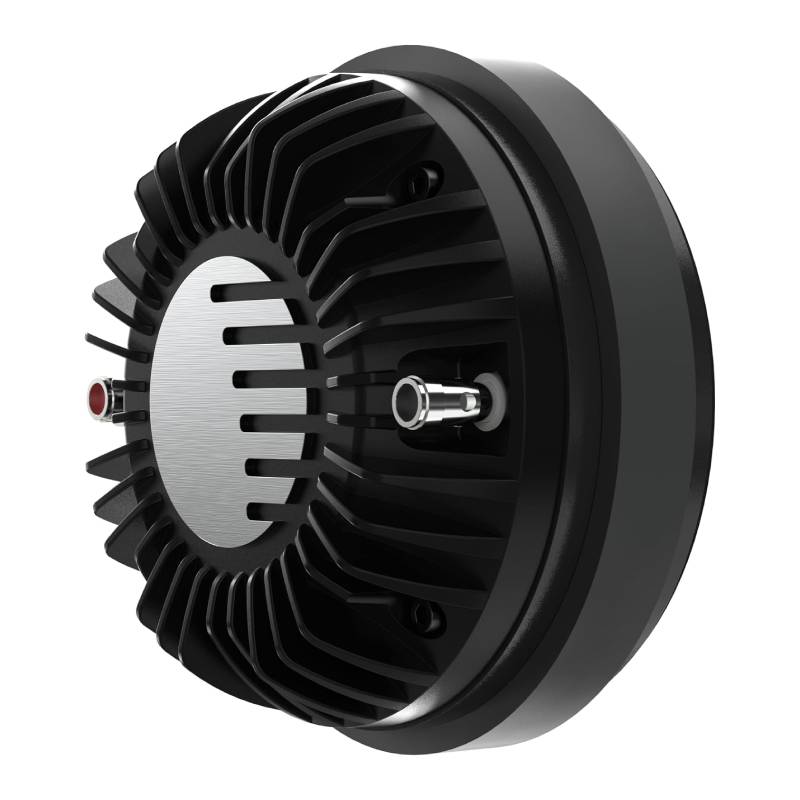

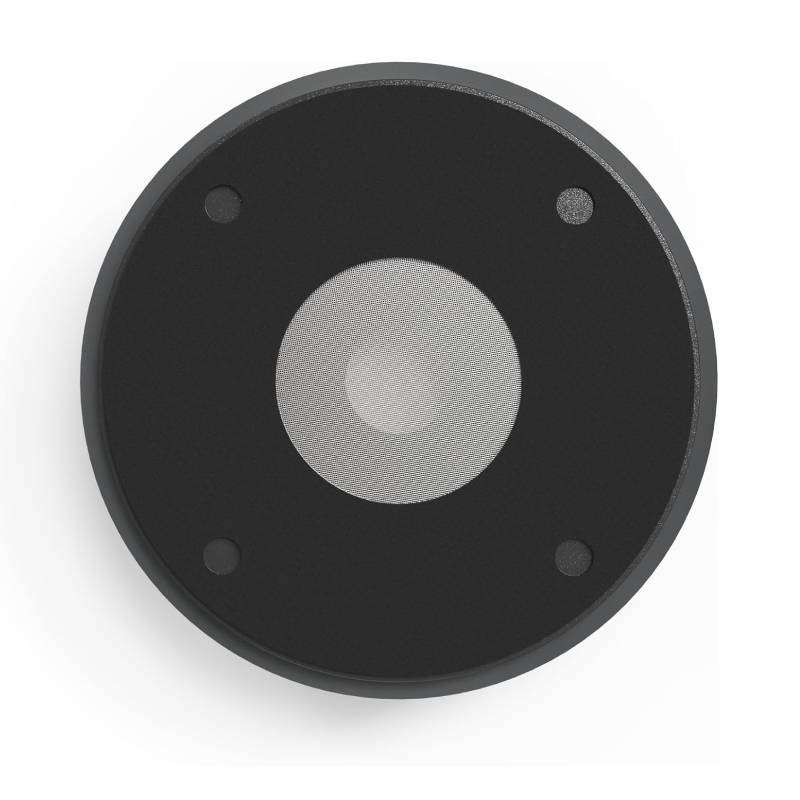

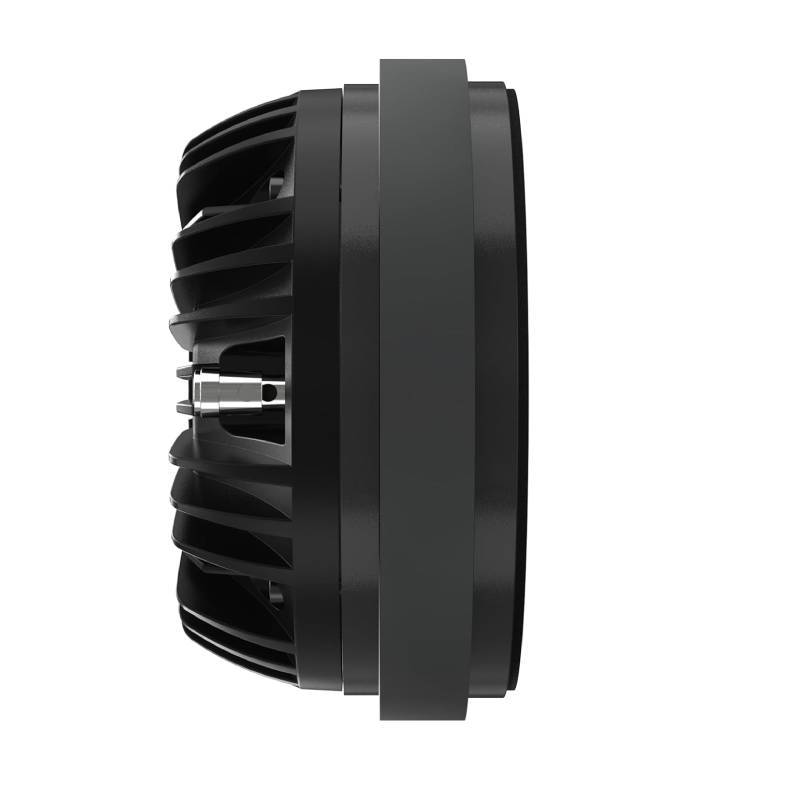

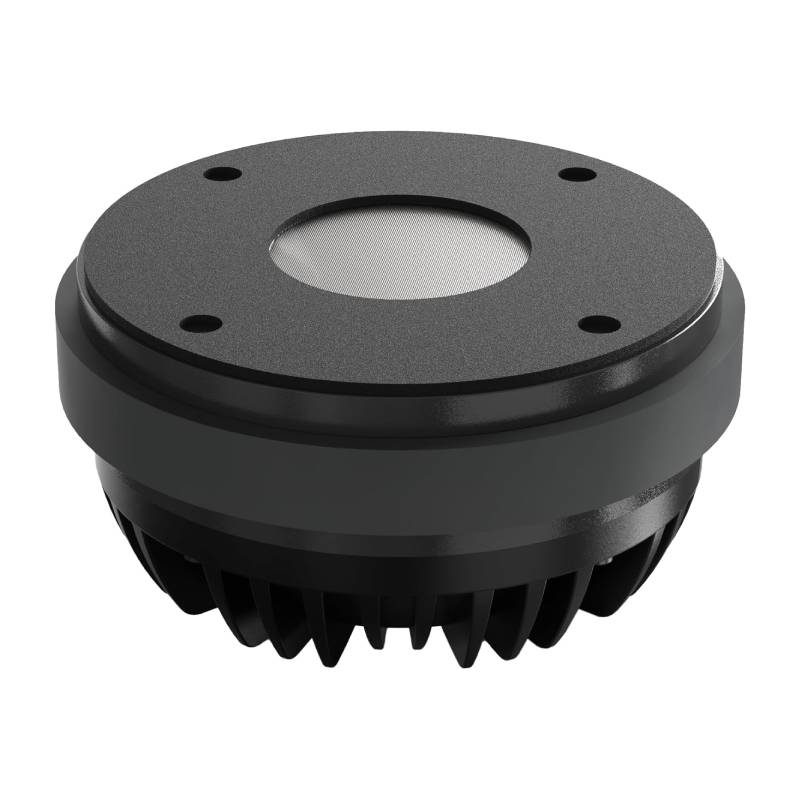

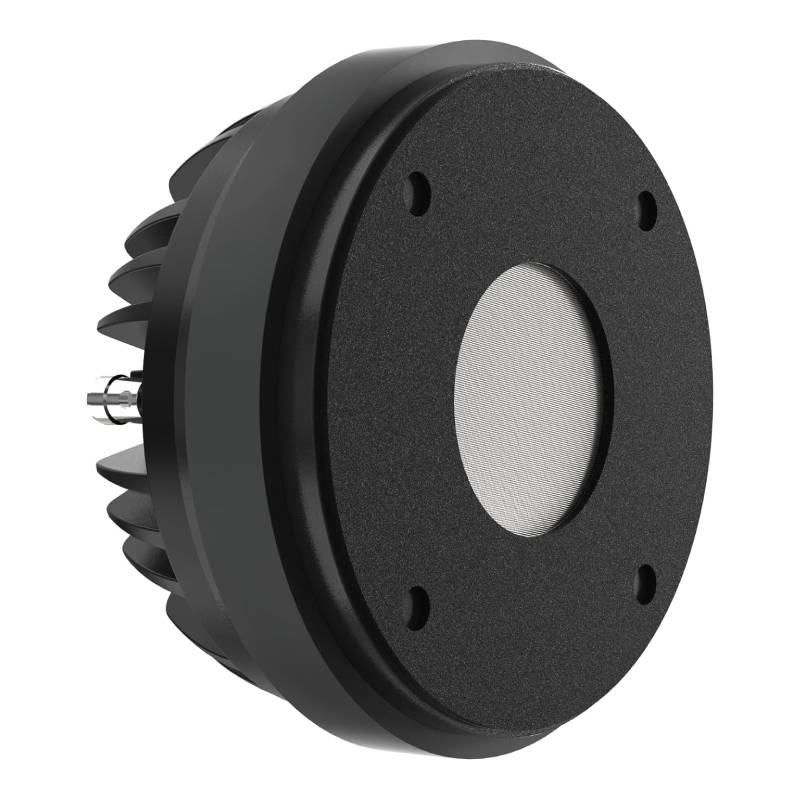

Orion X200D - XTR Series 800W Peak Power Handling at 8-Ohms Compression Driver
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2" 800W Compression Driver
- • Owner's Manual
Precision Highs, Powerful Output
Experience crystal-clear high frequencies with the Orion X200D compression driver, engineered for detailed and accurate sound reproduction. With 200W RMS and 800W max power handling at 8 ohms, it delivers strong, efficient audio projection. Perfect for pro-level builds, it ensures powerful, clean sound even in high-output systems.
Pro Materials, Extended Clarity
Built with a 2” CCAW voice coil and titanium diaphragm, the X200D delivers outstanding durability, heat resistance, and precise high-frequency performance. Its wide 1 kHz–20 kHz frequency range captures every detail for a rich, dynamic sound. With 108 dB sensitivity, it ensures powerful, efficient output with minimal distortion.
Strong Magnet, Reliable Performance
Built with a 33 oz ceramic magnet, this compression driver delivers powerful motor force for consistent, high-quality sound. Its durable construction ensures reliable long-term performance in demanding car audio applications. Perfect for pro setups, it provides strong, stable output you can count on.
Frequently Asked Questions (FAQ)
- • Why does the X200D sound too sharp after installation?
An overly bright or aggressive sound can come from the crossover point, EQ, gain level, horn design, or the driver's positioning, so system tuning should be checked before assuming there is a problem.
- • Can I run the X200D without a dedicated crossover?
The X200D is intended for high-frequency reproduction rather than full-range playback, so using an appropriate high-pass crossover is important to keep damaging low frequencies away from the compression driver.
- • Why is my X200D noticeably louder than my other speakers?
Its high-efficiency design allows the driver to produce substantial output from relatively little amplifier power, so the gain may need to be reduced to balance it with the midrange and other drivers.
- • What causes the X200D to distort when the volume gets high?
Distortion can occur when the amplifier clips, the gain is excessive, the crossover is set too low, or the driver is being pushed beyond its intended frequency and power range.
- • Why does one X200D produce less treble than the other?
Different output levels can result from unequal amplifier channels, reversed wiring, loose terminals, inconsistent gain settings, crossover differences, or a problem with the signal reaching one driver.
- • Can the X200D connect to any 2-inch horn?
The driver uses a 2-inch compression-driver format, but the horn's throat, mounting method, coverage pattern, and physical dimensions still need to be compatible before installation. Orion also lists the HA200 as a replacement horn specifically intended for the X200D/XDK200.
- • Why do vocals sound weak even though the X200D is very loud?
A compression driver such as the X200D focuses on high-frequency output, so weak vocals may indicate a missing or poorly matched midrange driver, an incorrect crossover region, or an EQ setting that leaves a gap between the midrange and high frequencies.
- • What amplifier power should I use with the 8-ohm X200D?
The X200D is rated for 200W RMS at 8 ohms, so the amplifier should provide clean power while remaining compatible with an 8-ohm load rather than being selected only by its peak-wattage figure.
- • Why does the X200D get harsh when I increase the gain?
Increasing gain beyond the clean signal range can introduce clipping and excessive high-frequency energy, making the compression driver sound harsh even though the driver itself may be functioning normally.
- • What should I check if the X200D suddenly stops producing sound?
Start with the amplifier channel, speaker wiring, crossover, input signal, and terminals before replacing the driver; a loose connection or incorrect crossover setup can cause a high-frequency driver to appear dead.
- Diameter : 2 Inch
- Peak Power Handling : 800 Watts
Features:
- HIGH-FREQUENCY PRECISION: The Orion X200D compression driver is engineered to deliver crystal-clear highs and detailed sound reproduction, making it ideal for pro-level car audio and high-output sound systems.
- POWERFUL OUTPUT: Handles 200W RMS and up to 800W Max Power at 8 ohms, providing strong, efficient sound projection for demanding audio builds.
- PRO AUDIO MATERIALS: Built with a 2” CCAW voice coil and a titanium diaphragm, the X200D offers excellent durability, thermal resistance, and accurate high-frequency performance even at elevated volume levels.
- EXPANDED FREQUENCY RANGE: With a wide response of 1kHz – 20kHz and a high 108 dB sensitivity, this compression driver delivers efficient output with minimal distortion.
- DURABLE CERAMIC MAGNET STRUCTURE: Features a 33 oz ceramic magnet that provides strong motor force and reliable long-term performance in professional car audio applications.
Specifications:
- Brand: ORION
- Mounting Type: Flush Mount
- Speaker Type: Diver
- Max Output Power: 800W
- Impedance: 8 Ohms
- Connectivity Technology: Coaxial
- UPC: 818550014886
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
