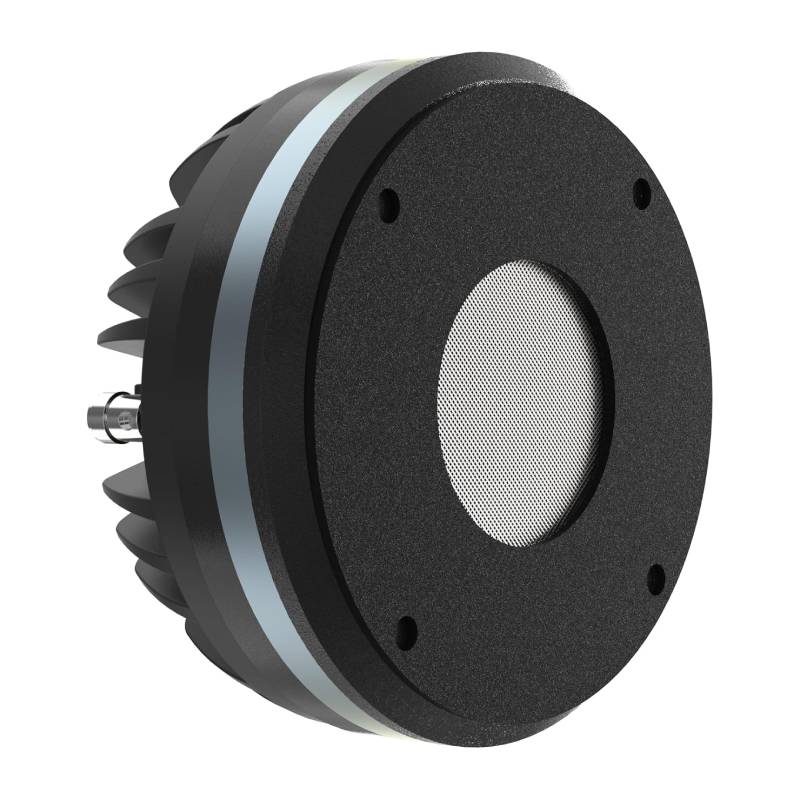

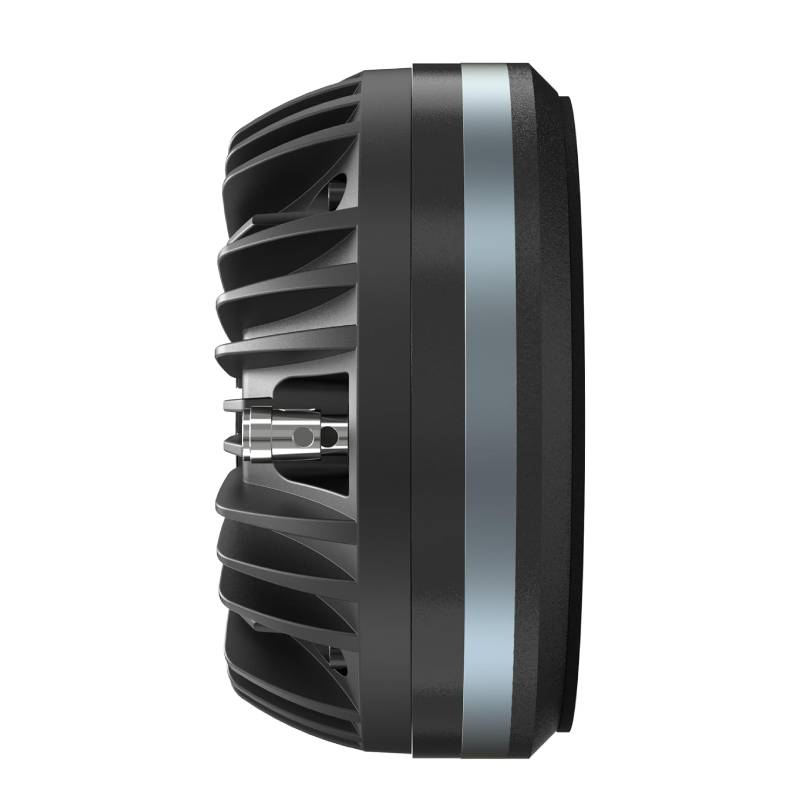

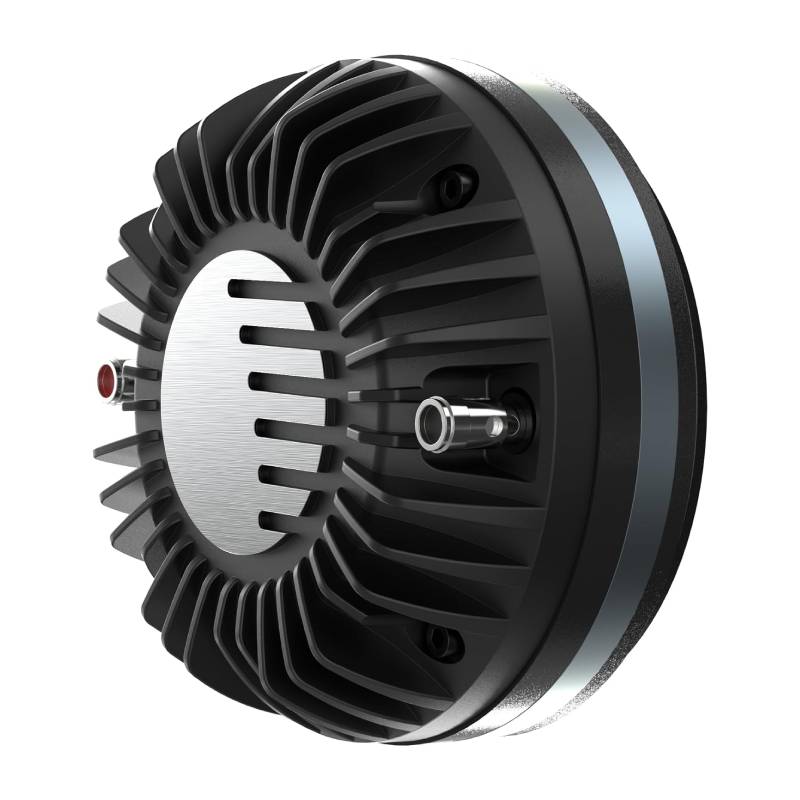

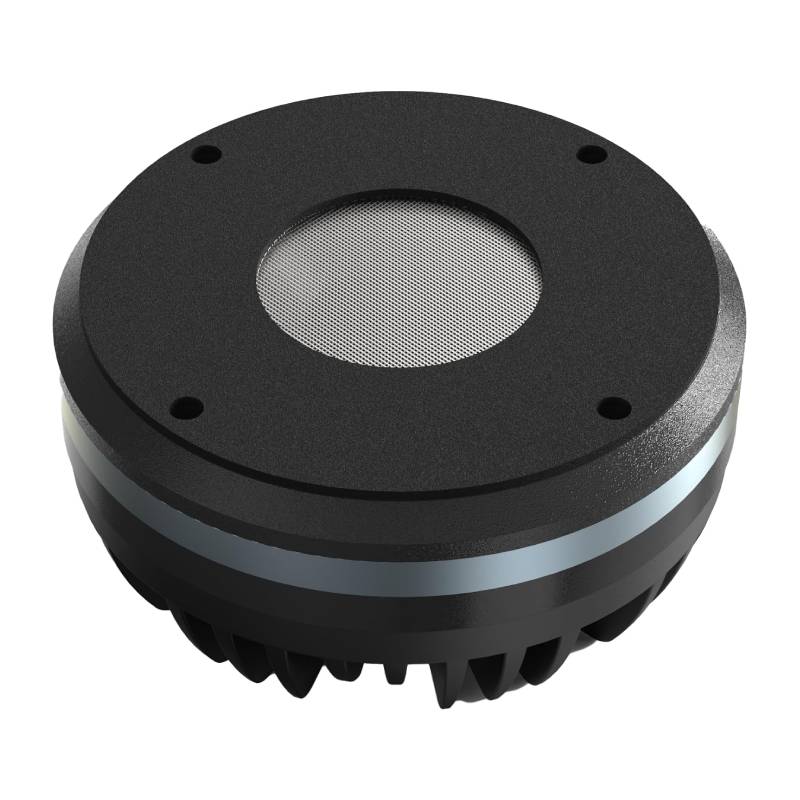

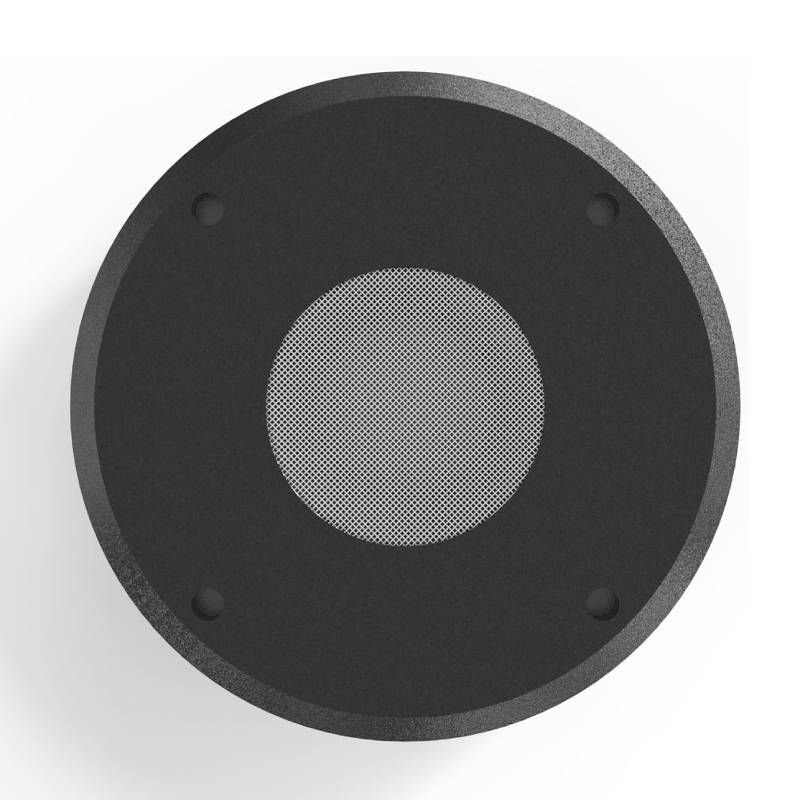

Orion HCCA300DR - HCCA Pro Series 3" 1600W Peak Power Handling at 8-Ohms Compression Driver
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 3" 1600W Compression Driver
- • Owner's Manual
Extreme SPL, Competition Power
Built for serious performance, this HCCA high-performance compression driver is designed for extreme SPL and competition-level audio systems. The 3” compression driver design delivers powerful, high-frequency projection for horn-loaded setups. With 400W RMS and 1600W max power handling, it ensures strong, controlled output for demanding builds.
Durable, High-Efficiency Driver
Built with a polyimide diaphragm, this compression driver offers exceptional durability and thermal stability during high-power operation. The 2.94” CCAR voice coil enhances heat dissipation and ensures long-term reliable performance. Featuring a neodymium magnet motor structure, it delivers strong motor force while reducing weight and improving efficiency.
High-Efficiency, Pro-Ready Sound
Experience ultra-high efficiency output with 112 dB sensitivity, delivering powerful, clear sound projection. Designed specifically for horn systems, it pairs perfectly with Orion HCCA horn lenses for maximum impact. Ideal for SPL and pro audio builds, it ensures your system performs at competition-level precision.
Frequently Asked Questions (FAQ)
- • Why am I getting very little sound after installing the HCCA300DR?
The HCCA300DR is a compression driver designed to work with a compatible horn, so it should not be treated like a conventional standalone speaker. Orion specifies it for horn-loaded applications.
- • Why does the HCCA300DR sound extremely bright or harsh?
Its 112 dB sensitivity and 500 Hz–18 kHz response allow it to produce very strong high-frequency output. Incorrect crossover or excessive amplifier gain can make the upper frequencies sound aggressive.
- • Can I connect the HCCA300DR directly to any amplifier channel?
The driver has an 8-ohm impedance, so the amplifier should be suitable for an 8-ohm load. The amplifier's actual power output at 8 ohms should also be considered rather than relying on the 1600W maximum figure.
- • Why does the driver not include the horn I expected?
The HCCA300DR is sold as a single compression driver, with the horn not included. Orion lists the HA300 as a compatible 3-inch horn option.
- • Why am I hearing distortion even though the driver is rated for high power?
The 1600W figure is the maximum rating; the continuous RMS rating is 400W. Excessive amplifier output, clipping, poor crossover settings, or an unsuitable horn setup can still produce audible distortion.
- • Does the HCCA300DR need a high-pass crossover?
Yes, system filtering is important because the driver is intended for high-frequency horn-loaded use and its published response begins at 500 Hz. Sending inappropriate low-frequency content to a compression driver can create performance or reliability problems.
- • Why doesn't my existing horn fit the HCCA300DR?
Compatibility matters with compression drivers. Orion specifically identifies the HA300 as being designed for 3-inch compression drivers, including the HCCA300DR, so a different horn should be checked for throat and mounting compatibility before installation.
- • Why does the HCCA300DR get hot during long high-volume sessions?
High-power operation naturally places thermal demands on the voice coil. Orion uses a 2.94-inch high-temperature CCAR voice coil and polyimide diaphragm for thermal stability, but proper power levels and crossover settings are still important during extended use.
- • Why does my HCCA300DR sound different after changing the horn?
The horn affects how a compression driver loads and disperses sound. Orion's HA300, for example, uses a 50° × 50° dispersion pattern, so changing to another horn can alter the perceived coverage and tonal balance.
- • What should I check if the HCCA300DR suddenly becomes quiet?
Check the speaker cable, amplifier channel, 8-ohm connection, crossover settings, and the driver terminals before assuming the diaphragm or voice coil has failed. Because the HCCA300DR is a single compression driver rather than a complete horn assembly, each part of the signal chain needs to be checked separately.
- Diameter : 3 Inch
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
Features:
- HCCA High Performance Compression Driver: Designed for extreme SPL and competition car audio systems.
- 3” Compression Driver Design: Built for high-output horn-loaded systems requiring powerful high-frequency projection.
- 400W RMS / 1600W Max Power Handling: Delivers strong and controlled high-frequency output for demanding audio systems.
- Polyimide Diaphragm Construction: Provides excellent durability and thermal stability under high-power operation.
- 2.94” CCAR Voice Coil: High-temperature CCAR voice coil improves heat dissipation and long-term reliability.
- Neodymium Magnet Motor Structure: Provides strong motor force with reduced weight and improved efficiency.
- Ultra-High Efficiency Output: Delivers powerful sound projection with 112 dB sensitivity.
- Designed for Horn Systems: Perfect for pairing with Orion HCCA horn lenses in SPL and pro audio builds.
Specifications:
- Speaker Type: Compression Driver
- Driver Size: 3” Compression Driver
- Power Handling: 400W RMS / 1600W Max
- Impedance: 8 Ohms
- Voice Coil: 2.94” High-Temperature CCAR
- Diaphragm Material: Polyimide
- Magnet Type: Neodymium
- Sensitivity: 112 dB
- Frequency Response: 500 Hz – 18 kHz
- Mounting Type: Compression Driver Mount
- Application: SPL / Competition Car Audio Systems
- Package Quantity: Single Compression Driver (Horn Not Included)
- UPC: 818550014923
- Weight: 8
