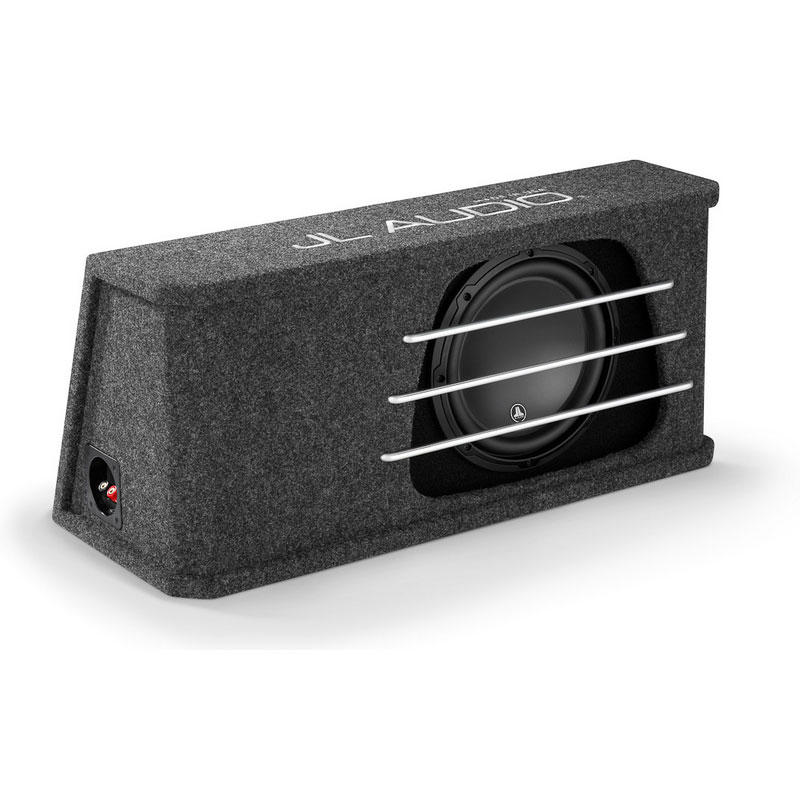

JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 10W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500 W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500W
Nominal Impedance: 2Ω
Diameter : 10 Inch
Sensitivity : 84 dB
Impedance : 2 Ohm
Frequency Response : 25-250 Hz
Peak Power Handling : 1000 Watts
Number Of Subwoofers : 1
Enclosure Type : Ported
Amplified : No
RMS Power Handling : 500 Watts
ported enclosure with one 10" W3v3 subwoofer
5/8" medium density fiberboard construction covered with gray carpet and black insert
solid aluminum grille bars
2-ohm total impedance
power handling: 150-500 watts RMS
frequency response: 25-250 Hz
sensitivity: 85 dB
29-1/2"W x 13-1/4"H x 12"D1 x 7-3/8"D2
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
i have this in the back of my 2000 jeep wrangler and it fits excllent. powered ba a rockford T400-2 in [email protected] 522rms watts, it really sounds good, very good choice, and would buy it all over agine
I replaced my 2 10 inch 600w rms Audiobahn's in a sealed box with this one 10 inch slot ported HQ JL using exact same amp (Legacy 600w rms x 2 or 1,200w rms x 1)(there are MUCH better amps out there but when I bought it, it was great for the price) and this hits harder and much deeper! It's in the yrunk of my Hyundai XG350L teamed with a pr of Kicker 6x9's and Kicker 6.5 components using an Alpine 100w rms x4 and a Kenwood deck. The sound is fantastic! LOVE this sub! Highly recommend! Can't do much better at this price! Only reason for 9 ratings is because there ARE better subs and enclosures but they cost more $$. Get this you'll love it!
I purchase the H.O 10inch subwoofer enclosure . Great sound quality great H.O . It's hook up to my JL Audio RD900/5 . Channel amp ... 500 watts feeds the subwoofer great sound quality .. benefits of a 10inch subwoofer . Clean bass and accurate sound quality ....
