Rockford Fosgate  T1D412 On Sale

Power T1 Series 12" 1600W Peak Power Handling at 4 Ohms, Dual Voice Coil Car Subwoofer

Item #23613

Condition:   Brand New

Product Highlights

  • Power T1 Series
  • 12" Subwoofer
  • 1600W Peak Power
  • 4 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$458.99

Discount Already Applied!
Reg. Price $587.50  Save $128.51
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate T1D412 Power T1 Series 12" 1600W Peak Power Handling at 4 Ohms, Dual Voice Coil Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" Dual 4-ohm voice coil subwoofer

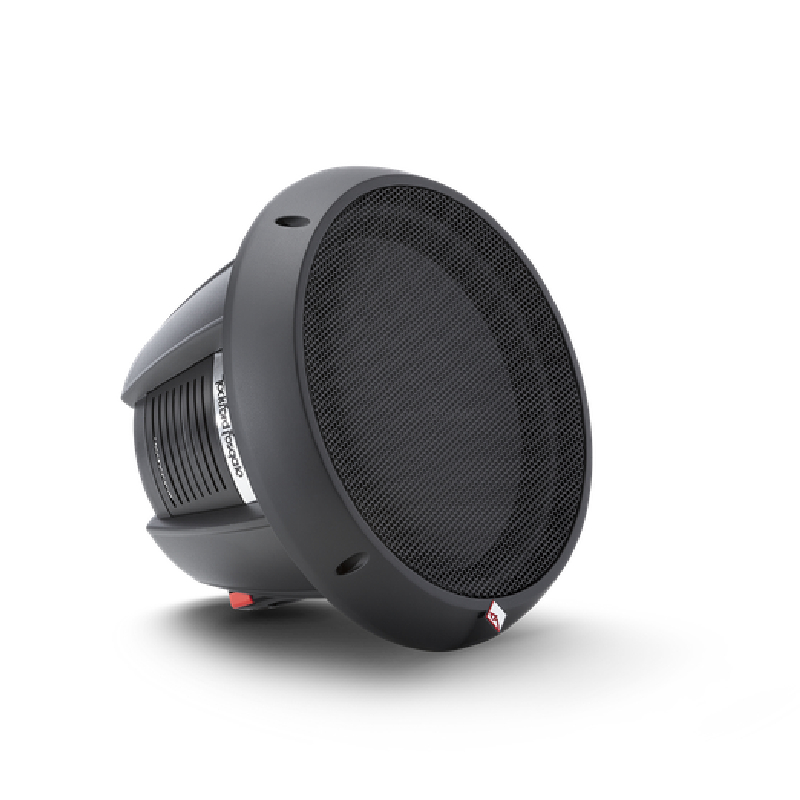

  • • Grille
  • • Fused 2-ohm/8-ohm SWIFT jumper (installed)
  • • Non-fused 2-ohm/8-ohm SWIFT jumper (not installed)
  • • (12) 1-3/4" Allen head screws
  • • 4mm Allen head bit
  • • Installation/Operation manual (English/ French/ Spanish/ German)
  • Owner's Manual




Why Choose Rockford Fosgate T1D412 Component Car Subwoofer?

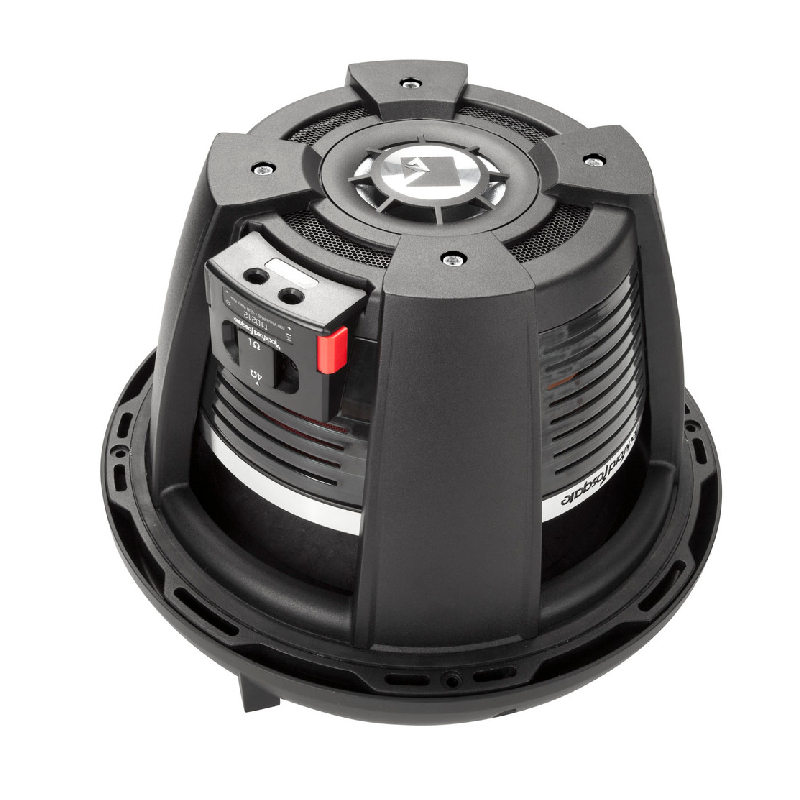

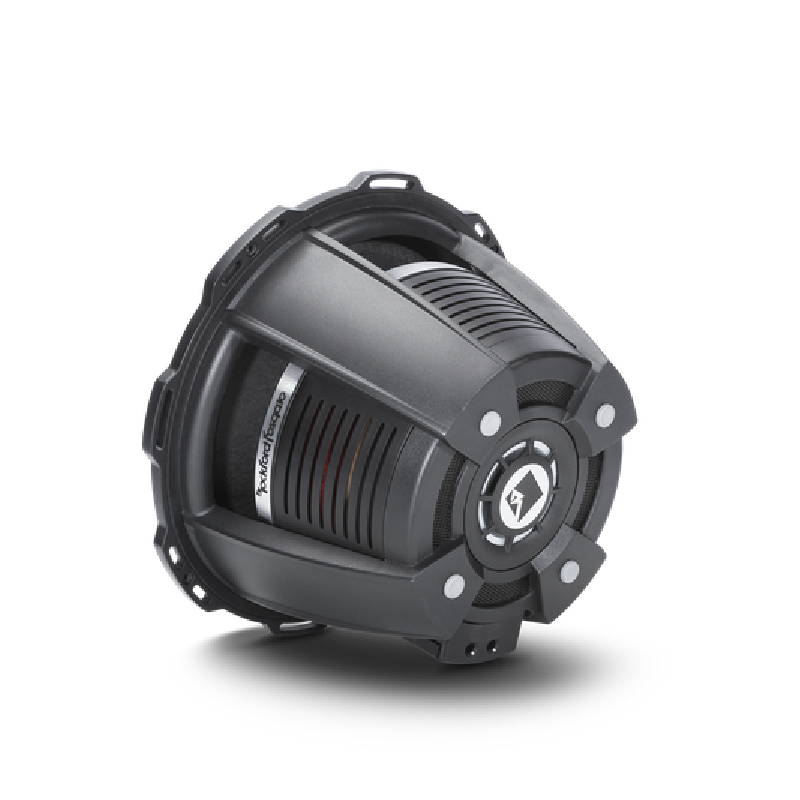

Rockford Fosgate T1D412 Component Car Subwoofer Bottom View
Rockford Fosgate Power T1 Series Subwoofer

This is a 12" subwoofer designed for use in cars and other vehicles. It features a Dual 2 Ohm voice coil, a 1600 Watt peak power handling, and a OverRoll Santoprene surround. The woofer also has a aluminum heat sink basket for additional cooling, a stacked Magnet structure for increased sound quality and a flat spider for improved cone movement. This subwoofer is designed to provide powerful, deep bass response and is perfect for anyone looking to add an extra punch to their vehicle's audio system.

OverRoll Santoprene surround

Designed to deliver powerful, deep bass performance. The T1D212's 12” subwoofer utilizes a Santoprene surround for better control of the cone and improved linearity. The subwoofer also features an over-roll design for enhanced excursion and increased cone area for increased bass output. The T1D212 is capable of handling up to 1600 watts of peak power. The subwoofer is also equipped with a 4-layer voice coil that allows for greater heat dissipation and improved reliability. The T1D212 is a great choice for anyone looking to really bring the bass to their car audio system.

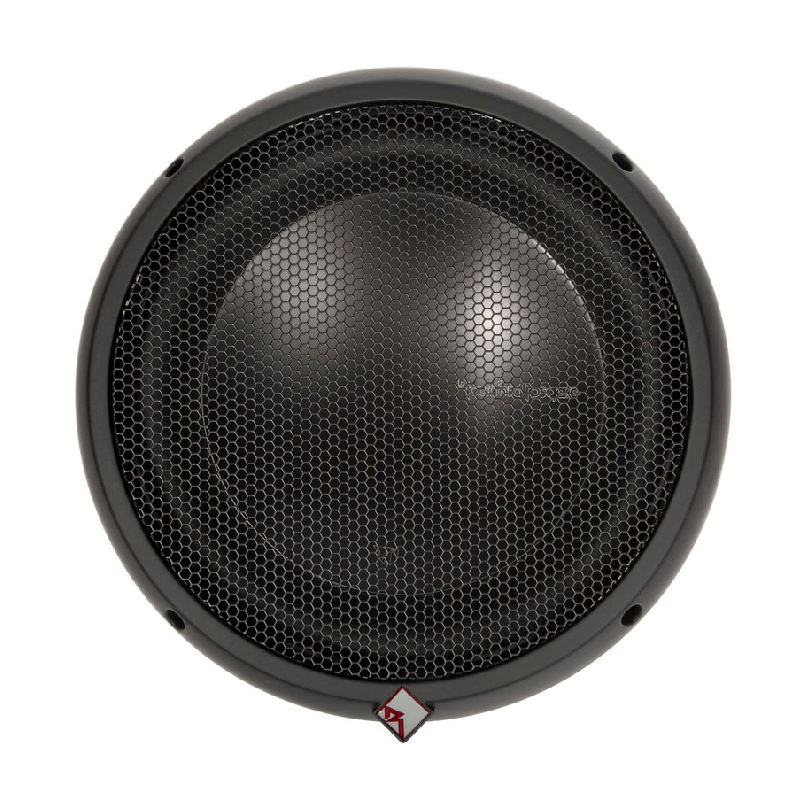

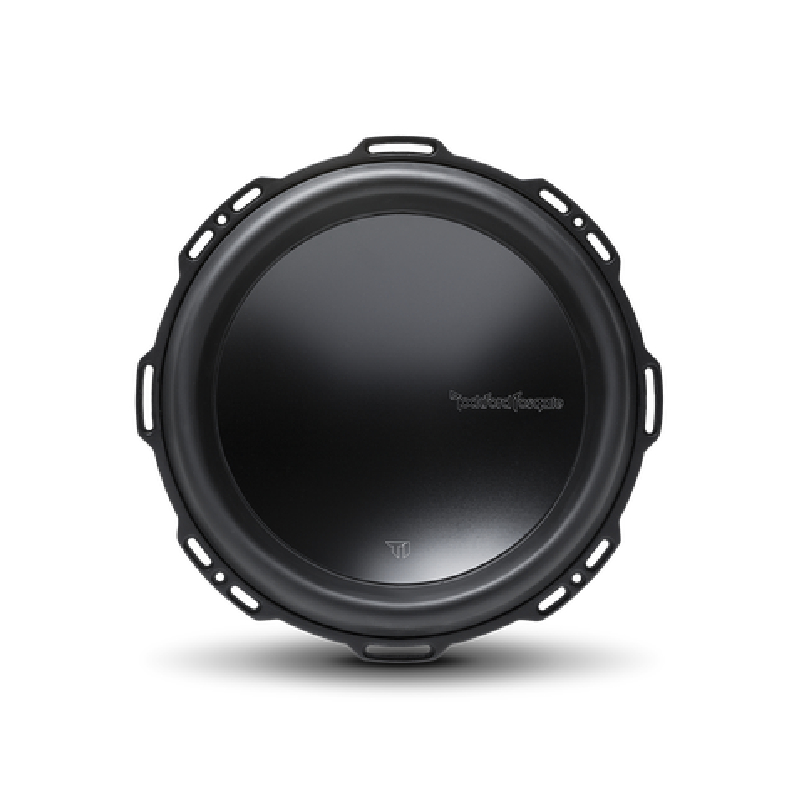

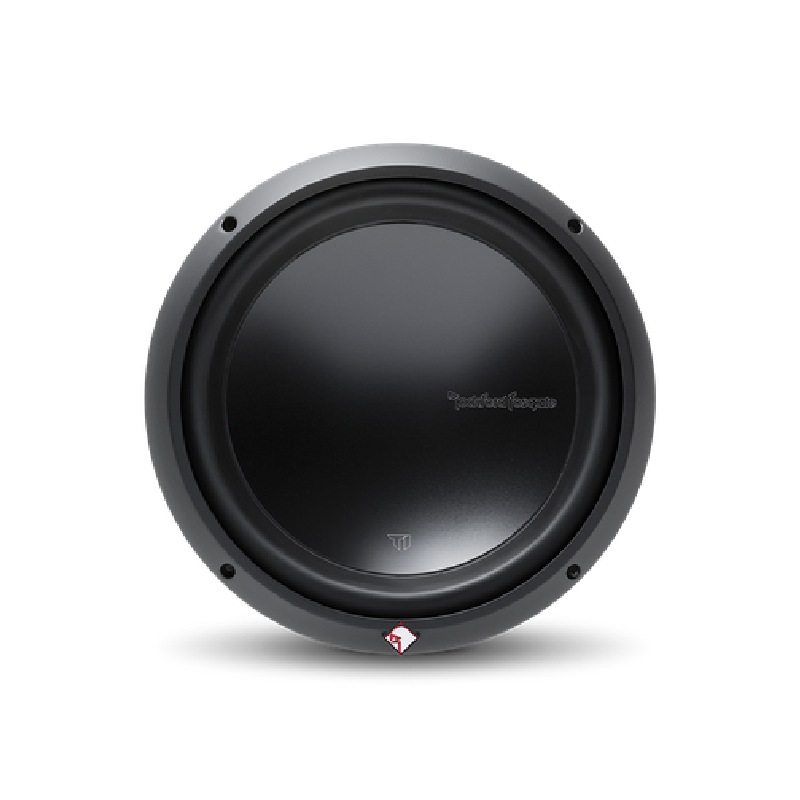

Rockford Fosgate T1D412 Component Car Subwoofer Front View
Rockford Fosgate T1D412 Component Car Subwoofer

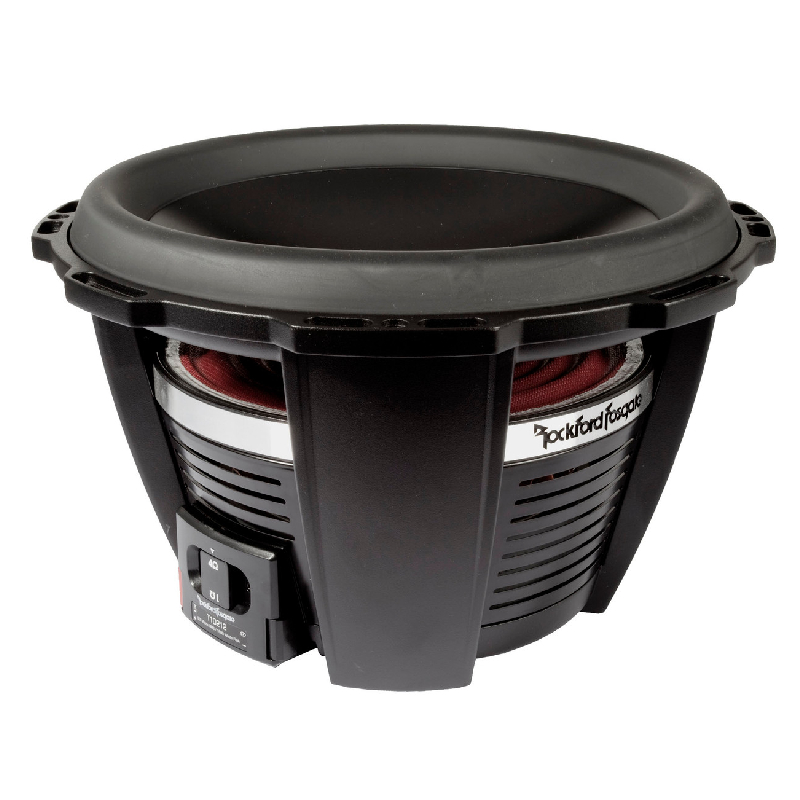

Aluminum Heatsink Basket

To provide superior thermal performance for your subwoofer. Its cast-aluminum construction is lightweight yet strong and provides optimal heat dissipation to keep your subwoofer working at its peak performance for longer. The basket also provides a sleek, stylish look to any audio system. The specially designed vents on the basket are designed to maximize air flow around the subwoofer, allowing for superior sound quality and improved thermal performance.

Stacked Magnet Structure

It consists of two separate magnets, one on top of the other, that work together to increase the magnetic field strength, resulting in greater cone control and improved linearity. This design also allows for a larger voice coil, which increases power handling and reduces distortion. The T1D212 also features a Kevlar-reinforced paper cone, a high-temperature, polyimide-coated aluminum voice coil, and an inverted dust cap.

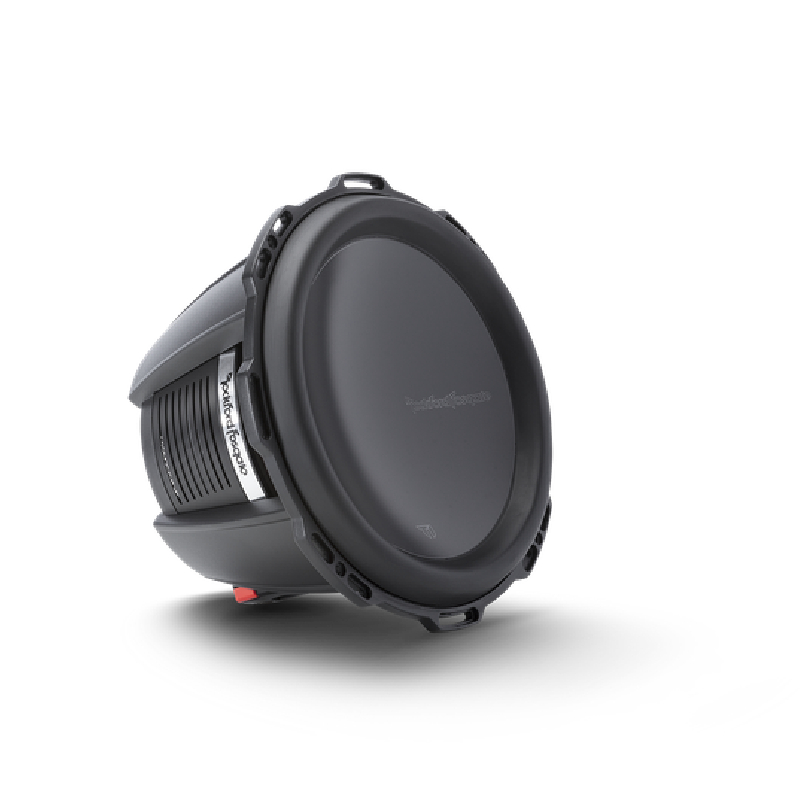

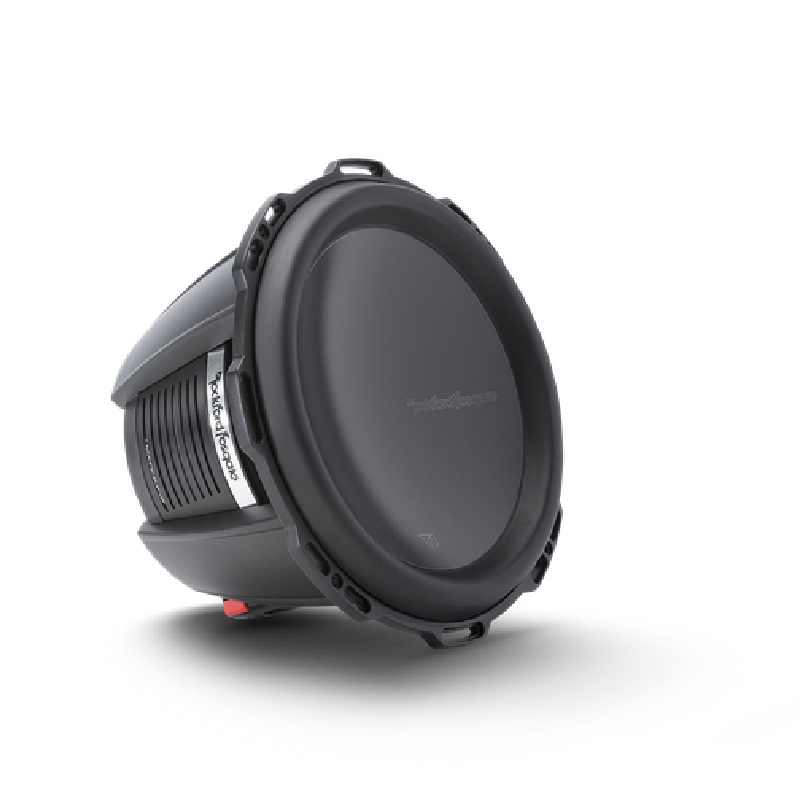

Rockford Fosgate T1D412 Component Car Subwoofer Side Profile View




Frequently Asked Questions (FAQ)


  • • Why isn't the subwoofer producing the deep bass I expected?
    Check the enclosure design, internal volume, amplifier settings, and speaker polarity. The wrong box or incorrect phase can significantly reduce low-frequency output even with a powerful amplifier.
  • • What enclosure should I use for the best performance?
    Use a properly designed enclosure that follows the manufacturer's recommended specifications. The correct sealed or ported box volume helps the woofer produce powerful, controlled bass without unnecessary mechanical stress.
  • • What amplifier should I pair with this subwoofer?
    Choose an amplifier capable of delivering appropriate clean RMS power at the subwoofer's rated impedance. Proper matching provides strong output while minimizing clipping and the risk of damage.
  • • Why does the amplifier go into protect mode when the bass gets loud?
    Check the final impedance, power connections, speaker wiring, and amplifier temperature. An incorrect load, voltage drop, short circuit, or overheating can trigger protection during demanding bass passages.
  • • Why does the bass become distorted at high volume?
    Distortion can occur when the amplifier clips, gain is excessive, or the woofer is pushed beyond its limits. Lower the gain and verify the crossover and amplifier settings are properly adjusted.
  • • Why am I hearing rattling or unusual noises from the enclosure?
    Inspect the enclosure for loose screws, mounting hardware, terminals, or panels. Air leaks and loose vehicle trim can also create unwanted noises that become more noticeable during heavy bass.
  • • Why is the bass weaker after changing the amplifier or enclosure?
    Verify the new enclosure volume, amplifier settings, impedance, and polarity. Changes to any of these factors can alter the woofer's response and may require retuning the entire system.
  • • Does it need a break-in period?
    A gradual break-in period allows the suspension and moving components to loosen naturally. Start at moderate listening levels and avoid prolonged maximum output during the first several hours.
  • • Can I use it with a factory head unit?
    Yes, but a suitable external amplifier is generally required. Depending on the vehicle's factory audio system, you may also need a signal interface or line output converter.
  • • Why does the bass disappear or become very weak at certain frequencies?
    This can be caused by phase cancellation, enclosure tuning, or the vehicle's acoustics. Check polarity and phase settings, then verify the enclosure is built to the recommended specifications.

SPECIFICATIONS


  • Diameter : 12 Inch
  • Maximum Power : 1600 Watts
  • Sensitivity : 86 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1600 Watts
  • Top Mount Depth : 6.75 Inches
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 1.25 Cubic ft.
  • Suggested Ported Box Volume : 1.75 Cubic ft.
  • Mounting Depth : 6.75 Inches
  • RMS Power Handling : 800 Watts

FEATURES


Features:

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • Periodic-stitched fatigue resistant tinsel lead wire
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty



Specifications:

  • Power Handling (Watts RMS)
    • 800 Watts RMS
    • 1600 Watts Peak
  • Size: 12"
  • Mounting Depth: 6.75 in. (171 mm)
  • Voice Coil Diameter: 3" (75.4 mm)
  • Fs (Hz): 29.2
  • Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
  • Nominal Impedance: Dual 4-Ohm
  • Sd (cm2): 548
  • Cutout Diameter: 11.25 in. (285 mm)
  • Qts: 0.61
  • Shipping Weight: 33.3 Lbs. (15.10 Kg.)
  • Speaker Connector: Compression Terminal
  • Qes: 0.71
  • Qms: 4.50
  • Vas (Liters): 55.8
  • Xmax (mm): 16
  • Re (Ohms): 6.50
  • Le (mH): 2.4
  • Magnet Weight: 123 oz. (3.48 kg)
  • SPL (dB @ 1w/1m): 85
  • CEA-2031 Compliant: CEA-2031 Guidelines
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)
  • Vented Box Volume (Vb): 1.75 cu. ft. (49.5 Liters)
  • UPC: 780687328948
  • Weight: 34
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Wow, is all I can say. If you want the serious bass you can feel in your chest, get these. I've got two of them, feeding them only 800 watts a piece, and it's borderline ridiculous how hard these hit. Not to mention they look killer.

    Carlo
    10/15/2010

  • I have two of theses beasts in a groundshaker box running 800 watts a piece and wow thes things slam. They are great quality subs that can take a beating and go. Highly recomend getting them.

    Cameron
    9/13/2011

  • I have one of these in a Suburban with a Memphis 1100 pushing it and WOW.This sub hits hard my friend has 2 pioneer comp subs and he cant touch this 1 and im getting ready to put another one in here with another 1100 Memphis.

    Shawn
    1/22/2012

  • Outstanding subwoofer . A little pricey but worth it. Better than the Jl w6

    Dbiggs
    11/17/2014
