Rockford Fosgate  P3-1X12

Punch Series 12" 600W RMS 1 Ohm, Single P3 Hatchback-Style Loaded Ported Enclosed Car Subwoofer

Item #28493

Condition:   Brand New

Product Highlights

  • Punch Series
  • 12 Inch
  • 600W RMS
  • 1-Ohm Subwoofer
  • Ported Enclosure
  • Punch Series
  • 12 Inch
  • 600W RMS
  • 1-Ohm Subwoofer
  • Ported Enclosure

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$459.99

Reg. Price $614.99  Save $155.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate P3-1X12 Punch Series 12" 600W RMS 1 Ohm, Single P3 Hatchback-Style Loaded Ported Enclosed Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Vented subwoofer enclosure loaded with one Punch P3D2-12 12" Woofer
  • Owner's Manual




Why Choose Rockford Fosgate P3-1X12 Enclosed Car Subwoofer?

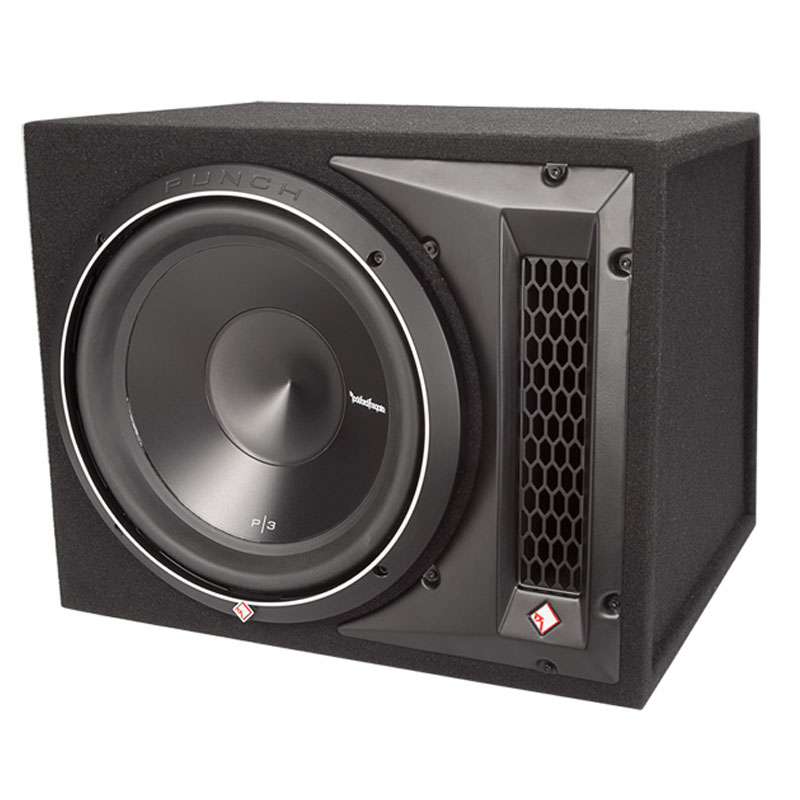

Rockford Fosgate P3-1X12 Enclosed Car Subwoofer Right Angle View
Feature Similar Tonal Performance

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P3 Loaded Enclosures feature similar tonal performance as P2 & P1 models, but with higher power handling capacity.

Heat-sink Aluminum Cone

The enclosure houses a Punch P3 12" sub, with a rigid anodized aluminum cone that holds its shape through heavy play, while staying light and responsive. The aluminum cone acts as a giant heat sink, and works alongside advanced cooling vents to direct heat away from the copper-clad aluminum voice coils. These innovative cooling techniques, plus a heavy-duty motor assembly, let this sub handle up to 600 watts RMS without flinching. The sub's dual voice coils are wired for a 1-ohm total impedance, so make sure your amp can power this enclosure safely.

Rockford Fosgate P3-1X12 Enclosed Car Subwoofer Front View

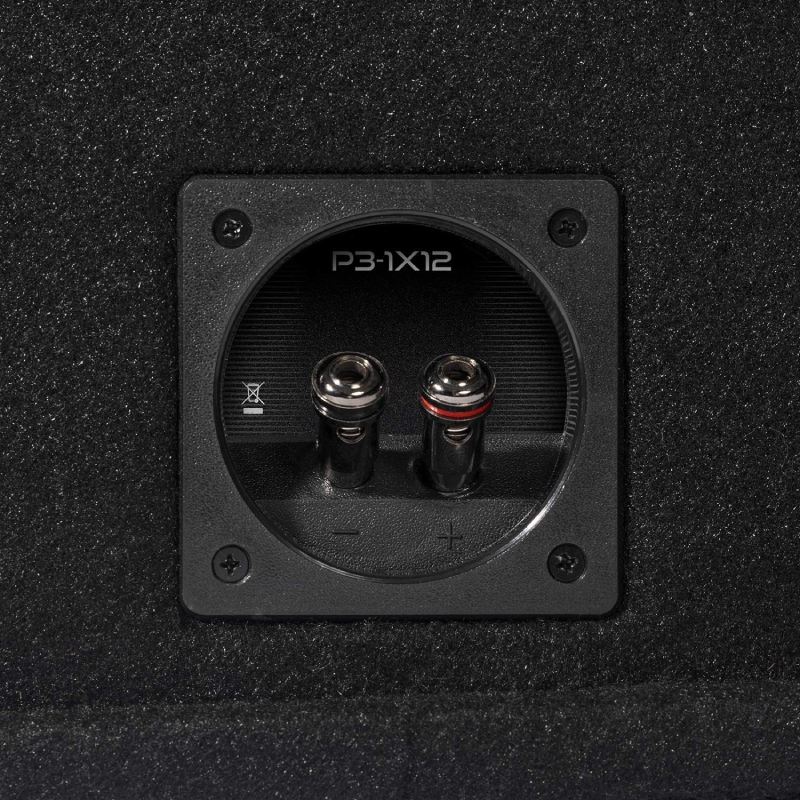

Rockford Fosgate P3-1X12 Enclosed Car Subwoofer Connection Panel
Advanced Port Design

Rugged 5/8" medium-density fiberboard construction means this enclosure will hold strong for fat, heavy bass. Industrial-grade black carpet provides a clean, finished look, and protects your trunk from nicks and scratches. The spring terminals will accept bare wire, pin connectors, or banana plugs. This enclosure uses an advanced port design that promotes generous air movement, while reducing distortion-causing port noise, so you hear louder, deeper bass. Add an amp and some wiring, and feel the thick low end this enclosure adds to your ride.




Frequently Asked Questions (FAQ)


  • • Why isn't the enclosure producing as much bass as expected?
    Check the amplifier gain, crossover settings, polarity, and signal connections. Also make sure the enclosure is securely mounted and the vehicle's cargo area is not causing excessive rattling that masks the bass response.
  • • What amplifier should I use to power the subwoofer?
    Choose an amplifier that provides clean RMS power appropriate for the enclosed woofer and its impedance. Proper power matching helps produce strong bass while reducing the risk of clipping, overheating, or speaker damage.
  • • Why does the amplifier go into protect mode during heavy bass?
    Check the speaker wiring, final impedance, power and ground connections, and amplifier temperature. A short, incorrect load, voltage drop, or excessive heat can cause the amplifier's protection circuit to activate.
  • • Why does the bass sound distorted when I turn up the volume?
    Distortion can come from excessive amplifier gain, clipping, or an input signal that is already distorted. Lower the gain, verify the source signal is clean, and avoid pushing the system beyond its recommended output.
  • • Why am I hearing rattling around the enclosure?
    Inspect the enclosure mounting points, terminals, vehicle trim, and nearby panels. Loose hardware or interior panels can vibrate with powerful bass and create rattling that may sound like a problem with the subwoofer.
  • • Why is the bass weaker than expected in my vehicle?
    Vehicle acoustics, enclosure positioning, phase, and crossover settings can affect perceived output. Try adjusting the enclosure position and verify the subwoofer is wired in the correct polarity.
  • • Can I use this with a factory head unit?
    Yes, but an appropriate amplifier and signal interface may be required depending on the vehicle. A line output converter can provide a suitable signal when the factory radio does not have dedicated RCA outputs.
  • • Why does the bass disappear or become weak at certain frequencies?
    Phase cancellation, vehicle acoustics, and crossover settings can create frequency dips. Check the speaker polarity and experiment with placement and phase adjustments to improve integration with the vehicle's main speakers.
  • • Why does the amplifier shut down when playing bass-heavy music?
    Sudden shutdowns can indicate voltage drop, overheating, excessive current demand, or an unsuitable load. Check the power and ground cables, electrical system, ventilation, and amplifier compatibility with the enclosure.
  • • How should I set the gain and crossover for clean bass?
    Start with the head unit at a clean listening level and the amplifier gain low. Increase gain gradually while listening for distortion, then set the low-pass crossover so the subwoofer blends smoothly with the vehicle's main speakers.

SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 85 dB
  • Impedance : 1 Ohm
  • Frequency Response : 27-250 Hz
  • Peak Power Handling : 1200 Watts
  • Number Of Subwoofers : 1
  • Enclosure Type : Ported
  • Amplified : No
  • RMS Power Handling : 600 Watts

FEATURES


Subwoofer Features:

  • Anodized aluminum cone and dustcap
  • Custom 10-AWG nickel plated push terminals
  • Diamond cut cast aluminum trim ring with optional grille
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Soft touch rubber over-mold for greater grip
  • StampCast basket with integrated spider venting
  • CEA-2031 compliant
  • Loaded with single P3D2-12 subwoofer
  • Constructed with 5/8" MDF
  • High current binding posts
  • Proprietary high-flow, low-noise port
  • System Configuration: Vented
  • Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
  • Speaker Connector: Up to 10 AWG compression terminals
  • Dimensions: 13.125" x 17" x 15.125"



Specifications:

  • Woofer Size (inches): 12
  • Speakers Per Box: 1
  • Woofer Material: Anodized Aluminum
  • Enclosure Type: Ported
  • Color: Black
  • Pieces in System: 1
  • Width (inches): 19-1/8
  • Height (inches): 15-1/8
  • Depth (inches): 16-5/8
  • Connector Type: Spring post
  • Frequency Response: 27-250 Hz
  • Power Range (Watts RMS): 600
  • Maximum Wattage: 1200
  • Sensitivity: 85 dB
  • Impedance: 1 ohms
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • UPC: 780687332990
  • Weight: 58
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • The sub hits very punchy and has a hard time hitting lows @ (800rms x 1 @ 1ohm) tuned at 50 hz ( I'm a certified installer btw) Not a bad product but would probably have gone with a 15 of better quality

    Eric m
    10/14/2014

  • I cannot tell you how much do I like this box. People get amazed when they hear the punch and then they realize that there is only one subwoofer in the trunk. It turn heads! Definitely recommended. Rockford did it again!

    julio
    10/29/2014

  • This box is awesome! I have it hooked up to a punch p500 and it sounds great! I checked with Rockford Fosgate to make sure they were a match and to make sure the p500 put out enough power and they said yes. They were right! I love my new setup! I would definitely buy this again!

    Aaron
    10/5/2016

  • Fills up that nice, deep bass amazingly. I don’t know if its because of the sub or the enclosure, but i’m totally impressed with the lows that’s coming out of the sub. Very happy with the purchase

    Davin
    3/8/2024
