Rockford Fosgate  P2-1X12

Punch Series 12" 800W Peak Power Handling at 1 Ohm, P2 Single Ported Enclosed Car Subwoofer

Item #29223

Condition:   Brand New

Product Highlights

  • 12" subwoofer
  • 800W peak power
  • 1 Ohm impedance
  • P2 series
  • Single ported enclosure

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$349.99

Reg. Price $469.99  Save $120.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate P2-1X12 Punch Series 12" 800W Peak Power Handling at 1 Ohm, P2 Single Ported Enclosed Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Vented subwoofer enclosure loaded with one Punch P2D2-12 12" Woofer
  • Owner's Manual




Why Choose Rockford Fosgate P2-1X12 Enclosed Car Subwoofer?

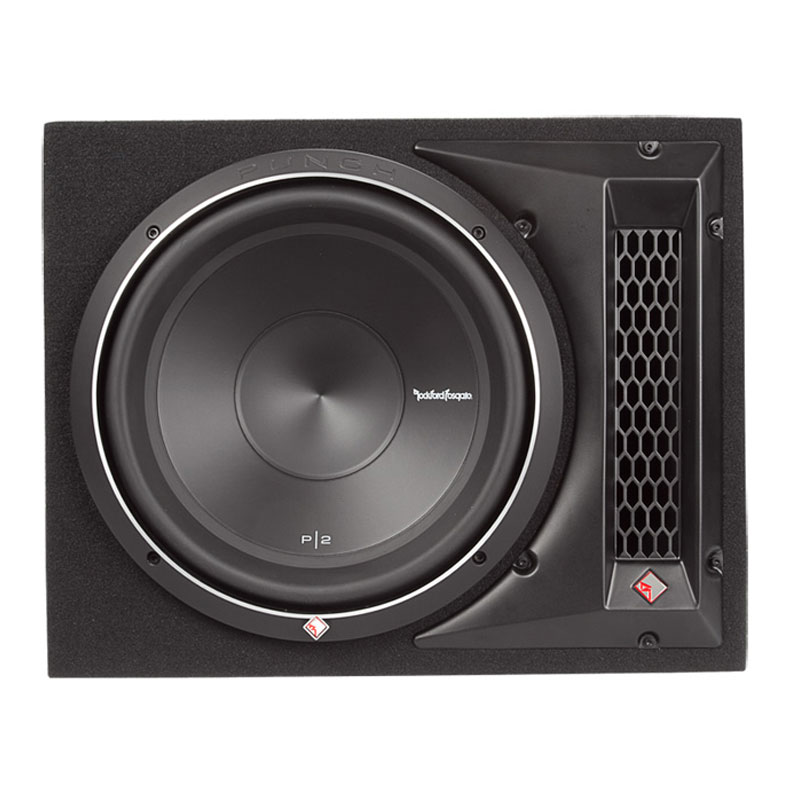

Rockford Fosgate P2-1X12 Enclosed Car Subwoofer Front View
Constructed With Durable 5/8" MDF

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P2 Loaded Enclosures feature similar tonal performance as P1 models, but with more power handling capacity.

Advanced Port Design

Rugged 5/8" medium-density fiberboard construction means this enclosure will hold strong for fat, heavy bass. Industrial-grade black carpet provides a clean, finished look, and protects your trunk from nicks and scratches. The spring terminals will accept bare wire, pin connectors, or banana plugs. This enclosure uses an advanced port design that promotes generous air movement, while reducing distortion-causing port noise, so you hear louder, deeper bass. Add an amp and some wiring, and feel the thick low end this enclosure adds to your ride.

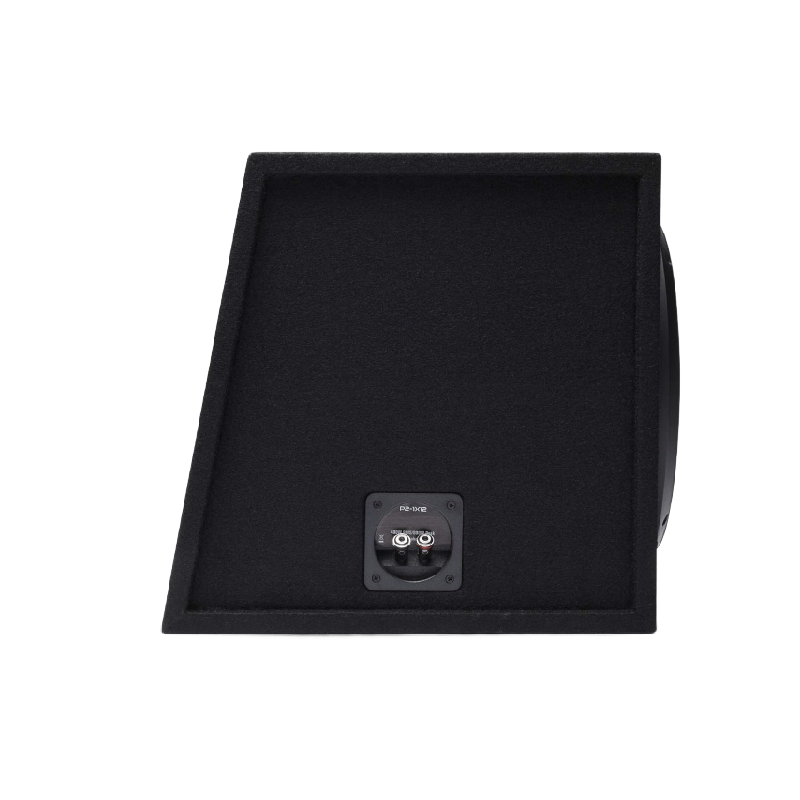

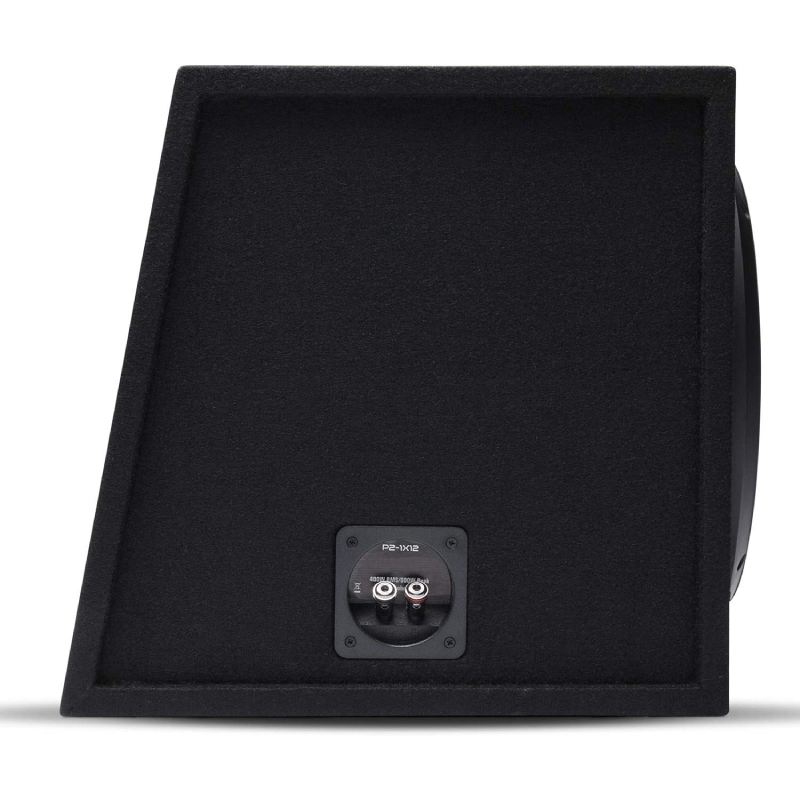

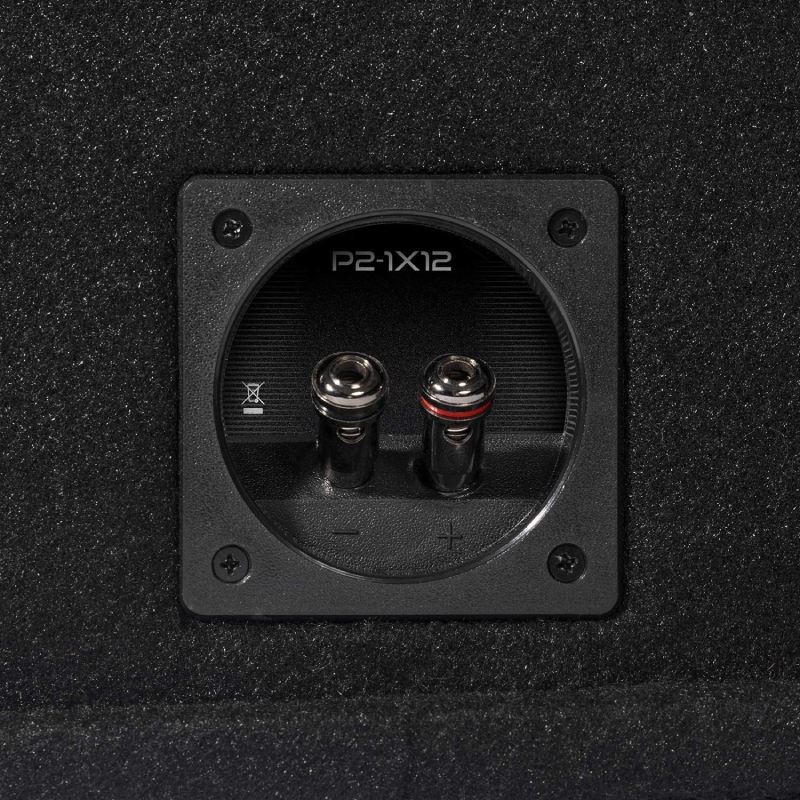

Rockford Fosgate P2-1X12 Enclosed Car Subwoofer Connection Panel

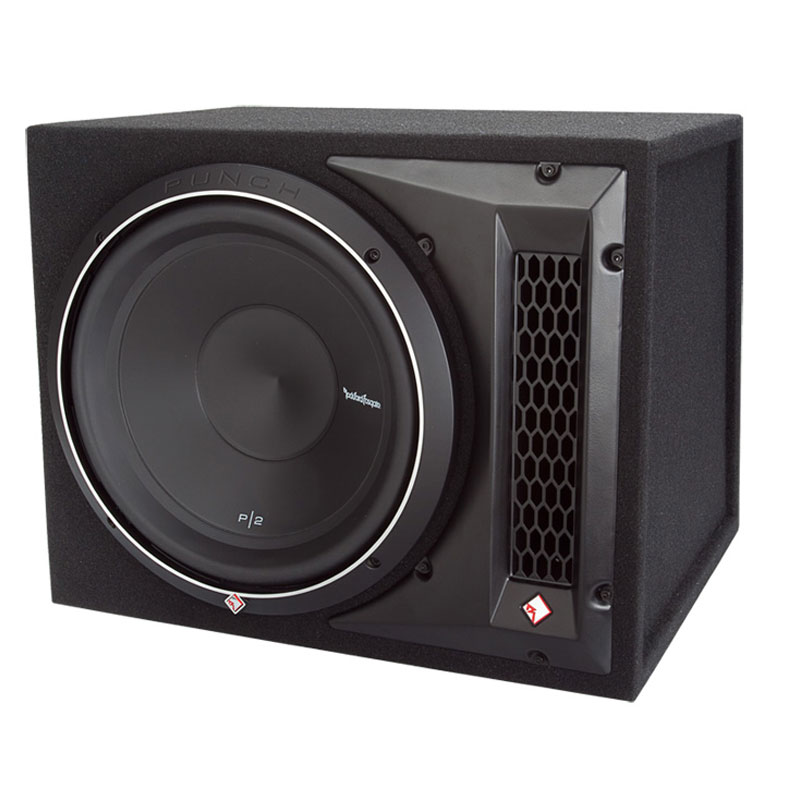

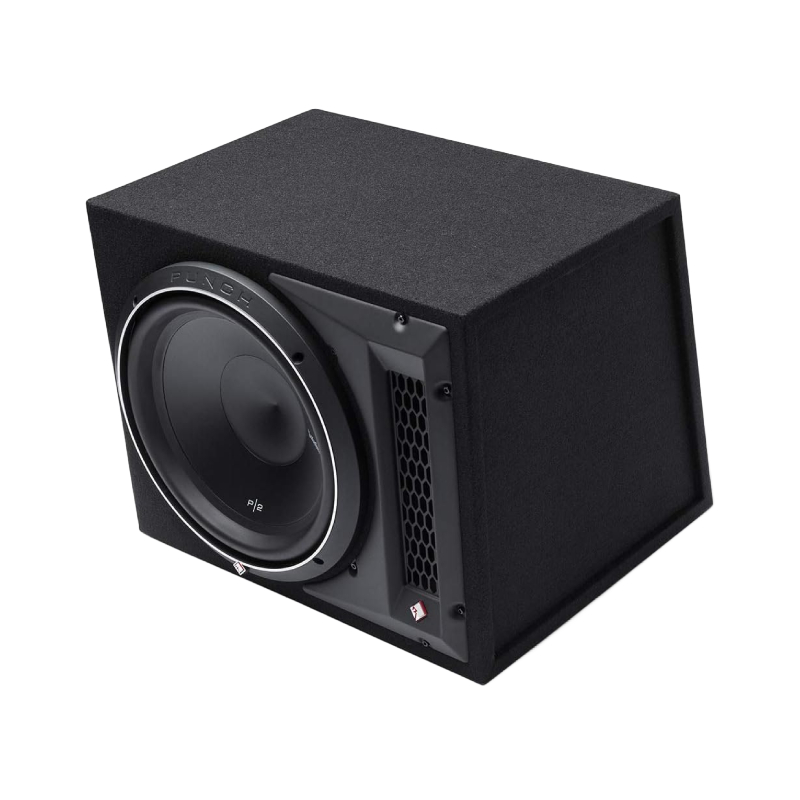

Rockford Fosgate P2-1X12 Enclosed Car Subwoofer
Bulletproof Bass

The enclosure houses a Punch P2 12" sub, with a paper cone that's reinforced with Kevlar fibers and supported by a rubber surround. The heavy-duty motor assembly and advanced cooling vents allow this sub to handle up to 400 watts RMS without flinching. The sub's dual voice coils are wired for a 1-ohm total impedance, so make sure your amp can power this enclosure safely.




Frequently Asked Questions (FAQ)


  • • Why does my amplifier keep overheating with the P2-1X12?
    One owner discovered that the amplifier was not stable at the enclosure's 1-ohm load, causing overheating and shutdowns. The solution was changing the wiring to a compatible impedance.
  • • Can I use an amplifier that is rated for 2 or 4 ohms?
    You need to pay close attention to the P2-1X12's wiring configuration. The enclosure is internally wired to a 1-ohm total impedance, so an amplifier must be designed to operate safely at 1 ohm unless the sub is rewired.
  • • Is a 500-watt amplifier too powerful for this subwoofer?
    Not necessarily, but the amplifier must be gain-matched correctly. A user running a P2-1X12 with an amp capable of more power than the sub's RMS rating was advised to reduce the gain rather than automatically replacing the subwoofer.
  • • Why does my P2-1X12 make everything inside the car vibrate?
    Strong cabin vibration is a common user observation. Owners have reported the enclosure making their entire vehicle shake, especially with bass-heavy music and higher volume levels.
  • • Why does my single P2 sound louder than my previous two-sub setup?
    One customer replaced two 12-inch MTX subs with a single P2-1X12 and reported that the Rockford Fosgate setup hit harder even while using relatively low amplifier gain.
  • • What should I check if the bass suddenly disappears?
    Start by checking the amplifier's protection status, impedance wiring, speaker connections, and power delivery. An incorrect impedance load has caused real-world amplifier shutdown problems with this enclosure.
  • • Why does the P2-1X12 sound different in a ported box than in a sealed box?
    Users have noticed a significant change in bass character when moving the P2 driver between enclosure types. One owner described the ported setup as producing stronger output after previously using the sub in a sealed enclosure.
  • • Is the P2-1X12 enough for hip-hop and low-bass music?
    Real owners have reported deep bass with hip-hop and other bass-heavy music, including enough output to noticeably shake hatchbacks and sedans.
  • • Why does my P2-1X12 seem difficult to match with the amplifier I already own?
    The main issue is impedance compatibility rather than simply amplifier wattage. A recent installation discussion showed that an amplifier rated only for 2 ohms could not safely run the enclosure's factory 1-ohm configuration without changing the subwoofer wiring.
  • • What if I want more output than the P2-1X12 can provide?
    The P2-1X12 is designed as a strong single-subwoofer solution, but users looking for substantially higher output may eventually consider moving to a larger or multi-subwoofer system. Even satisfied owners have mentioned wishing they had purchased two 12-inch subs for their intended setup.

SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 86 dB
  • Impedance : 1 Ohm
  • Frequency Response : 26-250 Hz
  • Peak Power Handling : 800 Watts
  • Number Of Subwoofers : 1
  • Enclosure Type : Ported
  • Amplified : No
  • RMS Power Handling : 400 Watts

FEATURES


Features:
  • Constructed with 5/8" MDF
  • High current binding posts
  • Proprietary high-flow, low-noise port
  • Woofer: Punch P2D2-12
  • Nominal Subwoofer Impedance (ea): 2-Ohm DVC
  • Internally wired in parallel to create a 1-Ohm amplifier load
  • System Configuration: Vented
  • Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
  • Speaker Connector: Up to 10 AWG compression terminals
  • Dimensions: 13.125" x 17" x 15.125"



Specifications:

  • Woofer Size (inches): 12
  • Speakers Per Box: ---
  • Woofer Material: Kevlar reinforced
  • Enclosure Type:Ported
  • Color: Black
  • Pieces in System: 1
  • Width (inches): 19-1/8
  • Height (inches): 15-1/8
  • Depth (inches): 16-5/8
  • Connector Type: Spring post
  • Frequency Response: 26-250 Hz
  • Power Range (Watts RMS): 400
  • Maximum Wattage: 800
  • Sensitivity: 86 dB
  • Impedance: 1 ohms
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • UPC: 780687332952
  • Weight: 50
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • You’ll need a 1-ohm stable amp to safely power this sub. For mine, I’m using a Kicker 46CXA400.1 and its really doing wonders for my bass needs. They are really a perfect match with each other. Love everything that comes with this sub, even its price.

    Armand
    2/21/2024
