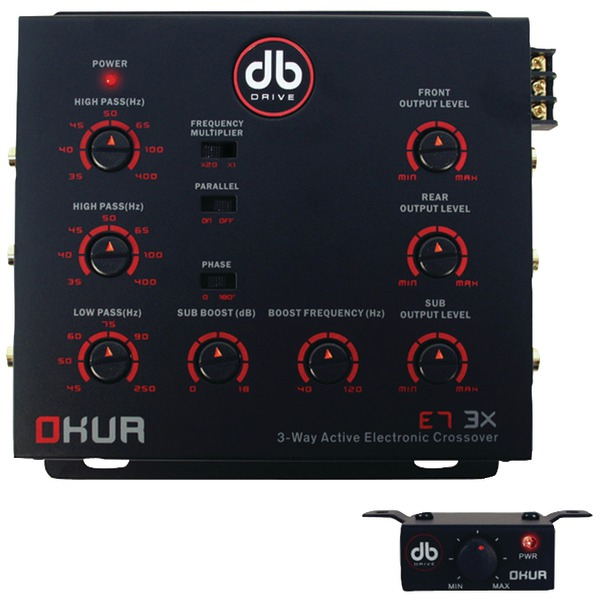

DB Drive E7 3X 3-Way Crossover ( 8V High-Output & Remote Bass Control )
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Pro Series Audio Signal Processor
Take full control of your sound system with precision crossovers, high-voltage outputs, and a remote bass control for bass on demand. Enjoy crystal-clear, distortion-free audio across a massive 10Hz–50kHz range with ultra-low THD at just 0.0015%. With powerful 8V outputs, a double-sided PCB for maximum performance, and flexible input options, this processor is built to deliver pure, high-impact sound at every turn.
Features:
- Remote Bass Control Included: Comes with a wired remote control so you can easily adjust your subwoofer’s bass level from the driver’s seat.
- Front & Rear High-Pass Crossover - 18dB/Octave, Variable Frequency 35-400Hz, 20x Multiplier Option: Allows precise control of high-pass filter points for front and rear channels, sharply cutting frequencies below the selected range, with a 20x multiplier for extending the crossover point higher if needed.
- Sub Low-Pass Crossover: Lets you control the upper frequency limit for your subwoofer, ensuring only deep bass frequencies are sent to it for cleaner sound.
- Double-Sided PCB Board: Uses a high-quality, double-sided printed circuit board for improved durability, performance, and reduced signal interference.
- Three Stereo Outputs - 5Vms: Provides three pairs of high-voltage stereo outputs, ensuring strong, clean signals to multiple amplifiers or components.
- Output Level: 8 Volts Max: Delivers a powerful, adjustable signal output of up to 8 volts, reducing noise and improving overall system clarity.

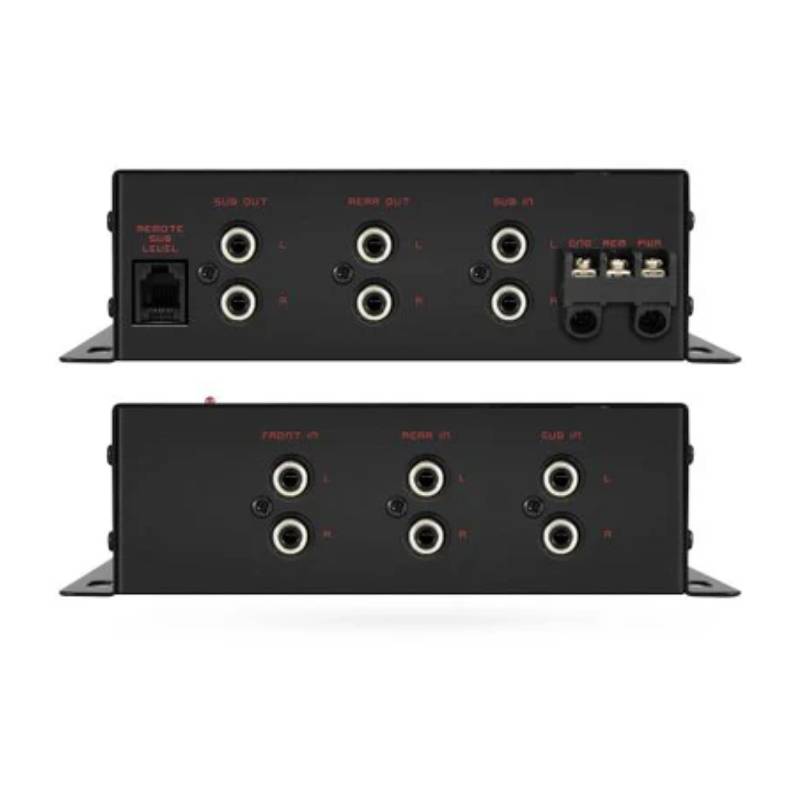

- Two Stereo Inputs with Parallel Input Option: Accepts two stereo input sources, with a parallel option to send a single input signal to multiple outputs for flexible system setups.
- Frequency Response: 10Hz - 50kHz ±3dB: Accurately processes a wide range of audio frequencies, from deep sub-bass to crisp high frequencies, with minimal deviation.
- THD: 0.0015%: Offers ultra-low Total Harmonic Distortion, ensuring clean, precise sound reproduction with virtually no added noise or coloration.
Specifications:
- Supply Voltage: 11- 15V DC
- Input Current: 0.3 amp max
- Distortion: 0.01% THD
- Frequency Response: 10Hz - 50KHz -3dB
- S/N Ratio: >95dB
- Separation: 60dB
- UPC: 839859009915
- Weight: 3
