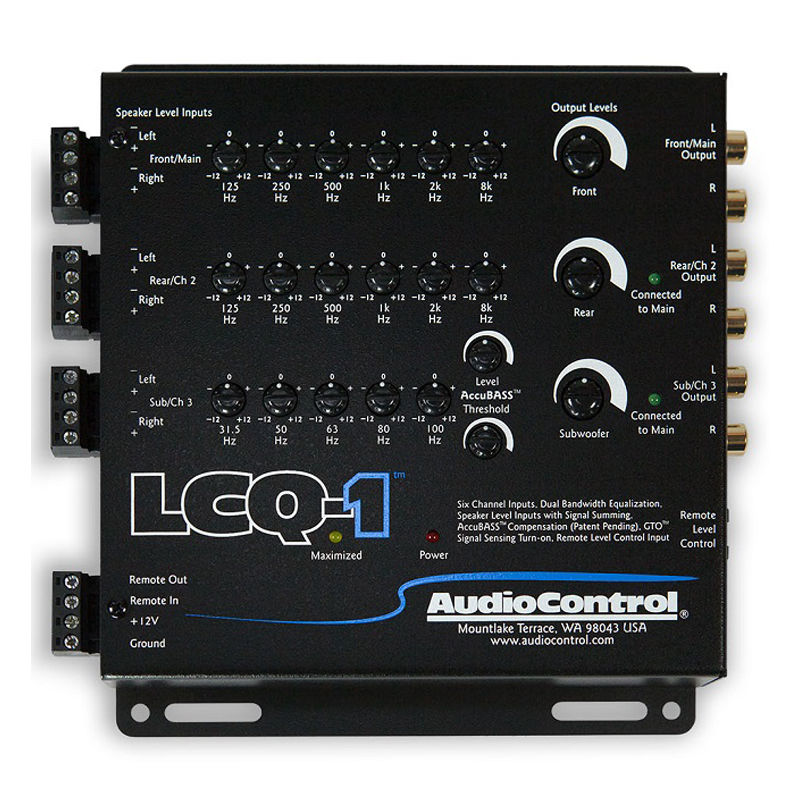

The LCQ-1 features a 6-Ch Line Output Converter & Internal Summing & AccuBASS. The LCQ-1 delivers Two channel active speaker level input. The Independent front, rear and subwoofer equalization provide a great performance. This feature provides precise tuning. It features the AccuBASS with variable threshold and gain. Also, the AccuBASS processing corrects roll-off bass. The 6 channel LCQ-1 provides 400 watts per channel power handling capability. It includes GTO turn-on circuit with remote out. Output level controls are also available. The LCQ-1 includes Power connectors and Manual. Audio Control's AccuBASS Bass Compensation circuit adjusts the distortion that occurs at high volume levels. The LCQ-1 is capable of internally summing together multiple (4 or 6) input channels from it’s original source unit into 2 channels. The LCQ-1 has a high-current 12-volt output that provides a signal to remote devices such as amplifiers which enables them available. An Optional Dash Mount ACR-2 Level Control is sold separately. The LCQ-1 an input impedance of 20k Ohms. It has a maximum Output Level of 7.5Vrms. The Output Gain is 12dB. Also the Output Impedance is 150 Ohms. It has a current draw of 350mA. The frequency response registers 10Hz-22kHz. The recommended Fuse Rating is 2A.
||12VDC Remote Out (always active when unit is on)
|Equalizer Frequencies (front/rear):
||125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
|Total Harmonic Distortion:
||High Headroom PWM Switching
|Recommended Fuse Rating:
||3 (6 channels)
|Equalizer Frequencies (sub):
||31.5Hz, 50Hz, 63Hz, 80Hz, 100Hz
|Speaker Level Inputs:
||3 (6 channels)
|Maximum Input (speaker level):
||400W per channel at 4Ohm
|Maximum Output Level:
||6.0W x 5.9D x 1.2H
- GTO Signal
- Optional Dash Mount ACR-2 Level Control (sold separately)
- Six channels of active speaker level inputs
- Converter & AccuBASS Sensing turn-on system with remote out
- Independent front, rear and subwoofer equalization 6-Ch EQ
- Line Output
- AccuBASS (patent pending) to correct for factory bass roll-off
- Internal channel summing
- UPC: 855814005914
- Weight: 3.01
