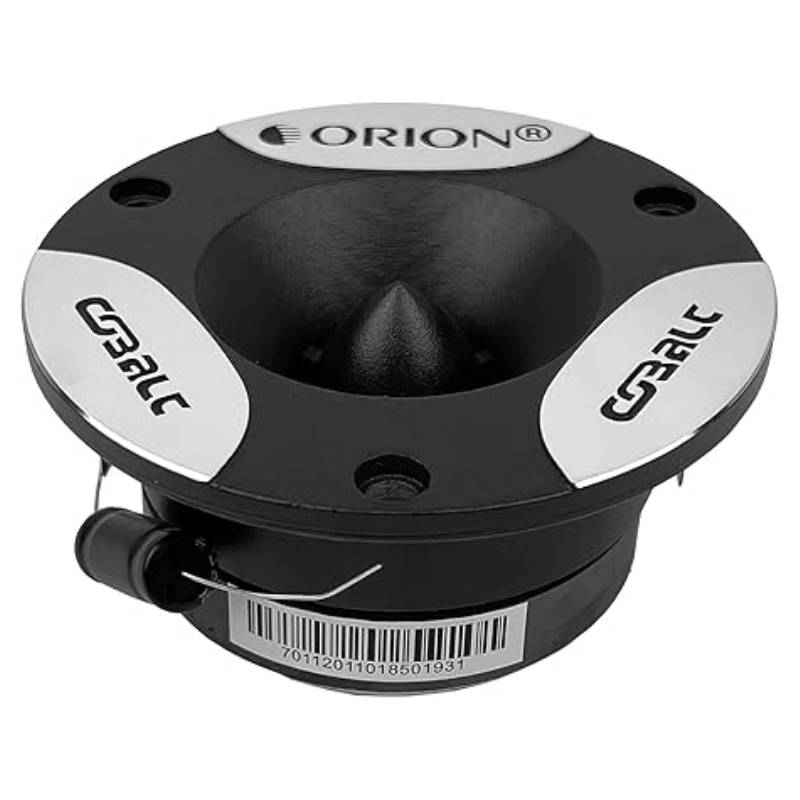

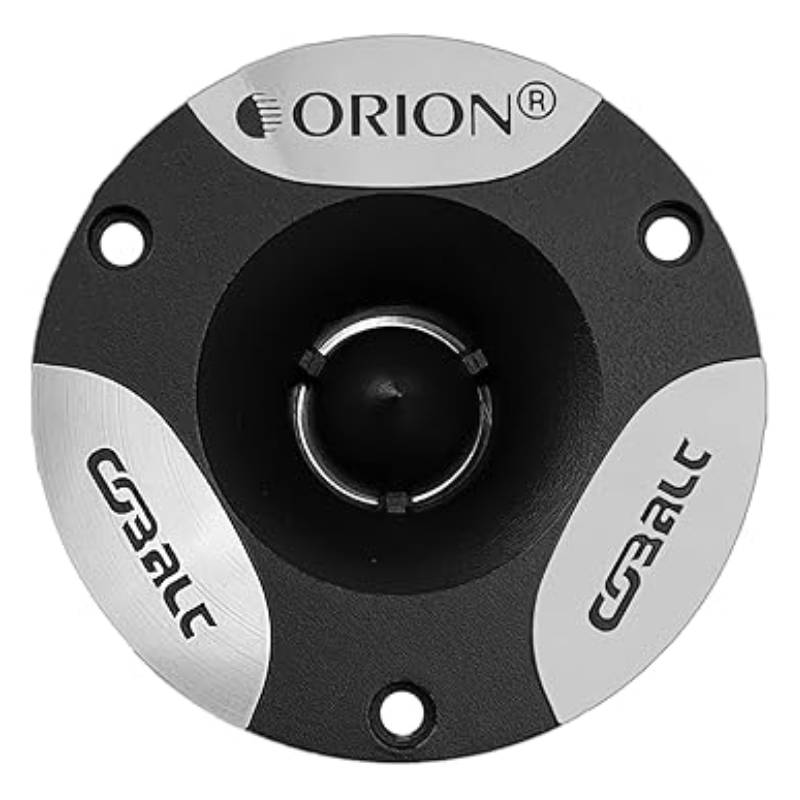

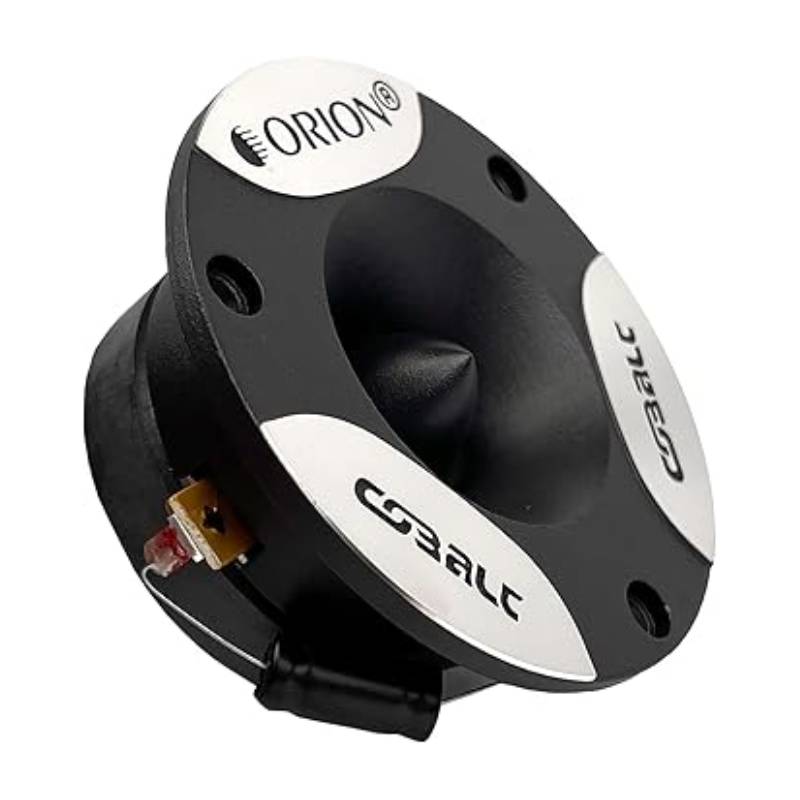

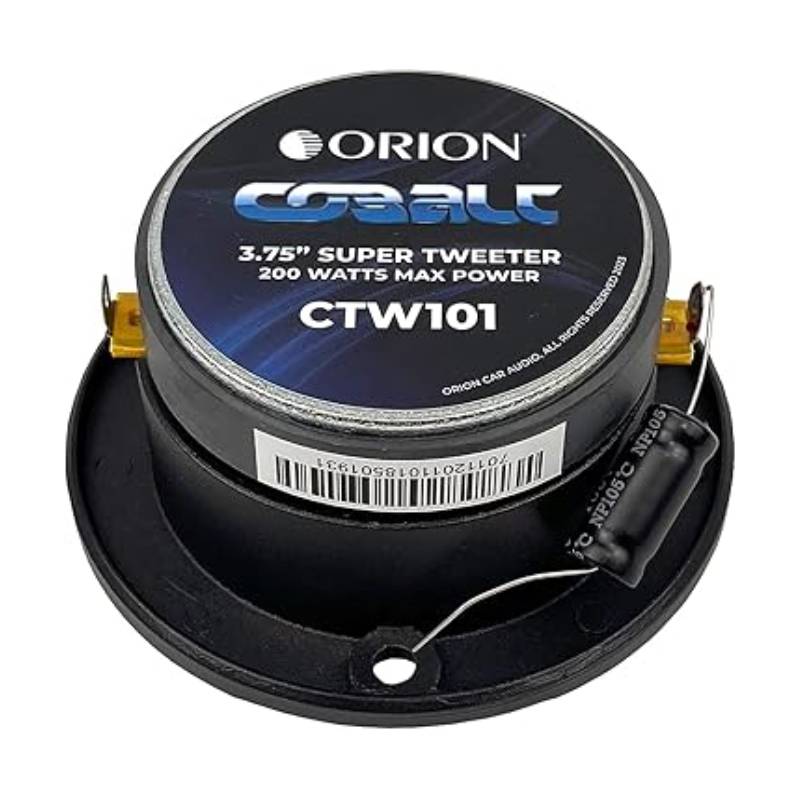

Orion CTW101 Pro Audio Cobalt Series 3.75" 200W Peak Power Handling at 4-Ohms, Aluminum Bullet Tweeter (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Sparkling Highs, Pure Clarity
Upgrade your car audio with the ORION CTW101 3.75" Bullet Tweeter, delivering sparkling highs that bring every detail of your music to life. Experience enhanced clarity and depth as subtle nuances are reproduced with precision for a richer listening experience. With 50W RMS and 200W peak power handling, enjoy powerful, distortion-free highs even at higher volumes.
Seamless Sound, Elevated Highs
Upgrade your car audio effortlessly with the compact ORION CTW101, designed for seamless integration into any setup. Enjoy reliable, high-frequency performance that brings every note to life with crystal-clear precision. Elevate your driving experience with rich, detailed highs that add depth and brilliance to your music.
Powerful Highs, Lasting Clarity
Experience every detail of your music with the CTW101 tweeters, delivering enhanced clarity for a richer listening experience. With 50W RMS and 200W peak power handling, they deliver powerful, distortion-free highs at any volume. Their compact, durable design ensures easy installation and long-lasting, reliable performance for your car audio system.
Frequently Asked Questions (FAQ)
- • Why Didn’t the CTW101 Fit My Factory Tweeter Location?
Some buyers have reported that the CTW101 did not fit their vehicle's original opening without modification. Its 3.75-inch overall diameter and 2.807-inch cutout should be compared with the available mounting space before installation.
- • Why Is the CTW101 Much Louder Than My Door Speakers?
The CTW101 has a 99 dB sensitivity rating, and users have reported that it can overpower their existing door speakers. Adjusting the tweeter level or using EQ can help bring the high-frequency output into balance.
- • What Could Cause a Brand-New CTW101 to Stop Working Immediately?
One published user summary mentions an immediate-failure experience with the CTW101. If a new unit is silent, verify the wiring, amplifier channel, polarity, and crossover components before concluding that the tweeter itself has failed.
- • Why Do the CTW101 Highs Sound Too Strong in My Vehicle?
Because this is a high-sensitivity bullet tweeter, its output can become prominent when paired with less efficient mids. Reducing the tweeter level or changing its aiming position can help prevent the high frequencies from dominating the system.
- • Can the CTW101 Be Damaged by Sending It Too Much Low-Frequency Signal?
Yes. Orion specifies a recommended 3.3µF, 100V capacitor, which provides high-frequency filtering for the tweeter. Operating it without appropriate filtering can expose the small voice coil and diaphragm to frequencies they were not intended to reproduce.
- • Why Does the CTW101 Sound Different After I Move Its Mounting Position?
The direction of a bullet tweeter changes how high-frequency energy reaches the listener. A location aimed directly toward the occupants can sound considerably brighter than one aimed away or mounted farther off-axis.
- • Why Does My CTW101 Sound Clear but Not Blend With My Midrange?
Some users report very strong clarity from these tweeters, while others have found they can overpower the rest of the system. Matching the tweeter's level and crossover point to the midrange is important for a smoother transition between drivers.
- • Can the CTW101 Work as a Replacement for a Different 3.75-Inch Tweeter?
Physical diameter alone does not guarantee compatibility. The impedance, mounting depth, crossover arrangement, power handling, and frequency range should all be checked before substituting the CTW101 for another tweeter.
- • Why Does My CTW101 Installation Need an Adapter or Custom Mount?
Vehicle openings vary considerably, and one buyer specifically reported that the CTW101 did not fit their vehicle but was made to work with modifications. Measuring the cutout and mounting depth beforehand can prevent an unexpected fabrication job.
- • Why Does the CTW101 Sound Good at First but Become Harsh When I Increase the Volume?
A bright tweeter can become noticeably aggressive when the amplifier is pushed into clipping or when its output level is set too high relative to the mids. Lowering gain, correcting the crossover, and reducing excessive EQ boost can help determine whether the harshness is coming from the system setup rather than the tweeter itself.
- Diameter : 3.75 Inch
- Sensitivity : 99 dB
- Frequency Response : 2000-20000 Hz
- RMS Power Range : 50 Watts
- Peak Power Handling : 200 Watts
- Tweeter Type : Bullet
- RMS Power Handling : 50 Watts
Features:
- Unleash Crystal-Clear Highs: Upgrade your car audio system with the ORION CTW101 Bullet Tweeter and experience crystal-clear high-frequency reproduction that enhances your audio's depth and clarity.
- Elevate Your Audio Experience: Transform your audio journey with the ORION CTW101 3.75" Bullet Tweeter. Elevate your car's sound quality and enjoy crisp and clear high frequencies that add depth and brilliance to your music.
- Crystal-Clear Highs: These tweeters excel in reproducing high frequencies with precision, providing sparkling highs that enhance the overall audio quality.
- Enhanced Audio Clarity: The CTW101 brings out the subtle nuances in your music, enriching your listening experience with improved audio clarity.
- Optimized Power Handling: With the ability to handle 50 watts RMS and 200 watts MAX, these tweeters maintain their sonic accuracy even when pushed to higher volumes.
- Seamless Integration: The compact design of the CTW101 ensures easy integration into various audio setups, allowing for versatile installation options.
- Reliable Performance: The CTW101 is built to provide reliable and consistent high-frequency performance, enhancing your enjoyment of every musical note.
- Elevate Your Drive: Upgrade your driving experience with crystal-clear high frequencies that elevate your music to new heights. Install the ORION CTW101 3.75" Bullet Tweeter and enjoy a captivating journey filled with enhanced audio depth and brilliance.
- High-Frequency Precision: The ORION CTW101 Bullet Tweeter excels in reproducing high frequencies with precision, ensuring clear and detailed sound.
- Enhanced Clarity: Elevate your listening experience as these tweeters bring out the finer audio details, enhancing overall clarity.
- Optimized Power Handling: With 50 watts RMS and 200 watts MAX power handling, these tweeters maintain their sonic integrity even at higher volumes.
- Compact Design: The compact size of the CTW101 makes it easy to integrate into various audio setups, ensuring seamless installation.
- Durable Build: Crafted with durability in mind, the CTW101 is designed to deliver consistent and reliable high-frequency performance.
Specifications:
- Speaker Size: 3.75" (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 200 Watts
- Power Handling (RMS): 50 Watts
- Sensitivity: 99 dB
- Frequency Response: 2 kHz - 20 kHz
- Voice Coil Diameter: 1" (Inches)
- Tweeter: 2 Tweeters
- Material: Aluminum Die-Cast
- Diaphragm Material: Aluminum
- Phase Plug Material: Aluminum Bullet
- Magnet Information: 20 Oz
- Recommended Capacitor: 3.3uF 100V
- Mounting Depth: 38.4mm / 1.512 (Inches)
- Overall Depth: 43.8mm / 1.724 (Inches)
- Cutout Diameter: 71.3mm / 2.807 (Inches)
- Overall Diameter: 95.7mm / 3.768 (Inches)
- UPC: 818550010185
- Weight: 2.4
