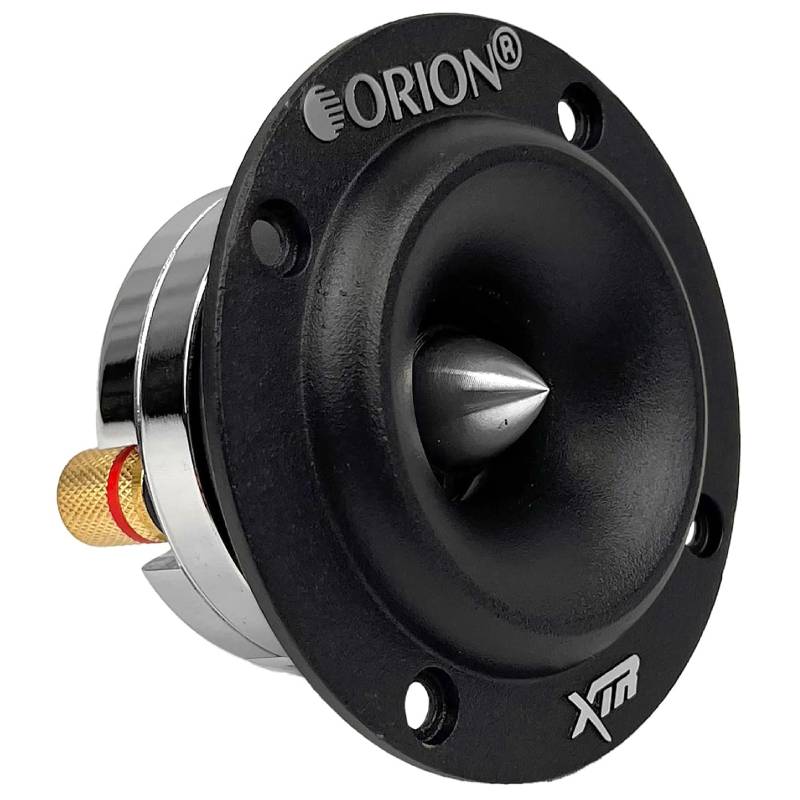

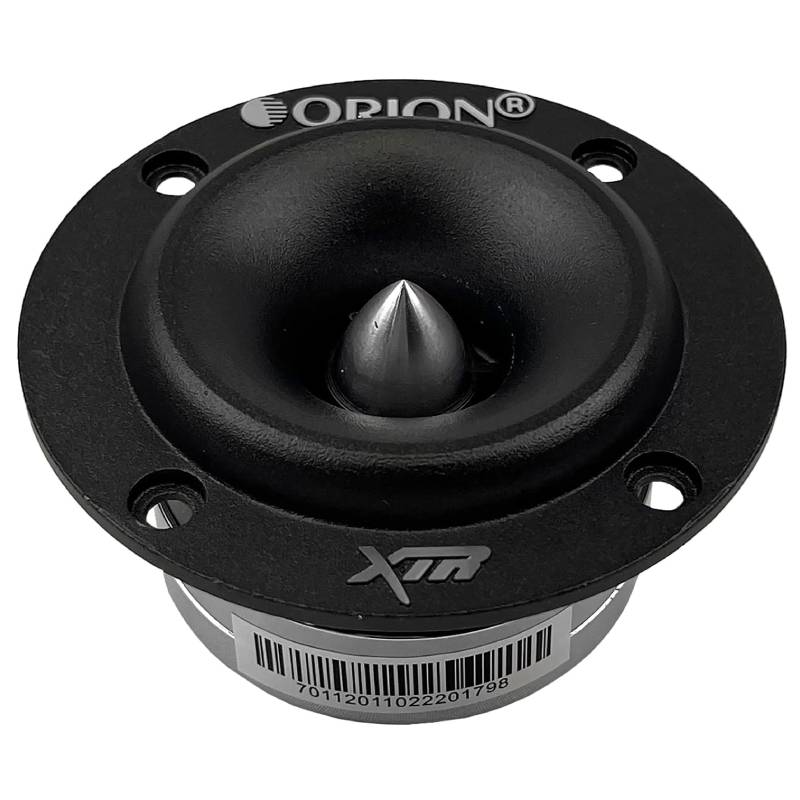

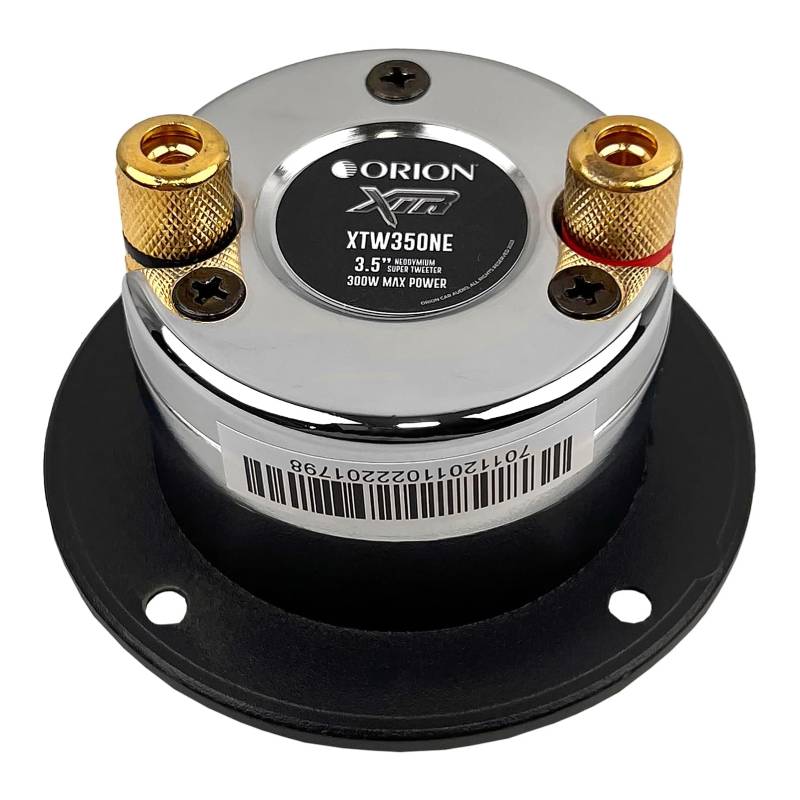

Orion XTW350NE XTR Series 3.2" 360W Peak Power Handling at 4-Ohms, Neodymium Bullet Car Tweeter (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 3.4" Neodymium Bullet Car Tweeter
- • Owner's Manual
Compact Power, Crystal Highs
Experience precise, high-frequency sound with the XTW350NE tweeters, powered by compact yet powerful neodymium magnets. With 90W RMS and 360W peak power, every note is reproduced with clarity and impact. Enjoy detailed, vibrant highs that bring your music to life like never before.
Immersive Sound, Compact Design
Dive into a wide, immersive soundstage with the XTW350NE tweeters, where every instrument and vocal comes to life with stunning clarity. Their compact design allows for flexible installation, seamlessly fitting into any car audio setup. Experience precise, dynamic highs that transform your music into a rich, multidimensional audio journey.
Precision Highs, Ultimate Performance
Experience unmatched high-frequency clarity with the ORION XTW350NE 3.2" Neodymium Bullet Tweeters, engineered for precision and performance. With 90W RMS and 360W peak power, these tweeters deliver impactful, detailed highs that bring every track to life. Elevate your car audio system and enjoy a new dimension of immersive, crystal-clear sound with ORION’s advanced engineering.
Frequently Asked Questions (FAQ)
- • Why Did My Orion XTW350NE Tweeter Stop Working After a Short Listening Session?
A user reported that the tweeters failed after being connected to a 4-channel amplifier and used only briefly. Check amplifier output, gain, wiring, and power levels before assuming the tweeter itself is defective.
- • Why Does My XTW350NE Sound Harsh or Unpleasant After Installation?
Incorrect filtering or excessive low-frequency content reaching the tweeter can cause poor performance. Orion recommends using a capacitor, with its manual specifying a 3.3 µF capacitor for the XTW350NE.
- • What Should I Do If the Bullet Horn Feels Loose?
One owner reported receiving tweeters with loose bullet/horn assemblies and noted that shipping damage could potentially affect the diaphragm. Inspect the assembly before installation and make sure everything is secure.
- • Why Does One XTW350NE Sound Worse Than the Other Tweeter?
If one tweeter sounds noticeably different, check its wiring, connections, capacitor, amplifier channel, and physical condition. A damaged diaphragm or shipping-related damage was reported by one user as causing poor sound from a tweeter.
- • Do I Really Need a Capacitor When Installing the XTW350NE?
Orion's manual recommends using a capacitor with this tweeter and specifies 3.3 µF / 250V for the unit. Proper installation helps keep unsuitable frequencies away from the high-frequency driver.
- • Why Is My XTW350NE Much Louder Than My Other Speakers?
The XTW350NE has a published sensitivity of 112 dB, so it can produce substantial output compared with many conventional speakers. Matching its level with the rest of the system may require appropriate amplifier gain or processing adjustments.
- • Can an Incorrect Amplifier Setting Damage the XTW350NE?
Yes, excessive amplifier gain, clipping, or inappropriate frequency settings can place excessive stress on a tweeter. One reported failure involved a user who said the tweeters blew while connected to a 4-channel amplifier.
- • Why Does My XTW350NE Have Less Output Than I Expected?
Check polarity, amplifier settings, crossover filtering, the capacitor connection, and the source signal. The XTW350NE is designed for high-frequency reproduction from approximately 2 kHz to 25 kHz, so it should not be expected to reproduce midbass frequencies.
- • Could Shipping Damage Affect the Sound of an XTW350NE?
It can. A customer reported receiving a damaged set in which one tweeter was broken and another had diaphragm damage that affected its sound. Inspect the horn, diaphragm, terminals, and housing before installation.
- • Why Does My XTW350NE Sound Clear but Become Distorted at High Volume?
Excessive amplifier output, clipping, improper gain structure, or sending frequencies below the tweeter's intended range can contribute to distortion. The XTW350NE is rated at 110W RMS per tweeter, so system settings should be configured around its actual power handling rather than its higher peak rating.
- Diameter : 3.2 Inch
- Sensitivity : 112 dB
- Frequency Response : 2000-25000 Hz
- RMS Power Range : 90 Watts
- Peak Power Handling : 360 Watts
- RMS Power Handling : 90 Watts
Features:
- Neodymium Magnet: The use of neodymium magnets in the XTW350NE tweeters provides exceptional magnetic strength in a compact size, ensuring efficient and precise high-frequency sound reproduction.
- High-Frequency Precision: With a power handling of 90 Watts RMS and 360 Watts MAX per tweeter, these tweeters are engineered to reproduce high frequencies with remarkable accuracy and impact, bringing out the finest details in your music.
- Wide Soundstage: Immerse yourself in a wide and dynamic soundstage, where every instrument and vocal is reproduced with stunning clarity and placement, allowing you to experience your music in a new dimension.
- Compact Design: The compact size of the XTW350NE tweeters allows for flexible installation options, making them an excellent choice for various car audio setups.
- Advanced Engineering: Crafted with precision and advanced technology, the XTW350NE tweeters are built to deliver exceptional high-frequency performance while maintaining efficiency and durability.
- Elevate Your High Frequencies: The ORION XTW350NE 3.2" Neodymium Bullet Tweeters are designed to elevate your high-frequency audio experience to new heights. Whether you're an audiophile seeking ultimate detail or a music enthusiast looking to enhance your sound system, these tweeters are ready to deliver unmatched clarity and impact to your music. With their neodymium magnet construction and power handling of 90 Watts RMS and 360 Watts MAX per tweeter, the XTW350NE tweeters are the perfect solution for those who demand nothing but the best in high-frequency sound reproduction. Upgrade your sound system with the precision and power of ORION engineering and discover a new dimension of sonic excellence.
Specifications:
- Speaker Size: 3.2 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 360 Watts
- Power Handling (RMS): 90 Watts
- Sensitivity: 112 dB
- Frequency Response: 2 kHz - 25 kHz
- Voice Coil Diameter: 1" (Inches)
- Quantity 2 Tweeters
- Material: Aluminum Die-Cast
- Diaphragm Material: Aluminum
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Recommended Capacitor: 3.3uF 100V
- Mounting Depth
- Overall Depth
- Cutout Diameter: 82mm / 3.23 (Inches)
- Overall Diameter: 70mm / 2.76 (Inches)
- UPC: 818550010222
- Weight: 1.2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
