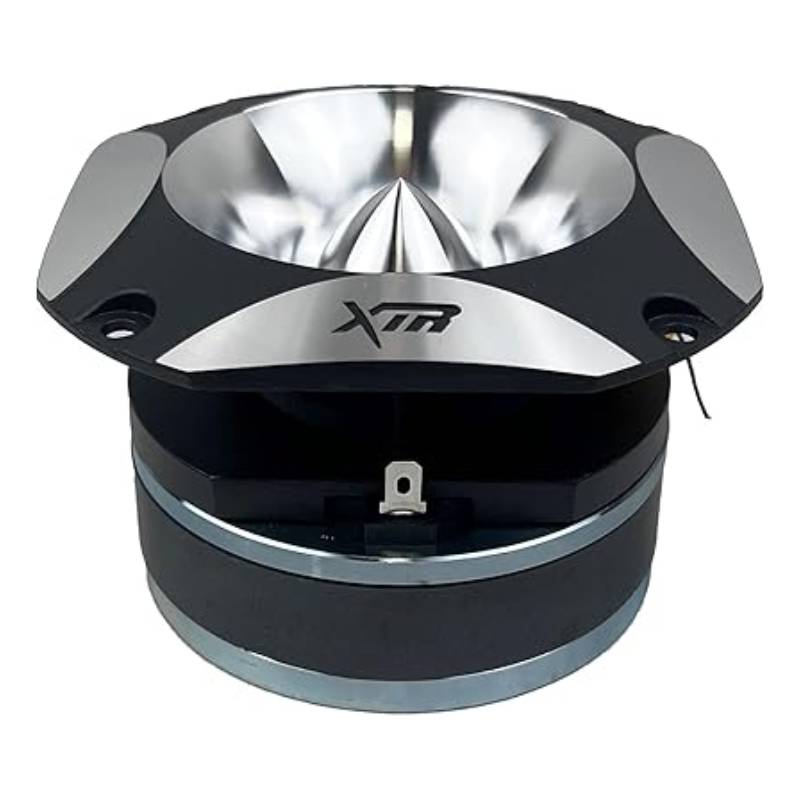

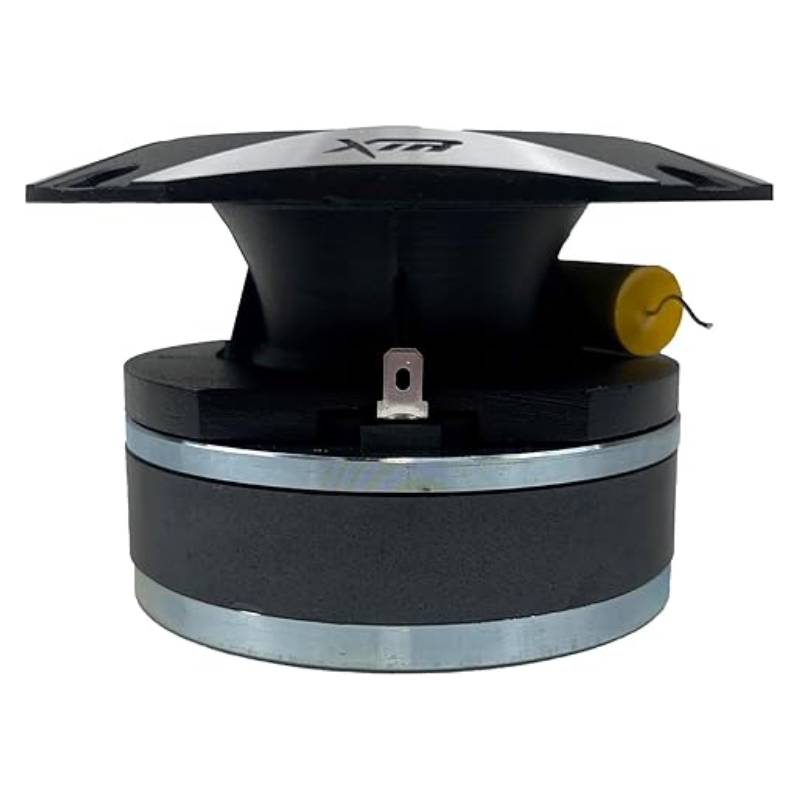

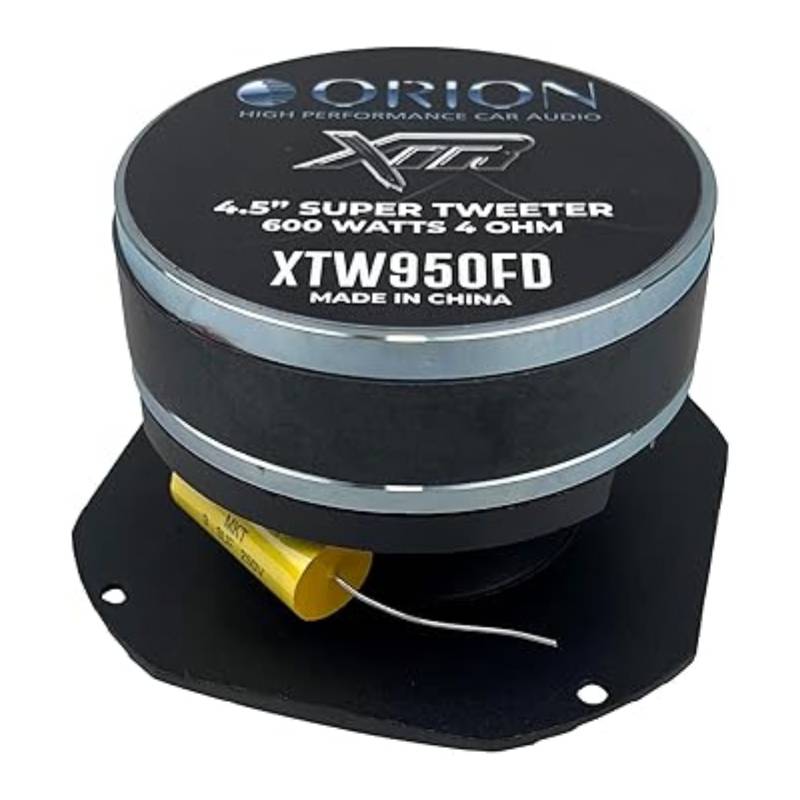

Orion XTW950FD XTR Series 4.5" 600W Peak Power Handling at 4-Ohms, Aluminum Super Bullet Tweeter (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4.5" Super Bullet Tweeter
- • Owner's Manual
Experience Sound in True Detail
Rediscover your music with breathtaking clarity as the XTW950FD tweeter creates a precise, wide soundstage that pulls you into every performance. Every note, every detail, and every vocal comes alive with stunning accuracy and depth. Crafted with advanced engineering, this tweeter delivers a perfect harmony of power, precision, and pure listening pleasure.
Powerful Precision and Unmatched Clarity
Experience stunning clarity and power with the XTW950FD tweeter, designed to bring every high note to life with precision and impact. Its super bullet design projects crisp, detailed sound across any space, creating an immersive listening experience. With 150 Watts RMS and 600 Watts MAX power handling, this tweeter delivers the perfect balance of strength, accuracy, and brilliance in every beat.
Pure Power and Perfect Clarity
Experience the brilliance of pure, high-frequency sound with the ORION XTW950FD tweeter, built for those who demand perfection. Engineered with premium craftsmanship and exceptional power, it delivers stunning clarity, precision, and impact in every note. Unleash the full potential of your music and feel the difference of true ORION audio excellence.
Frequently Asked Questions (FAQ)
- • Why Does the XTW950FD Horn Feel Loose After Installation?
Some owners have reported that the horn assembly arrived or remained loose, even though the tweeter still produced good sound. Check the horn and mounting hardware before use so vibration or shipping movement does not place stress on the diaphragm.
- • What Could Cause Only One XTW950FD to Produce Sound?
A reported owner issue involved receiving a pair where only one tweeter operated. Before assuming the driver is defective, swap the left and right signal connections to determine whether the problem follows the tweeter or remains with the wiring/channel.
- • Why Does the XTW950FD Sound Piercing at Higher Volume?
Super bullet tweeters can become noticeably aggressive when their output is not properly balanced with the rest of the system. Car-audio users frequently report harsh treble when crossover points, equalization, or tweeter level are not matched to the installation.
- • Can the Wrong Crossover Setting Make the XTW950FD Sound Distorted?
Yes. Allowing too much lower-frequency information into a tweeter can produce audible distortion and place unnecessary stress on the diaphragm. Installer discussions commonly recommend using an appropriate high-pass filter or crossover rather than sending a full-range signal to a tweeter.
- • Why Does My XTW950FD Sound Much Louder Than My Door Speakers?
Owners have described the XTR super tweeters as extremely loud, sometimes requiring amplifier level adjustments. If the tweeters dominate the vocals and instruments, reducing their gain or adjusting the system's high-frequency balance can help integrate them with the mids.
- • What Should I Check If the XTW950FD Sounds Fine at Low Volume but Gets Grainy Later?
A clean sound at moderate volume followed by graininess can point toward excessive signal level, unsuitable crossover settings, or amplifier clipping. Testing with reduced gain and a properly configured high-pass filter can help identify whether the problem is system-related.
- • Why Did the XTW950FD Become Damaged After Shipping?
One owner reported receiving a damaged unit and noted that a loose horn could potentially contribute to diaphragm damage when the package is handled roughly. Inspect the horn, diaphragm, and mounting assembly immediately after delivery before connecting power.
- • Can Factory Tweeter Wiring Cause Problems When Installing the XTW950FD?
Factory tweeter circuits may include filtering components that prevent lower frequencies from reaching the original driver. Car-audio installation discussions specifically warn that replacing a factory tweeter without accounting for its original capacitor or crossover can create improper frequency response or damage risks.
- • Why Does the XTW950FD Sound Different Depending on Where I Mount It?
The position and direction of a tweeter can substantially change how high frequencies reach the listener. Reflections from glass, plastic, and other hard surfaces can increase perceived brightness, so changing the aiming or mounting position may alter the tonal balance.
- • What Should I Do If the XTW950FD Suddenly Stops Playing?
Start by checking the amplifier channel, signal cable, speaker wiring, crossover/filter, and terminal connections before replacing the tweeter. If the same signal works correctly on another driver but the XTW950FD remains silent, the tweeter itself becomes a more likely point of failure.
- Diameter : 4.5 Inch
- Sensitivity : 111.8 dB
- Frequency Response : 3000-25600 Hz
- RMS Power Range : 150 Watts
- Peak Power Handling : 600 Watts
- RMS Power Handling : 150 Watts
Features:
- Super Bullet Design: The super bullet design of the XTW950FD tweeter ensures optimal dispersion and projection of high-frequency sound, creating a dynamic and impactful listening experience.
- Exemplary Power Handling: With an impressive power handling of 150 Watts RMS and 600 Watts MAX, the XTW950FD tweeter is engineered to deliver high-frequency sound with remarkable precision, detail, and impact.
- Precision Soundstage: Immerse yourself in a precise and expansive soundstage where every instrument and vocal is rendered with astonishing clarity, allowing you to rediscover your favorite music in a new light.
- Uncompromising Engineering: Meticulously engineered and constructed with advanced technology, the XTW950FD tweeter embodies the fusion of art and science to deliver an unparalleled auditory experience.
- Premium Craftsmanship: Crafted to the highest standards of quality, the XTW950FD tweeter is designed to last while delivering audio performance that consistently exceeds expectations.
- Unveil High-Frequency Brilliance: The ORION XTW950FD 4.5" Super Bullet Tweeter is your gateway to high-frequency brilliance that transcends traditional sound reproduction. Whether you seek to elevate your music listening or enhance your audio system's capabilities, these tweeters deliver exceptional sound quality with authority and precision. With a power handling of 150 Watts RMS and 600 Watts MAX, the XTW950FD tweeter is a testament to ORION's commitment to audio excellence. Elevate your auditory experience with the dynamic and impactful high frequencies of the XTW950FD and discover the true beauty of your music collection.
Specifications:
- Speaker Size: 4.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 600 Watts
- Power Handling (RMS): 150 Watts
- Sensitivity: 111.8 dB
- Frequency Response: 3 kHz - 25.6 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Quantity 1 Tweeter
- Material: Aluminum Die-Cast
- Diaphragm Material: Aluminum
- Phase Plug Material: Billet Aluminum
- Magnet Information: 15 Oz Ferrite
- Recommended Capacitor: 3.3uF 100V
- Mounting Depth
- Overall Depth
- Cutout Diameter: 82mm / 3.23 (Inches)
- Overall Diameter: 103mm / 4.06 (Inches)
- UPC: 818550011069
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
These are sick!! Best of all if somehow u blow them up u can just buy a recone kit from here for like $10.. they are extremely bigger than expected but they go well with the 8" xtr pro midbass's on a xtr amp.. its like adding a mega pro series component set to my 2 sets of xtr component sets.took my truck way past the next level.. definitely will be using these from now on
