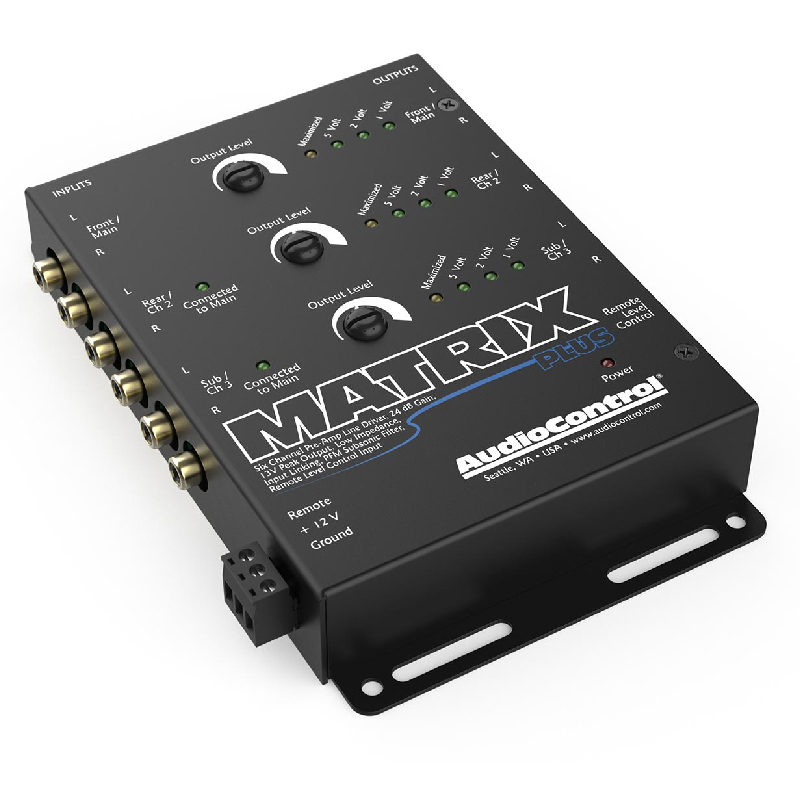

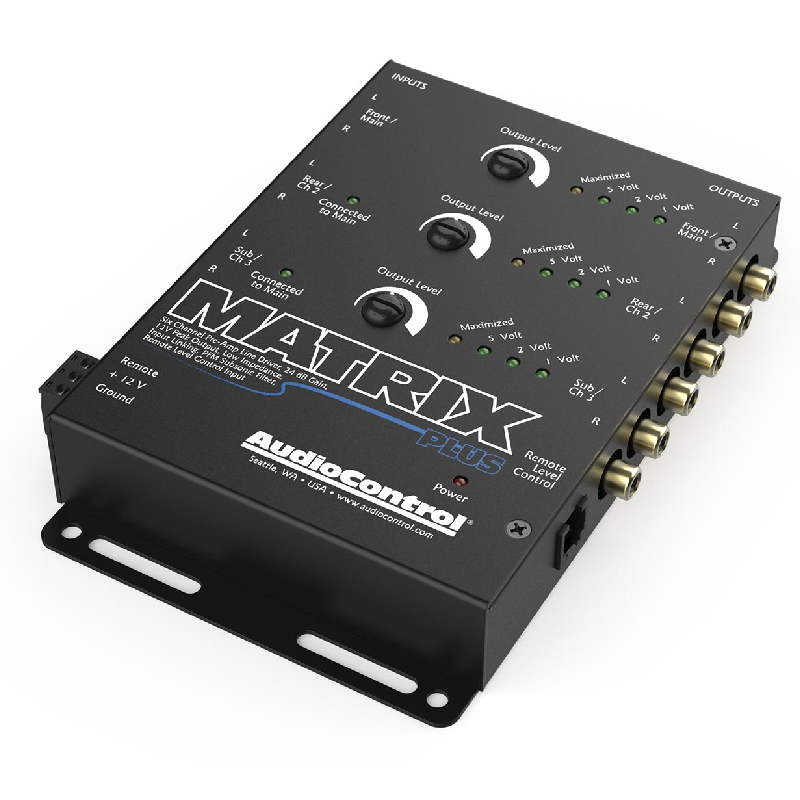

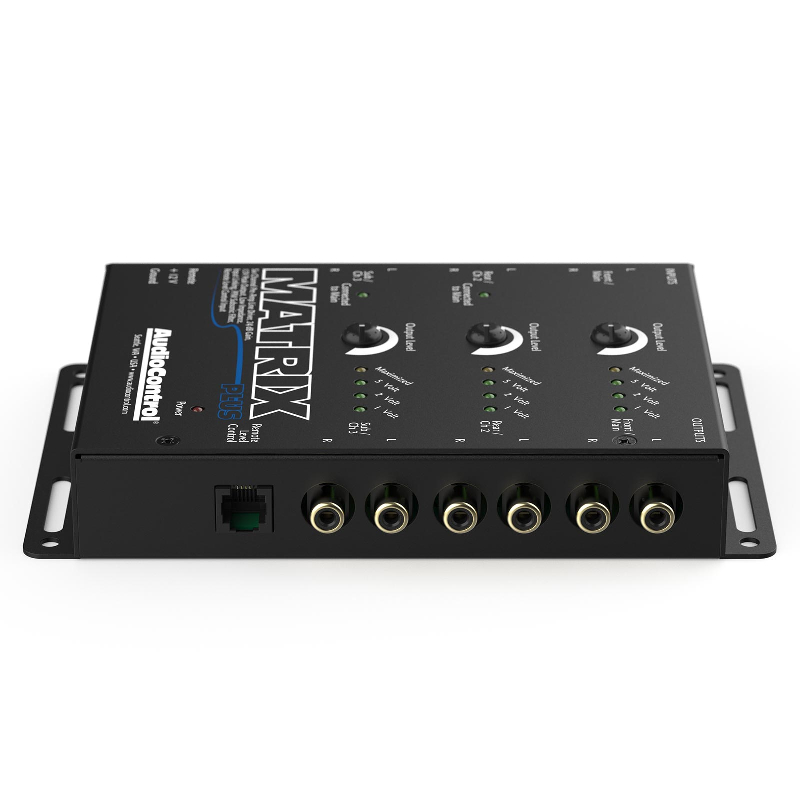

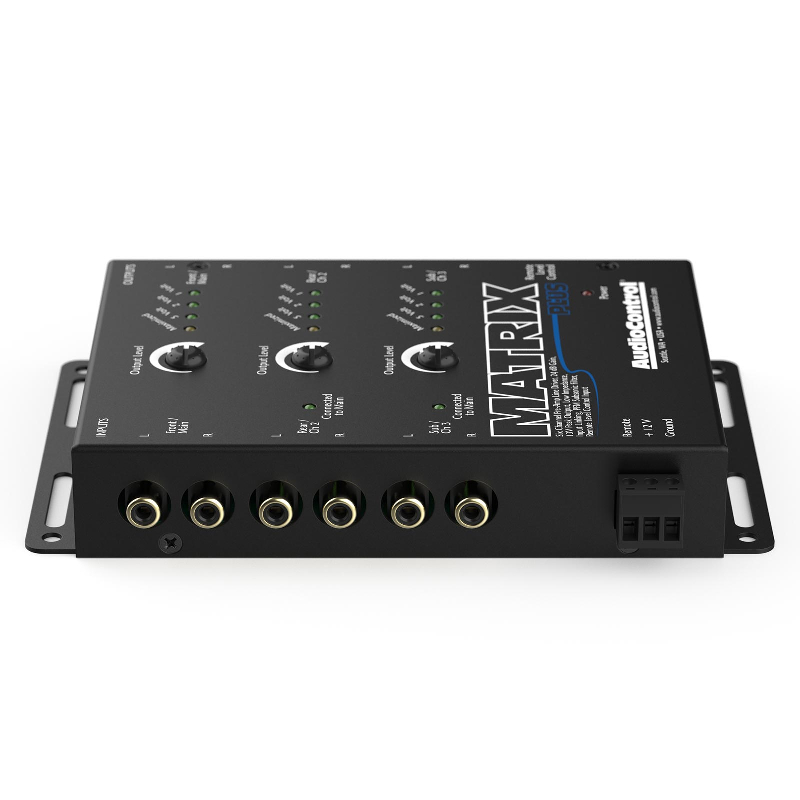

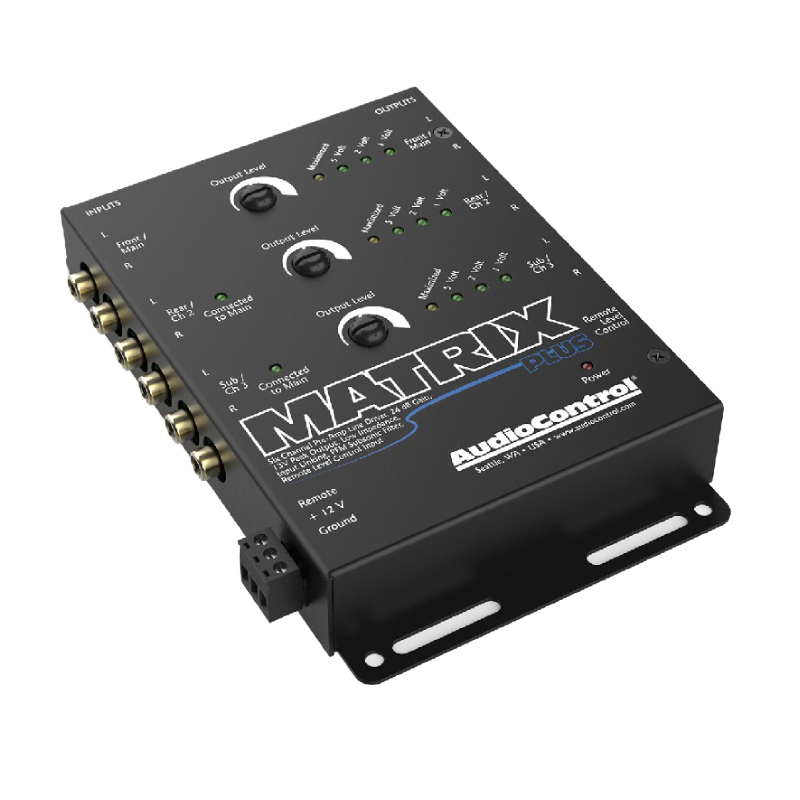

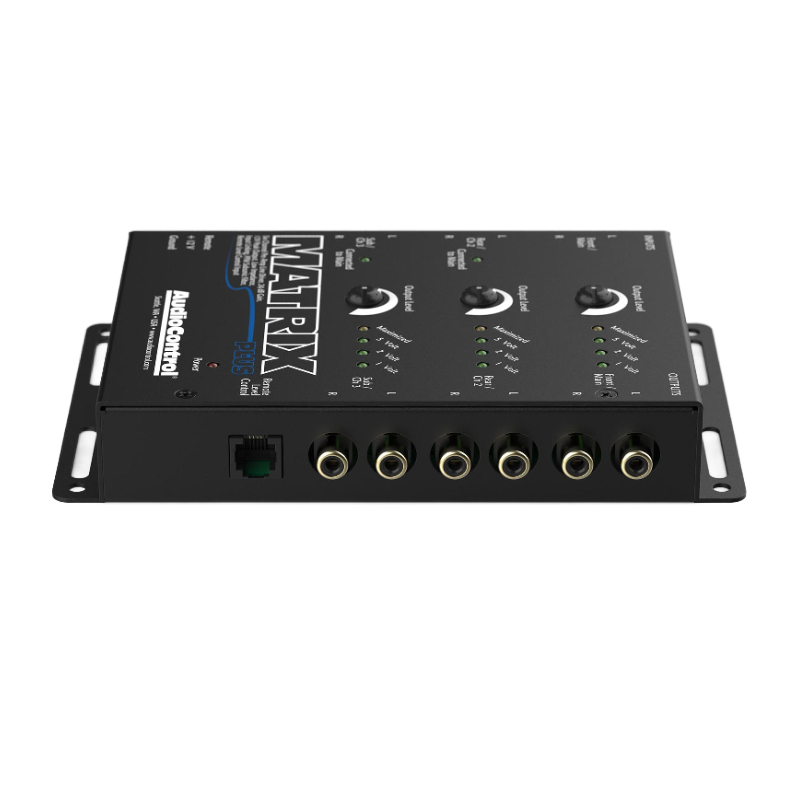

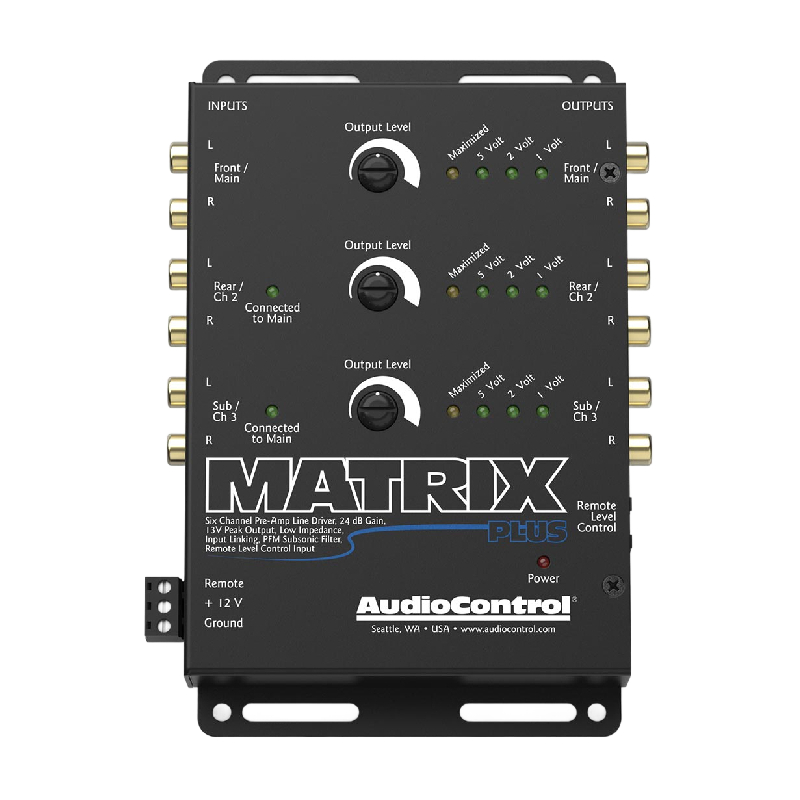

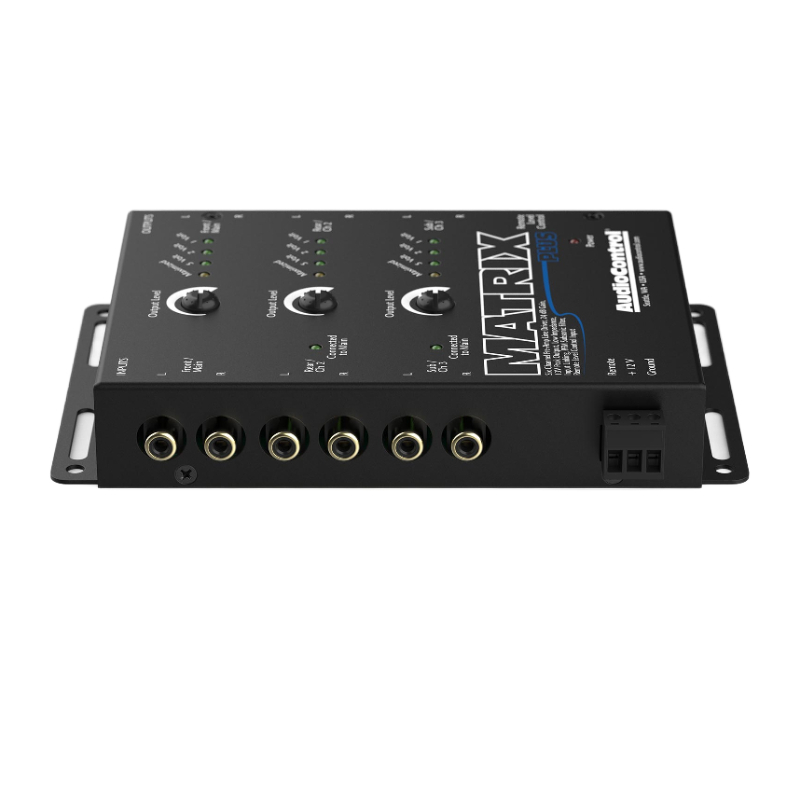

AudioControl Matrix Plus
 Item# 36654 / Condition:  Brand New

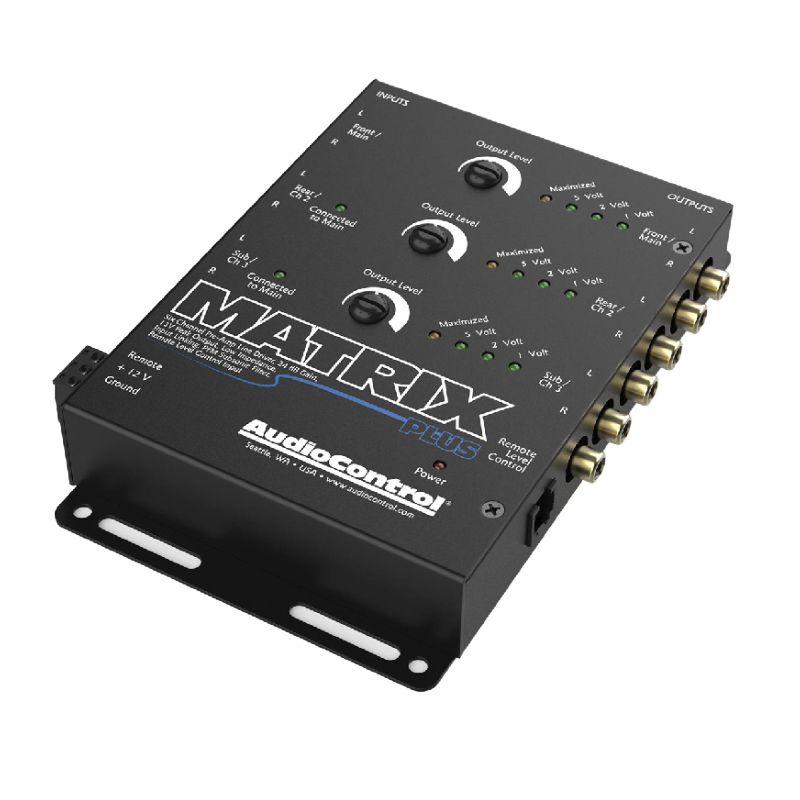

AudioControl Matrix Plus

Matrix Plus
6-Channel Pre-Amp Line Driver with Assignable Inputs/Outputs, Low Impedance, PFM Subsonic Filter, and Remote Level Control Input Review this product

FREE Shipping in US 48!

Regular Price:$239.99
Savings Of:20% Discount
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • comments
  • email
  • Facebook
  • Twitter
  • Print

affirm financing small logo
affirm financing extra small logo

The MATRIX PLUS is a 6 channel line driver with optional level control. The unit has Six input and output channels. The Line Driver has 24dB of signal gain. It also features 13 volts peak output. Assignable inputs and outputs allow for signal routing (ie. two input channels drive six output channels). The Line Driver also features Signal voltage indicator LED’s that always keep the user informed of its status. Also included is a High headroom PWM power supply. Balanced differential inputs are also included. A PFM Subsonic filter comes standard. The Selectable ground isolation makes the 6 channel line driver very adjustable. The Line Driver also features Low impedance outputs for multiple loads. An Optional dash mounted ACR-1 remote level control is sold separately. The MATRIX PLUS includes Power connectors and a Manual. The Input Gain is 24dB. The MATRIX PLUS has an input impedance of 20k Ohms. It has a Maximum Output Level of 9.5Vrms. The Output Gain is -12dB to +24dB. Also the Output Impedance is 50 Ohms. The Frequency Response registers 10Hz-100kHz. It has a current draw of 250mA. The recommended Fuse Rating is 1A.

What's Included:

  • Number of Channels: 6
  • Output Voltage: 13 Volts
Preamp Inputs: 3 (6 channels)
Recommended Fuse Rating: 1A
Signal to Noise: >110dB
Input Impedance: 20kOhm
Output Gain: -12dB to +24dB
Dimensions: 6.2W x 8.7D x 1.2H
Current Draw: 250mA
Preamp Outputs: 3 (6 channels)
Total Harmonic Distortion: 0.005%
Input Gain: 24dB
Maximum Output Level: 9.5Vrms
Output Impedance: 50Ohm
Frequency Response: 10Hz-100kHz ±1dB
Remote In Power Supply: Transformer Isolated PWM
Weight: 2.3lbs (1.0kg)

Product Highlights:

  • Signal voltage indicator LED’s
  • Selectable ground isolation
  • Six input and output channels
  • High headroom PWM power supply
  • Optional dash mounted ACR-1 remote level control (sold separately)
  • 13 volts peak output
  • 24dB of signal gain
  • Assignable inputs and outputs allow for signal routing (ie. two input channels drive six output channels)
  • Low impedance outputs for multiple loads
  • UPC: 855814005921
  • Weight: 8
