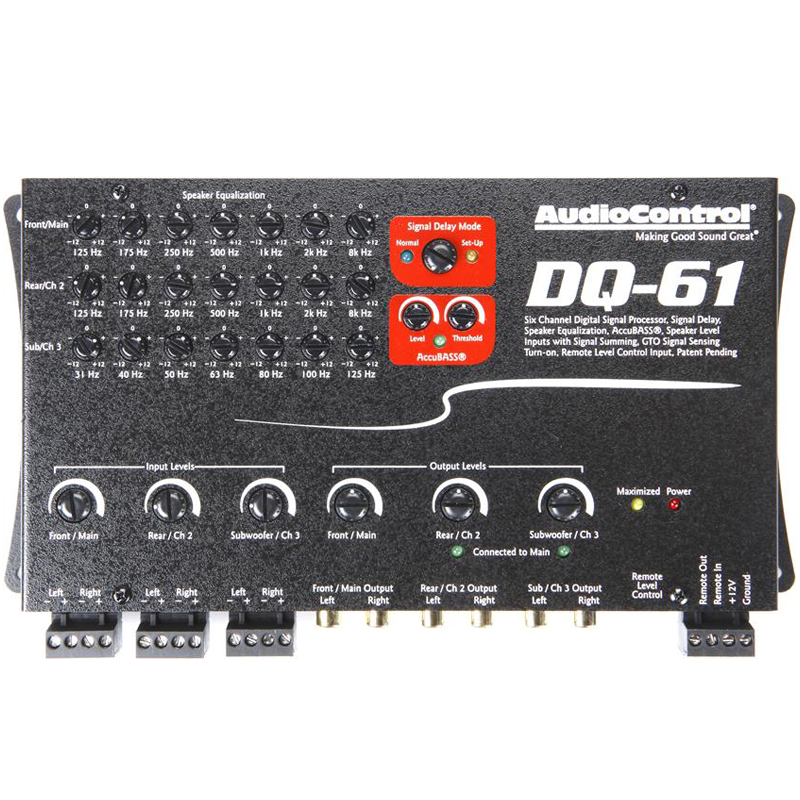

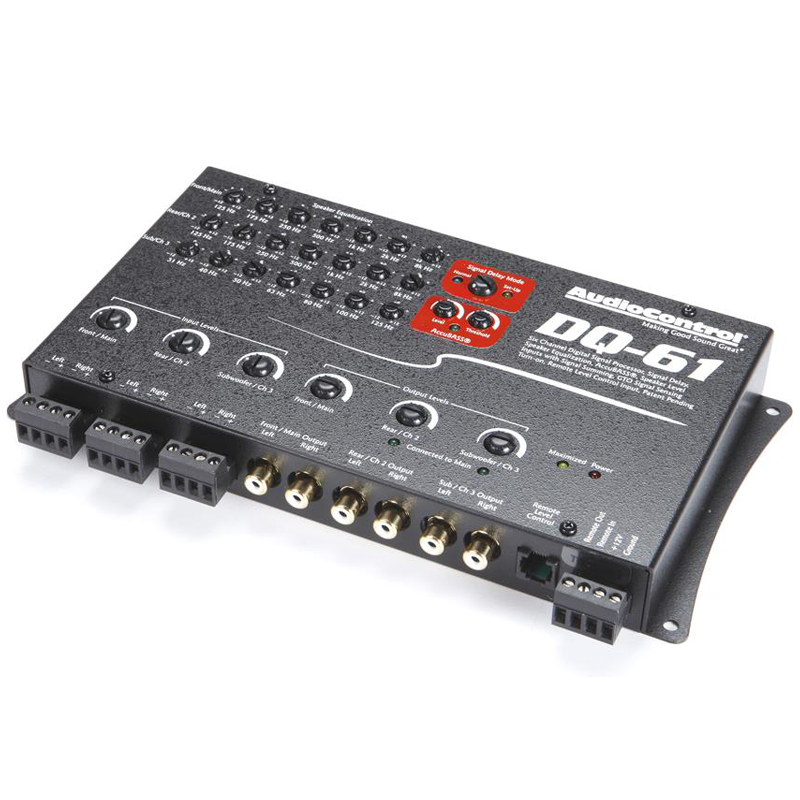

The DQ-61 features a 6 Channel Line Out Converter with Signal Delay and EQ, Internal Summing and AccuBASS. The Independent front, rear and subwoofer equalization provide a great performance. This feature provides precise tuning. The Signal Delay featured in the unit provides acoustical alignment between right and left channels as well as subwoofer channels. It features the AccuBASS with variable threshold and gain. The AccuBASS processing corrects roll-off bass. The 6 channel DQ-61 provides 400 watts per channel power handling capability. It includes GTO turn-on circuit with remote out. Output level controls are also available. Audio Control's AccuBASS Bass Compensation circuit adjusts the distortion that occurs at high volume levels. The DQ-61 is capable of internally summing together multiple (4 or 6) input channels from it’s original source unit into 2 channels. The DQ-61 has a high-current 12-volt output that provides a signal to remote devices such as amplifiers which enables them available. A Dash Mount ACR-3 Level Control is Included. The DQ-61 includes Power connectors and Manual. The ACR-3 Level Control allows for both subwoofer level and processing bypass control. The DQ-61 an input impedance of 20k Ohms. It has a Maximum Output Level of 7.5Vrms. The Output Gain is 12dB. Also the Output Impedance is 150 Ohms. It has a current draw of 350mA. The frequency response registers 10Hz-22kHz. The recommended Fuse Rating is 2A.
Specifications | |
---|---|
Speaker Level Inputs: | 3 (6 channels) |
Frequency Response: | 10Hz-22kHz |
Current Draw: | 350mA |
Output Gain: | 12dB |
Maximum Output Level: | 7.5Vrms |
Equalizer Frequencies (sub): | 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz |
Signal Delay Max (Front/Sub): | 35ms |
Power Supply: | High Headroom PWM Switching |
Preamp Outputs: | 3 (6 channels) |
Equalizer Frequencies (front/rear): | 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz |
Input Impedance: | 20kOhm |
Maximum Input (speaker level): | 400W per channel at 4Ohm |
Output Impedance: | 150Ohm |
Total Harmonic Distortion: | 0.01% |
Signal Delay Max (Left/Right): | 10ms |
Remote In | 12VDC Remote Out (always active when unit is on) |
Recommended | Fuse Rating: 2A |
Dimensions: | 8.6W x 5D x 1.25H |
Weight: | 3.0lbs (1.4kg) |
I purchased this unit so I could keep the factory navigation head unit in my 2014 Jeep Wrangler Unlimited and add aftermarket speakers and amplifiers. The unit is extremely difficult to tune as I have had to take it back to the installer a couple of times to have it adjusted. At this point, I am going to remove the unit along with the factory head unit and replace them with a navigation unit from Kenwood or Pioneer.
