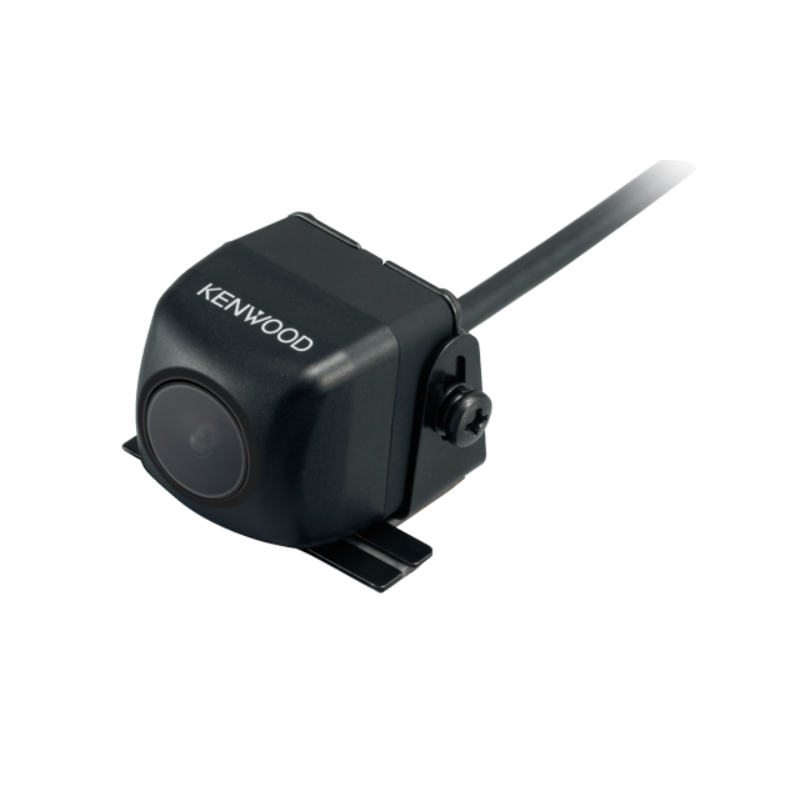

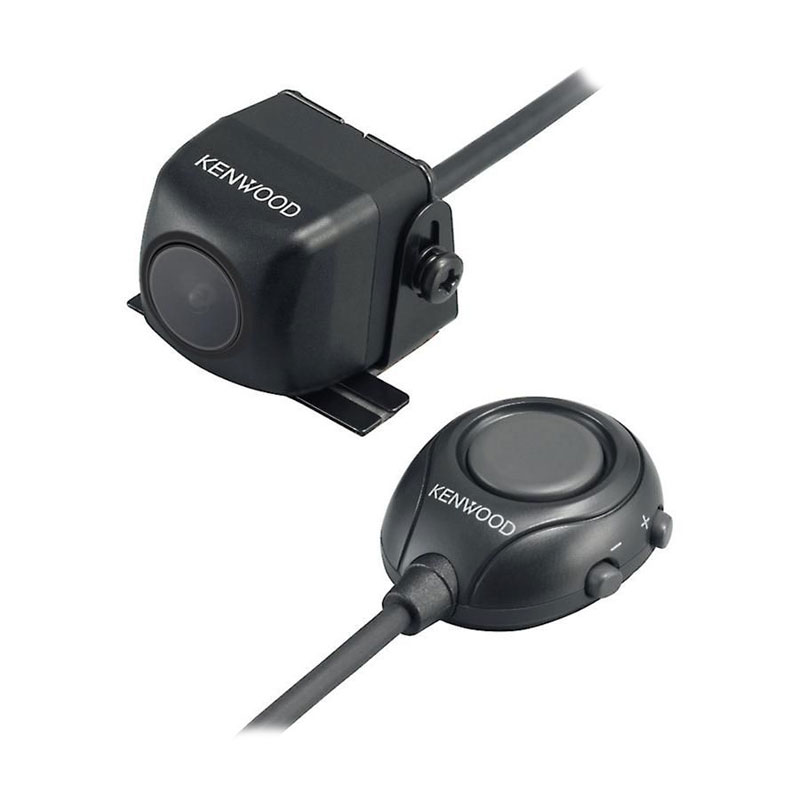

The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles including super wide view, overhead view, PinP view, corner view and adding graphic guidelines to the camera image. The sensitive CMOS sensor in combination with the high-quality lens provide a good, sharp image, even at night or dark places like a parking garage. Easily switch between the many viewing options using the touch screen from a compatible KENWOOD AV-receiver.
Ultra Wide View: 195-degrees / 195-degree horizontal and 145-degree vertical view / Multiple View Modes / 330,000 Pixels / Rear-View Camera with View Selection Button / Built-in Power Supply / Overhead View / Corner View / Can be used as a front camera with Kenwood DNX7160, DNX7180, DNX7190, DNX771HD, DNX891HD, DNX9960, DNX9980, DNX 9990 Navigation Receivers
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.
| Specifications | |
|---|---|
| Synchronizing System | Internal |
| Dimensions Switch Unit (WxHxD) | 27.5 x 32.8 x 12 mm |
| Horizontal Angle view | +/- 195° |
| Camera ID setting | Yes |
| Guideline Adjustments | Size, Horizontal Direction, Red Line Position |
| Connection cable (DC+video) | 5 m |
| Front view switching | by remote or Kenwood unit |
| Image Adjustments | Centering, Right-and-Left, Up-And-Down Angle |
| Illumination range | approx. 0.9 to 100000 lux |
| Weight Switch Unit | 10 gr. |
| Weight | 23gr |
| Dimensions (WxHxD) | 23.4 x 23.4 x 26.1mm |
| Installation positions | Rear |
| Storage Temperature Range | -40°C ~ 80°C |
| Maximum Current Consumption | 0.1A |
| High voltage protection | Yes |
| Mounting system | Fexible mount base |
| Wide angle lens | Yes |
| Operation Temperature Range | -30°C ~ 70°C |
| Operating voltage | 14.5V (9 ~ 16V Allowable) |
| Waterproof chassis | Yes |
| White balance | Automatically |
| Effective number of pixels roughly | 330000 |
| Rear view switching | Reverse line |
| Guideline view | Yes |
| Scanning System | Interlace |
| Camera Type | 1/3.6" colour CMOS sensor |
| Colour type | Yes |
| High sensitivity Pixels | Yes |
| Output video | Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View |
| Focal length | f: 1.05mm, F value 2 |
| Vertical Angle View | +/- 145° |
| Iris System | Electronic |
| Video output level | 1Vpp, 75ohms |
| Video signal format | NTSC (Mirror view) |
Kenwood CMOS-320 Owner's Manual
