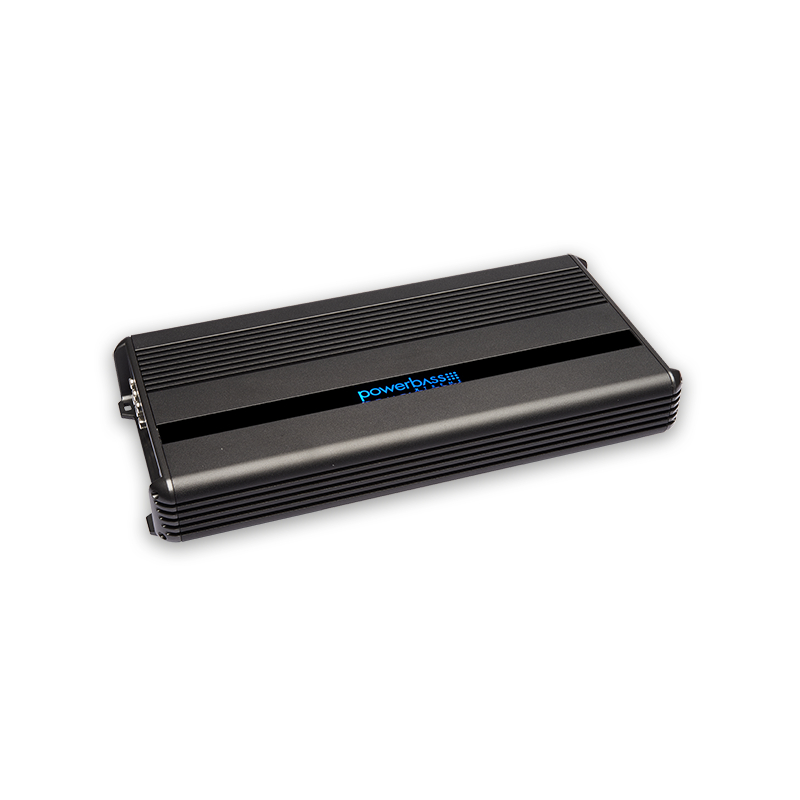

PowerBass  XMA-5900IR

5-Channel Full Range Class D Compact Amplifier

Item #45466

Product Highlights

  • Compact Amplifier
  • 5-Channel
  • Full Range
  • Class D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 3200 Watts
  • Number of Channels : 5
  • Frequency Response : 10-40000 Hz
  • Amplifier Class : D

FEATURES


Features:

  • 1,600 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Five Channel Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Balanced RCA Inputs
  • Auto Turn On/Off
  • Remote Soft Delay Turn On/Off Circuit
  • 40 Click Variable Detente High/Low Pass Electronic Crossover
  • 40 Click Variable Detente Bass Boost @ 45 Hz
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output



Specifications

  • Selectable Subwoofer EQ: 0-18dB Gain @ 45Hz
  • Variable Subsonic Freq: N/A
  • Inputs: 3 Pairs RCA (speaker level compatible)
  • Subwoofer Frequency Range: 10 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.0"
  • Width: 7.1"
  • Depth: 14.7"
  • 4-ohm Mono Power: 400 watts x 2 + 500 watts x 1 (4-ohm)
  • 4-ohm Power: 100 watts x 4 + 500 watts x 1
  • 1-ohm Mono Power: N/A
  • 2-ohm Power: 200 watts x 4 + 800 watts x 1
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 25 Hz - 250 Hz
  • High-Pass Crossover Freq: 50 Hz - 350 Hz
  • Peak Power: 3200 watts
  • Crossover Slope: 12 dB
  • Dimensions (in Inches): 14.7" x 7.1" x 2.0"
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >90 dB
  • Total Harmonic Distortion: 0.04% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 100 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 200 watts x 4 + 800 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Channels (mono): 5
  • Frequency Response: 10 Hz - 40 kHz
  • UPC: 823871006342
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
