AudioControl :: TheEPICENTER600 :: $349.00

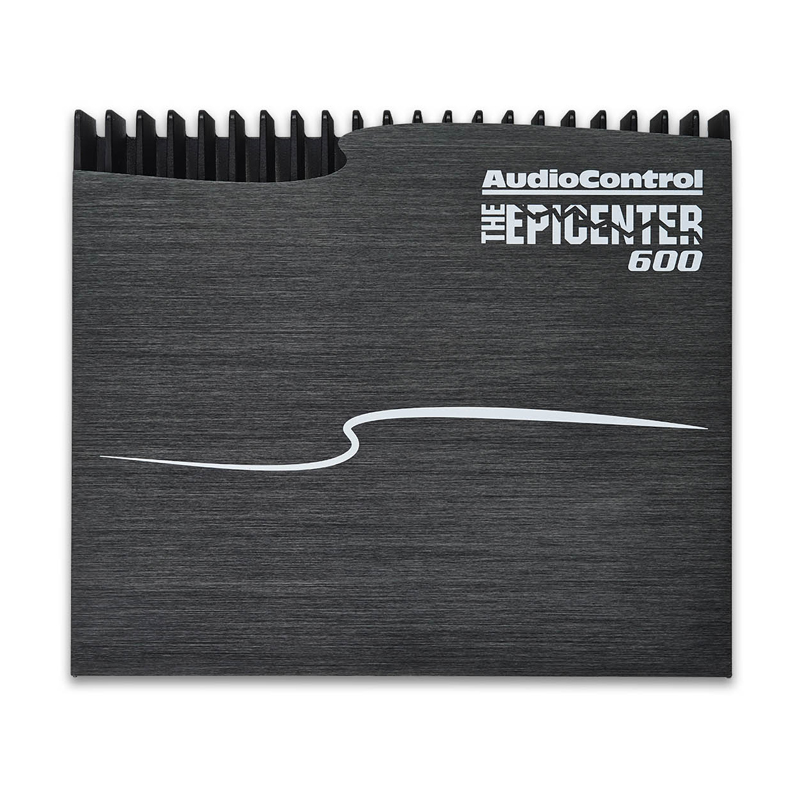

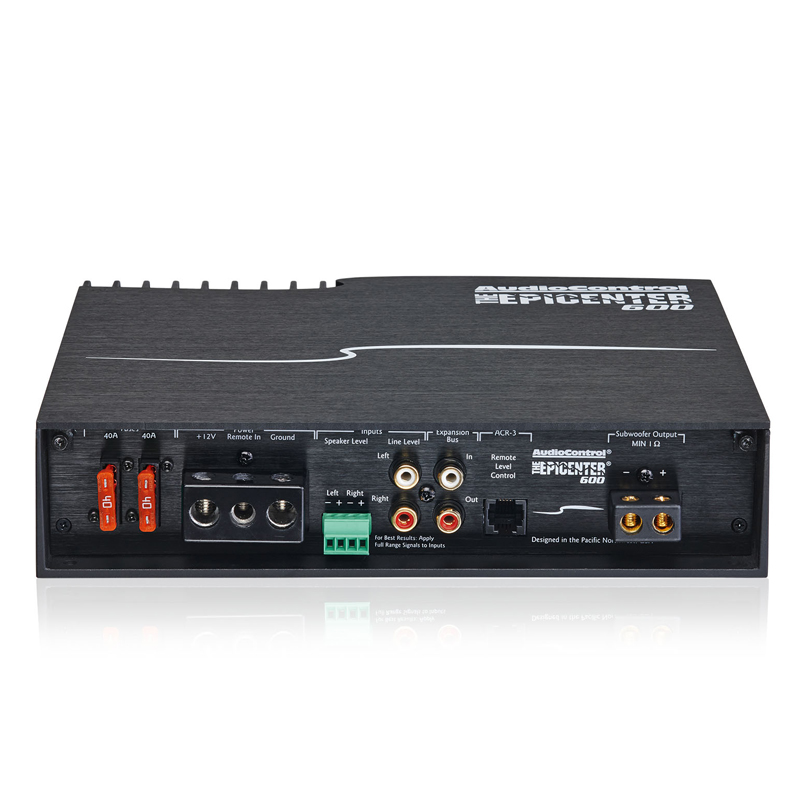

AudioControl TheEPICENTER600

Item# 46232

600 POWER AMPLIFIER Hi-Power THE EPICENTER Subwoofer Power Amplifier

Sorry, this product is no longer available.

affirm financing small logo
affirm financing extra small logo

It is categorized as a Class D Monoblock Subwoofer Amplifier. The Epicenter 600 delivers high current, stable down to 1 Ohm. The Epicenter 600 has a removable top cover that allows access to controls. The high-power subwoofer amplifier delivers extreme performance. It features The Epicenter Bass Restoration. The Epicenter Bass Restoration features Sweep and Width controls that help recover bass frequencies that may be lost during performance. The Sweep and Width controls are easily concealed once adjustments are made. It also includes the MILCTM clip detection circuit. With the MILCTM clip detection circuit the amplifier is looking to detect any clipping. Red and Green LED indicators let the user know if any clipping occurs. Standard come the Speaker level inputs with GTOTM Signal Sensing. A PFM Subsonic Filter is built into the amplifier. 24 dB / Octave Linkwitz-Riley Selectable Crossover It has a Dash Mount ACR-3 level control included. The Dash Mount ACR-3 level control allows the user to adjust subwoofer and bass levels. The control also features LED indicators. The Epicenter 600 also allows for System Expansion. The included expansion bus allow for daisy-chaining multiple amplifiers. Controls that are included are Output Polarity, PFM Subsonic Filter and Crossover plus many more.

What's Included:

Frequency Response: 16 Hz – 250 Hz
Output Polarity Switch: Yes
PFM Subsonic Filter: 18dB/Octave, Selectable 16 Hz or 32 Hz
Weight: 4.5lbs (2.0kg)
Bass Processing: The Epicenter
Preamp Inputs: 1 Main, 1 Expansion Bus
Signal to Noise: 104 dBa, Ref 600 W @ 1 Ohm
Low-Pass Filter: 24dB/Octave Linkwitz-Riley, Adjustable From 30 Hz – 250 Hz
Dimensions: 9W x 7.95D x 2.1H
Input Voltage Range: 200 mV – 6 V RMS
Expansion Bus Output: Buffered, post-processing
Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 2 x 40 A

Product Highlights:

  • Expansion Bus
  • THE EPICENTER Digital Bass Restoration
  • 600 watts at 1 Ohm
  • Solid One-Piece Aluminum Chassis
  • MILC™ Maximum Input Level Control (Patent Pending)
  • High Current Design – 1 Ohm Stable
  • 24 dB/octave Linkwitz-Riley Alignment Crossover
  • GTO Signal Sense
  • PFM Subsonic Filter

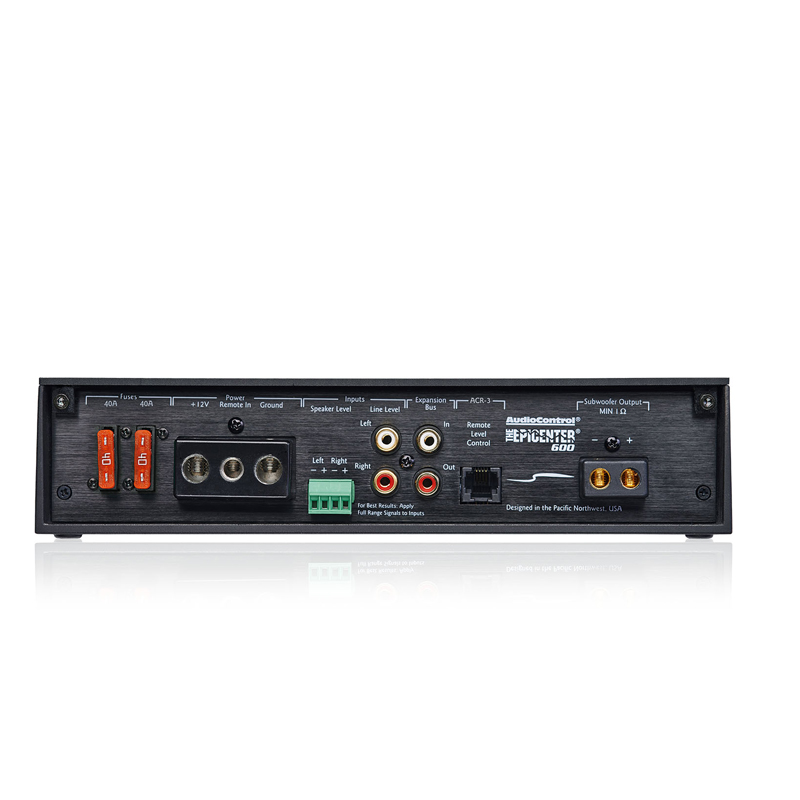

  • Line-Level RCA Inputs and Active Speaker-Level Inputs
  • Remote Control for Subwoofer Level and THE EPICENTER® effect
  • UPC: 855814005457
  • Weight: 5
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
