AudioControl DM-608
alternate product image 1alternate product image 2
Item# 46237 / Condition:  Brand New    Review this product

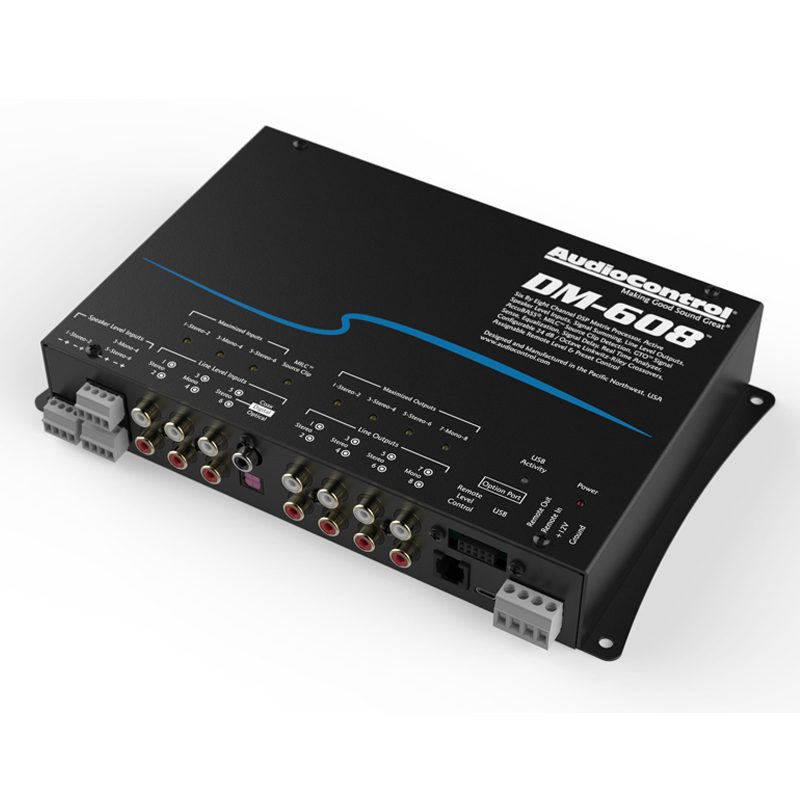

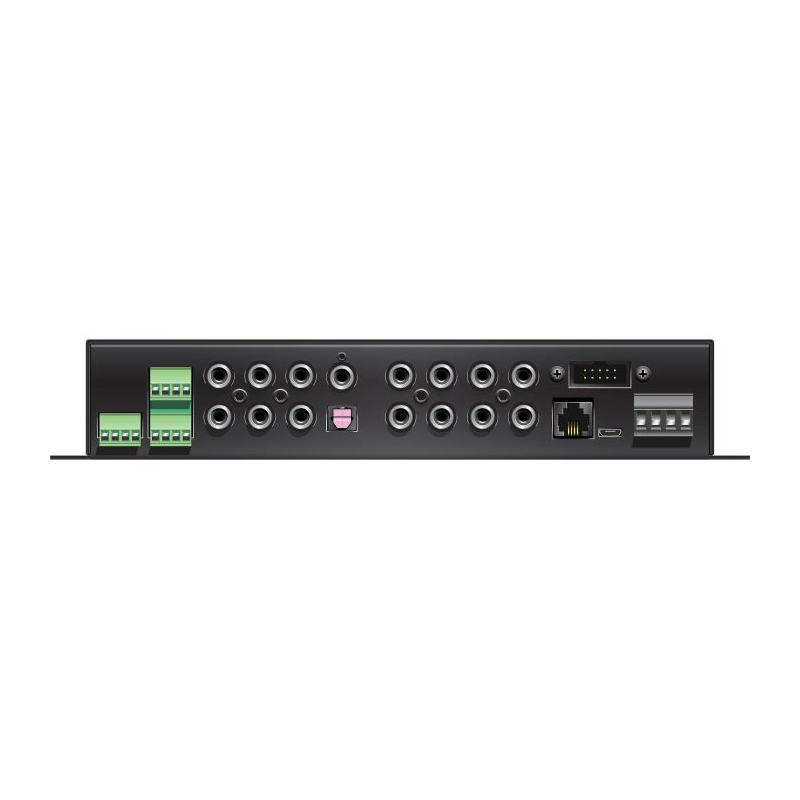

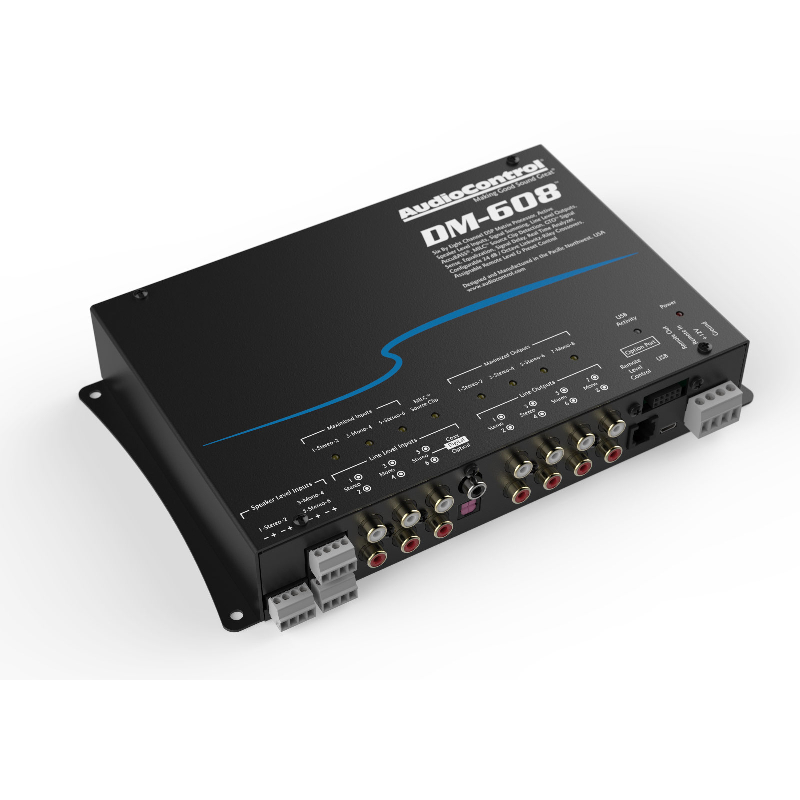

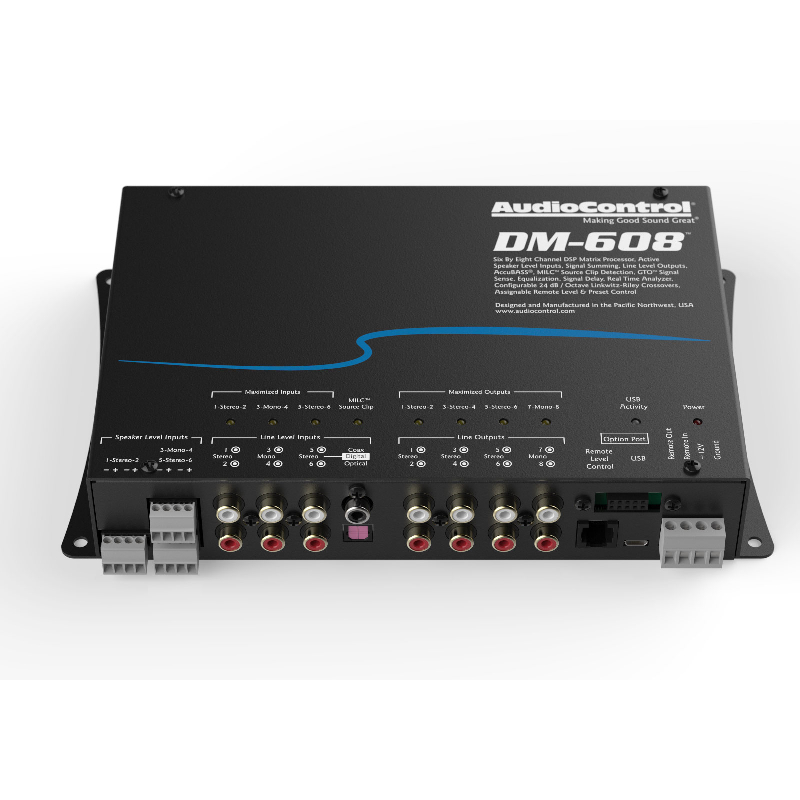

AudioControl DM-608

DM-608
Six by Eight Channel Matrix DSP Processor
$437.99

FREE Shipping in US 48!

Save $161.00 | Reg. Price $598.99
Add Extended Warranty

What other people bought after viewing this product.

The DM-608 features a premium 6 input 8 output dsp matrix processor with Signal Delay, Signal Summing, MILC source clip detection GTO signal sense and AccuBASS. The Signal Processor includes a Real time analyzer for maximum performance. Input and Output featured in the Signal Processor provides precise tuning. The product also comes with a 30 band equalizer. The Signal Delay featured in the unit provides acoustical alignment between right and left channels as well as subwoofer channels. It features the AccuBASS with variable threshold and gain. The AccuBASS processing corrects roll-off bass. It includes GTO turn-on circuit with remote out. Output level controls are also available. It also includes the MILC clip detection circuit. With the MILC clip detection circuit the amplifier is looking to detect any clipping. Speaker level inputs with GTO Signal Sensing come included with the signal processor. Also included is the 24 dB / Octave Linkwitz-Riley Selectable Crossover. Audio Control's AccuBASS Bass Compensation circuit adjusts the distortion that occurs at high volume levels. The DM-608 is capable of internally summing together multiple (4 or 6) input channels from it’s original source unit into 2 channels. An Optional ACR-3 Assignable Remote Level & Preset Control is available. The DM-608 includes Power connectors and Manual.

Product Highlights:


  • Line level inputs and outputs
  • Six Channels In
  • AccuBASS
  • GTOTM signal sense
  • Conigurable 24 dB/Octave Linkwitz-Riley Crossovers
  • MILCTM source clip detecion
  • Acive speaker level inputs
  • Real ime analyzer
  • Equalizaion
  • Matrix DSP Processing
  • Eight Channels Out
  • Signal summing
  • Digital inputs
  • Signal Delay
  • Optional ACR-3 Assignable Remote Level & Preset Control

What's Included:


Specifications
Input Type: coax and optical digital inputs
Preamp Input Channels: 6
Input Impedance Preamp: 20k ohms/7k ohms
Dimensions: 9-1/2W x 1-5/8H x 5-3/4D
Filter: Subsonic filter at 32 Hz
Processor: digital signal processor
Preamp Output Channels: 8
Output Impedance 150 ohms
Maximum Output Level 10 Vrms
Recommended fuse rating: 2 amps
THD 0.01
Frequency Response 20Hz to 24kHz
  • UPC: 855814005976
  • Weight: 4.01
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
