The all new CompR® sub is the very model of power and reliability. Play them loud. Play them hard. Play them all day. They love it as much as you do.

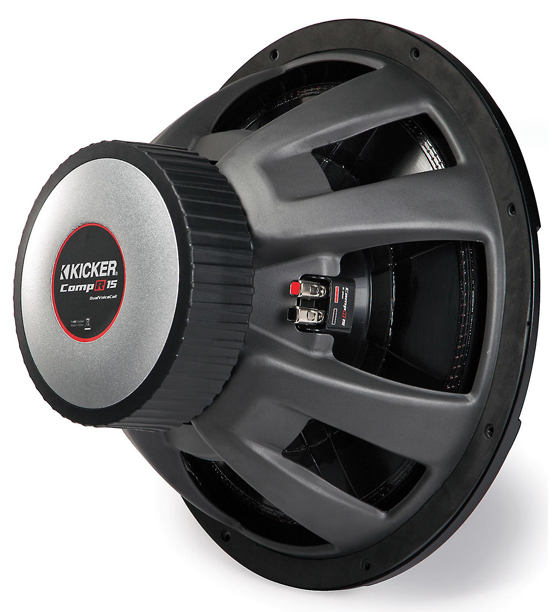

With a double stacked magnet, the CompR provides powerful bass and a thunderous low-end response for the thump you crave when the volume knob needs a workout.

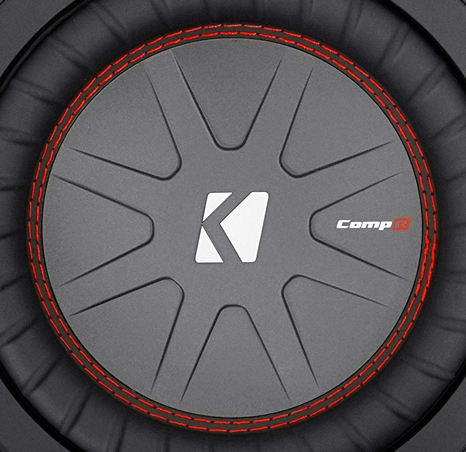

Our signature red double stitching makes an outstanding bond between the improved Santoprene®™ surround and a new all-polypropylene woofer cone. You get a deeper bass that stays pumping, no matter what the volume.

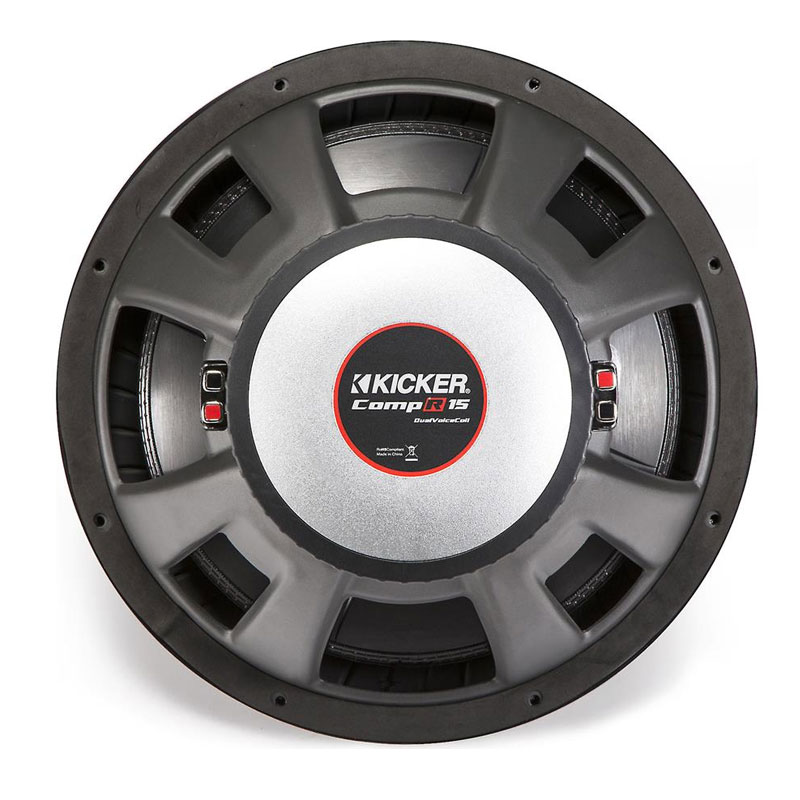

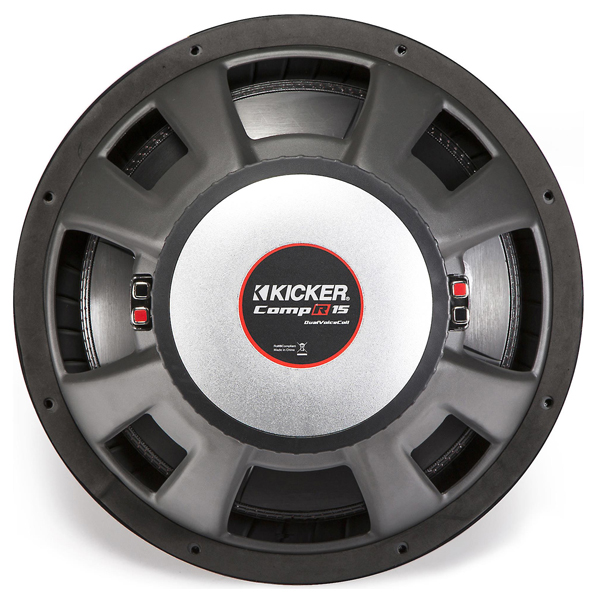

Every CompR has two sets of brass voice coil terminals, spring-loaded and covered in a lustrous satin nickel finish. A simple push of the terminal gives you the wiring options you need to get the most out of your system.
The all new CompR® sub is the very model of power and reliability. Play them loud. Play them hard. Play them all day. They love it as much as you do. The CompR 12-Inch Subwoofer is a dual 4Ω voice coil design, making it easy to get the most out of your amp.Revolutionary SoloKon™ technology joins the cone to the vented back brace, making a single integrated unit that both cools the motor and eliminates all distortion. This 12" subwoofer produces 500 Watts RMS/1000 Watts Peak Power with a frequency response of 25-500 Hz, all in order to provide the best quality.
| Specifications | |
|---|---|
| FS (Hz) | 30.8 |
| Ideal Ported Box Volume (cubic feet) | N/A |
| Peak Power Handling (Watts) | 1000 |
| Bottom Mount Depth (inches) | 6 1/4 |
| Dual Voice Coil | Yes |
| Vas (liters) | 8.342 |
| Cutout Diameter or Length (inches) | 10 15/16 |
| Ideal Sealed Box Volume (cubic feet) | N/A |
| Impedance | 4 ohms |
| Top Mount Depth (inches) | 5 3/4 |
| Surround Material | Santoprene |
| Size | 12 -inch |
| Cone Material | Polypropylene |
| Port diameter (inches) N/A | Port length (inches) N/A |
| Free-Air | No |
| Sensitivity | 86.9 dB at 1 watt |
| Frequency Response | 25 - 500 Hz |
| RMS Power Range (Watts) | 175-500 |
| Qts | 0.564 |
| Xmax (millimeters) | 14 |
