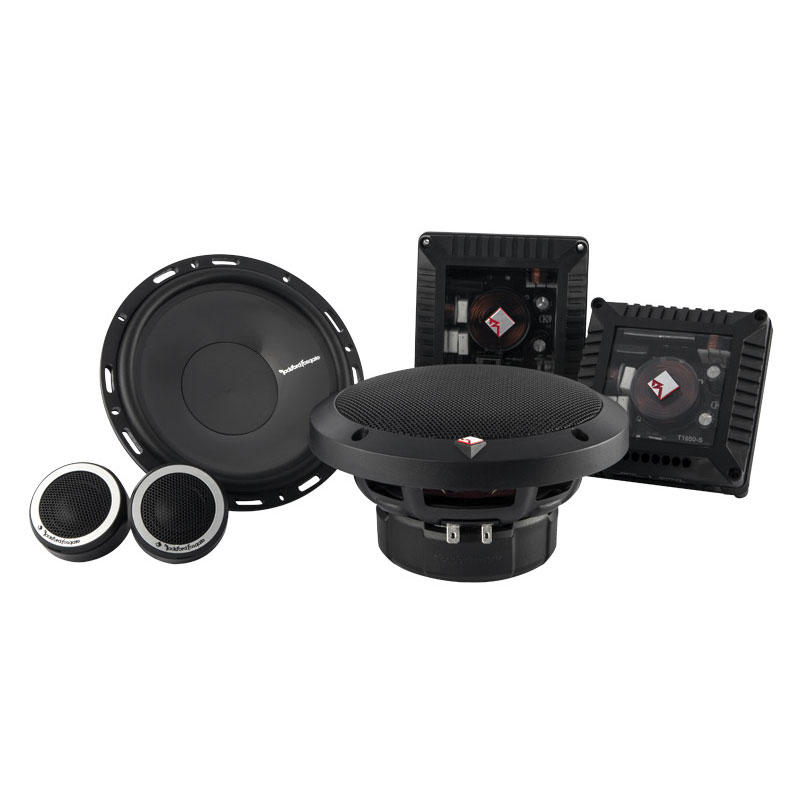

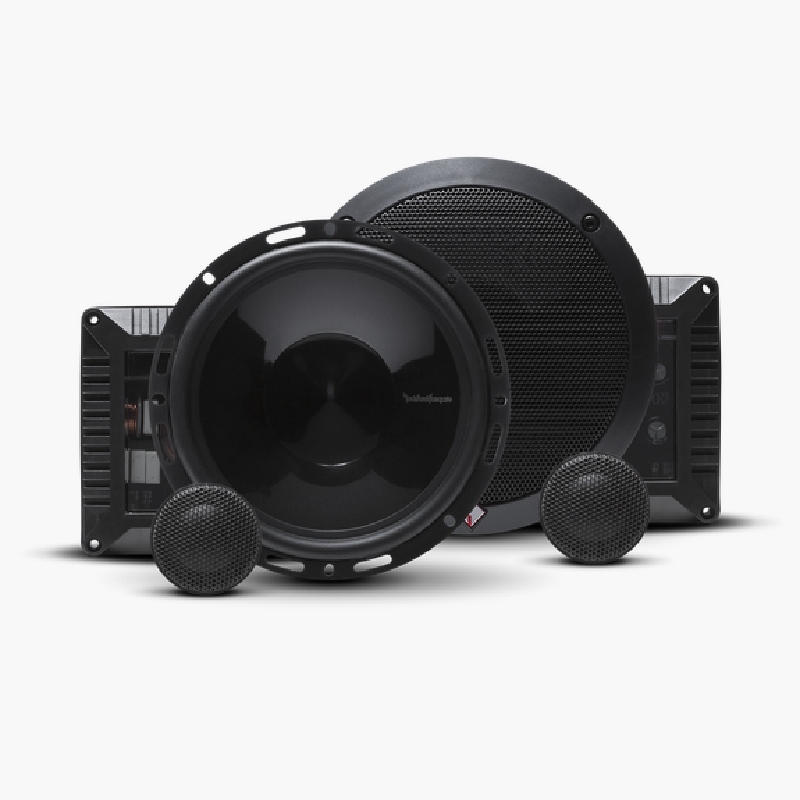

Rockford Fosgate T1650-S Power Series 6.5" 80W RMS 4-Ohms, 2-Way Component Speaker System
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

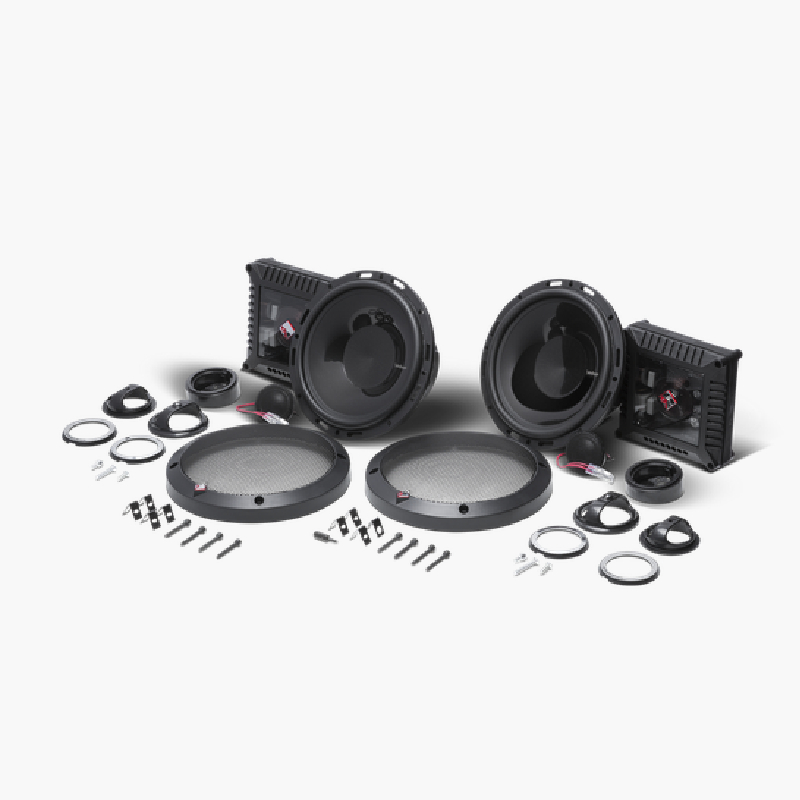

What's Inside?
- • (2) Woofers
- • (2) Woofer grilles
- • (2) Tweeters (6" speaker wire attached terminated with female quick-slide connectors)
- • (2) Crossovers
- • (2) Front flush mount brackets
- • (2) Rear flush mount brackets
- • (2) Angled surface mounting housings
- • (2) Polished tweeter trim rings
- • (2) Brushed tweeter trim rings
- • (2) M4x25mm Machine screws
- • (2) M4x10mm Machine screws
- • (2) M4x15mm Stud bolts
- • (8) 1-1/4" Allen head screws
- • (1) 3mm Allen head bit
- • (8) Speed clips
- • Installation/Operation Instructions (English/ French/ Spanish/ German/ Italian)
- • Owner's Manual
Why Choose Rockford Fosgate T1650-S Component System?
Rockford Fosgate Power T1 Components Series

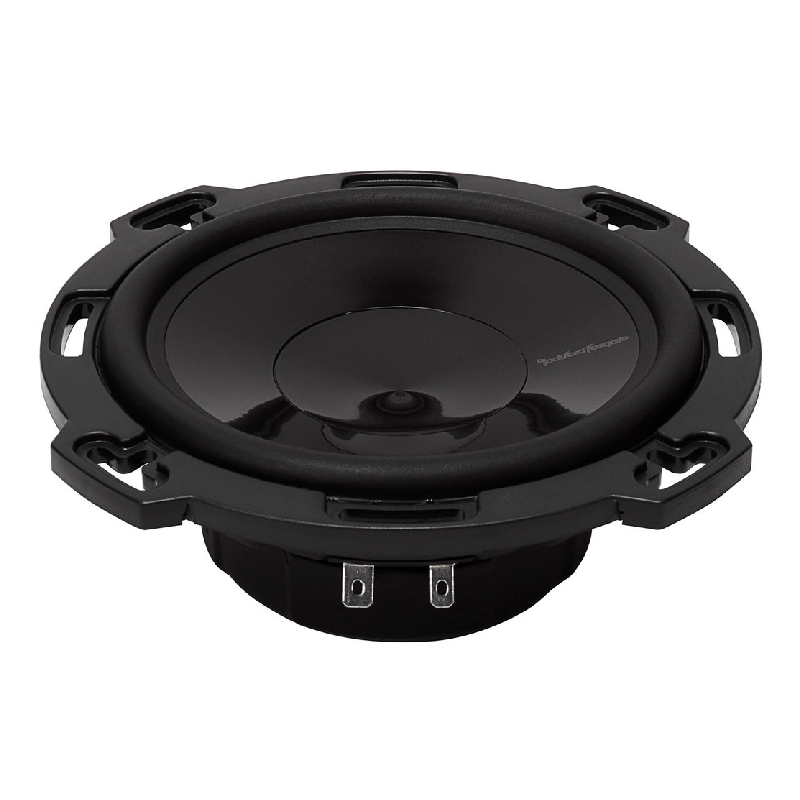

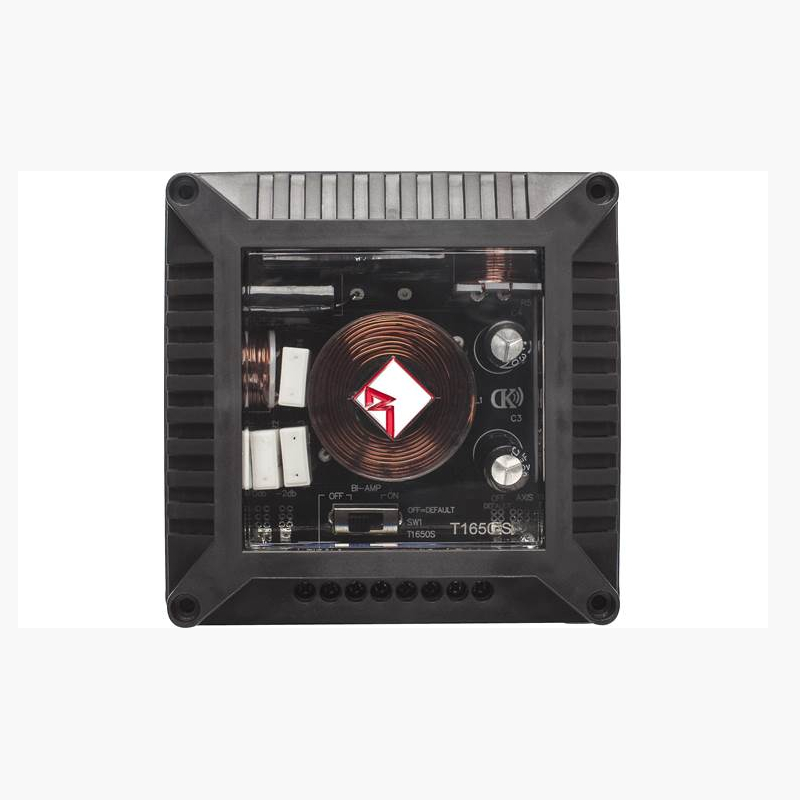

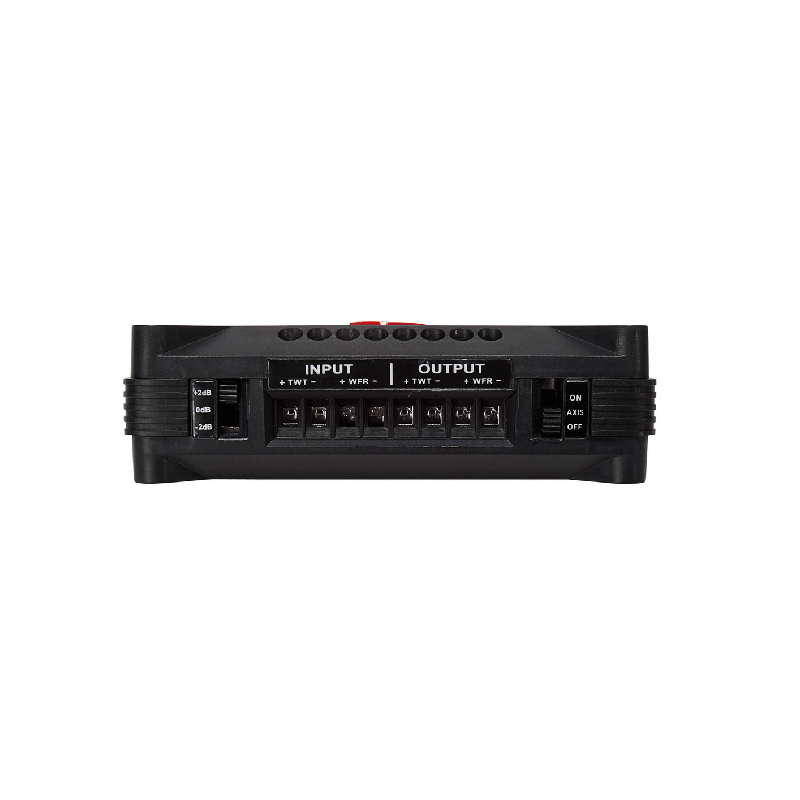

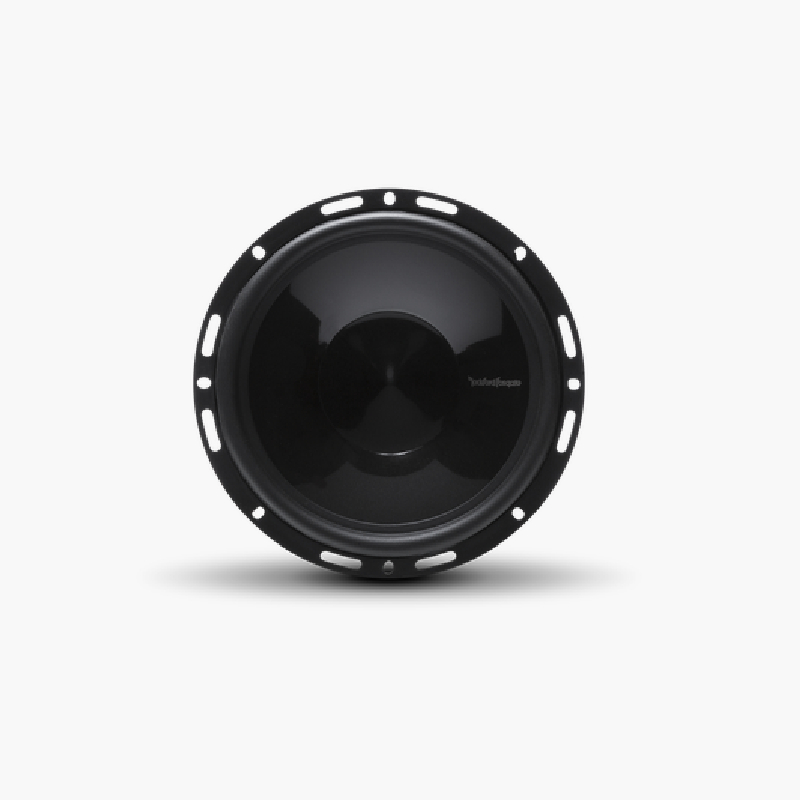

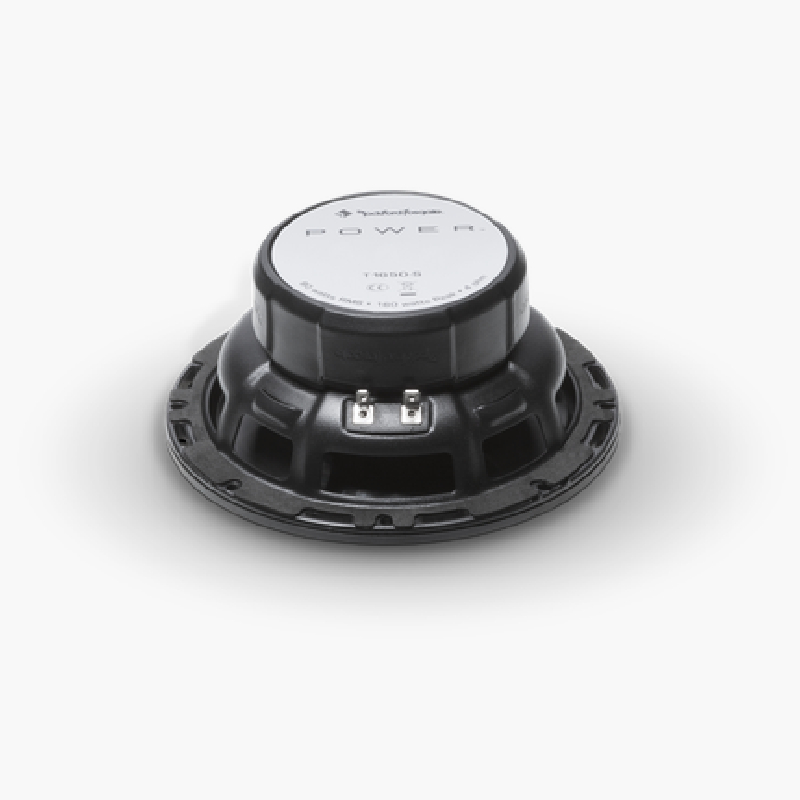

Rockford Fosgate designed the Power T1650-S component speaker system for people who won't put up with inferior sound in their cars. Each 6-1/2" woofer features a responsive carbon fiber/polypropylene cone and Santoprene rubber surround that'll stand up to hours of high-volume jams. The separate 1" dome tweeter provides clear, extended highs that can hold their own when the bass gets heavy. The included external crossover network sports selectable tweeter levels and on/off axis switching, allowing you to sculpt the high frequencies to your car's interior.
VAST™ technology

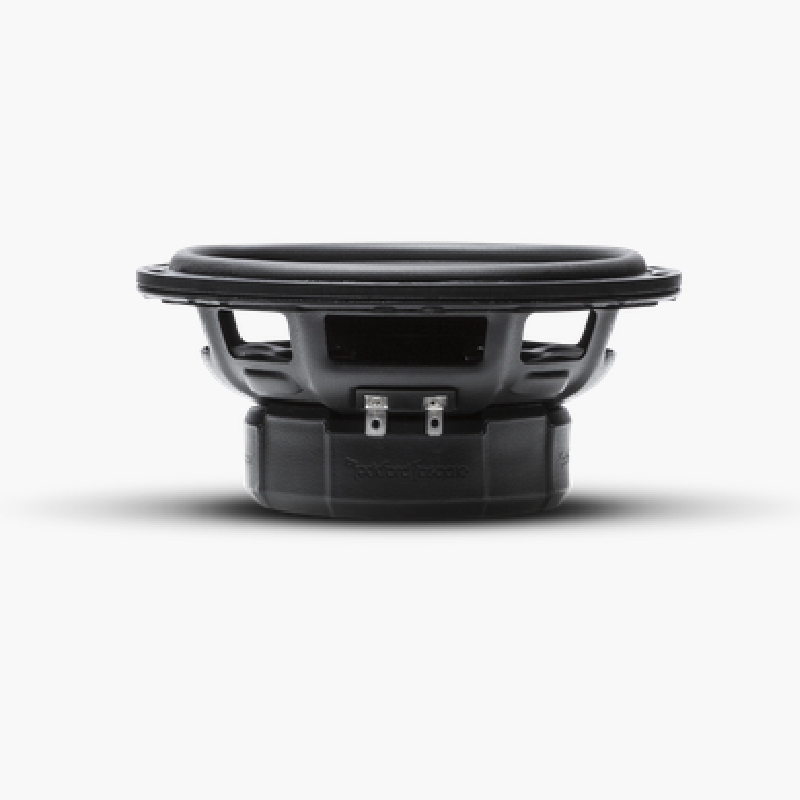

Proprietary VAST™ technology increases the woofer's cone area without increasing the size of the basket, giving you deeper lows and more power handling. And open slots on the heavy-duty aluminum frame make it easier to install these speakers if the factory holes are slightly off, especially in certain European imports.
Frequently Asked Questions (FAQ)
- • Why isn't the system producing enough midbass?
Check speaker polarity, mounting, door sealing, and wiring connections. Incorrect polarity or air leaks around the speakers can reduce midbass response and make the system sound thinner than expected.
- • Why do the tweeters sound too bright or harsh?
Excessive treble can come from equalizer settings, tweeter placement, or crossover configuration. Adjust the treble gradually and verify the tweeters and crossovers are wired correctly before changing other settings.
- • Why is one side louder than the other?
Check the head unit's balance and fade controls first, then inspect the speaker and crossover connections. Loose wiring, reversed polarity, or a faulty connection can cause uneven output between channels.
- • Can I run these speakers from a factory radio?
Yes, they can work with many factory head units. However, an aftermarket amplifier can provide cleaner power, improve dynamics, and allow the speakers to reach higher volume levels.
- • Why does the sound distort at higher volume?
Distortion may occur when the factory radio or amplifier clips. Lower the volume slightly, check gain settings, and make sure the speakers receive a clean signal within their recommended operating range.
- • Why isn't one of the tweeters producing sound?
Inspect the tweeter wiring and crossover connections for loose or damaged wires. Incorrect connections or a faulty crossover can prevent the tweeter from receiving the appropriate high-frequency signal.
- • Why do I hear rattling from the doors after installation?
Check the speaker mounting hardware, door panel, and surrounding trim. Loose components or insufficient mounting can vibrate with the speaker and create rattling during louder music.
- • Do I need an amplifier for better performance?
An amplifier is not always required, but clean additional power can improve volume and dynamics. Match the amplifier appropriately and set the gain correctly to avoid clipping or speaker damage.
- • Why does the upgrade sound weaker than my factory speakers?
Verify speaker polarity, crossover wiring, mounting, and door sealing. Incorrect phase or poor installation can reduce midbass response and make an aftermarket system sound unexpectedly weak.
- • Where should I mount the tweeters for the best sound?
Factory locations, upper door areas, or A-pillars can work well. Aim both tweeters toward the listening area and keep their positions reasonably symmetrical for better stereo imaging.
- Diameter : 6.5 Inch
- Sensitivity : 88 dB
- Frequency Response : 47-20000 Hz
- Peak Power Handling : 160 Watts
- Woofer Composition : Injection Molded Polypropylene
- RMS Power Handling : 80 Watts
Features:

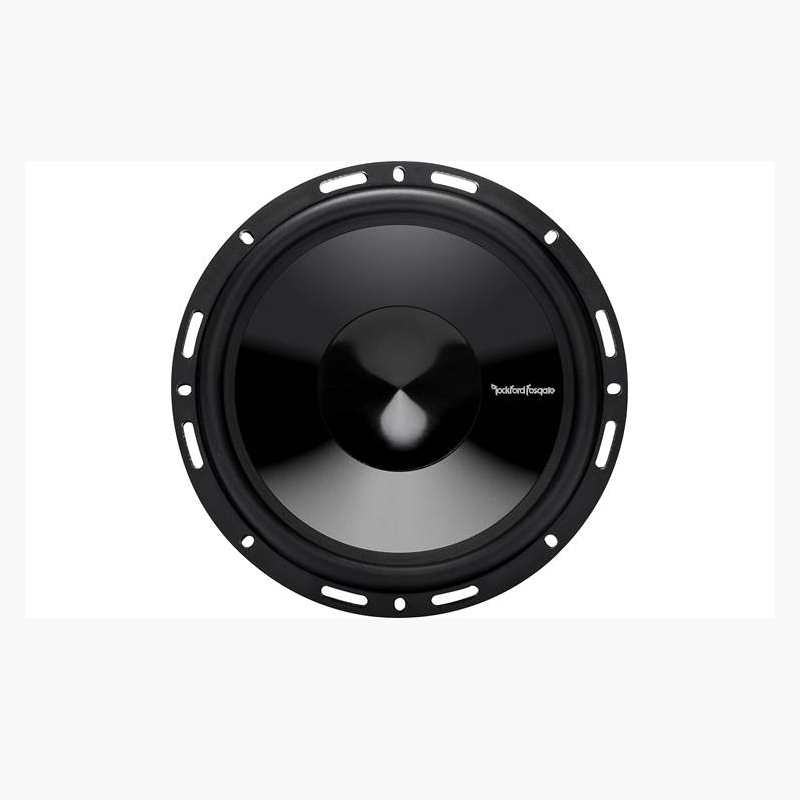

- Injection molded carbon fiber filled polypropylene cone
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Santoprene rubber surround
- Linear high excursion matched motor magnetics and suspension design
- 1" treated fabric dome tweeter
- High temp aluminum voice coil
- Fatigue and tear resistant poly cotton spider
- Stamp-cast aluminum frame
- FlexFit 2 mounting

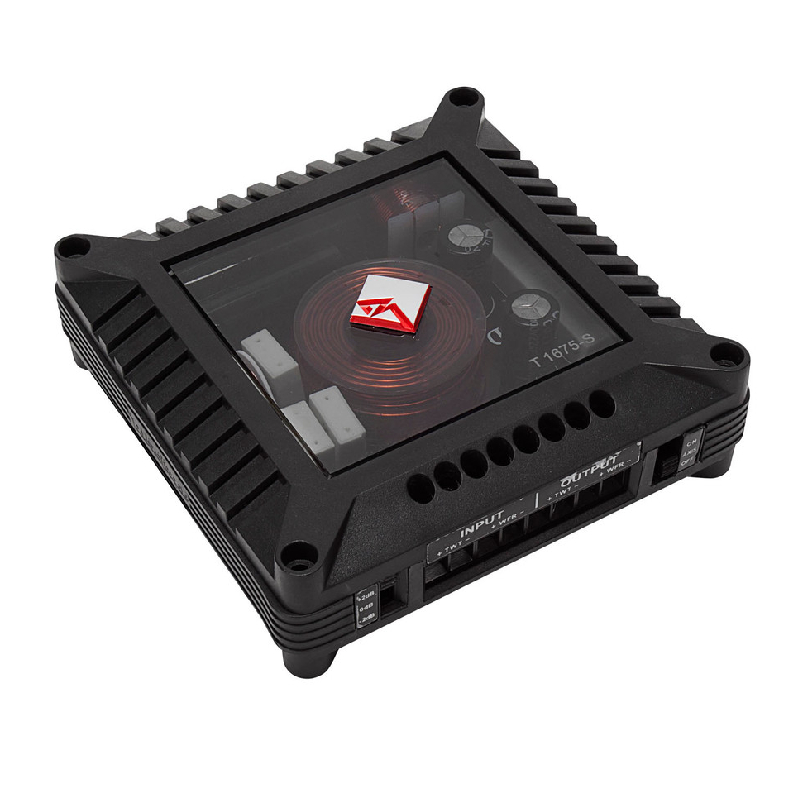

- Asymetrical 18dB HP and 12dB LP external crossover network
- User selectable tweeter level, bi-amp, and on/off axis switching
- Flush and surface (angled) tweeter mounting hardware included

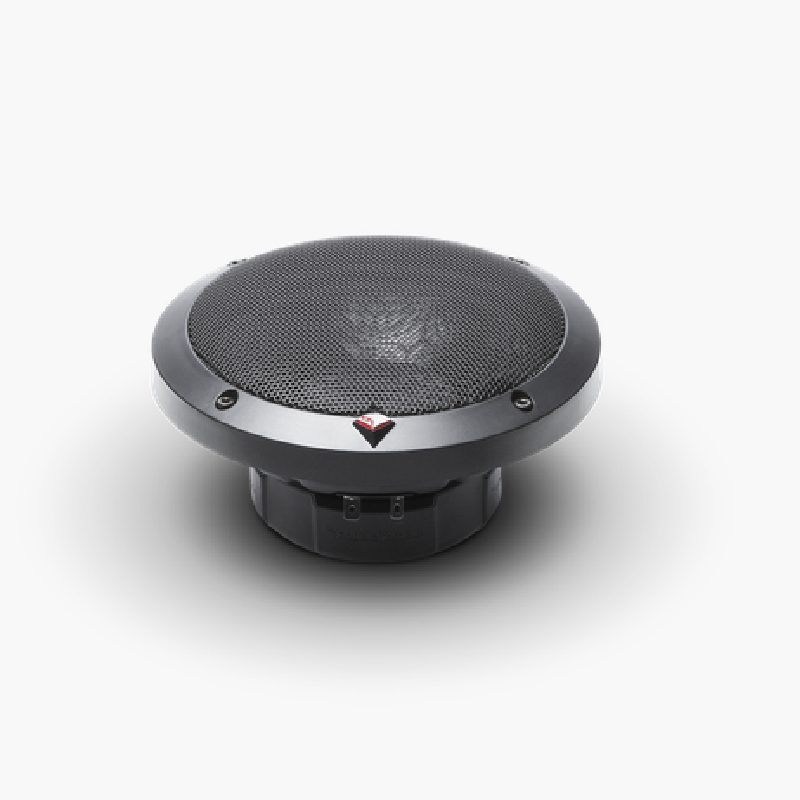

- Grilles and mounting hardware included
- 1 Year Warranty
Specifications:
- Midrange Mounting Depth: 2.52" (64 mm)
- Grille/Trim Ring Included: Yes
- Tweeter Mounting Depth: 0.50" (13 mm)
- Sensitivity (dB @ 1W/1M): 88
- Mounting Hardware: Yes
- Frequency Response (Hz): 47Hz - 20kHz
- Power Handling (RMS)

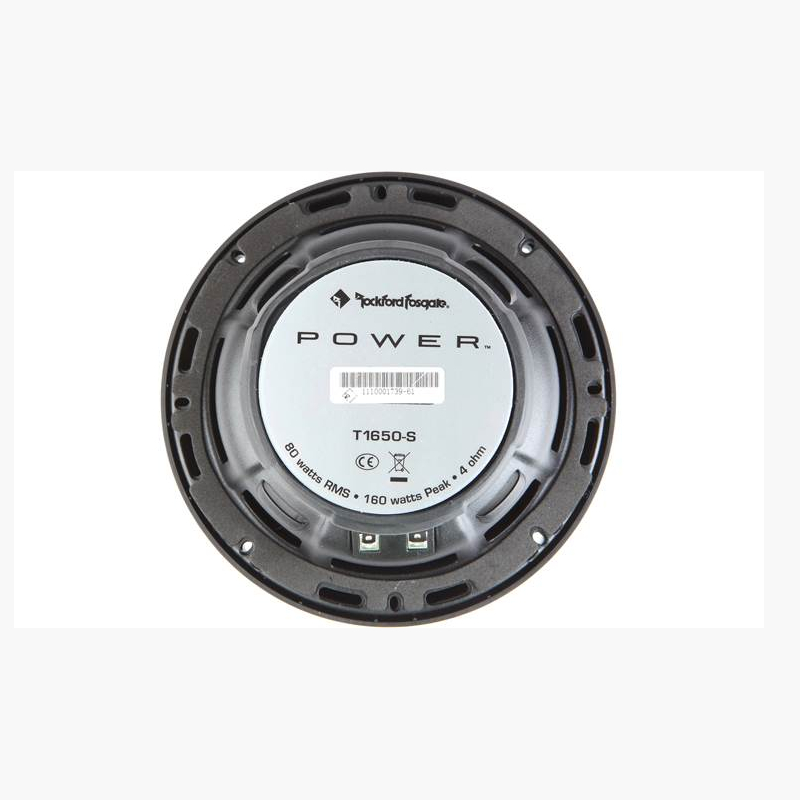

- 80 watts RMS
- 160 Watts MAX
- Crossover
- 18dB/Octave High Pass
- 12dB/Octave Low Pass
- Speaker Type: Component System
- Nominal Impedance (Ohms): 4-Ohms
- Midrange Size (Nominal Diameter): 6.5"
- Tweeter Size (Nominal Diameter): 1" (25.4 mm)
- CEA-2031 Compliant: CEA-2031 Guidelines
- UPC: 780687345327
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
