Alpine’s X-Series subwoofers are designed to deliver a loud output while still maintaining the details of your music, so you get the best of both worlds. The X-W12D4 can perform up to 900-watts for a powerful, loud performance. Built with a powerful motor comprised of a premium, elongated voice coil and triple stacked ferrite magnets, you’ll get the most air movement from your sub resulting in accurate sound reproduction for the bass you crave.
While some subwoofer systems focus on volume or clarity, the X-W12D4 gives you both power and accuracy for the clearest imaging in your music. In order to achieve this, Alpine created groundbreaking technology that controls the 48mm of total excursion and cone motion. Dual spiders in the cone ensure a rigid movement that keeps the cone under control. Alpine’s High Amplitude Multi-Roll (HAMR) surround technology is made of rubber to allow the cone to move air while staying cool. These technologies work together to eliminate unnecessary movement and noise that can lead to distortion for the most accurate sound.
The overbuilt motor and high-controlled suspension in the X-W12D4 allows a small box requirement that can be either sealed or ported based on the desired bass experience. The X-W12D4 has a twist-lock trim ring for easy attachment to the included metal mesh grill. The locking trim ring features an Alpine logo and conceals the mounting screws for a premium fit and finish to your subwoofer enclosure.
The X-W12D4 was built to handle the loudest music and roughest ride. The subwoofer has a cast aluminum frame and HAMR rubber surround that supports and protects the pulp-mica cone so the subwoofer can move a large quantity of air yet maintain its accuracy.
ALPINE: IMAGE DEFINED
Alpine took the guesswork out of complete sound system building with Alpine Image Defined (ID), an approach to creating sound system “families” that include matching core components that complement each other for the ultimate sound imaging.
TUNED FOR X-SERIES
The X-W12D4 can we wired in parallel for a 22 to get the most optimized performance from the X-A9OM Mono Power Density Amplifier for the best results in your sound system. With 900-watts RMS of power performance, the X-W12D4 benefits from the clean output and low distortion of the X-A90M for the most accurate sound imaging.
Learn how to wire subwoofers
Diameter : 12 Inch
Sensitivity : 84.3 dB
Impedance : 2 Ohm
Frequency Response : 23-200 Hz
Peak Power Handling : 2700 Watts
Top Mount Depth : 7-5/16 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.97 Cubic ft.
Suggested Ported Box Volume : 1.77 Cubic ft.
RMS Power Handling : 900 Watts
12" subwoofer with dual 4-ohm voice coils
large HAMR rubber surround
cast aluminum frame provides a rock-solid platform
handles up to 900 watts RMS (450 watts per coil)
peak power handling: 2700 watts
frequency response: 22-200 Hz
top-mount depth: 7-1/4"
Alpine ID Sound Quality
900W RMS, making it a perfect match for the X-Series X-A90M 900W mono amplifier
24mm linear Xmax (1 way), 48 mm peak to peak

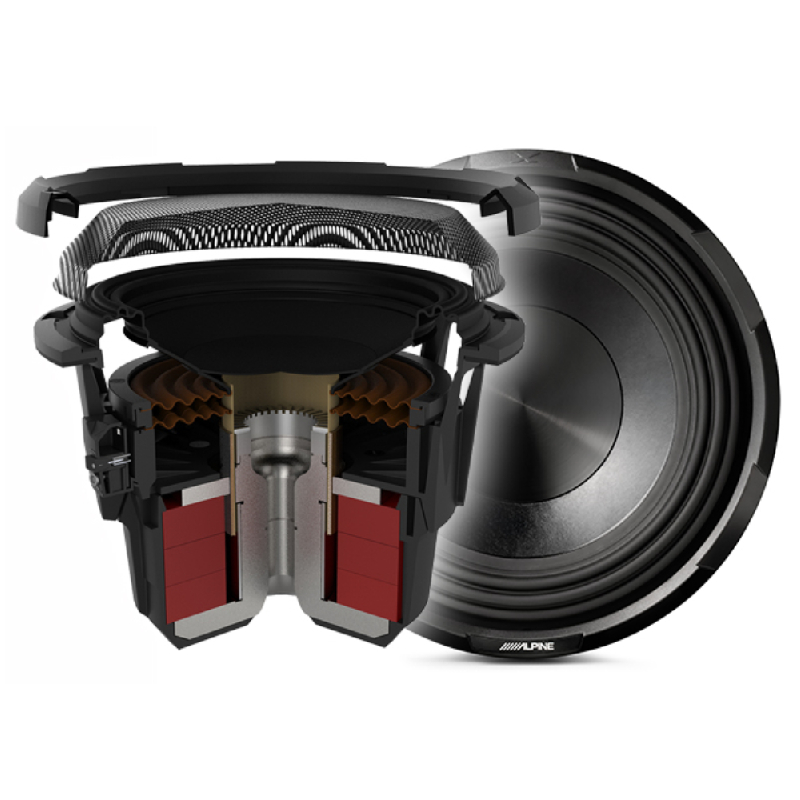

Dual spiders for precision control over the large dynamic range
Dual shorting rings for strong motor control ensuring low THD and tight bass
Center pole radial heat sink which wicks heat away from the voice coil and transfers it outside the motor, for long term high output
The biggest HAMR surround yet, for linear cone movement throughout its large range of excursion
Light but rigid pulp/mica cone which allows for highly accurate bass with great natural tone

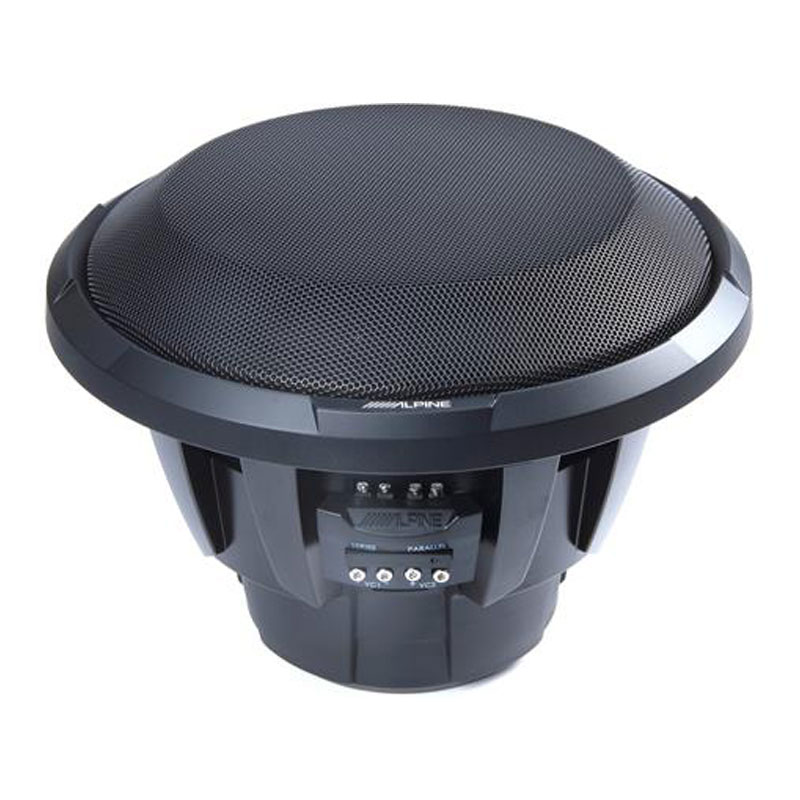

Twist-lock Trim ring with full mesh grill included
