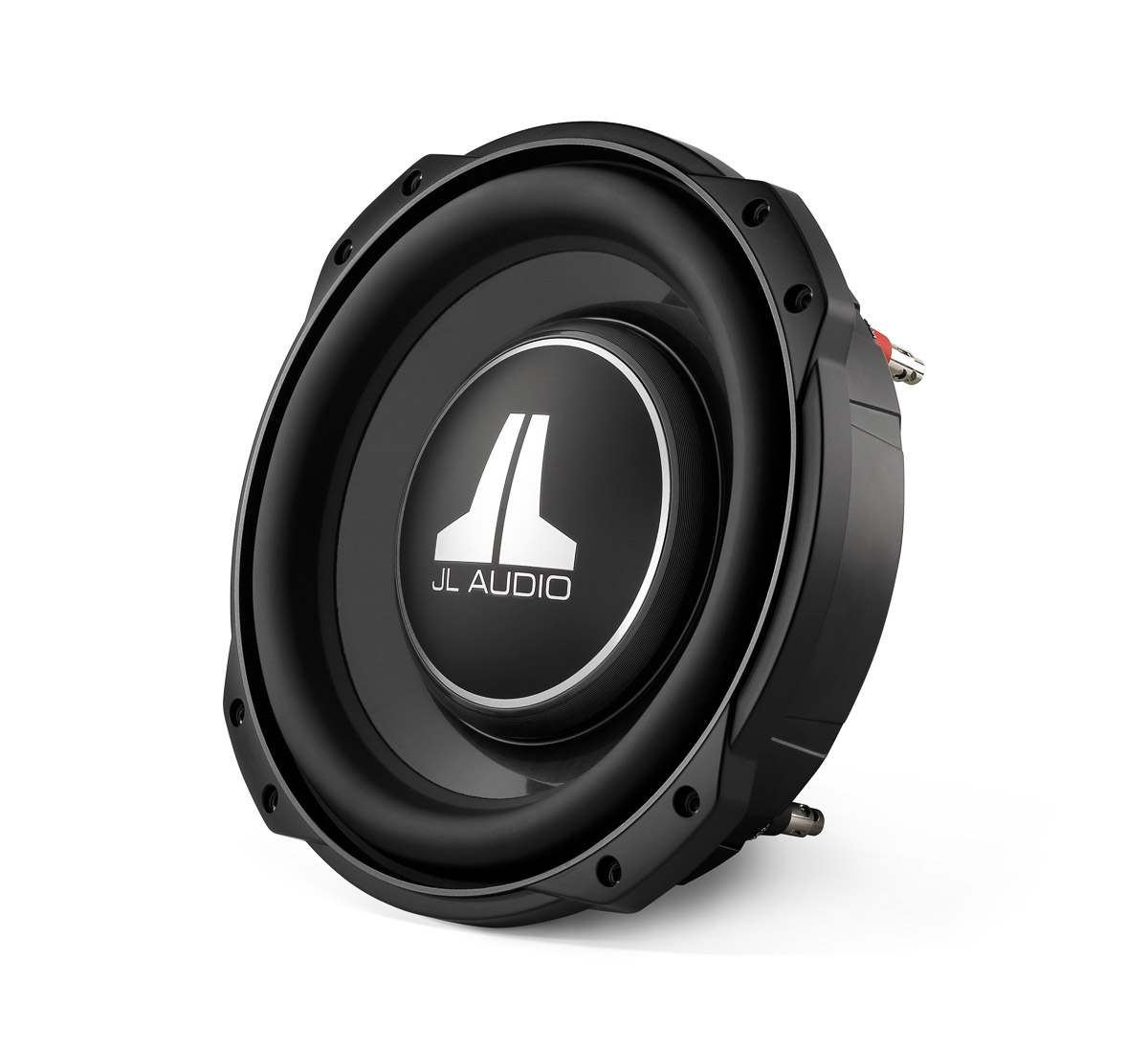

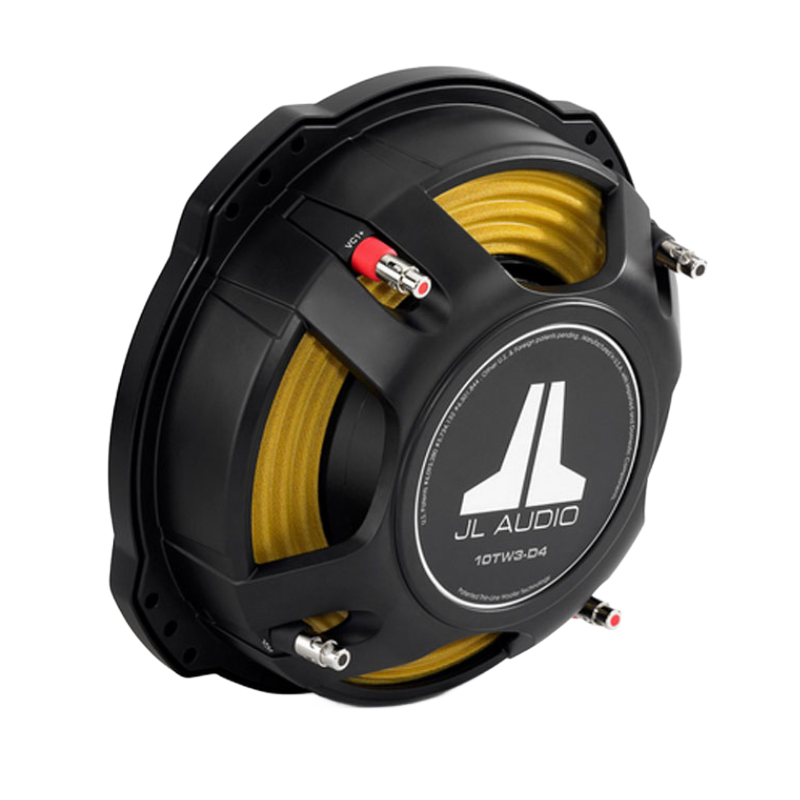

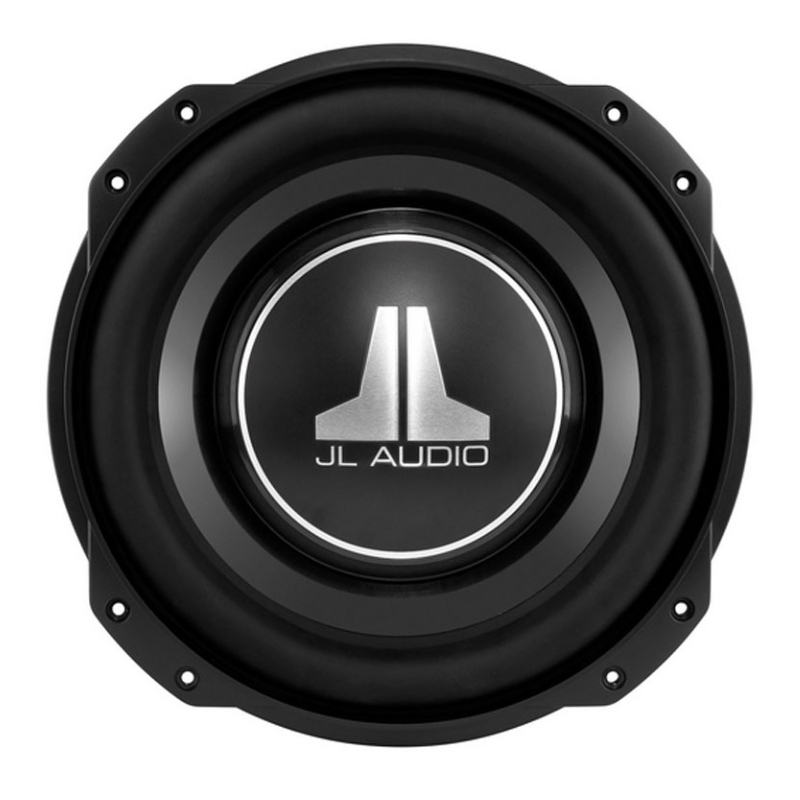

Building on the core technology of JL Audio's TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

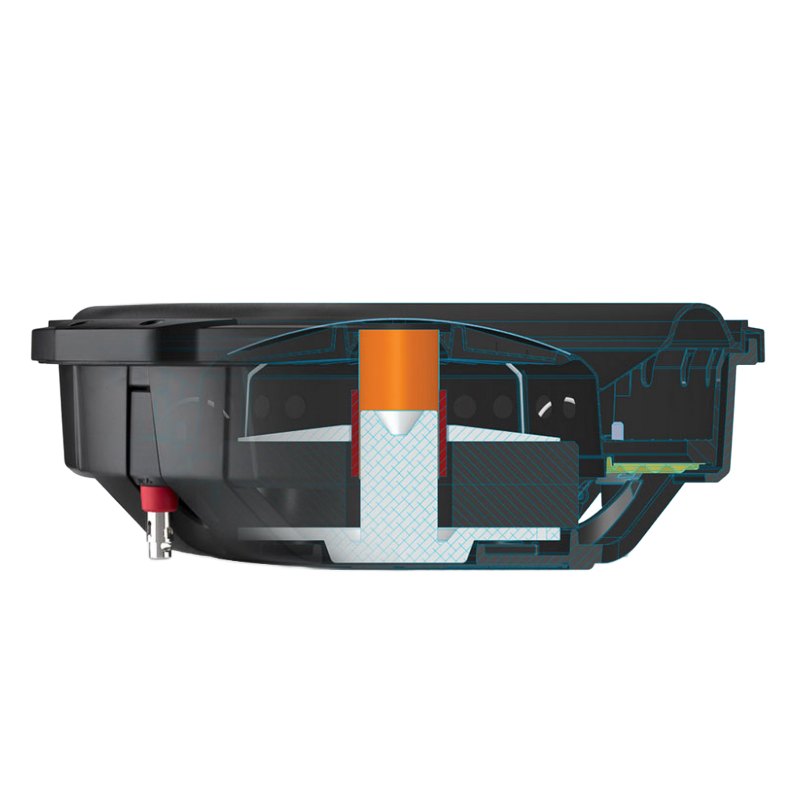

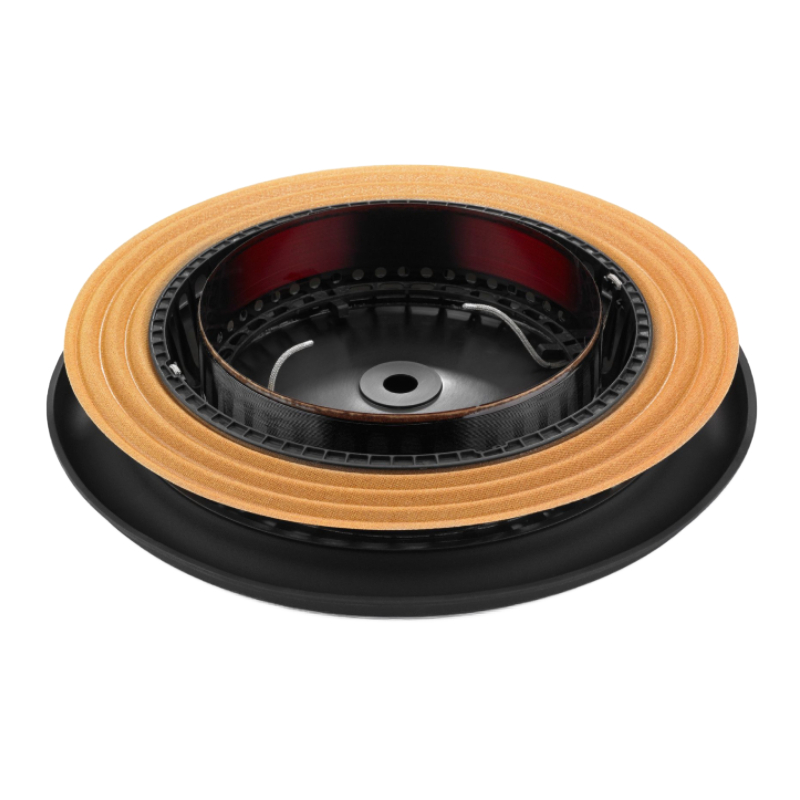

To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.
TW3’s are optimized for small enclosures and offer JL Audio's tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing subwoofer drivers.
Diameter : 10 Inch
Low Frequency response : 24 Hz
High Frequency Response : 200 Hz
Sensitivity : 82.10 dB
Impedance : 4 Ohm
Frequency Response : 24-200 Hz
RMS Power Range : 100-400 Watts
Peak Power Handling : 800 Watts
Shallow Mount : Yes
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.519 Cubic ft.
Mounting Depth : 3.25 Inches
10" subwoofer with dual 4-ohm voice coils
shallow-mount design with small airspace requirements
mica-filled polypropylene cone with rubber surround
cast alloy basket
top-mount depth: 3-1/4"
power range: 100-400 watts RMS
peak power handling: 800 watts
frequency response: 24-200 Hz
sensitivity: 82.1 dB
sealed box volume: 0.519 cubic feet
Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
JL Audio products are an investment but they’re so worth it, and more. If you are tight on space then this one is highly recommended. It produces a clean, tight bass and you would not expect it from such a small sub. Probably the best shallow mount sub with this quality.
