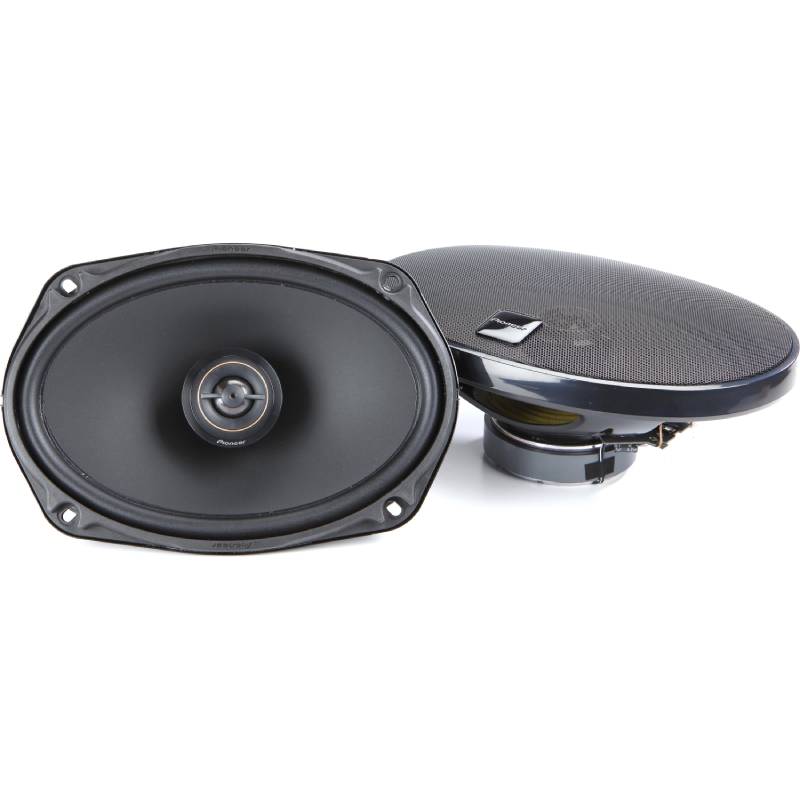

Pioneer TS-D69F D Series 6"x9" 330W Peak Power Handling at 4 Ohms, 2-Way Car Coaxial Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6"x9" D Series 2-Way Car Coaxial Speakers
- • (2) Grilles
- • (2) Grille frames
- • (2) Adhesive backed gaskets
- • (8) 1-1/8" Screws
- • Warranty information
- • Owner's Manual
Why Choose Pioneer TS-D69F Full Range Car Speakers?
Tight Bass and Clean Power You Can Hear Instantly
Featuring an aramid fiber-reinforced IMPP woofer, the Pioneer TS-D69F maintains a rigid cone structure for tight, controlled bass with minimal distortion at higher volumes. This added stability delivers clean, confident low-end performance across all music styles, making it a clear upgrade over factory speakers.
Flexible Sound Direction With Clearer Imaging
The pivoting tweeter allows you to angle high frequencies toward your ears for precise imaging and a centered soundstage. Paired with a 2-way coaxial layout and a lightweight, rigid cone, it delivers smooth, responsive audio with balanced frequencies and sharp detail without harshness.
Frequently Asked Questions (FAQ)
- • Why do the speakers sound flat even after upgrading from the factory ones?
Factory radios often don't provide enough clean power to fully drive aftermarket speakers. Pairing them with a compatible amplifier and adjusting the EQ can greatly improve performance.
- • Will these fit in my vehicle's factory 6"x9" speaker locations?
Many vehicles support direct installation, but mounting depth and screw patterns can vary. Check your vehicle's specifications before purchasing to ensure proper fitment.
- • Why do the speakers distort when I turn the bass up?
Excessive bass boost or amplifier clipping can cause distortion at higher volumes. Reducing the bass setting or adding a dedicated subwoofer can produce cleaner sound.
- • Can I install these without changing my factory wiring?
Yes. In most vehicles, the factory wiring can be reused, although a wiring adapter may be needed for a secure connection.
- • Why is there very little midrange after installing the speakers?
Incorrect equalizer settings or out-of-phase wiring can reduce vocal and instrument clarity. Verify the speaker polarity and reset the EQ to a flat setting before making adjustments.
- • Why do I hear rattling from the rear deck when music is playing?
Higher-output speakers can cause loose trim panels, brake lights, or rear deck components to vibrate. Tightening loose parts and adding sound-deadening material can help eliminate the noise.
- • Can these handle high-powered aftermarket amplifiers?
Yes, as long as the amplifier's RMS output is properly matched to the speakers' power handling. Proper gain adjustment is essential to prevent distortion and damage.
- • Why do the speakers cut out after playing for a while?
This may be caused by a loose connection, amplifier overheating, or a protection circuit activating. Check the wiring, amplifier ventilation, and system settings to identify the source.
- • Why is there a whining noise that changes with engine speed?
This is usually caused by a grounding issue or electrical interference in the audio system. Inspect all grounds and separate signal cables from power cables whenever possible.
- • Should I replace both rear speakers even if only one has failed?
Yes. Replacing both speakers helps maintain balanced sound quality and consistent performance between the left and right channels.
- Diameter : 6x9 Inch
- Sensitivity : 87 dB
- Impedance : 4 Ohm
- Frequency Response : 33-42000 Hz
- Peak Power Handling : 330 Watts
- Design : 2 Way
- Woofer Composition : Injection Molded Polypropylene
- RMS Power Handling : 110 Watts
Features:
- Aramid Fiber Reinforced IMPP Woofer Engineering: Utilizes injection-molded polypropylene cones reinforced with aramid fibers to ensure consistent cone thickness, enhanced structural rigidity, and improved distortion control for precise and stable low-frequency reproduction.

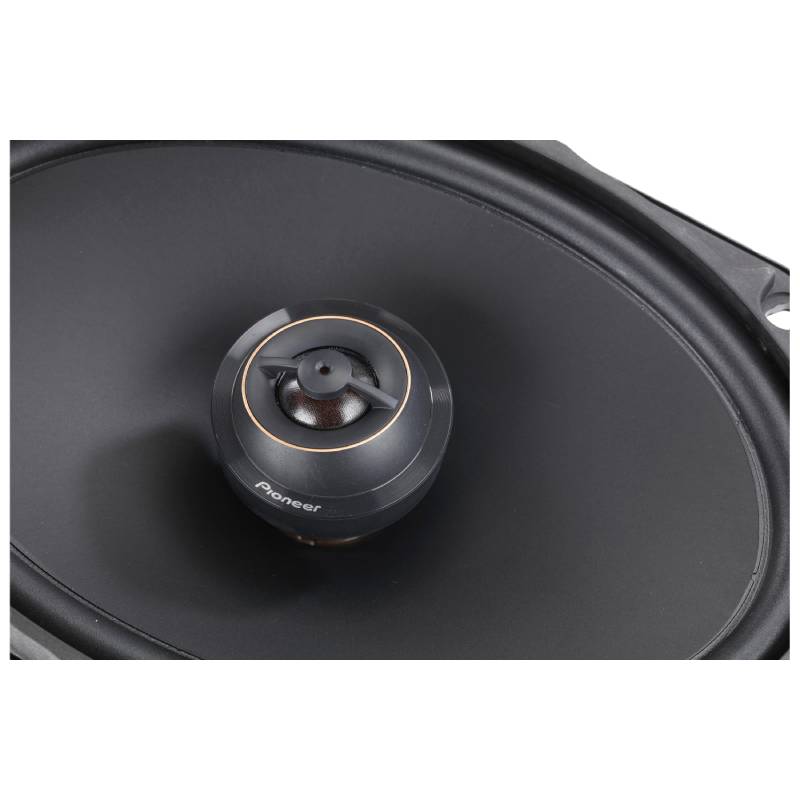

- Adjustable Pivoting Tweeter Imaging System: Features rotatable tweeters designed to pivot within their housings, allowing directional tuning of high-frequency output to optimize sound staging and improve in-cabin imaging accuracy.
- Balanced 2-Way Coaxial Sound Integration: Combines woofer and tweeter elements into a unified system to deliver cohesive full-range audio performance with improved tonal balance and clarity across frequencies.
- High-Rigidity Lightweight Cone Design: Engineered for optimal stiffness-to-weight ratio, enabling faster cone response, improved efficiency, and reduced audio distortion at higher output levels.
- Precision Sound Direction Control Capability: Allows fine adjustment of tweeter orientation to better align sound delivery with listener position, enhancing spatial detail and overall listening immersion.
Specifications:
- System Type: 2-way Coaxial
- Sound Pressure Level (Sensitivity):87dB (+- 1.5dB)
- Frequency Range: 33 Hz to 42 kHz
- Continuous Power Handling (RMS): 110 Watts
- Maximum Peak Power Handling: 330 Watts
- Nominal Impedance: 4 ohms
- Diameter: 6” x 9”
- Cone Material:Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
- Surround Material: Butyl Rubber
- Magnet Material: Ferrite
- Magnet Weight: 15.2 oz
- Type: Soft Dome
- Diameter: 26mm
- Diaphragm Material: Polyester
- Magnet Material: Neodymium
- Magnet Weight: 6.4 g
- Swivel Type: Yes
- Crossover Frequency: 3500 Hz
- UPC: 884938374484
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
