We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Exclusive Cone Technology
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.
More Rigid Dust Cap
Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, Alpine were able to increase vibration absorption of the cap while lowering the density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.
Diameter : 12 Inch
Sensitivity : 84.3 dB
Impedance : 2 Ohm
Frequency Response : 24-200 Hz
Peak Power Handling : 2250 Watts
Top Mount Depth : 6-3/8 Inches
Bottom Mount Depth : 7-1/4 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.85 Cubic ft.
Suggested Ported Box Volume : 1.71 Cubic ft.
RMS Power Handling : 750 Watts
RMS: 750 watts
Recommended power range: 300 - 750W RMS
CTA-2031 compliant power ratings
Parabolic pulp/kevlar cone
Polypropylene, mica and talc dust cap
Reinforced cone neck and spider joint

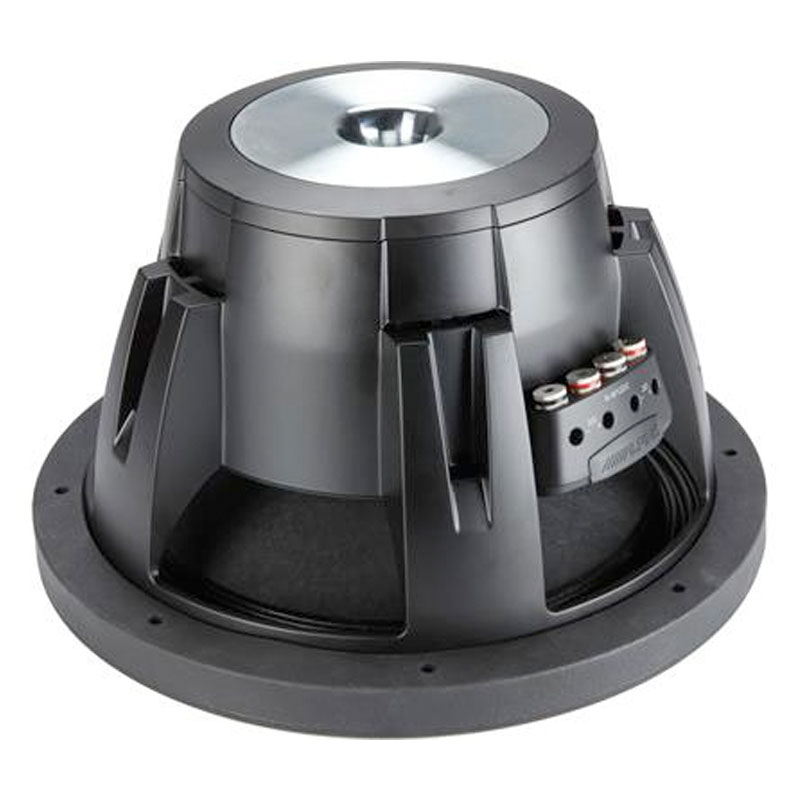

Cast aluminum frame with integral shorting sleeve
8AWG push terminals with VC configuration jumpers
2.6" High excursion overhung voice coil
127 oz. Strontium ferrite segmented magnet
Top-mount depth: 6-3/8"
Cutout diameter: 10-7/8"
Frequency Response: 24 - 200Hz
Resonance Frequency (Fs): 27Hz
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Estimated Shipping Time for Special Order items is 7-10 days.
You may call our Customer Service Department at 310-526-8635 for a more accurate shipping estimate.
Special Order Product
Reserve Now. Risk Free!
This product is temporarily out of stock and estimated date of arrival is unknown but you may order this item today to reserve it.
Order for this item is processed on a first come first served basis
You can cancel the order anytime, risk free
Or, call us for alternatives at 310-526-8635
Low Price Guarantee
Seen a better price? Drop us a line and we will do our best to match prices of our online competitors.
Call us : 1-310-526-8635
Guidelines and Limitations:
1. Competitor must have the exact same item in stock and the time of Price Match.
2. Price of the actual product price must be verifiable and valid at the time of Price Match.
3. Price matching is only applicable in new orders.
4. Limit one price match per identical item per customer.
Free Lifetime Tech Support
All your purchase from our store comes with Free Lifetime Technical Support. Please call our certified technicians at 310-874-3313 for any questions about your product.
