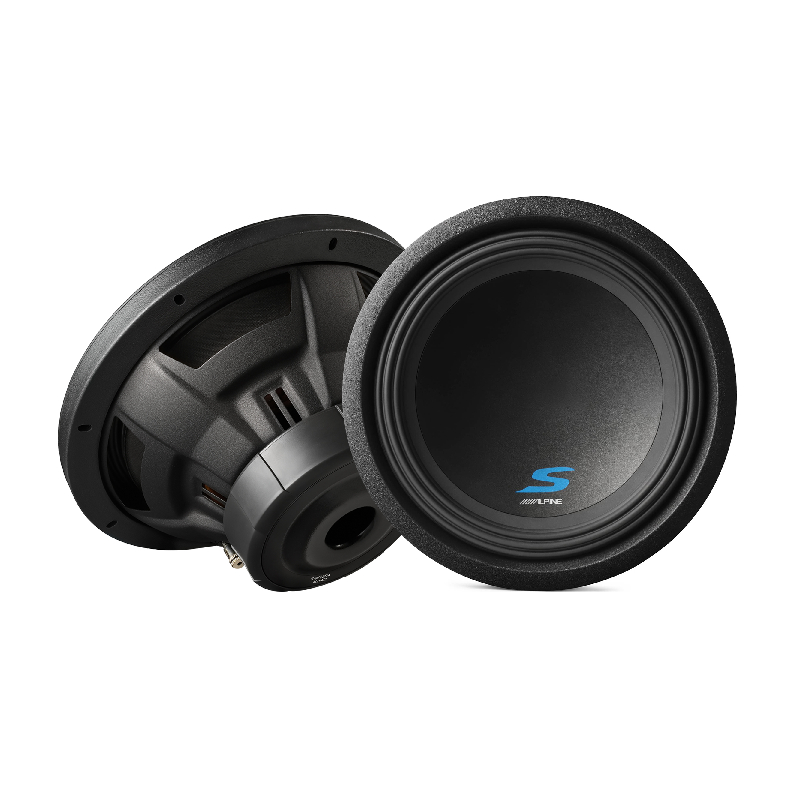

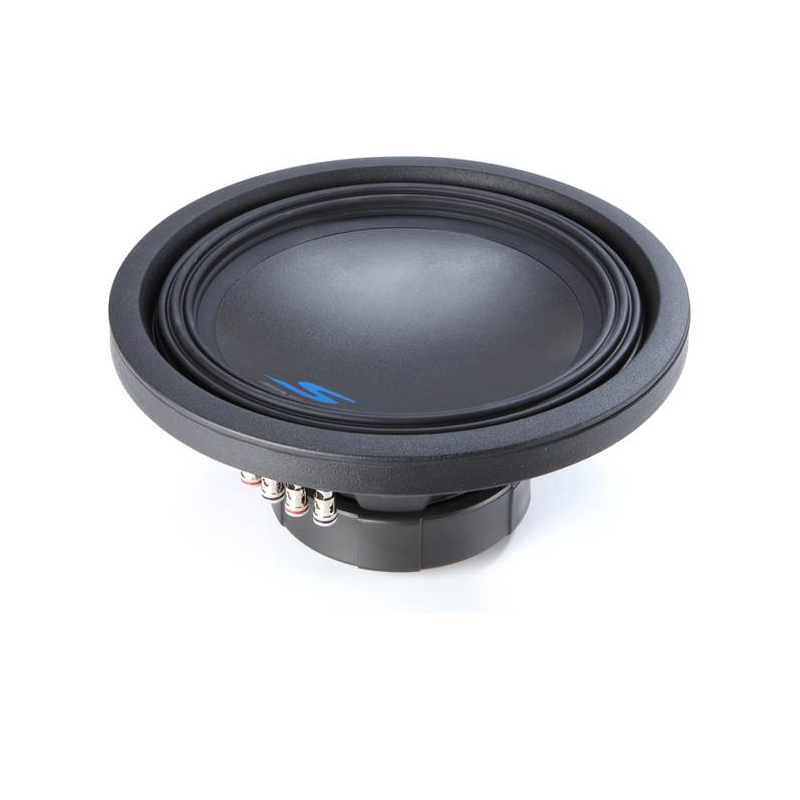

Alpine S-Series 12" Dual 2 Ohm Voice Coil Car Subwoofer
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 12" Dual 2-ohm voice coil subwoofer
• Rubber concealing ring (installed)
• (2) 3" jumper cables (each has a single banana connector on each end)
• Subwoofer Application Guide (English/ French)
• On-line product registration information (English/ French/ Spanish)
• Warranty information (English/ French)
• Important Notice! (English/ French)

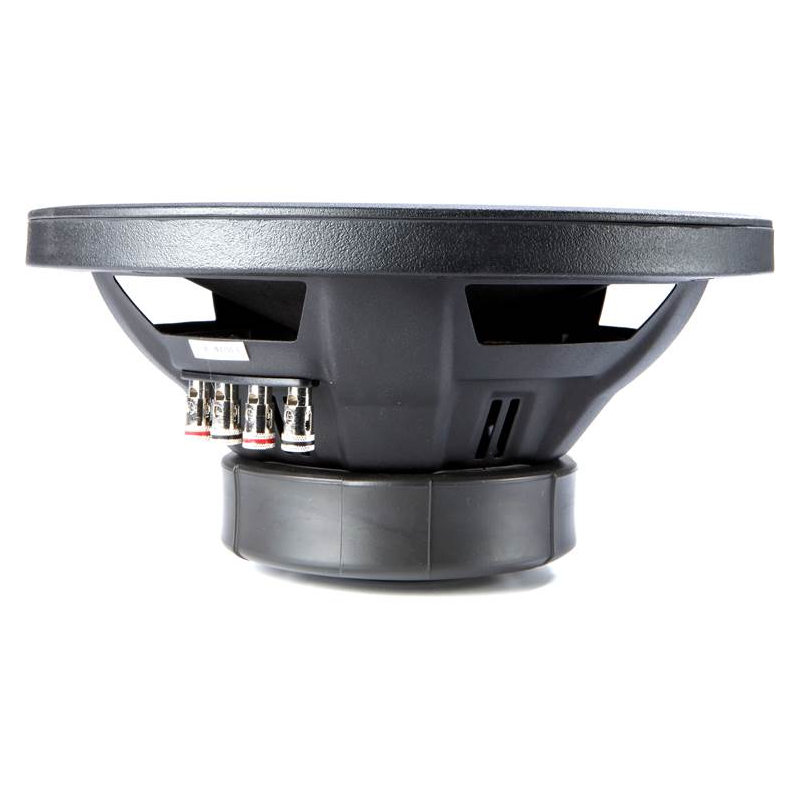

Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications.
600W POWER HANDLING
The 10” and 12” S-Series subwoofers are engineered with an improved voice coil allowing the woofer to benefit from an increased power rating of 600 watts. Match them with the powerful VPower MRV-M500 mono amplifier for a great subwoofer system.
CUSTOM-STAMPED STEEL FRAME
Each S-Series subwoofer uses a custom-stamped steel frame. These highstrength frames were designed to withstand the rigors of the improved SSeries motor. They have frame leg vents as well as a vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces.

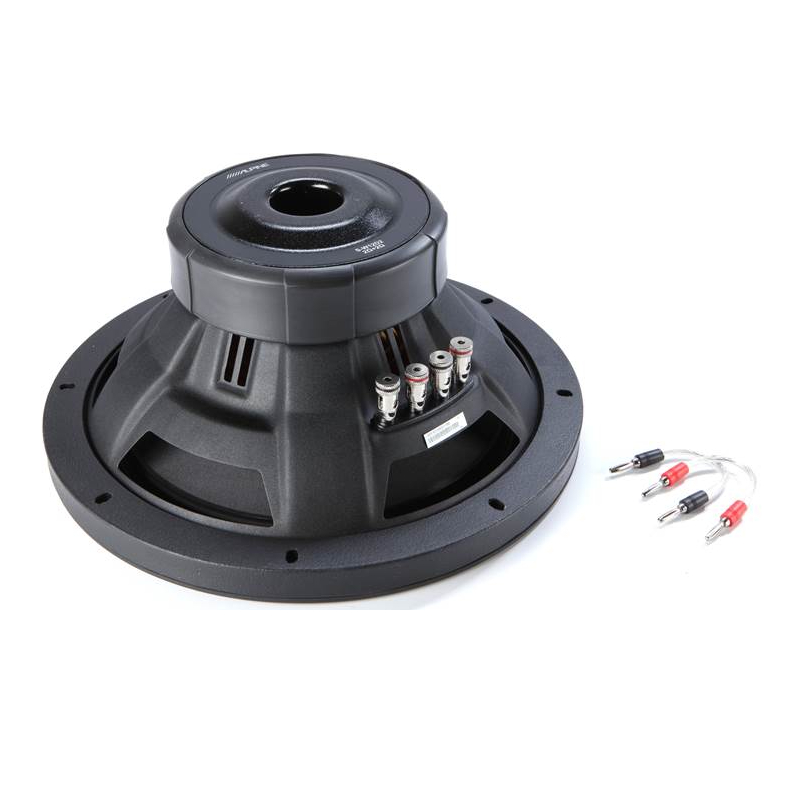

PUSH-TYPE INSERT TERMINALS WITH DUAL VOICE COIL JUMPER SYSTEM
The push-type insert terminals help reduce the installation time of the S-Series subwoofers. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal.
STRONTIUM FERRITE DOUBLESTACKED MAGNETS
The S-Series subwoofers use two strontium ferrite magnets stacked together, for increased motor strength and excursion which ultimately leads to more bass output.
CLEAN, CONCEALED MOUNT GASKET SYSTEM
The S-Series subwoofers have concealed mount gaskets, creating a clean, finished appearance for any vehicle.
Learn how to wire subwoofers
Diameter : 12 Inch
Sensitivity : 86.2 dB
Impedance : 2 Ohm
Frequency Response : 26-200 Hz
Peak Power Handling : 1800 Watts
Top Mount Depth : 5-1/8 Inches
Bottom Mount Depth : 5-7/8 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.85 Cubic ft.
Suggested Ported Box Volume : 1.51 Cubic ft.
RMS Power Handling : 600 Watts
Custom-Stamped Steel Frame
Push-Type Insert Terminals with Dual Voice Coil Jumper System
