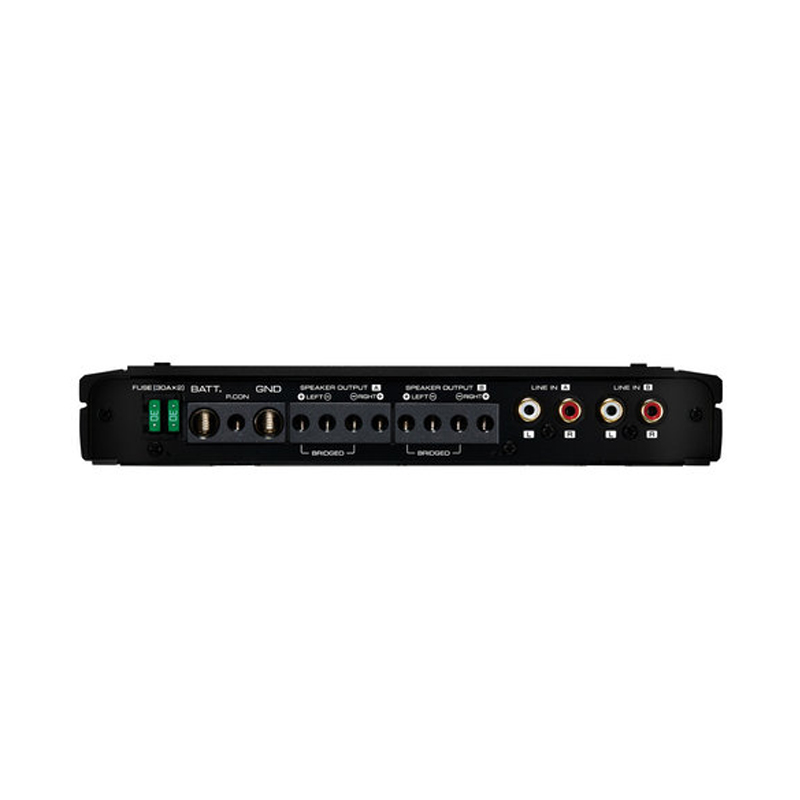

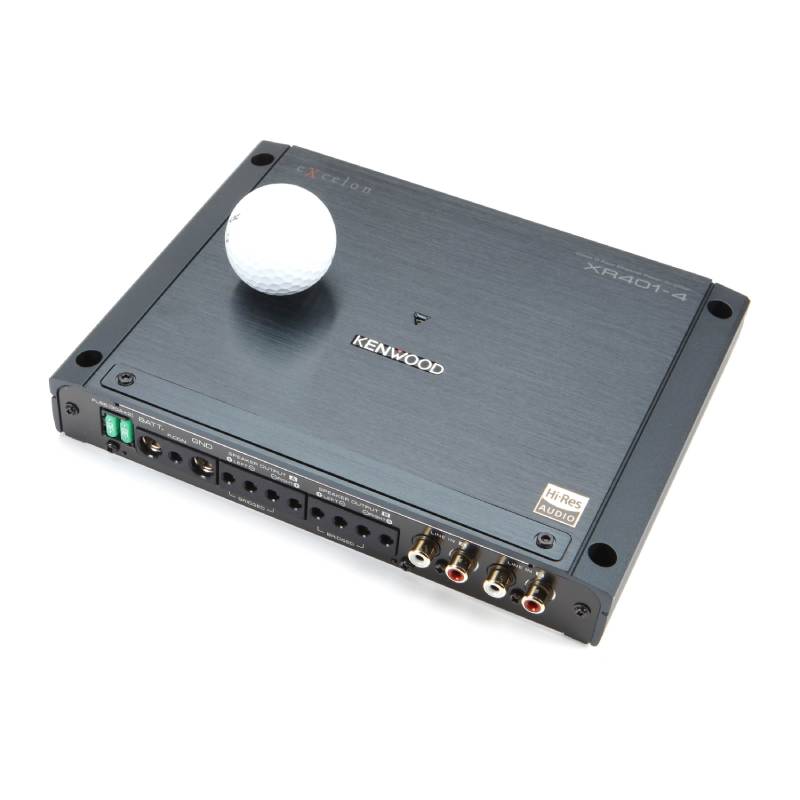

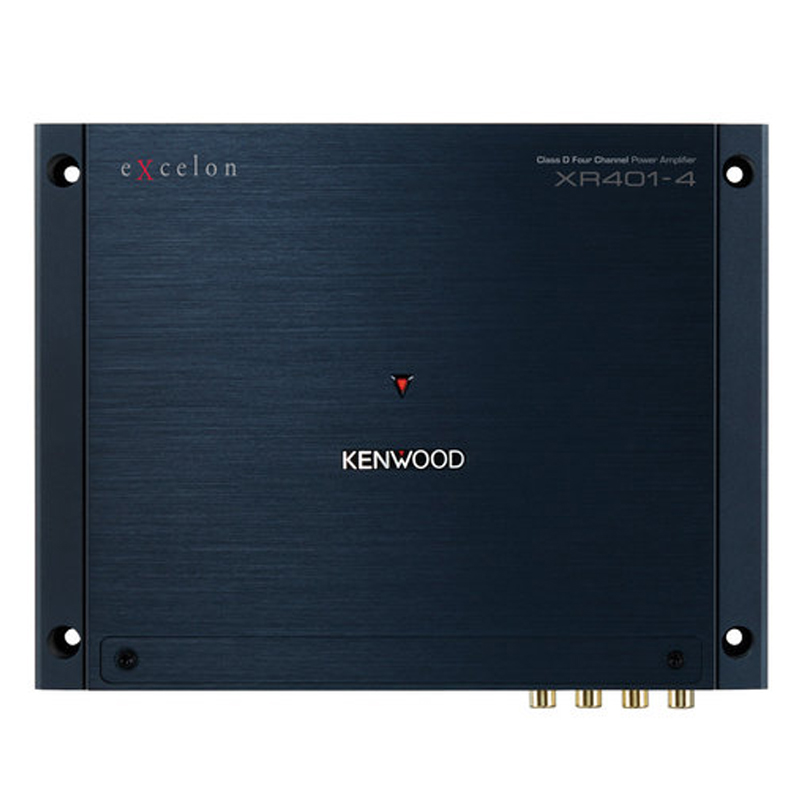

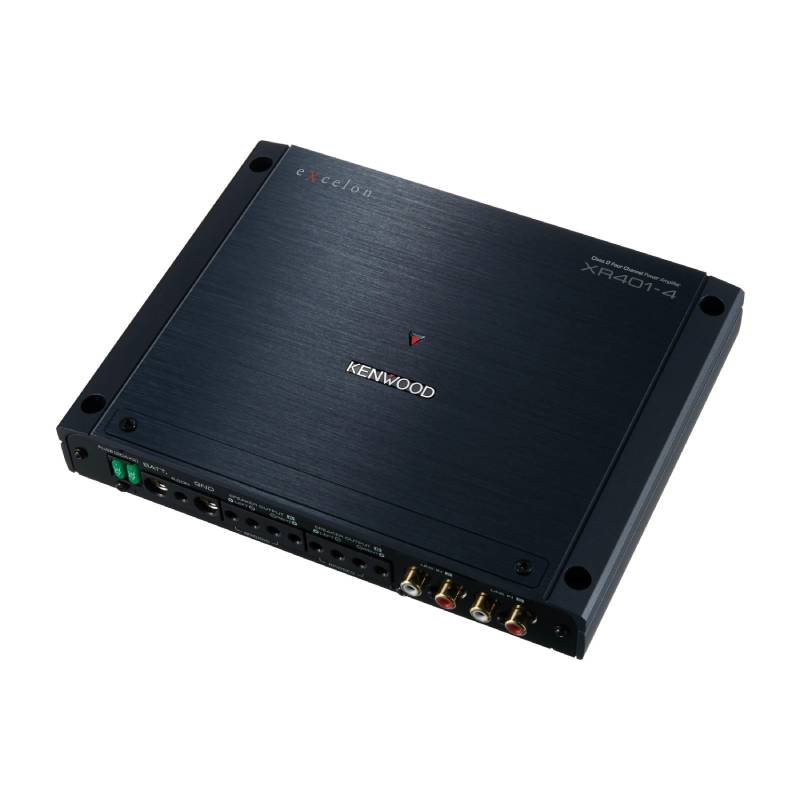

Kenwood Excelon XR401-4 Reference Series Class D 4-Channel Car Amplifier
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

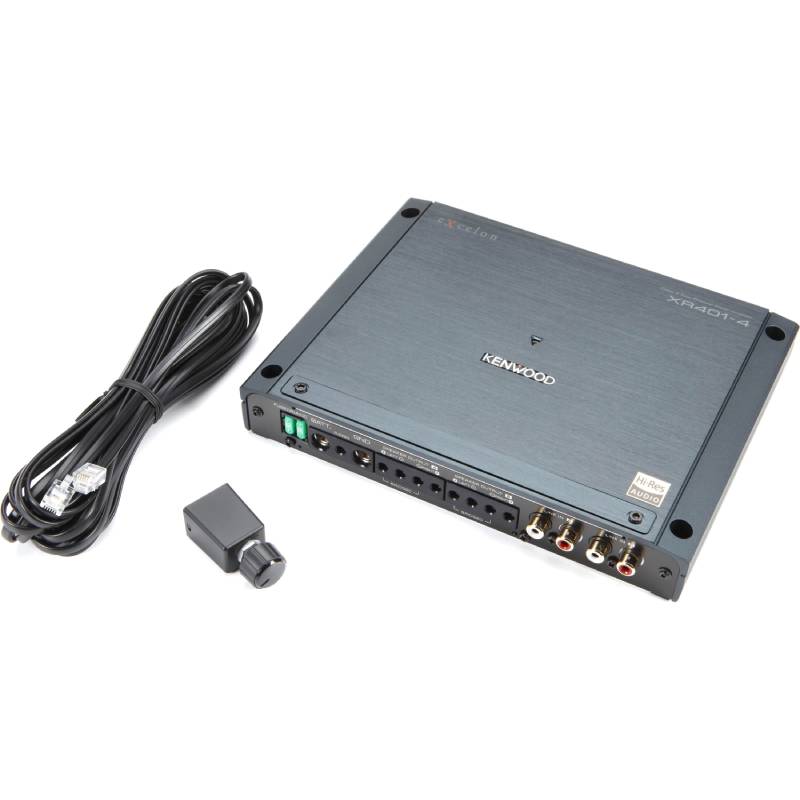

What's Inside?
- •4-Channel amplifier
- •Two 30-amp ATM mini blade fuses (installed)
- •Wired Remote Commander
- •Wired Remote Commander
- •Flat washer
- •Hex nut
- •20' Remote cable (RJ-14 modular plugs on each end)
- •4mm Allen wrench
- •Four 5/8" Self-tapping screws
- •Warranty card
- •Owner's Manual
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
High Performance Parts
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
Deep Bass Sound
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
Enhanced Signal to Noise Ratio
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

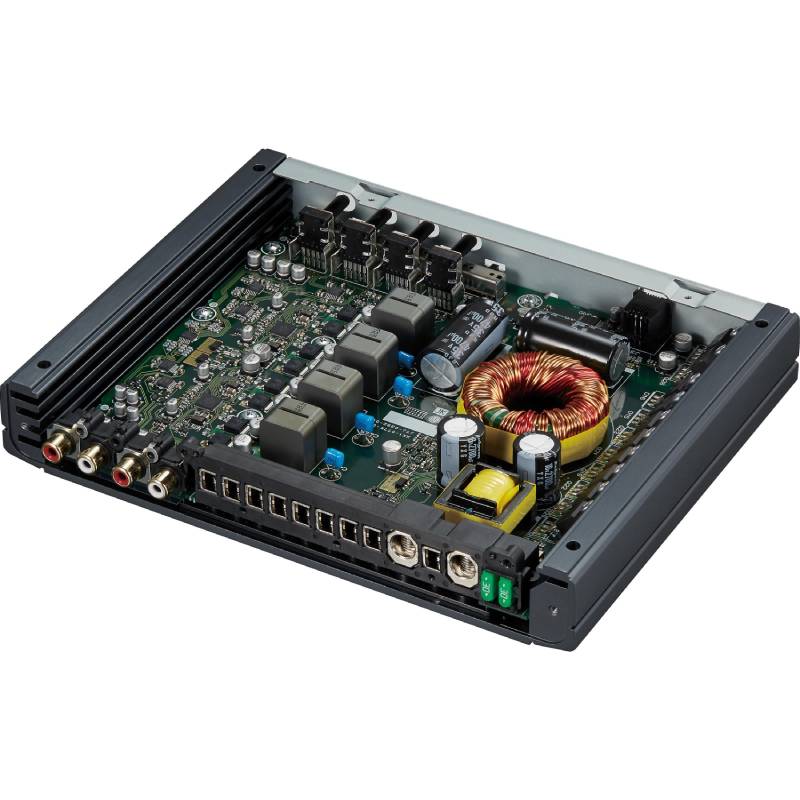

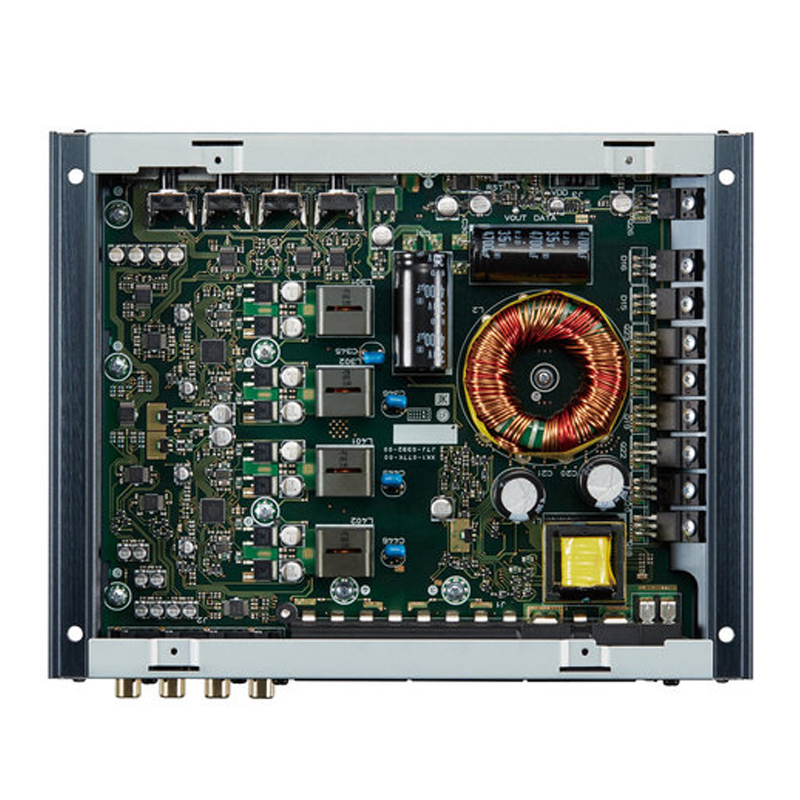

Specialized Circuit Design
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
- Maximum Power : 800 Watts
- Low Frequency Response : 50-200 Hz
- High Frequency Response : 2500-10000 Hz
- Number of Channels : 4
- Frequency Response : 20-40000 Hz
- RMS Power Output : 75x4 Watts
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 60 A
- XP750-SE OFFER : Yes
Features:
- 4-channel amplifier
- 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
- 200 watts RMS x 2 bridged output at 4 ohms (4-ohm stable in bridged mode)
- CTA-2006 compliant
- Class-D amp design — frequency response: 20-40,000 Hz
- variable low- and high-pass filters (50-200 Hz or 2.5k-10k Hz, 12 dB/octave)
- preamp and speaker-level (up to 5V/6W) inputs
- fuse rating: 30A x 2
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- 8-11/16"W x 1-7/16"H x 7"D
Specification:
- RMS 75W x4 (4Ω)
- RMS 100W x4 (2Ω)
- Variable Low-pass Filter
- Variable High-pass Filter
- Speaker Level Input
- Signal Sensing Turn-on
- Wired Remote Level Control Included
- Dimension: (W)8-11/16” x (H)1-3/8” x (D)6-5/8”
- UPC: 019048223296
- Weight: 7
