L7T Subwoofers
Legendary KICKER Solo-Baric square subs – in the slimmest space ever!
The Shallow Sub
The square cousin to the CompRT subwoofer, the L7T fits under your seat or in a corner of your trunk with ease.
To Be Square
It’s simple – more cone area means more air moves – for more bass! KICKER’s L7T Square Sub technology gives you up to 20% more cone area than a conventional round sub.
Towering Tech
Innovation is the secret sauce! KICKER acoustic engineers worked feverishly, determined to put the largest voice coil and magnet Kicker have ever integrated into a thin sub. A next-level top-plate design, unique heat management system and Kicker's signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!
DVC = OMG!

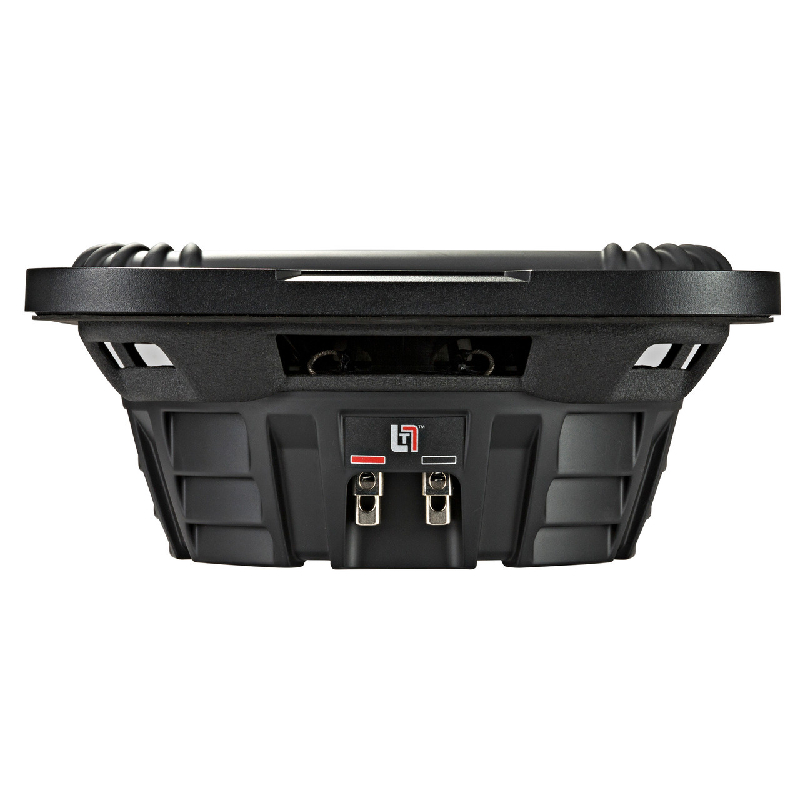

Loaded with nickel-plated terminals, the L7T features standard dual-voice-coil design, so you always get the most out of your amp.
- Diameter : 10 Inch
- Maximum Power : 1000 Watts
- Low Frequency response : 25 Hz
- High Frequency Response : 100 Hz
- Sensitivity : 85.98 dB
- Impedance : 2 Ohm
- Frequency Response : 25-100 Hz
- RMS Power Range : 500 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- Mounting Depth : 3-3/4 Inches

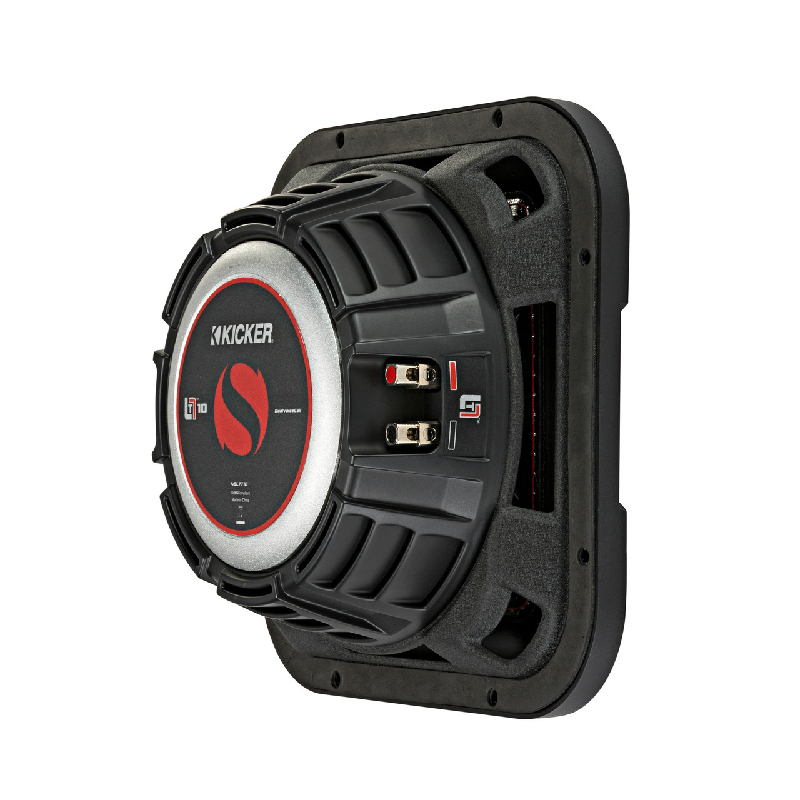

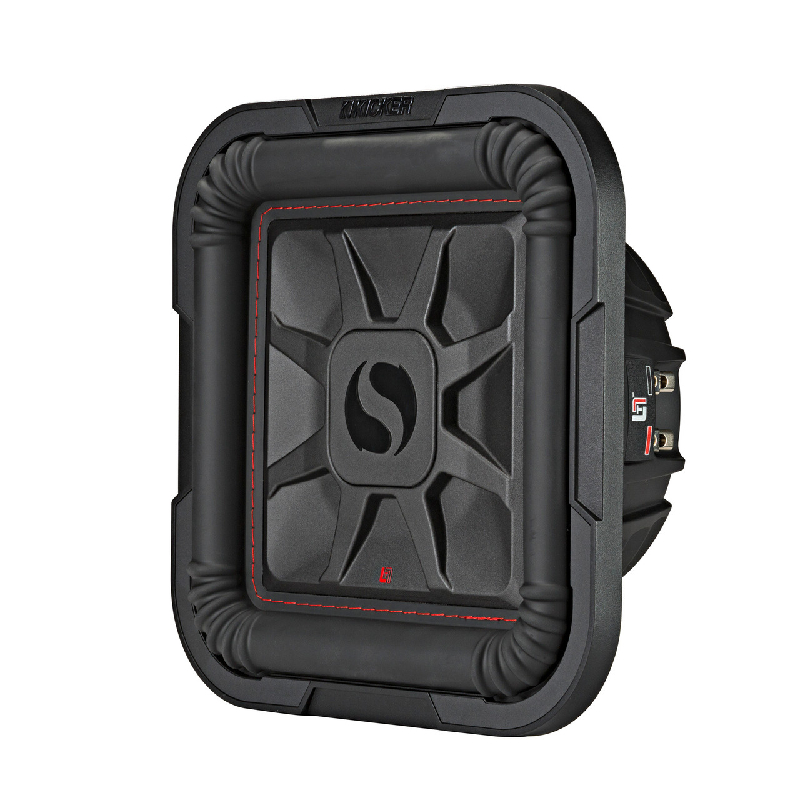

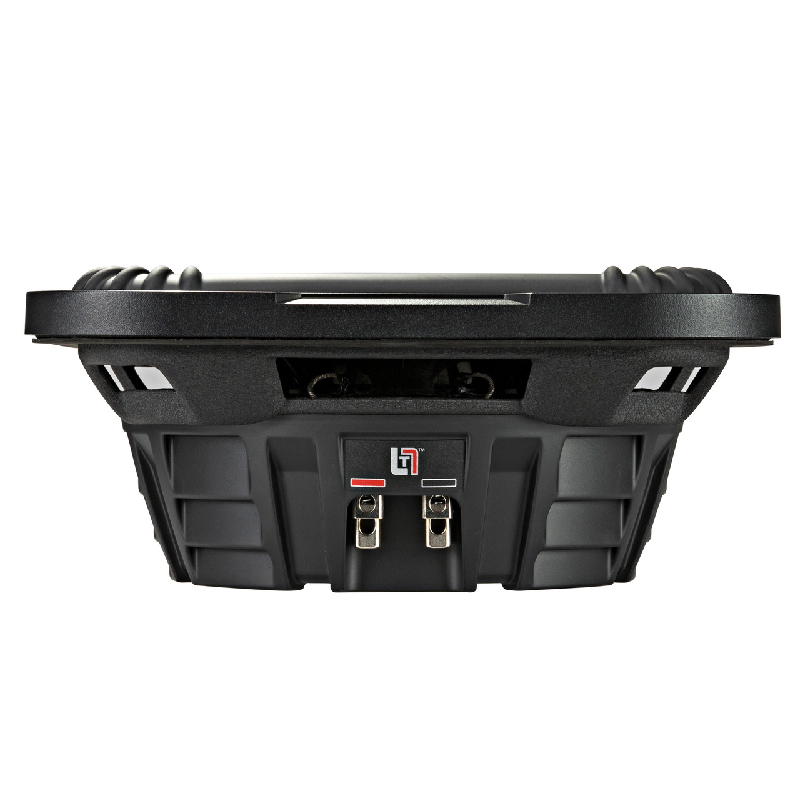

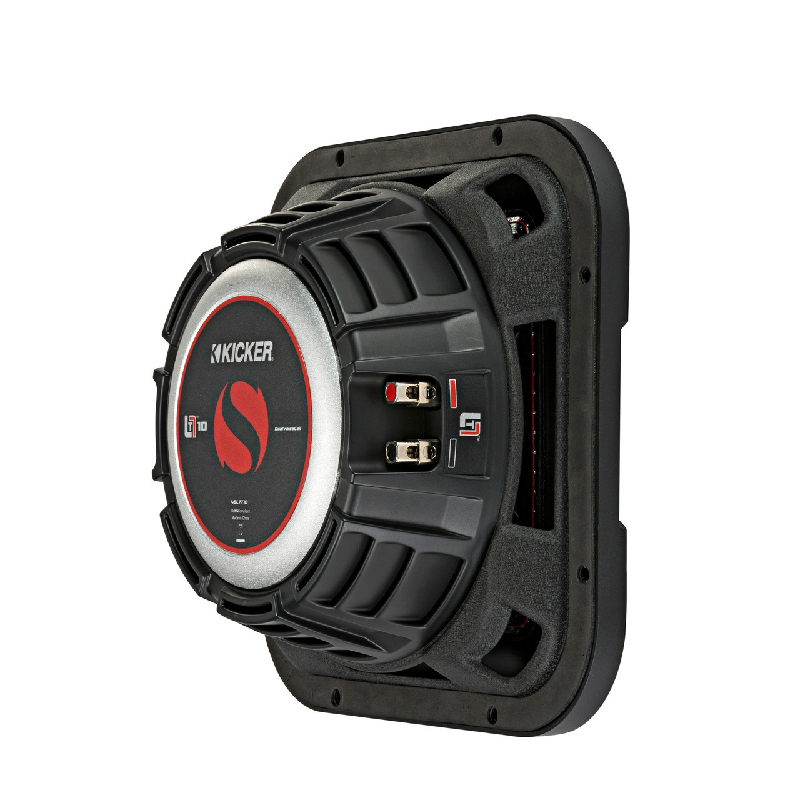

10" L7T 2 Ohm

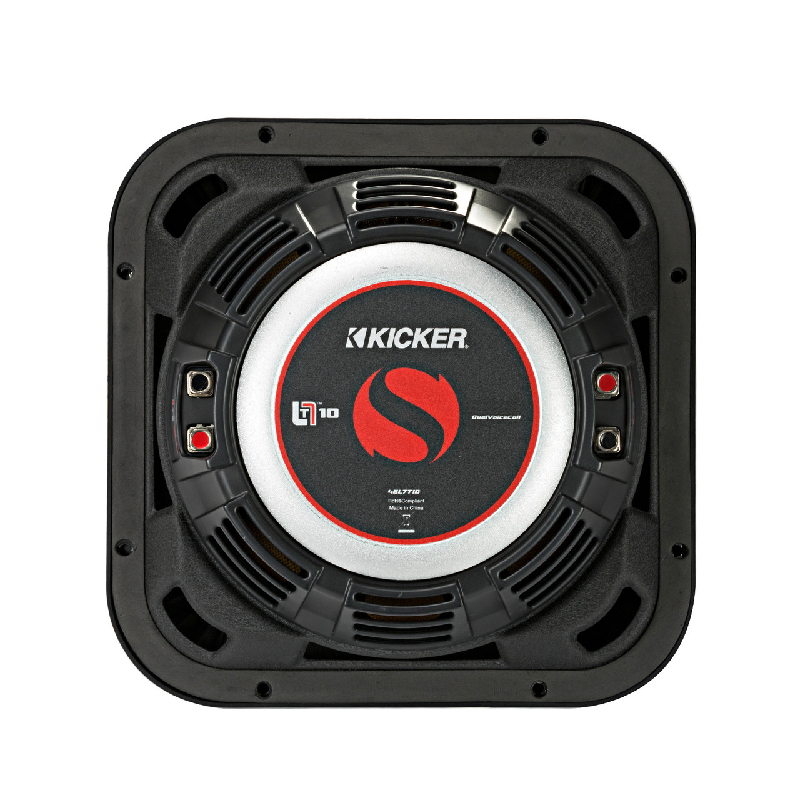

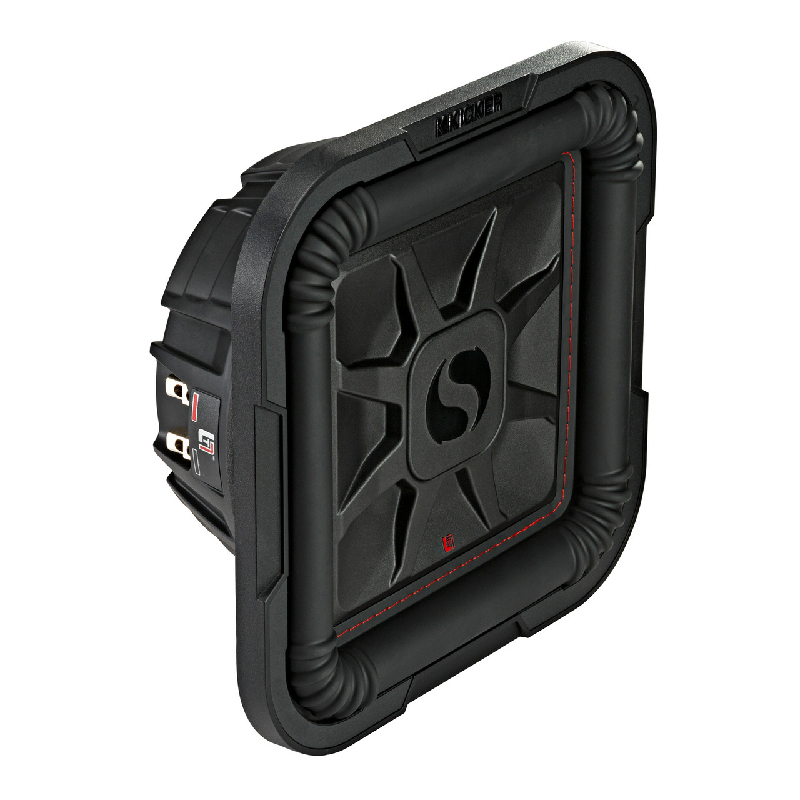

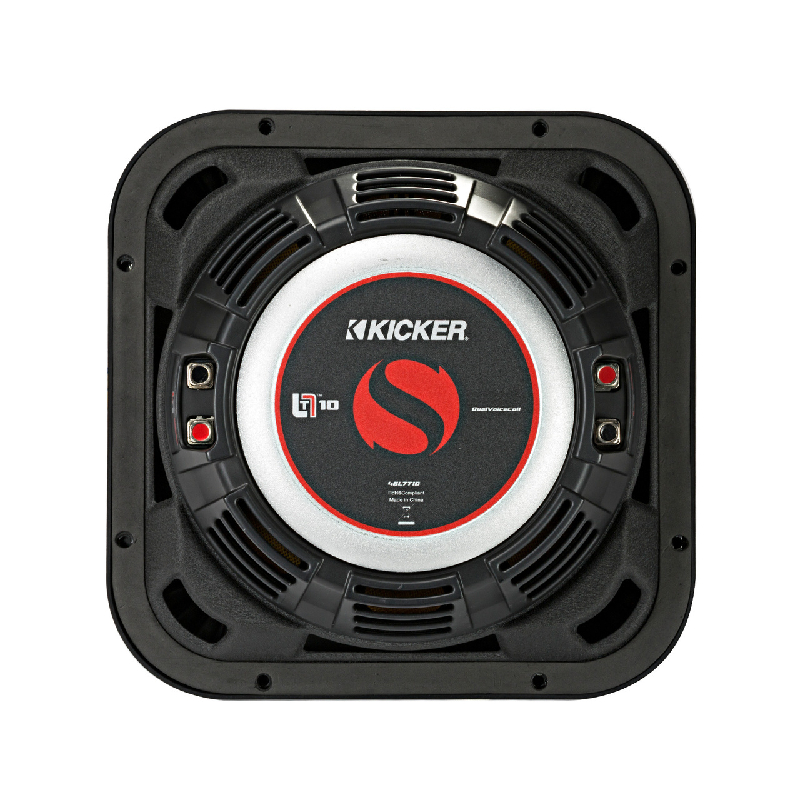

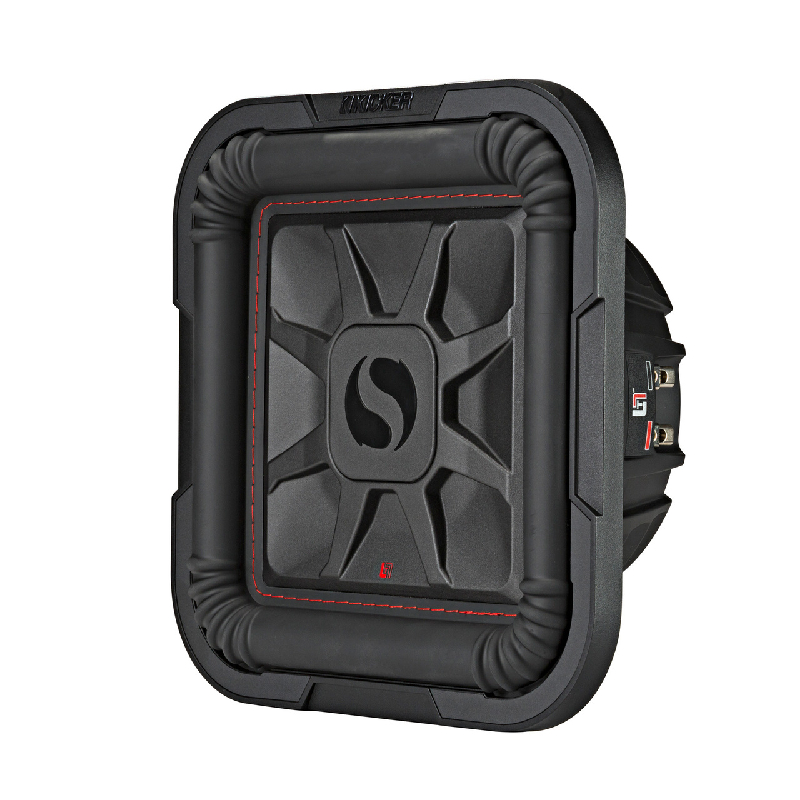

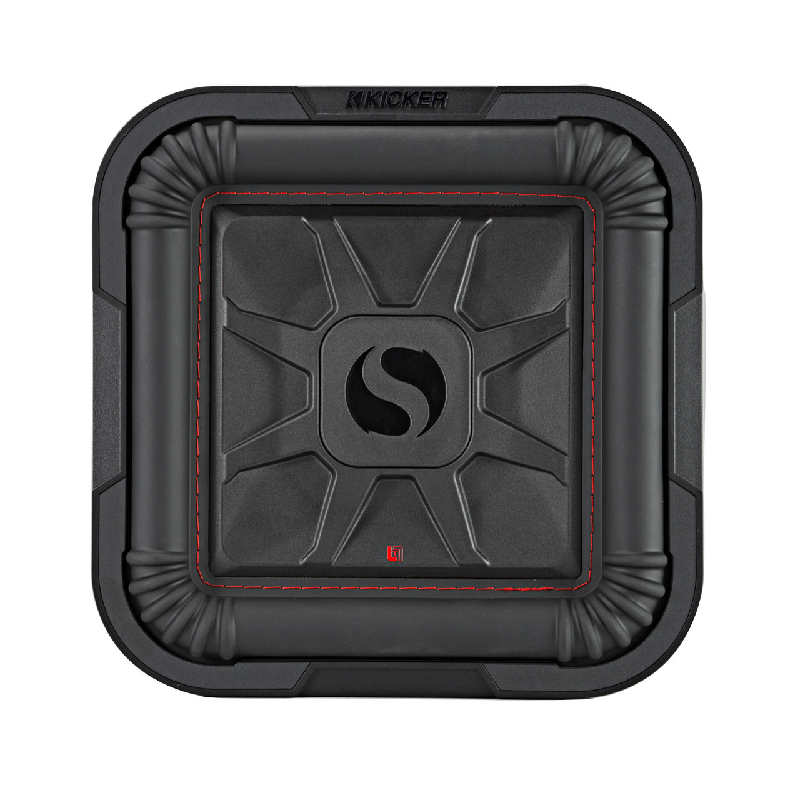

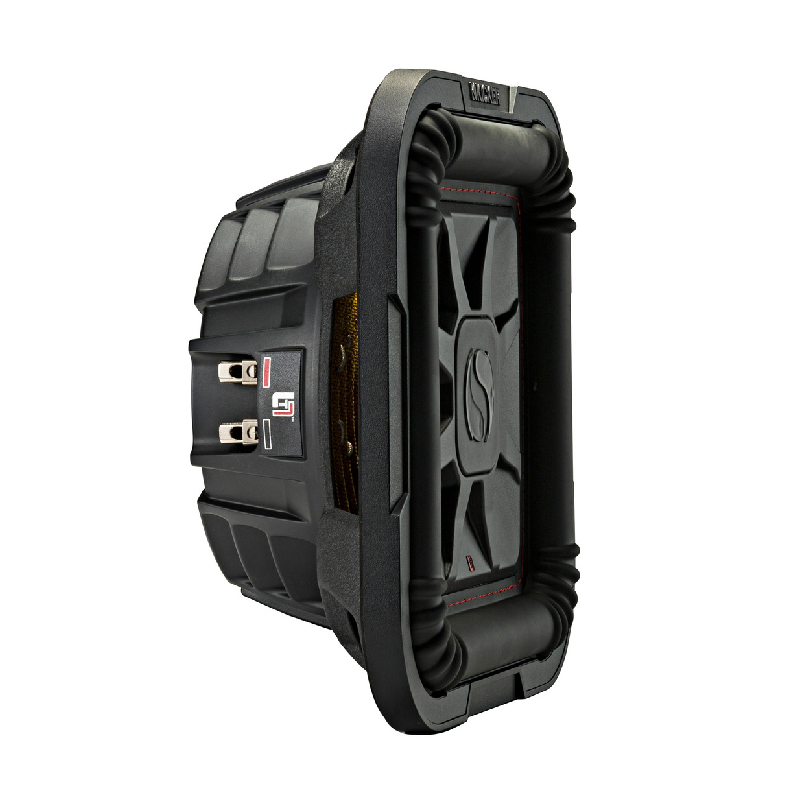

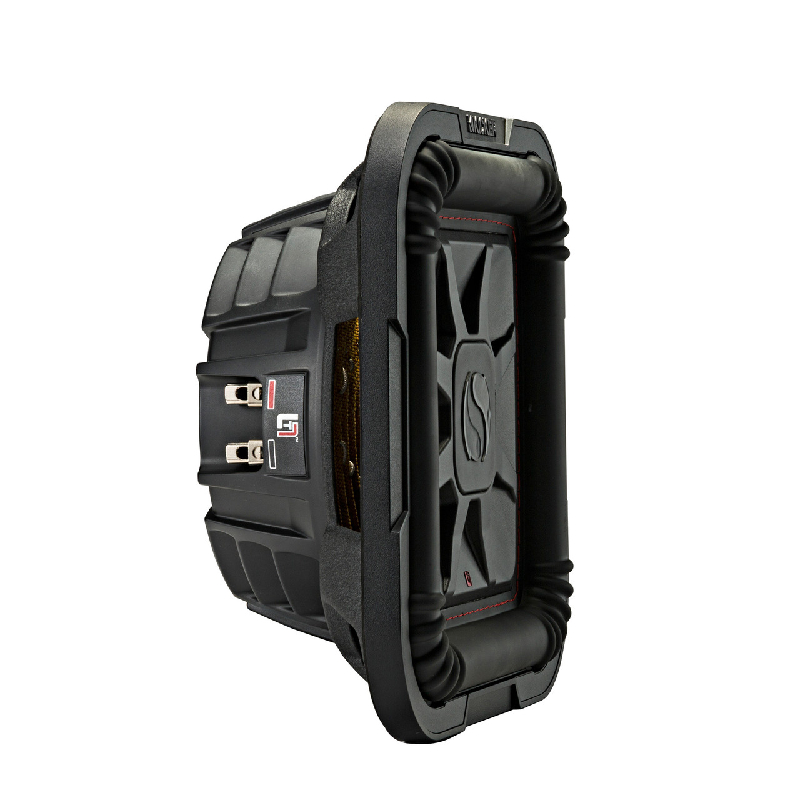

The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
SoloKon™ technology uses an injection-molded polypropylene cone and 360-degree back bracing as a single solid unit - both cooling the motor and eliminating distortion. Patented ribbed corners are incorporated into the high-roll Santoprene® surround to move smoothly under high SPL. We then stitch the cone to the surround, providing an additional level of integrity that thrives no matter the application.
Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The L7T 10-inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
| Specifications |
| Size (IN.,CM) |
10, 25 |
| Impedance (OHMS) |
2 DVC |
| Max Rec Amplifier Power (WATTS PEAK/RMS)* |
1000/500 |
| Sensitivity (dB 1w/1m) |
85.98 |
| Frequency Response (Hz) |
25-100 |
| Mounting Depth (IN.,CM) |
3-3/4, 9.5 |
| Mounting Cutout, Square (IN.,CM) |
9-5/16, 23.7 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
.4, 11.3 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
1.25, 28.3 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
1.25, 35.4 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
1.75, 49.6 |
What's Included?
- One 10" Subwoofer 2-ohm Impedance
- Two Stickers
- Owner's Manual
- UPC: 713034085805
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
