Kicker 46CXA8001t CX Series 1600W Max Power, Class-D Mono Subwoofer Car Amplifier
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Mono Subwoofer Car Amplifier
- • (2) Vertical mounting brackets
- • 3mm Allen wrench
- • (4) 3/4" Screws
- • Power chart
- • Certified Power certificate
- • Owner's Manual
Why Choose Kicker 46CXA8001t Mono Subwoofer Amplifier?
Stable Monoblock Amplifier
The Kicker 46CXA8001t is a powerful one-ohm stable mono amplifier with a Class-D design. It's ideal for car audio systems, offering flexibility and durability. It features a variable crossover (50-200 Hz) and adjustable bass boost (+6dB) to customize your bass while safeguarding your subwoofer.
Fail-safe Integration Technology Plus
Every CX Series amplifier, including this one, comes with a Kicker trademark technology, Fail-safe Integration Technology Plus, allowing the amplifier to work with any car audio system without having to replace the car's radio or add a line-out converter while reducing the audio system's noise.
Bass-heavy Music Track
This mini amplifier produces a power output of 300 Watts RMS per channel at 4 ohms and 600 Watts RMS per channel at 2 ohms, and as a one-ohm stable amplifier, it can produce 800 Watts of RMS power at the said impedance. Lastly, with its frequency response of 25 up to 200 Hz, any bass-heavy music track from your device will be too easy for the amplifier.
Compact and Convenient Design with Remote Control Compatibility
Experience effortless installation with a compact design, enjoy the convenience of remote bass control compatibility with the CXARC Remote, and add a unique vertical mounting option, all while easily controlling two mono amps or powered subwoofers with the DBRC remote.
Frequently Asked Questions (FAQ)
- • Why does the amplifier keep going into protect mode?
This is commonly caused by overheating, incorrect speaker impedance, or a wiring short. Check all power, ground, and speaker connections before powering the system back on.
- • Can I run more than one subwoofer with this amplifier?
Yes. You can connect multiple subwoofers as long as the final impedance matches the amplifier's supported load and power ratings.
- • Why does it get hot during normal operation?
Some heat is expected when delivering high output power. Ensure the amplifier has adequate airflow and is not installed in a confined space.
- • Can I use this amplifier with my factory stereo?
Yes. It can be integrated with many factory audio systems using compatible high-level inputs or a line output converter if required.
- • Why does the bass sound distorted at higher volume?
Amplifier clipping or excessive gain is the most common cause of distortion. Proper tuning helps produce clean bass while protecting the subwoofer.
- • Do I need an external fuse near the battery?
Yes. Installing an inline fuse close to the battery helps protect the amplifier and your vehicle's electrical system from shorts.
- • Why does the amplifier turn off when the bass hits hard?
This may be caused by voltage drops, overheating, or an overloaded speaker load. Check your charging system, wiring, and subwoofer impedance.
- • Why do I hear a popping noise when the amplifier turns on or off?
Turn-on pops can occur because of system wiring, source unit behavior, or remote turn-on timing. Verify the remote wire connection and ensure all components are properly grounded.
- Maximum Power : 1600 Watts
- Number of Channels : 1
- Frequency Response : 25-200 Hz
- Amplifier Class : D
- Fuse Rating : 80 A
- Promo : Yes
Features:
- Efficient Class-D Amplifier: Delivers high power with minimal heat
- Turn-On/Off Delay: Three-second delay to eliminate unwanted interference
- Variable Crossovers: 12dB adjustable crossover for customized sound
- KickEQ™ Bass Boost: 6dB variable bass boost for enhanced low frequencies
- Subsonic Filter: 24dB filter for protection against damaging frequencies
- FIT+™ Integration: Works with nearly every radio for easy integration
- High Input Signal: Accepts up to 40-volt input signal
- Compact Design: Small footprint for easy installation
- Remote Bass Control Compatible: Works with CXARC Remote Bass Control

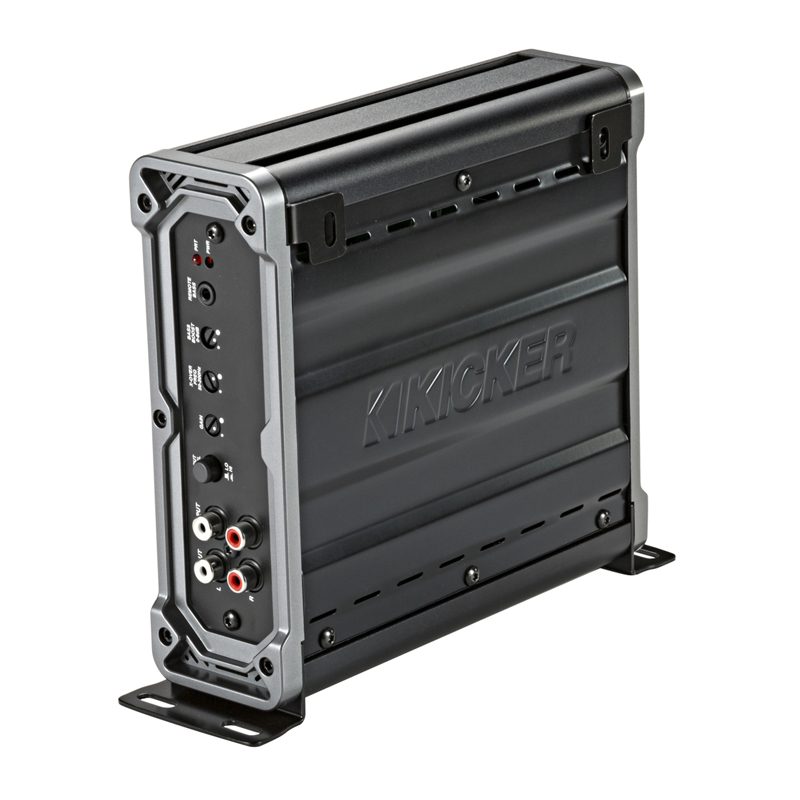

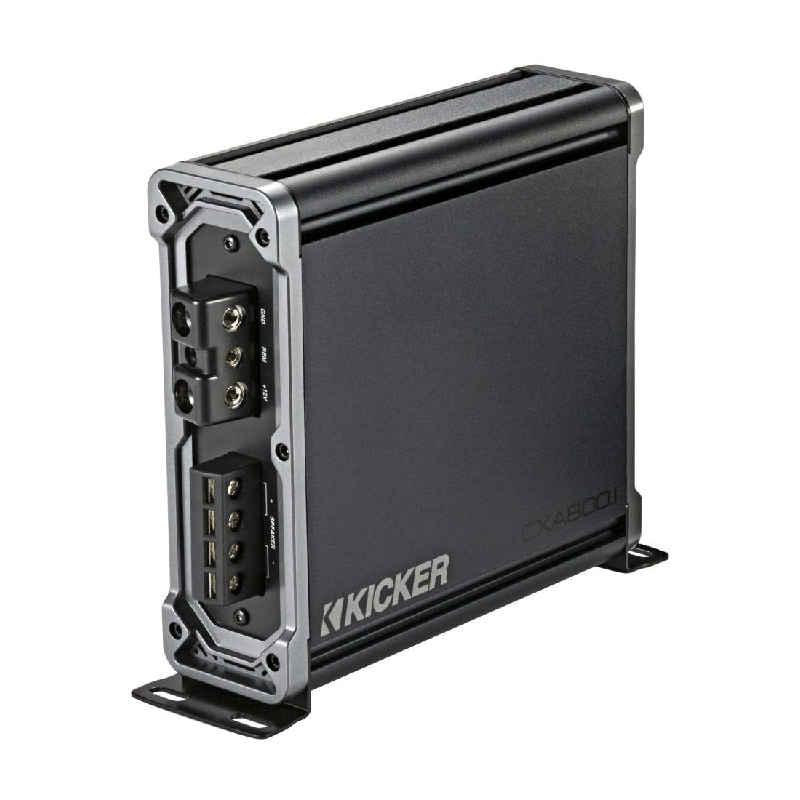

- Vertical Mounting Option: Includes hardware for a unique vertical mounting look
- DBRC Remote Compatibility: Control two mono amps or powered subwoofers with one knob
Specifications:
- Model: CXA800.1t
- Power (watts/ch) 4 Ohm Stereo: 300x1
- Power (watts/ch) 2 Ohm Stereo: 600x1
- Power (watts/ch) 1 Ohm Mono: 800x1
- CXRC Remote Bass Capable (sold sep.): yes
- Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 8-1/8, 20.6
- Frequency Response (Hz): 25-200, +0/-1dB
- Input Sensitivity: 250mV-10V (Low Level) | 1V-40V (High Level)
- Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power
- Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave
- Subsonic Filter 25Hz @24dB/Octave
- KickEQ™ Boost Variable 0-6dB @40Hz
- UPC: 713034012818
- Weight: 4.2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
This is a awesome high powered amp I have it pushing my L7 Kicker 12 inch solo-baric speaker and it sounds great very high with the quality and style of this amp.
-
Excellent product, works as advertised... I'm satisfied
Thanks !
-
This matches perfectly with my pair of 12-inch Kickers. It's compact, super easy to install, and packs a punch. I would definitely recommend this to everyone.
-
This amp is a beast in a tiny package! It's got a small footprint but packs serious power. The bass is super clean and tight, with zero distortion. Plus, installing it is a piece of cake!
