Focal  Impulse-4.320

Impulse Series 4-Channel 80W RMS x 4 at 2-Ohms, Class-D Compact Digital Amplifier (Semi Plug and Play)

Item #52735

Product Highlights

  • Impulse Amplifier
  • Four Channel
  • 80W RMS
  • Class D
  • Compact Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


PAC Banner

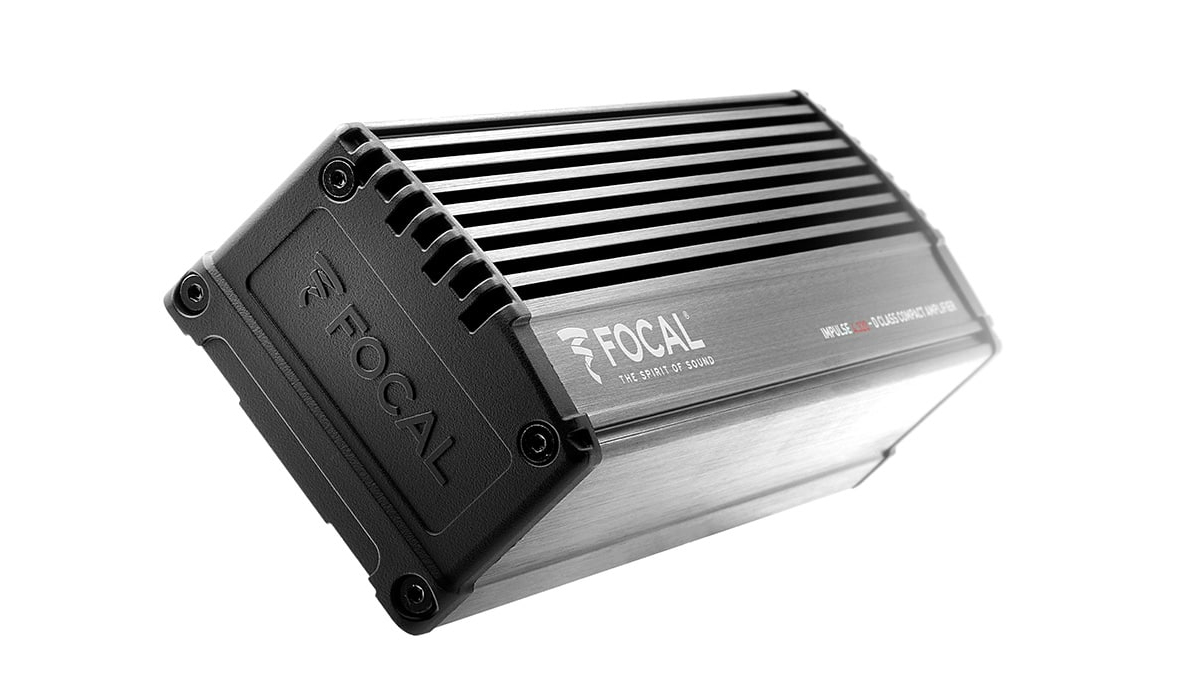

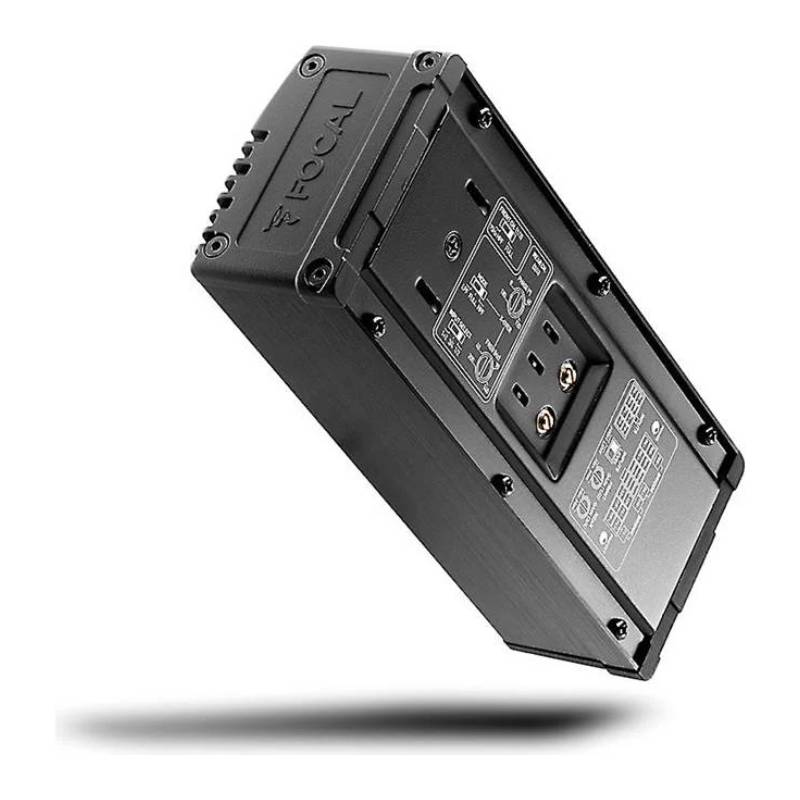

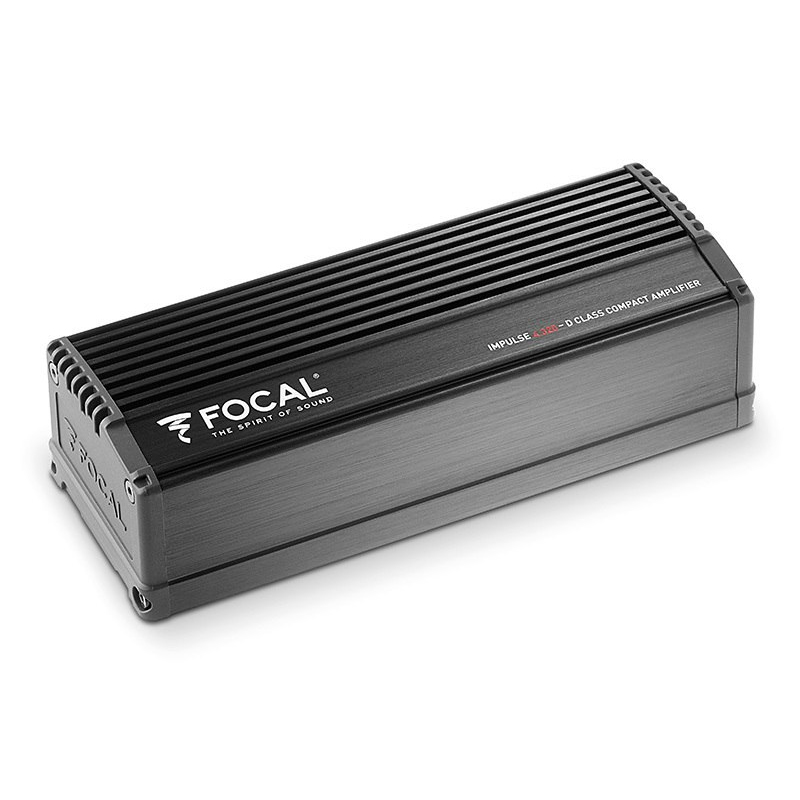

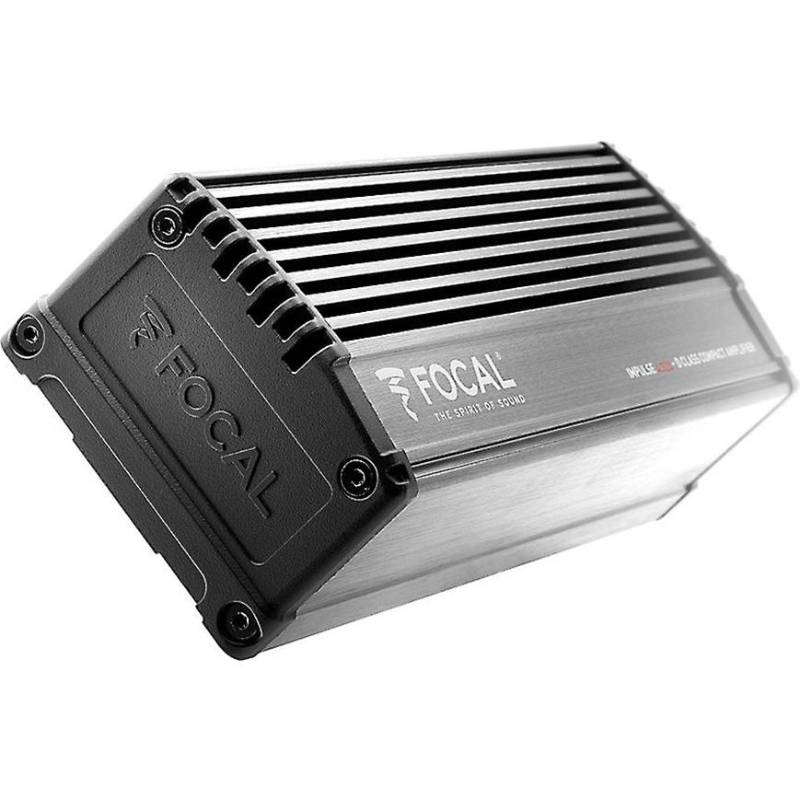

Focal Impulse-4.320 Impulse Series 4-Channel 80W RMS x 4 at 2-Ohms, Class-D Compact Digital Amplifier (Semi Plug and Play)


We are a Focal authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel amplifier

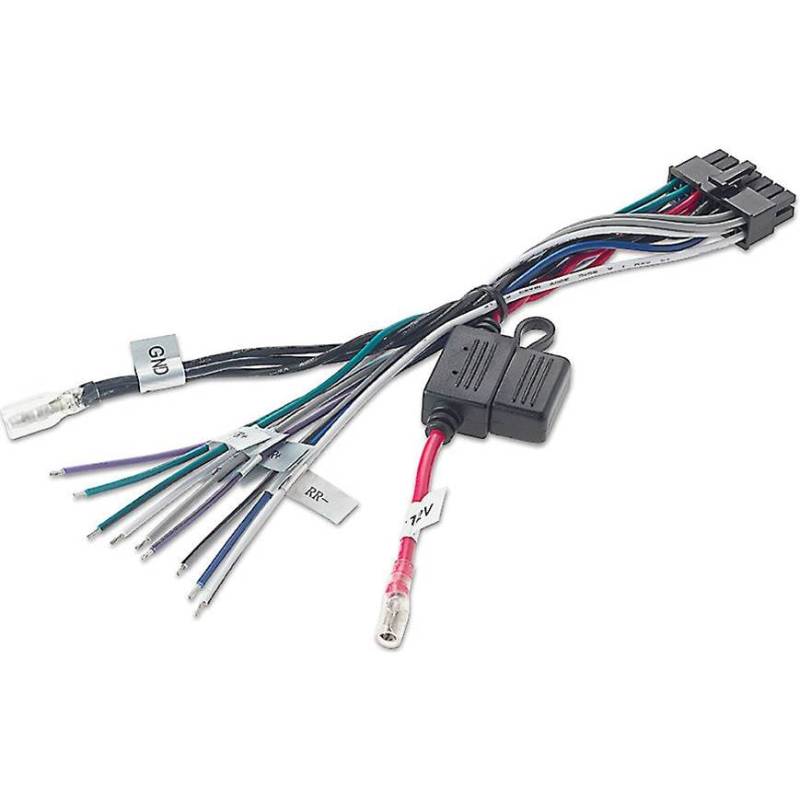

  • • 9" Power/speaker output harness
  • • (2) 25A ATO fuses (one installed in in-line fuse holder)
  • • 8" Speaker input harness
  • • 7" RCA line input harness
  • • (2) Mounting brackets
  • Owner's Manual
Compact Power, Big Performance

This compact 4-channel Class D amplifier delivers a strong 55W RMS x 4 at 4 ohms, or an impressive 80W RMS x 4 at 2 ohms for added punch. In bridged mode, it unleashes up to 160W RMS x 2, giving you flexible power options for any setup. CEA-2006 compliance ensures honest, reliable performance you can trust.

Flexible Tuning, Easy Integration

Fine-tune your sound with a switchable 75 Hz high-pass filter on the front channels and adjustable high- or low-pass filters (40–200 Hz) plus phase control on the rear channels. Preamp and speaker-level inputs ensure easy compatibility with both aftermarket and factory systems. With a compact size of just 6-15/16″W x 1-7/8″H x 2-5/8″D, this amplifier delivers powerful control while fitting effortlessly into tight spaces.


SPECIFICATIONS


  • Number of Channels : 4
  • Frequency Response : 10-20000 Hz
  • Amplifier Class : D
  • Fuse Rating : 25x1 A

FEATURES


Features:

  • compact 4-channel amplifier
  • 55 watts RMS x 4 at 4 ohms (80 watts RMS x 4 at 2 ohms)
  • 160 watts RMS x 2 at 4 ohms (bridged mode)
  • CEA-2006 compliant
  • Class D amp technology
  • front channels: switchable high-pass filter (75 Hz)
  • rear channels; adjustable high- or low-pass filter (40-200 Hz) and adjustable phase control (0-180°)
  • preamp and speaker-level inputs
  • wiring, fuse, and hardware not included with amplifier
    • 10-gauge power and ground leads and a 25A fuse recommended
    • for power wire shorter than 10 feet: 12-gauge power and ground leads and a 15A fuse recommended
  • dimensions: 6-15/16"W x 1-7/8"H x 2-5/8"D



Specifications:

  • Activatable/deactivatable crossover fixed at 75Hz on channels 1/2
  • Configurable Crossovers from 40hz-200hz on channels 3/4
  • Adjustable Phase 0/180 degrees on channels 3/4
  • Copy Mode (4ch/2ch)
  • CEA power (4 Ohms): 4x55Wrms
  • Power max (2 Ohms): 4x80Wrms
  • Power bridged (4 Ohms): 2x160Wrms
  • Bandwidth: 10Hz / 20KHz
  • Minimum THD: 0.02%
  • SNR: 80dBA
  • Weight: 1.2lbs
  • Dimensions: 67/8x25/8x17/8" (175x66.5x47mm)
  • UPC: 3544054676073
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
