JBL BassPro Hub BassPro Series 11" 200W RMS (400W Peak Power Handling) Single 2 Ohms Voice Coil Class-D Powered Enclosed Subwoofer Amplifier
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Amplified subwoofer
- • 30-amp ATO fuse (installed)
- • 12" Power/input harness
- • Wired remote control (16' Cable attached)
- • Mounting post
- • Factory mounting bracket adapter
- • 2.5mm Allen Wrench
- • Owner's manual

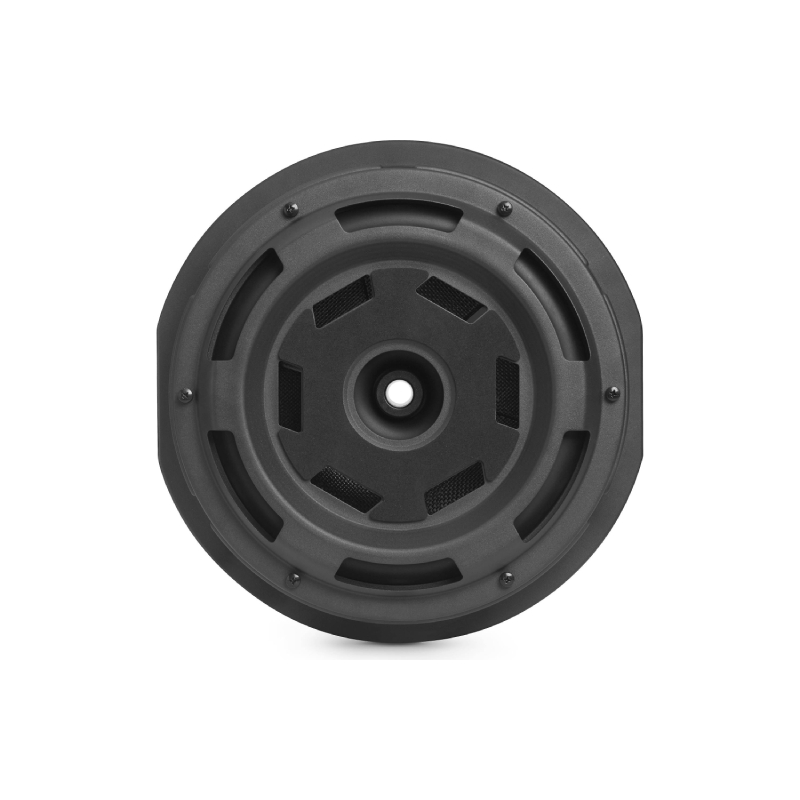

Fiberglass Woofer Cone with Rubber Surround
The 11" (279mm) woofer cone is engineered to deliver fast and tight, deep bass with low distortion and unwanted second and third order anomalies.
Built-in Class D 200W RMS amplifier
The JBL subwoofer system’s built-in amplifier is optimized to work as a system with the woofer. Its Class D design runs cooler and draws less current from your vehicles electrical system making it the perfect concealed subwoofer solution.

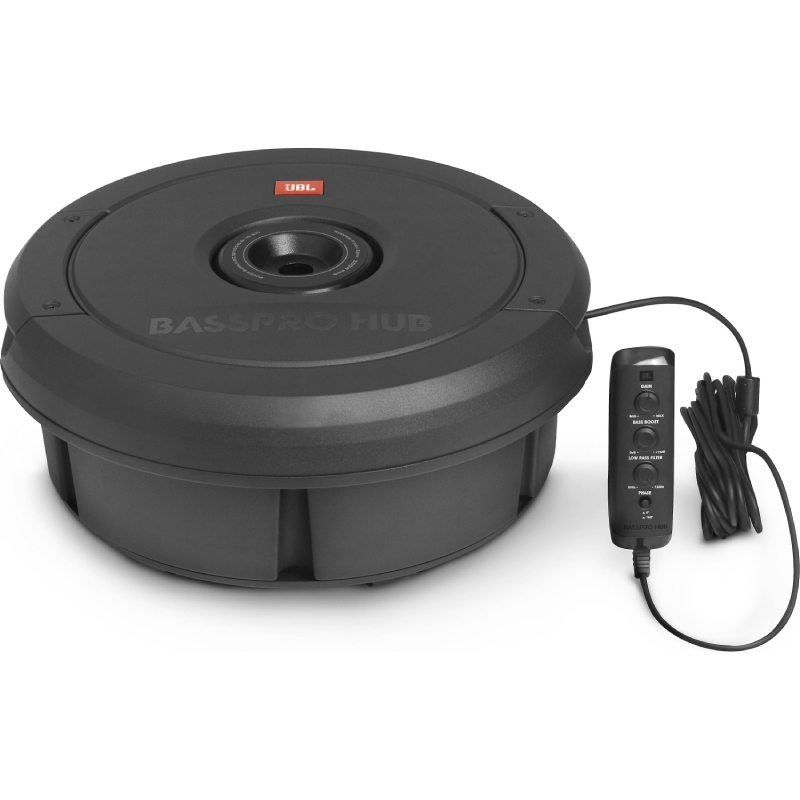

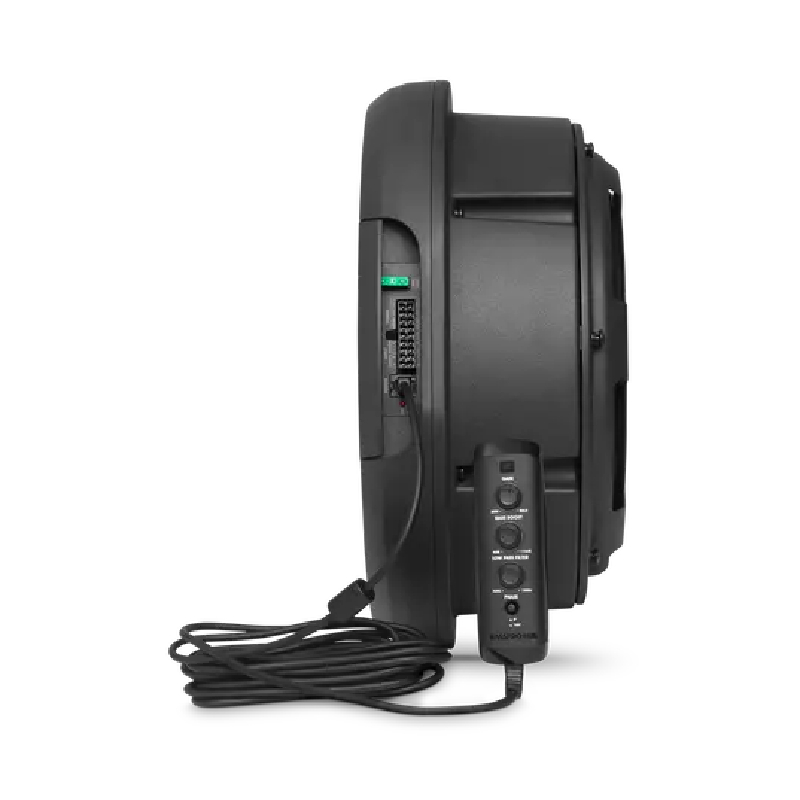

Wired Remote with User Interface Controls
Gain control adjusts the volume level right from the drivers seat. Phase switch changes the input phase to inverted or noninverted. (This can sometimes be helpful for troubleshooting.) Crossover frequency control adjusts the crossover frequency to any point between 50Hz and 150Hz. Bass EQ control provides 12dB of boost.
Line-level Inputs and Speaker-level Inputs
The JBL BassPro Hub has line level inputs and speaker inputs that allow you to connect to any car audio system making it a great upgrade to your factory system or the bass foundation of the aftermarket system of your dreams.
Harman Standard Reliability Testing
JBL speakers have to undergo a testing process that would destroy lesser speakers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.
JBL at an Affordable Price
This is JBL—the legendary speaker and sound company that has excited audio enthusiasts for over seventy years. There’s nothing better than riding with JBL.
- Diameter : 11 Inch
- Maximum Power : 400 Watts
- Depth : 6-7/16 Inch
- Impedance : 2 Ohm
- Frequency Response : 30-150 Hz
- RMS Power Range : 200 Watts
Specifications:
- Amplifier Power: 200W RMS (2 ohms)
- Frequency Response: 30Hz – 150Hz
- Fuse: 30A
- Maximum Current Draw: 30A
- Quiescent Current Draw: <1.2A
- Crossover Frequency: 50Hz – 150Hz
- Crossover Slope: 24dB/Octave
- Bass Boost: 0 – 12dB Variable @ Fix 50 Hz
- Line level input sensitivity: 0.2 V – 4V
- Speaker level input sensitivity: 0.5V – 10V
- Dimensions (D x H): 14-3/16" x 6-1/2" (D360mm x H165mm)
- UPC: 050036356916
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
