Alpine S-A55V-Bundle
Hot Deal Item# 53325 / Condition:  Brand New

Alpine S-A55V-Bundle

S-A55V-Bundle

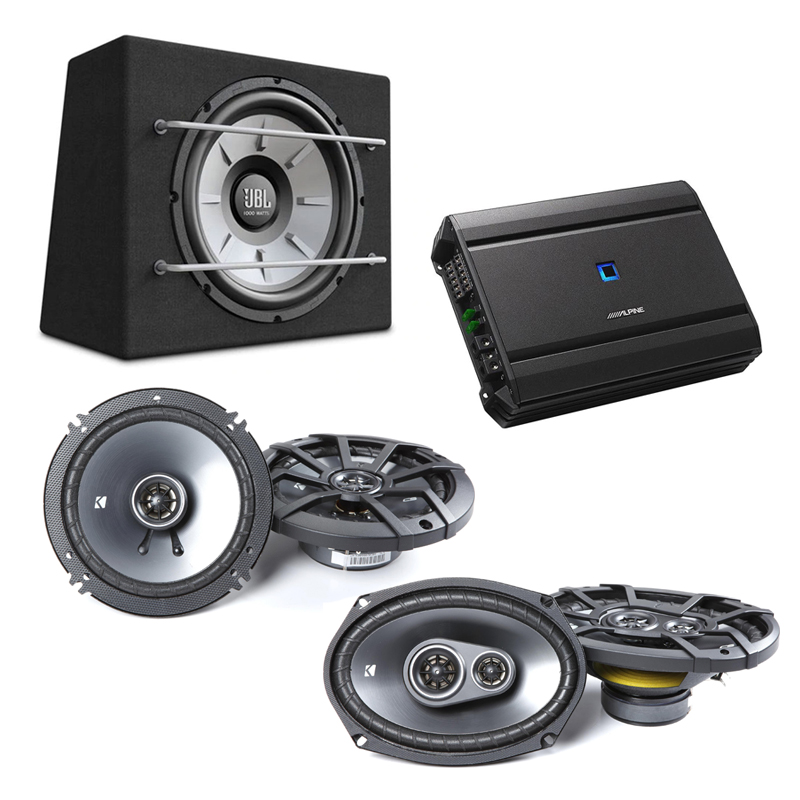

Alpine S-A55V + JBL Stage 1200B + Kicker 43CSC654 + Kicker 43CSC6934 Exclusive Bass Package Review this product
$395.95

FREE Shipping in US 48!

MSRP:$769.99
Savings Of:$374.04
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

affirm financing small logo
affirm financing extra small logo

OnlineCarStereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

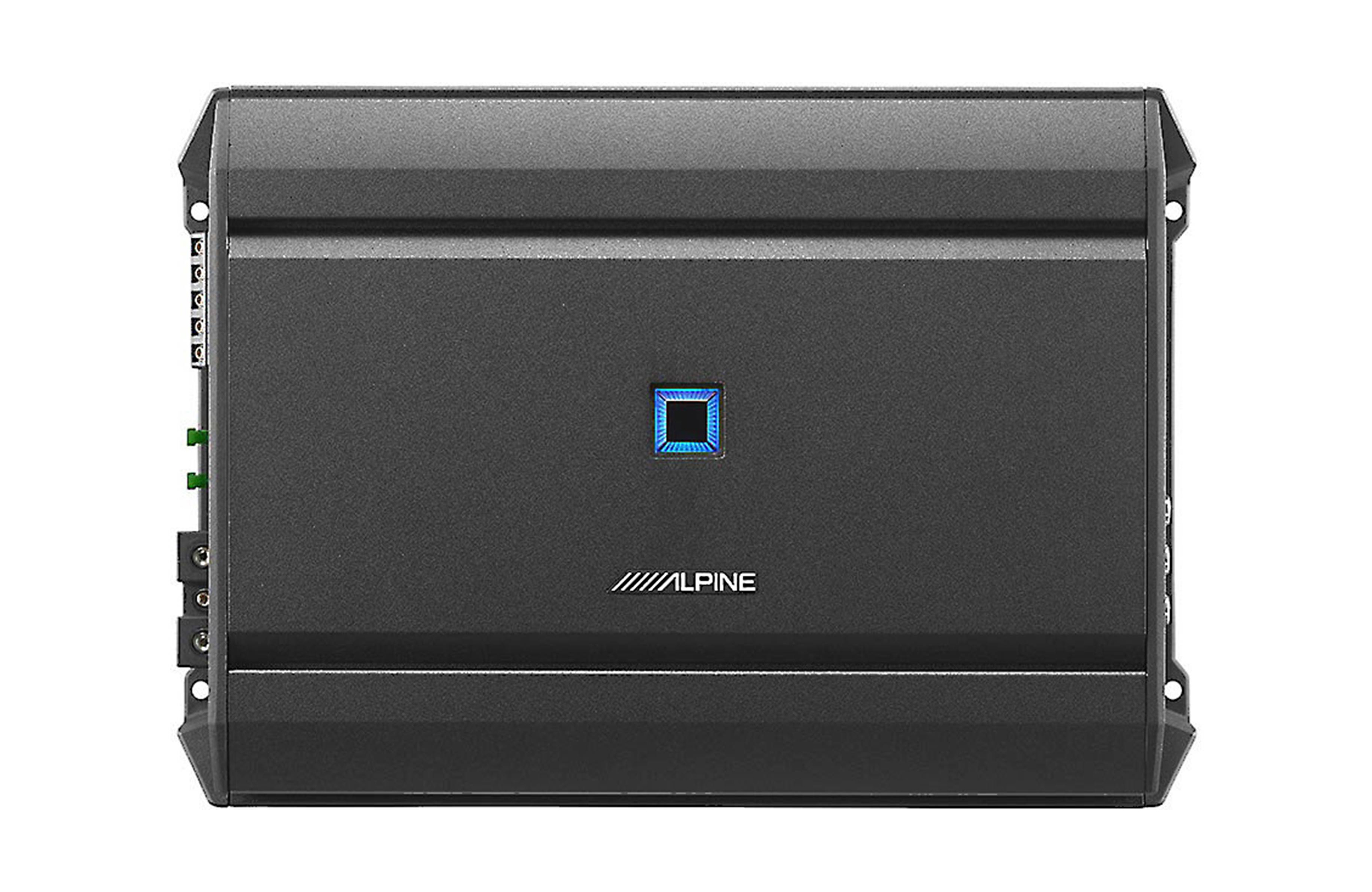

Alpine S-A55V

S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value. Perfect for beginners and enthusiasts alike, the S-Series amplifiers have the technology to improve your music experience yet are still friendly on your wallet. Used in conjunction with our advanced S-Series speakers and subwoofers, they create a complete sound system that takes your in-vehicle music experience to the next level. The S-Series amplifiers contain technology that was previously only available in our premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you. The S-Series amplifiers are designed to fit anywhere. The S-A55V 5-Channel model measures at 11.25” W x 8” H x 2.25” D and can be mounted under seats or behind panels. It proves to be the all-in-one solution for a multi-amp system, so you can enjoy big power output in a limited installation space.

S-A55V

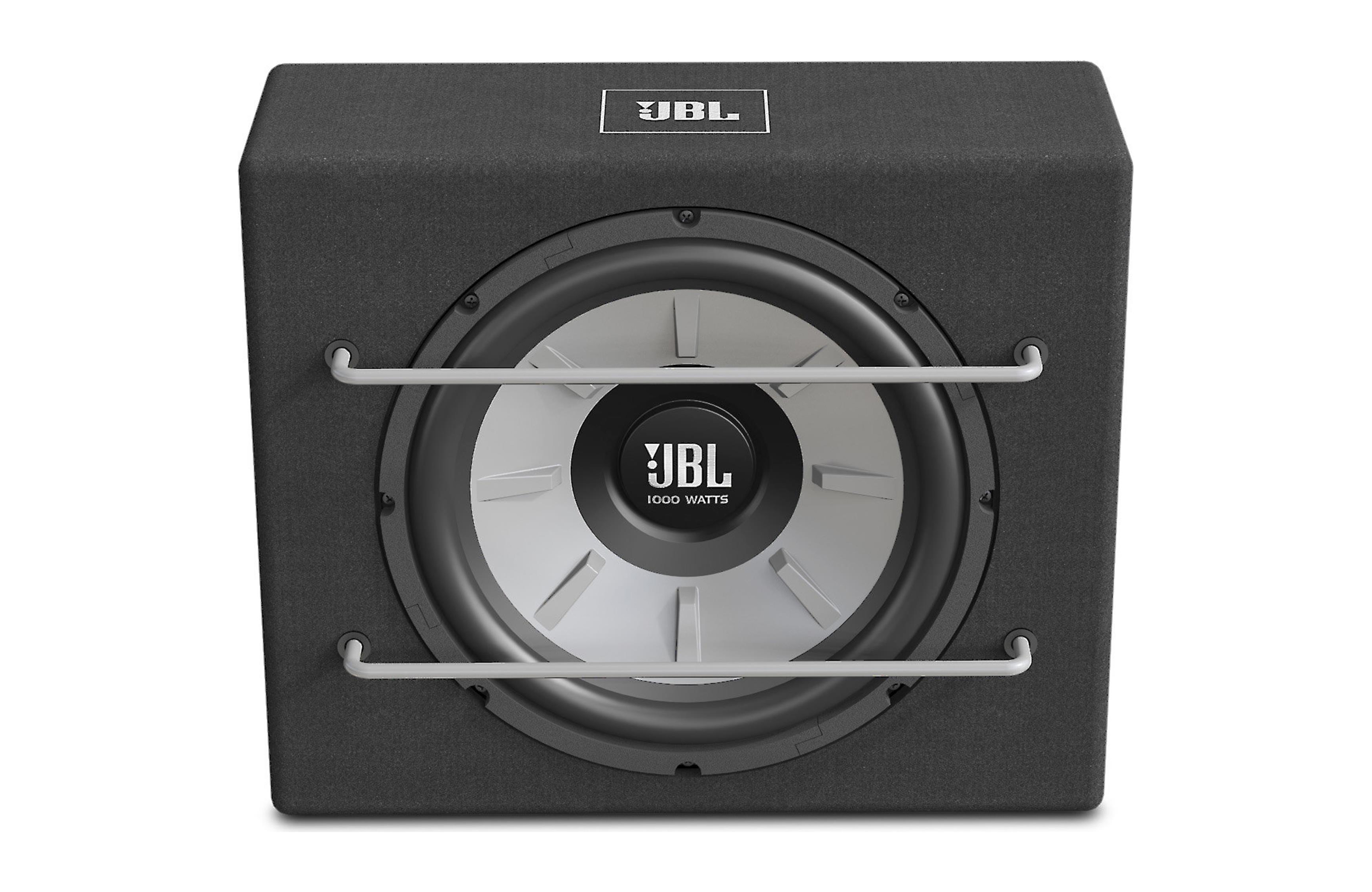

JBL Stage 1200B

The Stage 1200B subwoofer enclosure pounds out resounding bass from a compact enclosure that fits in just about any vehicle. High efficiency combines with impressive power-handling for rich and satisfying performance. The 12" woofer cone and large voice coil work together for remarkable realism, note-perfect accuracy, and sustained bass response. And this enclosure's striking good looks are matched by its ease of installation.

Stage 1200B

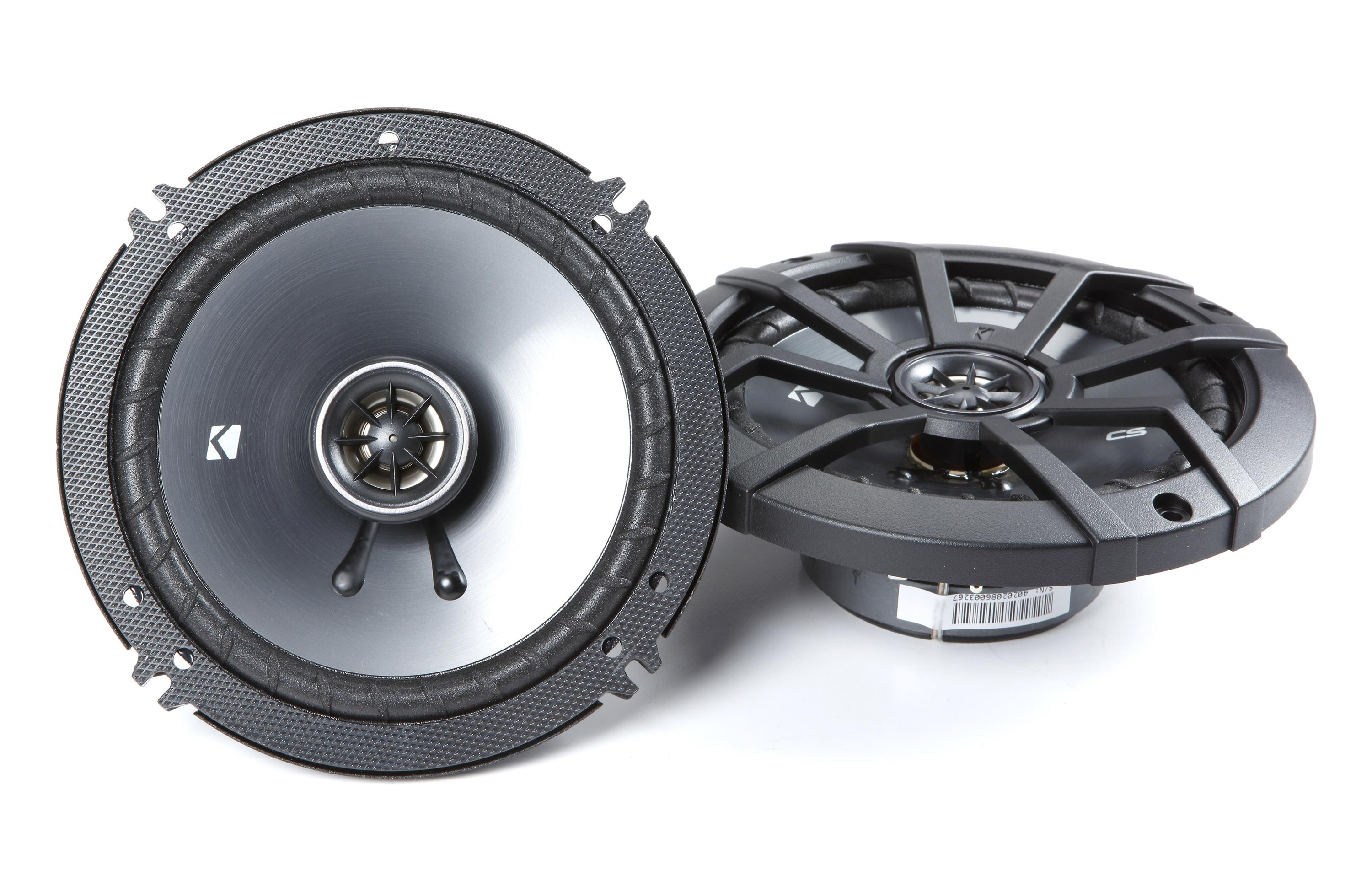

Kicker 43CSC654

The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.

43CSC654

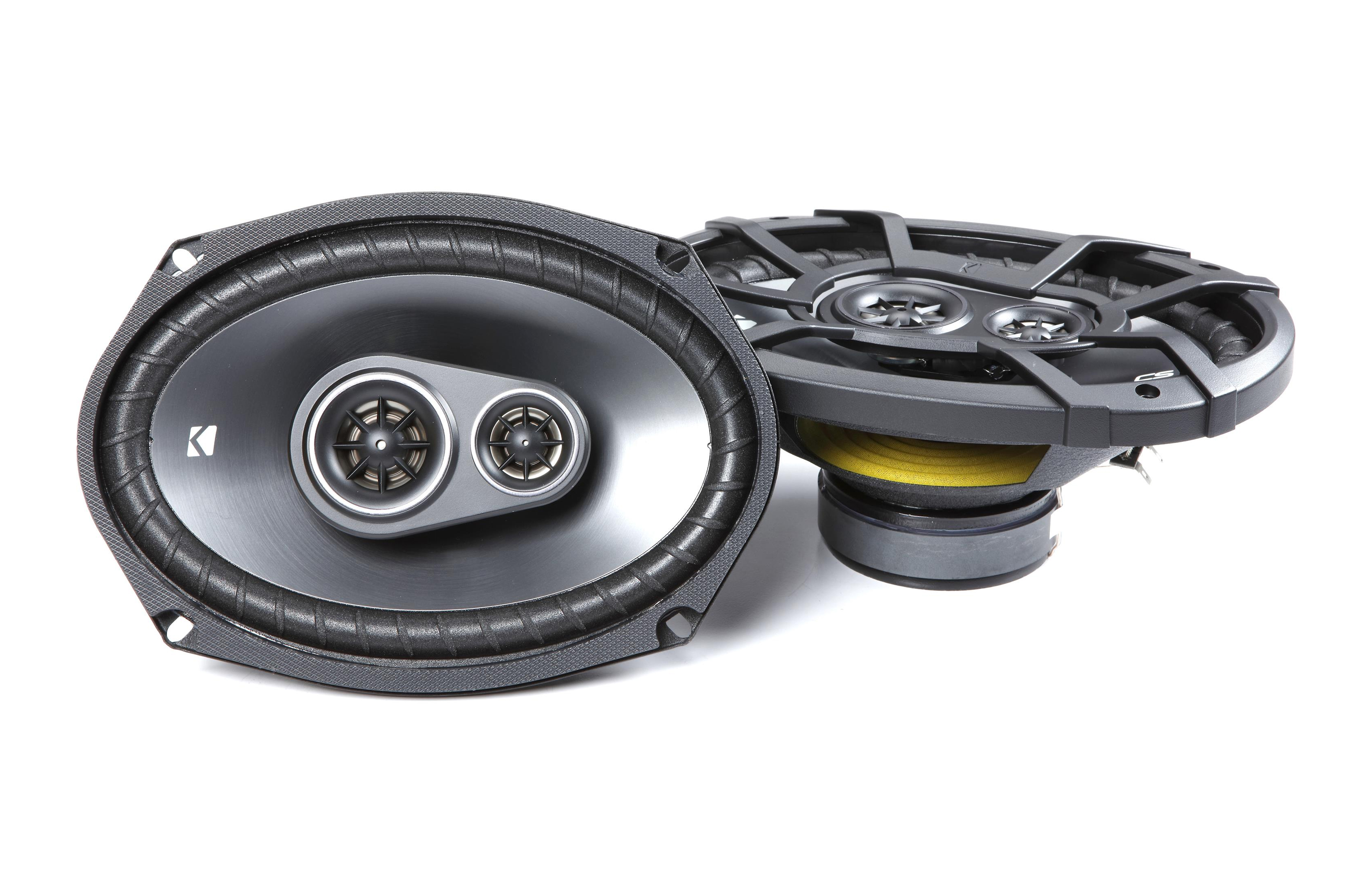

Kicker 43CSC6934

The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.

43CSC6934


S-A55V 80x4 Watts RMS @ 2-ohms 4-Channel Class D Power Amplifier

Features:
  • High Efficiency Digital Circuit Design
  • Adaptive Feedback Global Modulation Topology
  • Selectable Input Level
  • Selectable 2/4/6 Ch Input
  • Variable High/Low Pass Crossover
  • Variable Bass EQ
  • Auto Turn-on with Remote Sensing
  • Remote Bass Control Ready
Specifications:
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • High-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope: 24 dB/oct
  • High-Pass Slope: 12 dB/oct
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 50 Hz
  • Fuse Rating: 60
  • Speaker Level Inputs: RCA
  • RMS Power Output: 40 x 4 / 180 x 1
  • Peak Power Output: N/A
  • Power at 2 Ohms: 60 x 2
  • Bridged Power: 120 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Frequency Response: +0/-3 dB 50Hz - 30kHz
  • Frequency Response: +0/-1 dB 60Hz - 20kHz
  • Signal to Noise Ratio: 1 W into 4 Ohms: >83dB
  • Preamp Outputs: No
  • Width: 11-1/4"
  • Height: 2-1/4"
  • Depth: 8"

Stage 1200B 1000 Watts Peak Sealed Subwoofer Enclosure

Features:
  • 4 ohms impedance
  • Power Rating:
    • Peak: 1000W total
    • RMS: 250W Total
  • Frequency Response 34-200Hz
  • Sensitivity: 91dB
  • Polypropylene cone
  • Rubber Surround

43CSC654 6-1/2" CS Series 2-Way Coaxial Speakers

  • Speaker Design: 2 - way
  • Woofer Size | in [mm]: 6 1/2 [160]
  • Tweeter Size | in [mm]: 1/2 [13]
  • DC Resistance | ohm: 3.3
  • Peak Power | Watts: 300
  • Continuous Power | Watts, RMS: 100
  • Sensitivity [SPLo] | dB @ 1W, 1m: 90
  • Effective Frequency Range | Hz: 40-20k
  • Mounting Hole Diameter | in [mm]: 4 13/16 [123]
  • Top Mount Depth | in [mm]: 3/8 [9]
  • Bottom Mount Depth | in [mm]: 1 11/16 [43]
  • Tweeter Protrusion | in [mm]: 0
  • Grilles: Yes
  • Tweeter Magnet Material: Neodymium
  • Tweeter Dome Material: PEI (polyetherimide)
  • Tweeter Design: Balanced dome
  • Woofer Cone Material: Polypropylene
  • Woofer Surround Material: Polyester foam

43CSC6934 6" x 9" CS Series 3-Way Coaxial Speakers

  • Speaker Design: 3 - way
  • Woofer Size | in [mm]: 6x9 [160x230]
  • Mid Size | in [mm]: 2 [50]
  • Tweeter Size | in [mm]: 1/2 [13]
  • DC Resistance | ohm: 3.5
  • Peak Power | Watts: 450
  • Continuous Power | Watts, RMS: 150
  • Sensitivity [SPLo] | dB @ 1W, 1m: 92
  • Effective Frequency Range | Hz: 30-20k
  • Mounting Hole Diameter | in [mm]: 5 5/8 x 8 7/16 [143x215]
  • Top Mount Depth | in [mm]: 7/16 [12]
  • Bottom Mount Depth | in [mm]: 3 3/16 [81]
  • Tweeter Protrusion | in [mm]: 1/16 [1]
  • Grilles: Yes
  • Tweeter Magnet Material: Electric Crystal Motor
  • Tweeter Dome Material: PEI (polyetherimide)
  • Tweeter Design: Balanced dome
  • Woofer Cone Material: Polypropylene
  • Woofer Surround Material: Polyester foam
  • UPC: 713783634477
  • Weight: 47
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
