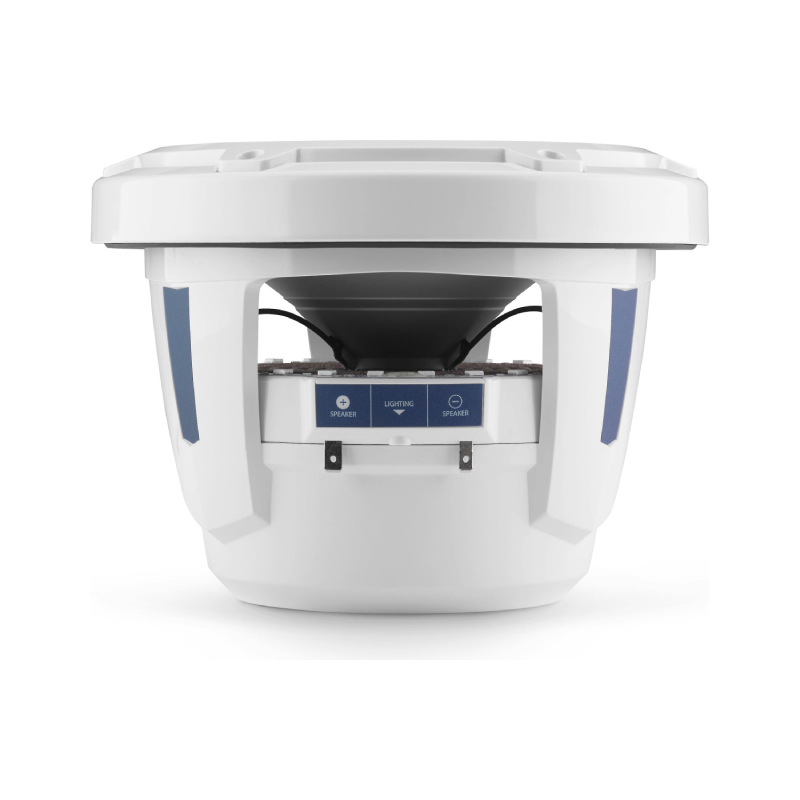

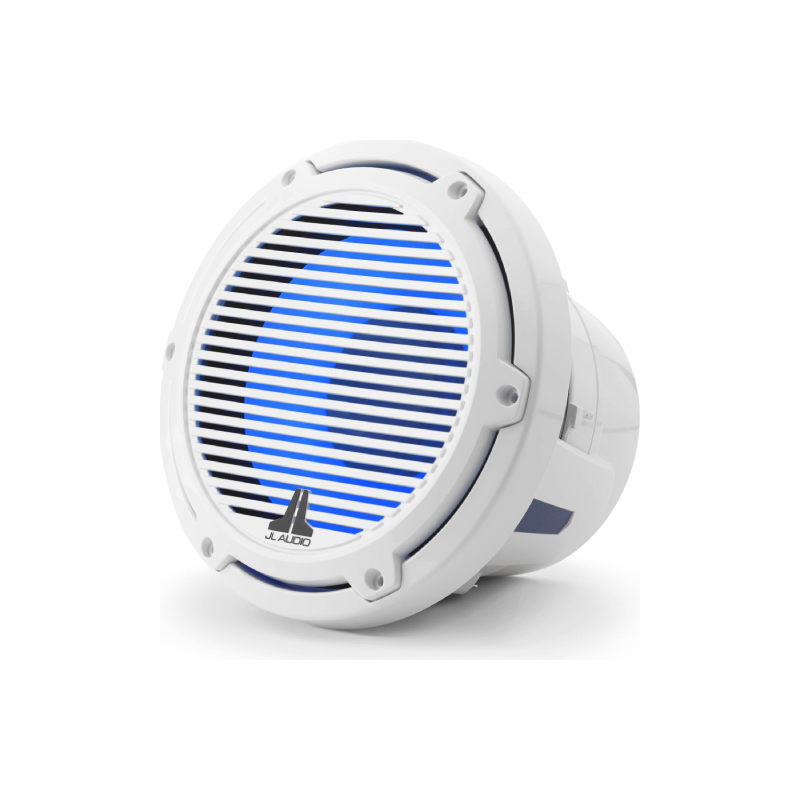

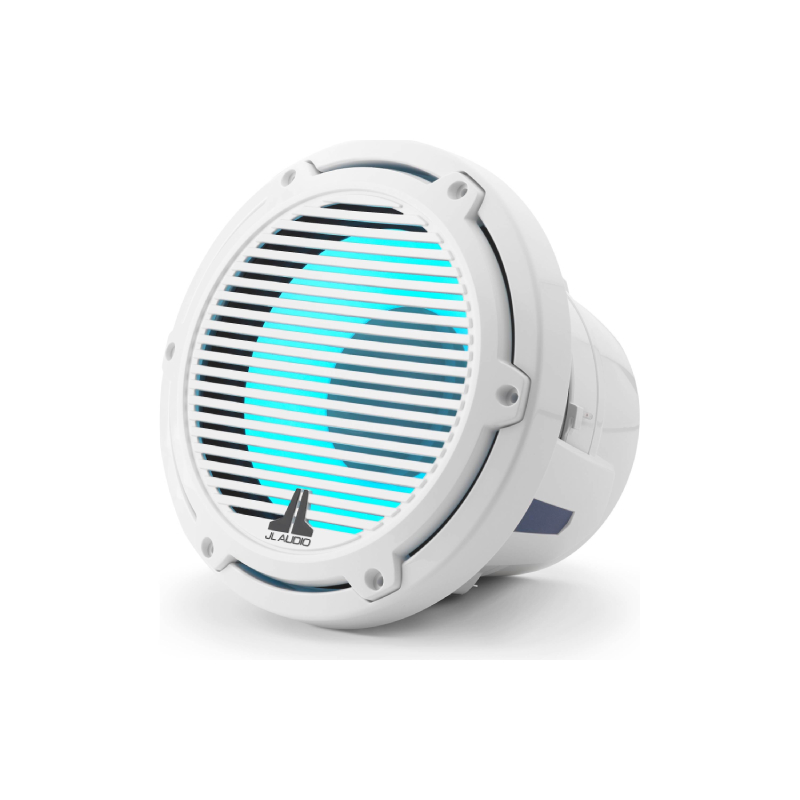

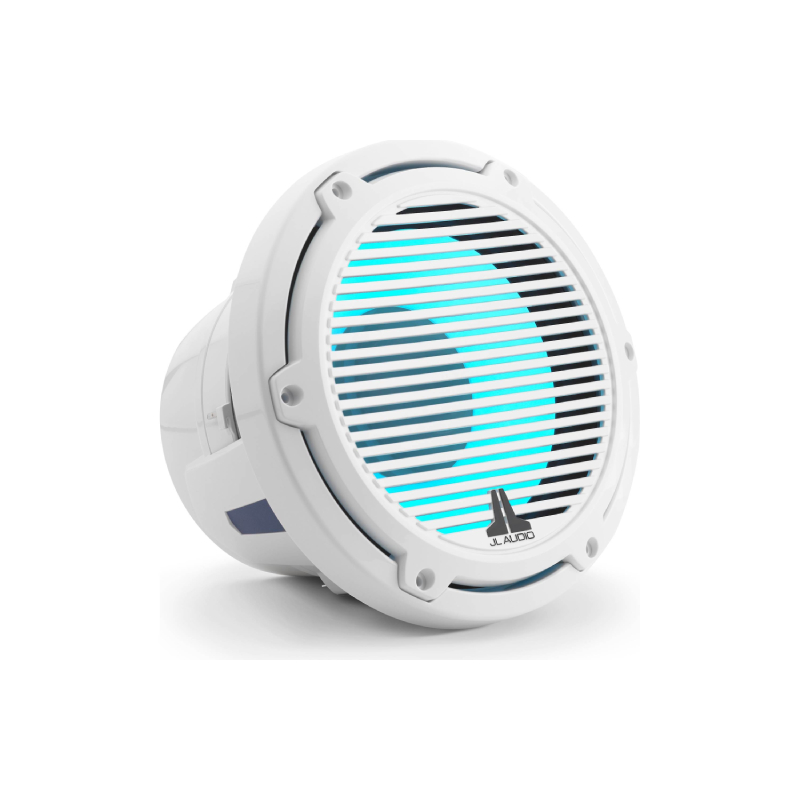

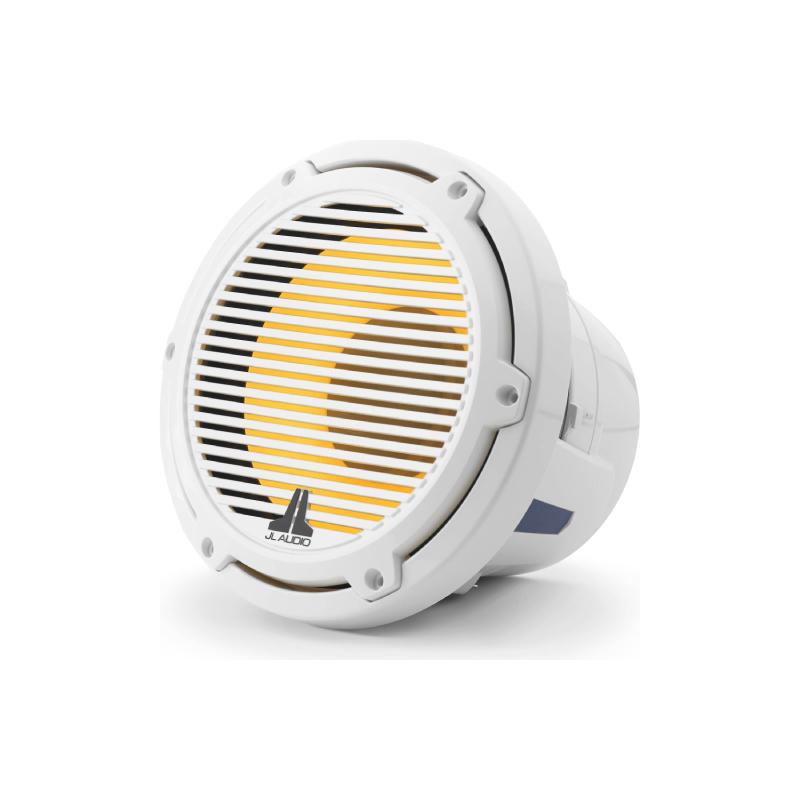

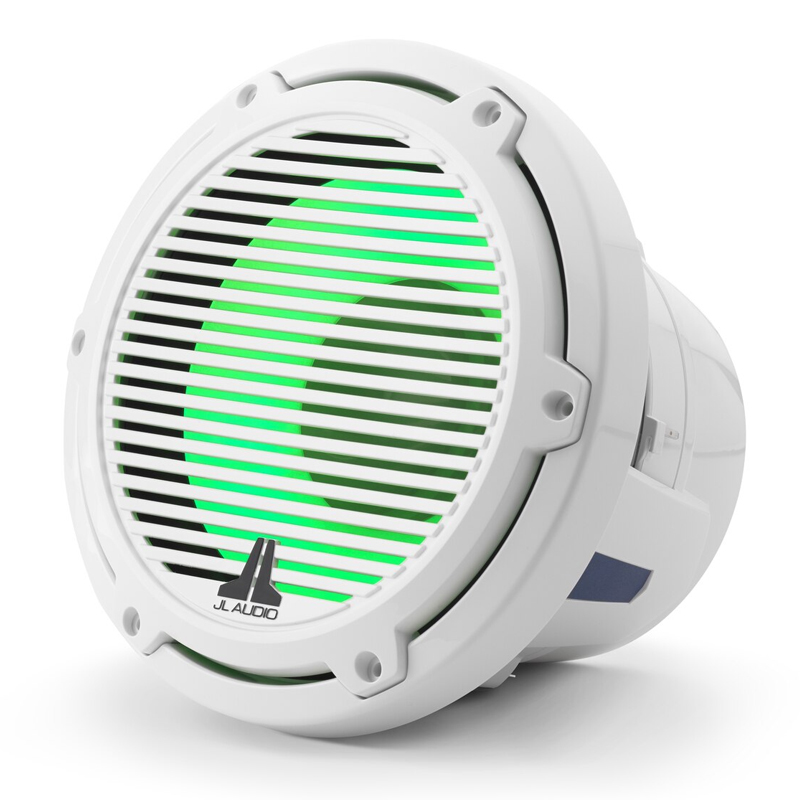

JL Audio M6-8W-C-GwGw-i-4 Marine Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • marine subwoofer with LED illumination
- •Owner's manual
Can Choose the Grille Style and Color
This M6 Series 8" marine subwoofer reflects JL Audio's commitment to awesome sound, cutting-edge styling, and quality engineering. The built-in LED lighting looks terrific and you can choose the grille style and color that's right for your boat's interior. JL Audio designed this high-performance subwoofer for sealed or ported enclosures, so you can mount it in the type of box that best suits your boat.
Built for Real Marine Duty
Built from the ground up for the marine environment, this rugged subwoofer sports a corrosion-resistant polymer basket that surrounds the internal structure for extra protection. The marine-grade synthetic fiber spider, injection-molded polypropylene cone, and synthetic rubber surround provide outstanding performance, while shrugging off the corrosive effects of sun, salt, and moisture. The UV-resistant grille will stay factory-fresh even after years of outdoor exposure. As an added bonus, you're protected by JL Audio's 2-year warranty.
Deliver Years of Listening Enjoyment
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
- Diameter : 8 Inch
- Sensitivity : 86.7 dB
- Impedance : 4 Ohm
- RMS Power Range : 200 Watts
- Peak Power Handling : 400 Watts
- Color : White
General Specifications
- Continuous Power Handling (RMS): 200 W
- Nominal Impedance (Znom): 4 Ohms
Parameters
- Free Air Resonance (Fs): 54.92 Hz
- Electrical “Q” (Qes): 0.852
- Mechanical “Q” (Qms): 10.314
- Total Speaker “Q” (Qts): 0.787
- Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
- One-Way Linear Excursion (Xmax)*: 0.53 in / 14 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m)**: 86.7 dB SPL
- Effective Piston Area (Sd): 35.15 sq in / 0.0227 sq m
- DC Resistance (Re): 2.993 Ohms
Sealed Enclosure Specifications
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net int.): 2.00 cu ft / 56.6 L
- External Width (W): 16 in / 406 mm
- External Height (H): 16 in / 406 mm
- External Depth (D): 18.25 in / 464 mm
- F3: 51.78 Hz
- Fc: 61.89 Hz
- Qtc: 0.8869
Ported Enclosure Specifications
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net int.): 1.50 cu ft / 42.5 L
- External Width (W): 16 in / 406 mm
- External Height (H): 16 in / 406 mm
- External Depth (D): 15.125 in / 384 mm
- Internal Port Diameter (ID) : 4 in / 102 mm
- Port Length (L): 13.50 in / 343 mm
- Tuning Frequency (Fb): 37 Hz
- F3: 31.26 Hz
- UPC: 699440936255
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
