Pioneer  TS-D10LS4

D Series 10" 1300W Peak Power Handling 4 Ohms Single Voice Coil Subwoofer

Item #53733

Condition:   Brand New

Product Highlights

  • D Series 10" subwoofer
  • 1300W peak power handling
  • 4 Ohms impedance
  • Single voice coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$179.99

Reg. Price $260.00  Save $80.01
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Pioneer TS-D10LS4 D Series 10" 350W RMS Single 4 Ohms Voice Coil Subwoofer


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 10" Subwoofer
  • • (1) Trim ring
  • • (6) 1-1/8" Screws
  • • (1) Adhesive backed foam gasket
  • • (1) Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
  • • (1) Warranty information
  • • (1) Owner's Manual




Why Choose Pioneer TS-D10LS4 Component Car Subwoofer?

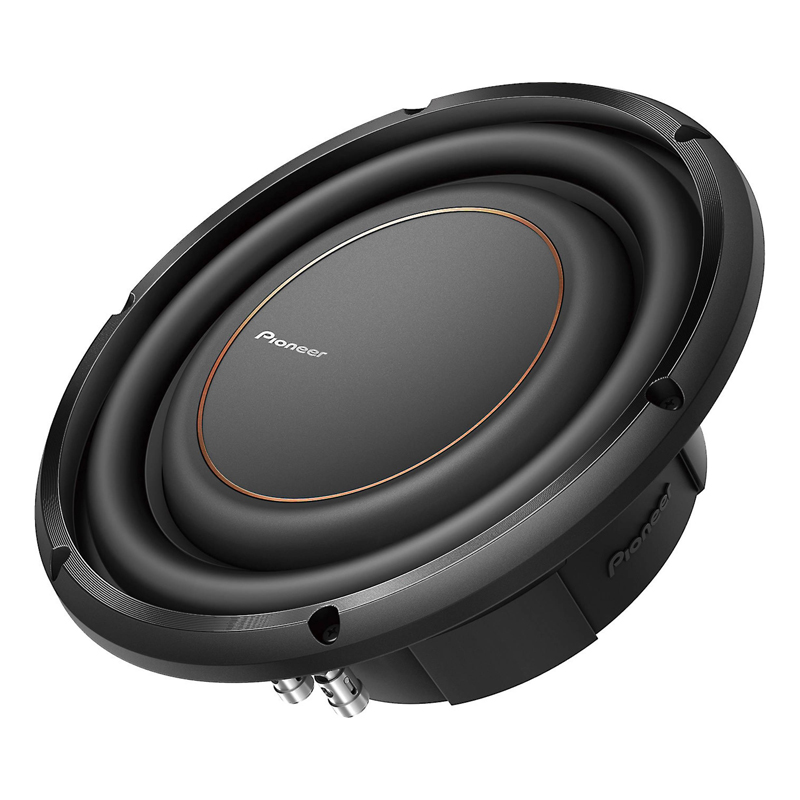

Pioneer TS-D10LS4 Component Car Subwoofer Right Angle View
Clean Bass, Real Control

If you’re after tight, accurate low-end that doesn’t get sloppy at higher volume, the Pioneer TS-D10LS4 is built to deliver. Its aramid fiber interlaced IMPP cone gives you extra rigidity compared to standard polypropylene, which means better durability and cleaner bass response. The result is low frequencies that stay controlled and punchy, even when you’re pushing your system harder.

Simple Install, Flexible Sound Tuning

This subwoofer keeps things straightforward with a single 4-ohm voice coil, making it easy to match with most car audio amplifiers without complicated wiring setups. Installation is just as convenient thanks to spring post terminals that accept pin connectors, banana plugs, or bare wire up to 8 gauge. It also performs best in compact enclosures, with sealed boxes from 0.35 to 0.7 ft³ (0.6 ft³ ideal for tight accuracy) or ported setups from 0.5 to 0.7 ft³ using a 3-inch by 7.5-inch port for added output and efficiency.

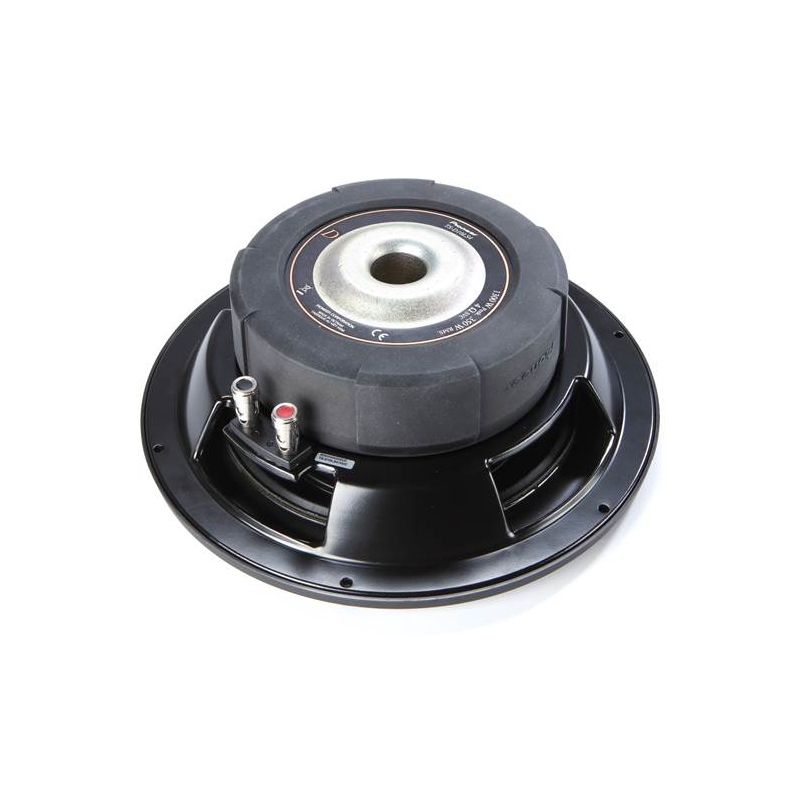

Pioneer TS-D10LS4 Component Car Subwoofer Bottom View




Frequently Asked Questions (FAQ)


  • • Will this fit in a shallow enclosure behind my truck seat?
    Yes. Its shallow-mount design is intended for installations with limited mounting depth, making it suitable for many compact enclosures.
  • • Why does the bass sound weak after installation?
    Weak bass is commonly caused by incorrect amplifier settings, poor enclosure design, or reversed speaker polarity. Verify the wiring and use an enclosure that meets the recommended specifications.
  • • Can I install this in a sealed enclosure?
    Yes. A properly sized sealed enclosure provides tight, accurate bass and is a popular choice for shallow-mount subwoofers.
  • • Why does the amplifier clip before the bass gets loud?
    Amplifier clipping usually occurs when the gain is set too high or the amplifier cannot provide enough clean power. Adjust the gain correctly and match the amplifier to the subwoofer's power requirements.
  • • Why is there a buzzing or rattling sound during bass-heavy music?
    The sound may come from loose mounting screws, vibrating trim panels, or an air leak in the enclosure. Tightening all hardware and sealing the enclosure can eliminate unwanted noise.
  • • Do I need an external amplifier to power this subwoofer?
    Yes. An external amplifier matched to the recommended power handling is necessary for proper performance and reliable operation.
  • • Why does it stop playing after several minutes?
    This may indicate that the amplifier is overheating or entering protection mode because of wiring or impedance issues. Check the ventilation, wiring, and amplifier load to identify the cause.
  • • Can I replace a factory subwoofer with this model?
    Yes, provided there is sufficient mounting space and a compatible amplifier is added if required. Installation adapters or custom mounting solutions may also be needed depending on the vehicle.
  • • Why does the bass seem to disappear at certain listening positions?
    Vehicle acoustics and enclosure placement can create bass cancellation in different seating locations. Repositioning the enclosure or adjusting the phase can improve bass consistency.
  • • How can I get cleaner bass without increasing the volume?
    Proper crossover, gain, and equalizer adjustments can significantly improve bass quality. A well-built enclosure and correctly matched amplifier also help produce cleaner, more controlled low frequencies.

SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 76 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20 - 3400 Hz
  • Peak Power Handling : 1300 Watts
  • Number of Voice Coils : Single
  • Suggested Sealed Box Volume : 0.6 Cubic ft.
  • Suggested Ported Box Volume : 0.6 Cubic ft.
  • RMS Power Handling : 350 Watts

FEATURES


Features:

  • Woofer Cone Construction: Built with aramid fiber interlaced injection-molded polypropylene (IMPP), delivering enhanced rigidity compared to standard polypropylene for improved durability, reduced distortion, and accurate low-frequency performance.
  • Single 4Ω Voice Coil Design: Engineered with a single 4-ohm voice coil for stable system integration, offering straightforward wiring and compatibility with a wide range of car audio amplifiers.
  • Versatile Spring Post Terminals: Features spring post terminals compatible with pin connectors, single banana plugs, or bare wire up to 8 gauge, ensuring secure and flexible installation options.
  • Optimized Sealed Enclosure Performance: Designed for sealed box applications with a recommended internal volume of 0.35 ft³ to 0.7 ft³, with 0.6 ft³ as the ideal balance for tight, controlled, and accurate bass reproduction.
  • Efficient Ported Enclosure Support: Compatible with vented enclosures ranging from 0.5 ft³ to 0.7 ft³, with 0.6 ft³ and a 3-inch diameter by 7.5-inch long port recommended for improved bass output and system efficiency.
  • Compact Installation Design: Engineered for versatile fitment with a mounting height of 0.534 inches, flange height of 0.2 inches, and frame diameter of 10.3 inches for efficient installation in a variety of vehicle applications.



Specifications:

  • System Type: Component Subwoofer
  • Sensitivity (1W/1m): 76dB
  • Frequency Range: 20 Hz to 3.4 kHz
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power Handling (RMS): 350 Watts
  • Maximum Peak Power Handling: 1300 Watts
  • Nominal Impedance: 4 OHM
  • Speaker Grill: Sold separately (UD-10GL)
  • Shape: Round
  • Size: 10"
  • Cone Material: IMPP - Aramid Fiber
  • Center Cap Material: ABS
  • Surround Material: Rubber
  • Surround Type: Rolled
  • Basket Material: Stamped Metal
  • Magnet Material: Ferrite
  • Magnet Weight: 43.4 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Glass imide
  • Voice Coil Wire: Copper
  • Damper: Aramid
  • Gasket: PP
  • Wire Terminals: Push Type
  • Unit Size (Dimensions): 10-1/2"
  • Mounting Depth: 3-1/4"
  • Cut Out Dimensions: 9"
  • Equivalent Compliance (VAS) [L]: 16.1
  • Free Air Resonance (Fs) [Hz]: 37
  • Total Speaker "Q" (Qts): 0.8
  • Linear Excursion (Xmax) [mm]: 8.3
  • Recommended Sealed Box Volume [L]: 17
  • Port Box Volume [L]: 17
  • Port Length: 7-1/2"
  • Port Diameter: 3"
  • UPC: 884938410298
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
