Crunch PZ-2020.2-Bundle
 Item# 53782 / Condition:  Brand New

Crunch PZ-2020.2-Bundle

PZ-2020.2-Bundle

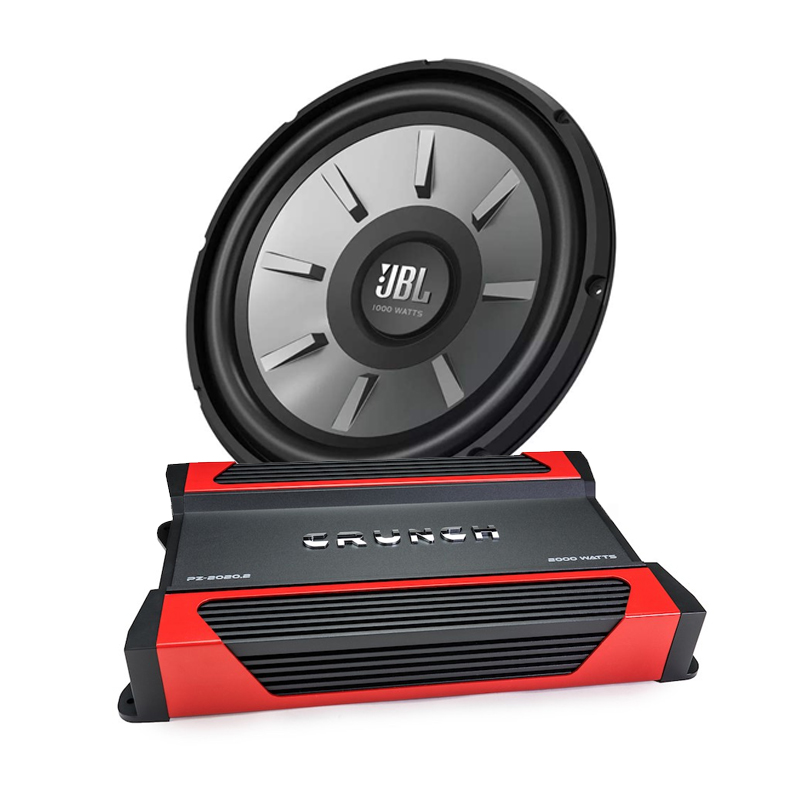

JBL STAGE 1210D + Crunch PZ-2020.2 Exclusive Bundle Review this product
$116.44

FREE Shipping in US 48!

MSRP:$300.00
Savings Of:$183.56
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

affirm financing small logo
affirm financing extra small logo
OCS Bundle Banner

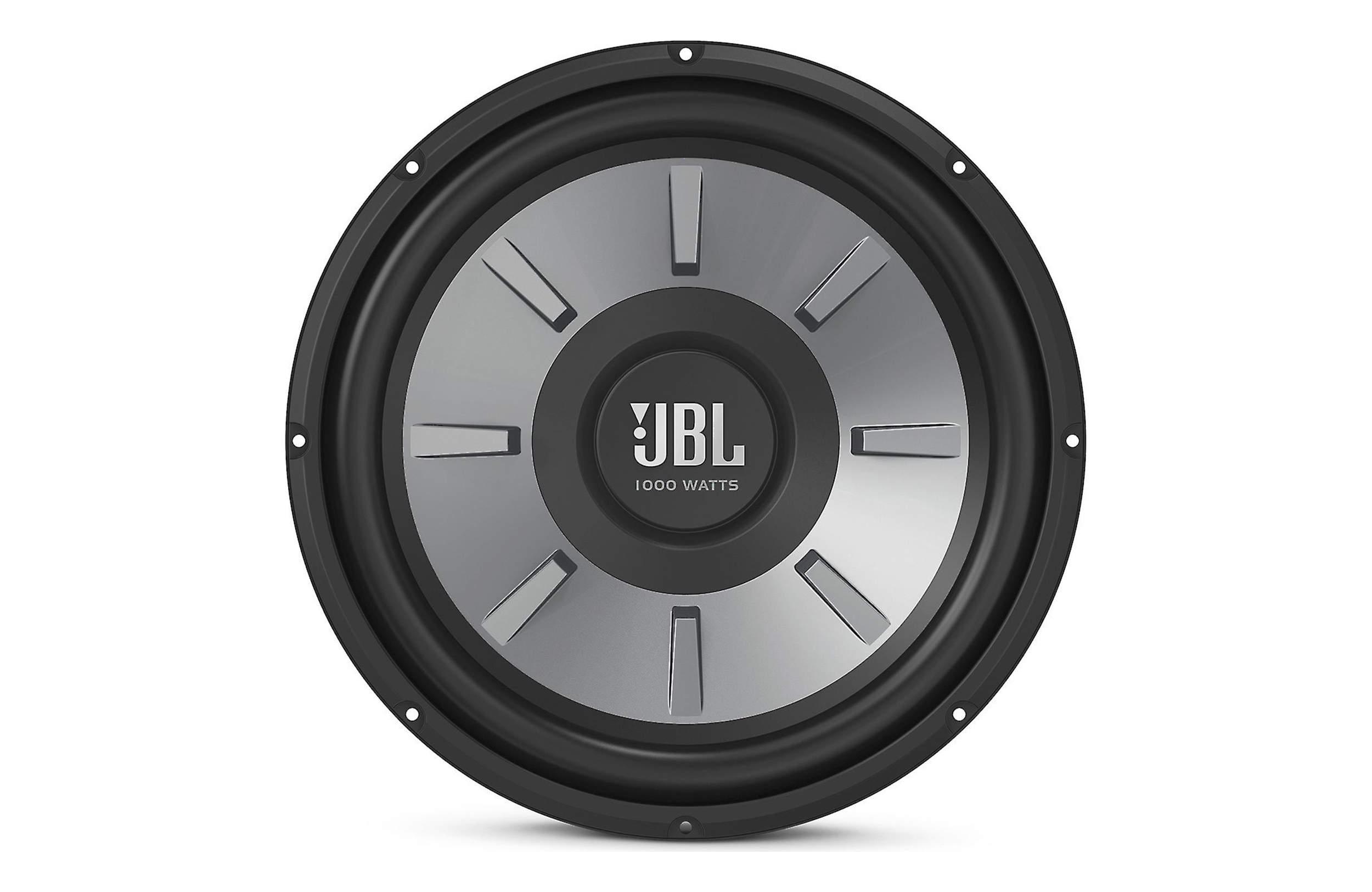

JBL Stage 1210D

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, JBL's subwoofers and loudspeakers are individually tuned by some of the world's best transducer engineers to ensure they achieve the signature sound that is unmistakably JBL.

JBL Stage 1210D

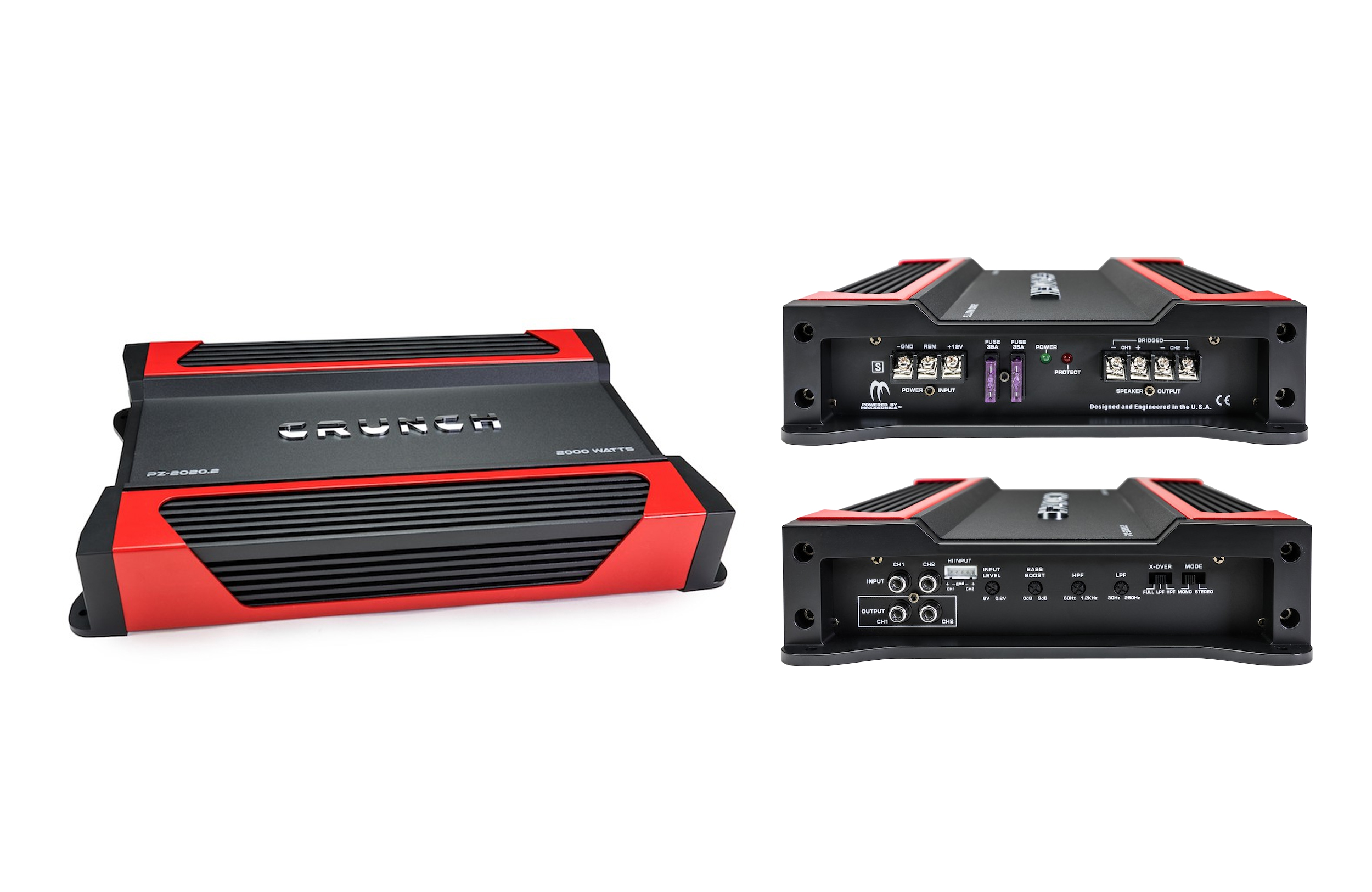

Crunch PZ-2020.2

POWERZONE two channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 2000 watts of power in a stereo or bridged mono application.

Crunch PZ-2020.2


Stage 1210D Stage Series 12" 1000 Watts Peak Power Dual 4-ohm Voice Coil Car Subwoofer

General Features

  • High Output
  • Low Distortion
  • Highest Grade Materials
  • polypropylene cone
  • rubber shell

Specifications

  • Size: 12"
  • Voice Coil: Dual
  • Impedance: 4 ohms
  • Power Handling: 250 watts RMS
  • Peak Power: 1000 Watts
  • Frequency Response: 34-200hz
  • Sensitivity: 91dB


PZ-2020.4 Powerzone Series 2000 Watts Max Power 2-ohm Stable 2 Channel Class-A/B Car Amplifier

Features & Benefits

  • Hi Level Inputs
    High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
  • Operation Mode
    2 channel operation mode allows either stereo or mono bridged operation
  • Crossover Type
    Variable electronic crossovers allow for complete control of the sound
  • Electronic Equalizer
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
    Check specifications for specific frequencies for this amplifier
  • Class / Topology
    Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
  • Output Device Technology
    Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
  • Heat Sink
    QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
  • Power Supply
    Rugged MOSFET Pulse Width Modulation power supply
    Allows amplifier to product efficient power without taxing the vehicle electrical system
  • Output Connections
    Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
  • Connection Type
    Secure connection for all power, ground and speaker connections.
  • Full-Range RCA Outputs for Signal Pass Through
    Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
  • LED System Protection Circuitry Diagnostics
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

Specifications

  • Class
    Class A/B
  • Variable Voltage
    6V - 0.2V
  • Signal to Noise
    >90dB
  • Frequency Response
    10Hz-45KHz
  • Crossover
    VeraCross
    Switchable
    FULL / LPF / HPF
  • Variable High Pass Crossover 12dB per Octave
    60Hz - 1.2kHz
  • Variable Low Pass Crossover 12dB per Octave
    30Hz - 250Hz
  • Bass Boost
    0 - 9dB
  • Power @ 1 Ohm
    N/A
  • Power @ 2 Ohms
    2 x 1000 Watts
  • Power @ 4 Ohms
    2 x 500 Watts
  • Mono Bridged @ 4 Ohms
    1 x 2000 Watts
  • Total Channels
    2
  • Audio Inputs
    RCA
  • Audio Outputs
    Full Range
    RCA
  • Speaker Terminal Wire Gauge
    Spade Connector
    Recommended
  • Fusing
    35Ax2
  • Total Harmonic Distortion (THD)
    <0.05%
  • Weight: 23
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
