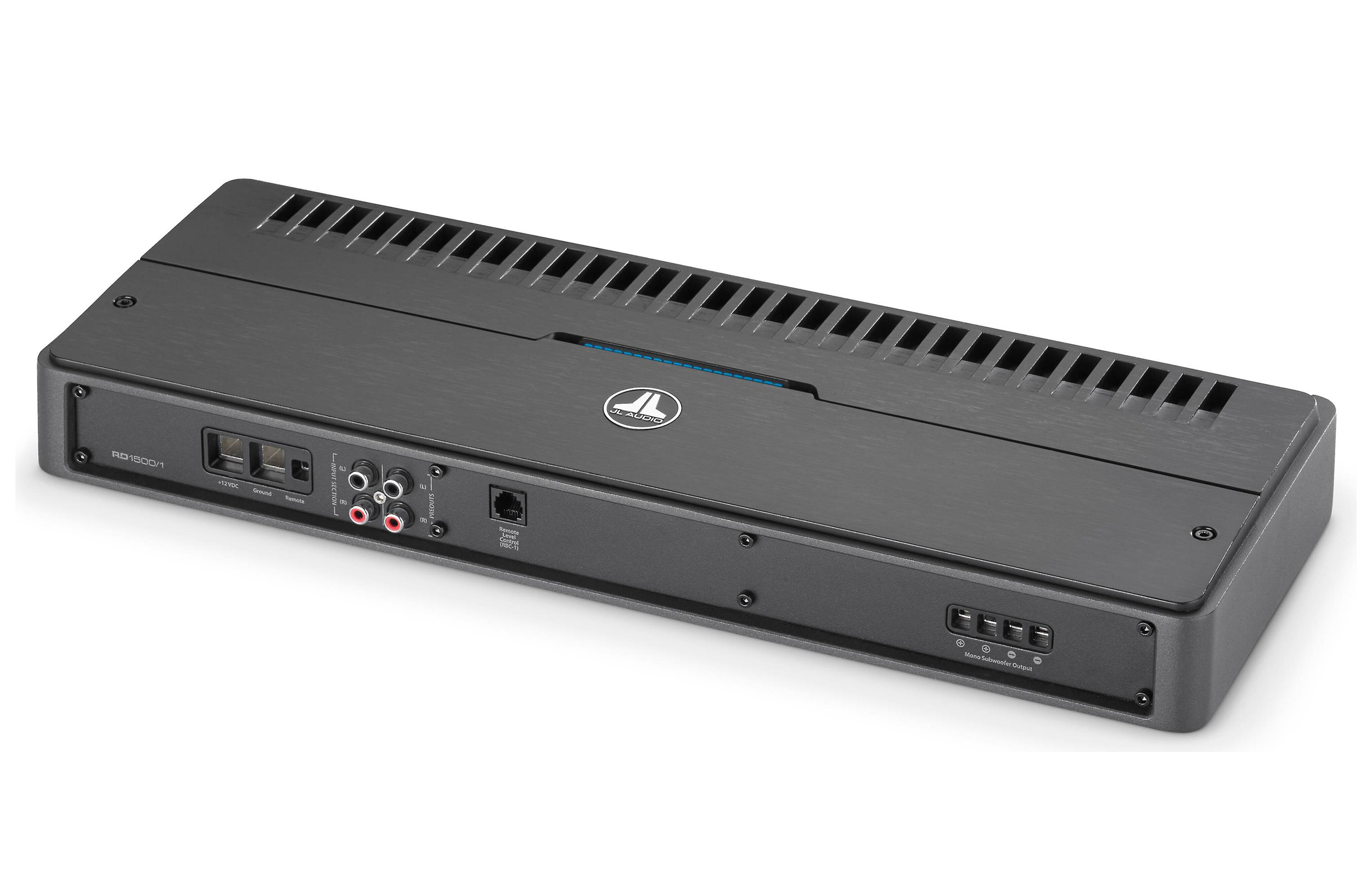

JL Audio RD1500/1
Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.

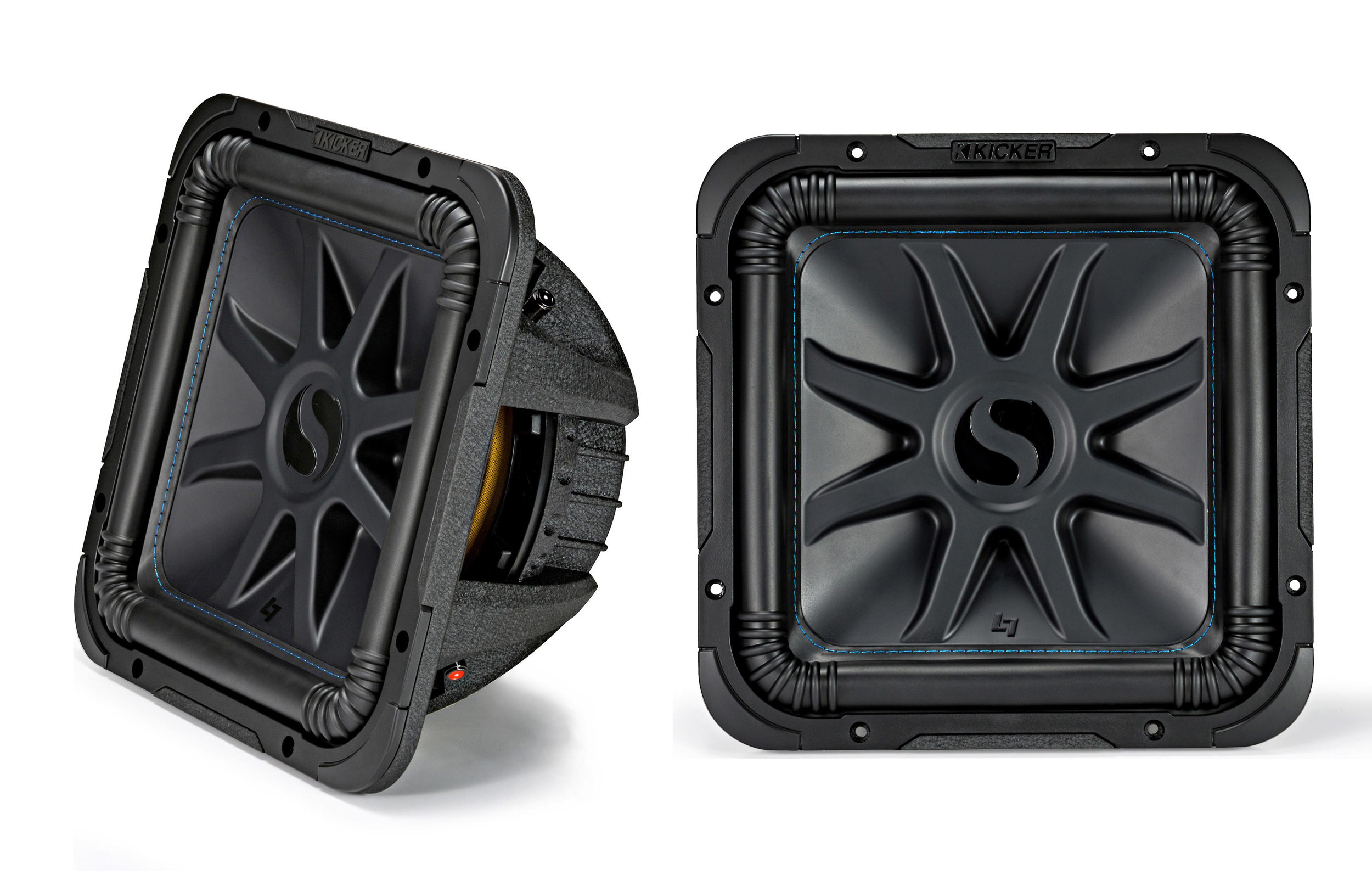

Kicker 44L7S122
The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.
RD1500/1 RD Series 1500W Monoblock Class D Full-Range Amplifier
Rated Continuous (RMS) Power 14.4 V
- @ 4 Ω750 W RMS x 1
- @ 3 Ω1000 W RMS x 1
- @ 2 Ω1500 W RMS x 1
Rated Continuous (RMS) Power 12.5 V
- @ 4 Ω700 W RMS x 1
- @ 3 Ω850 W RMS x 1
- @ 2 Ω1200 W RMS x 1
General Specifications
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >82 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >1100 / 50 Hz
- Damping Factor @ 2 Ω: >550 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 2 AWG wire
- Fuse Rating: 150A (AFS or AGU)
Signal Processing
- Filter Mode(s):Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range:50 Hz – 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer:No
- Filter Defeat Function:No
- Infrasonic Filter:No
- Bass Boost EQ:Yes
- Output Polarity Switch:No
- Remote Subwoofer Level Control:Optional (RBC-1)
- Remote Bass EQ Boost Control:No
- Pass-Through Preamp Output
44L7S122 L7S Series 12" 1500 Watts Max Power 2-ohm DVC Car Subwoofer
Features
- Dual Two-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
Specifications
- Size (IN.,CM): 12, 30.5
- Impedance (OHMS): 2 DVC
- Max Rec Amplifier Power (WATTS PEAK/RMS)*: 1500/750
- Sensitivity (dB 1w/1m): 88.6
- Frequency Response (Hz): 20-100
- Mounting Depth (IN.,CM): 6-11/16, 16.9
- Mounting Cutout, Square (IN.,CM): 11-1/16, 28.1
- Min Rec Sealed Box Volume (CU. FT., Liters): 1.25, 35.4
- Max Rec Sealed Box Volume (CU. FT., Liters): 2.0, 56.64
- Min Rec Vented Box Volume (CU. Ft., Liters)**: 1.75, 49.6
- Max Rec Vented Box Volume (CU. Ft., Liters)**: 3.25, 92.1
- UPC:
- Weight: 35
