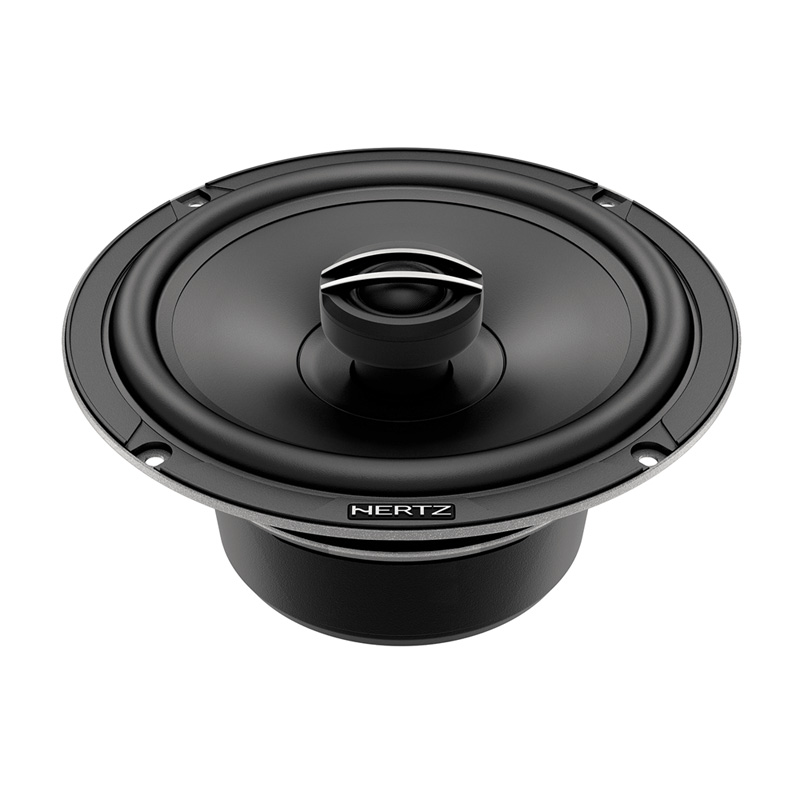

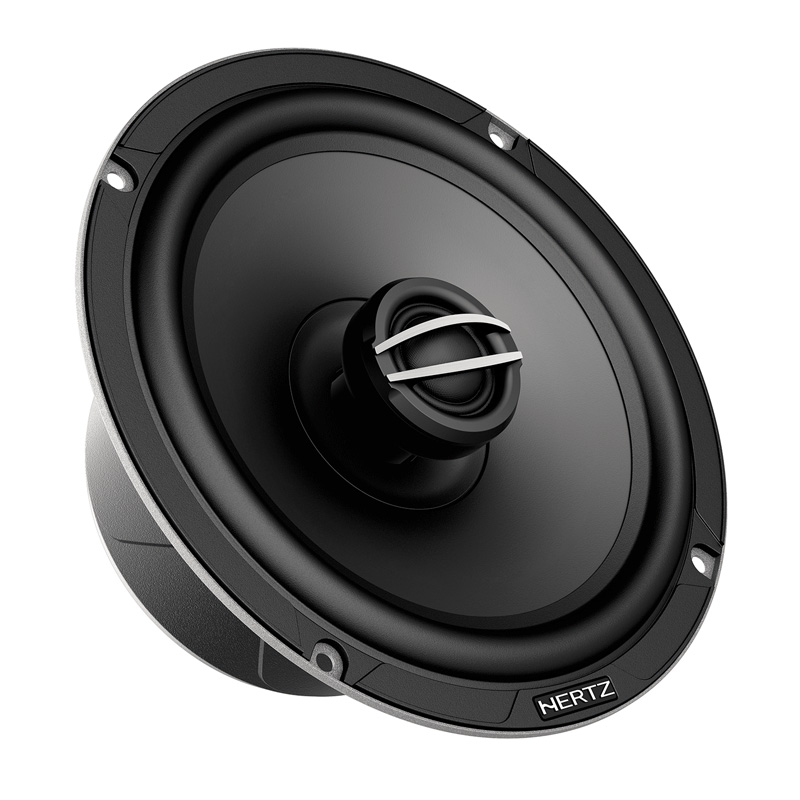

Hertz Cento Series CPX 165 6.5" 95 RMS(285W Peak Power Handling) 4 Ohms 2-Way Coaxial Speakers (pair)
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

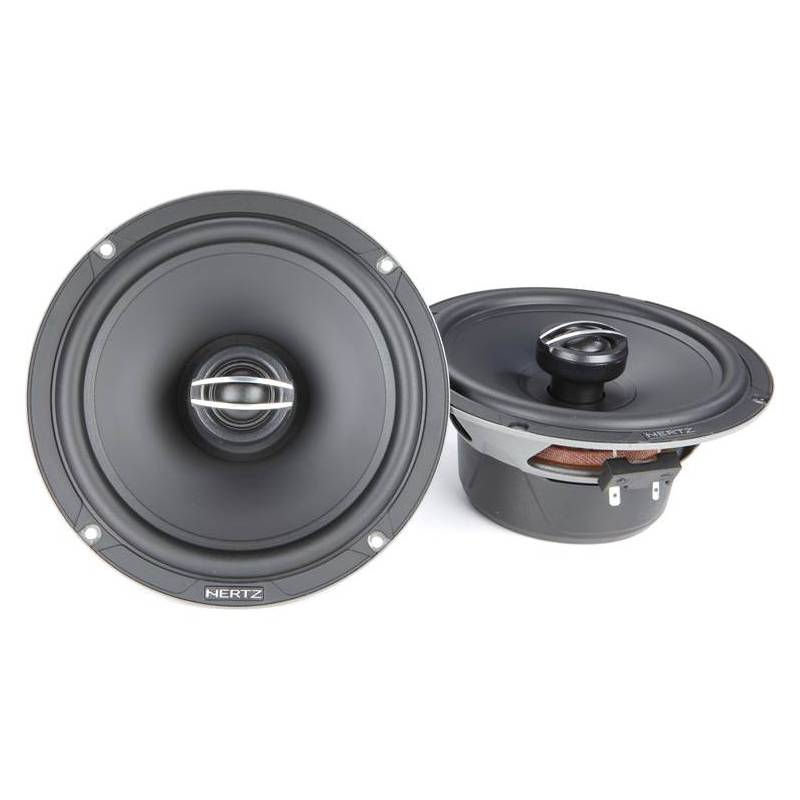

- • (2) Hertz Cento Series CPX 165 6.5 2-way Speakers
- • (8) 3/4" Screws
- • 8 Speed clips
- • Template on box
- • Owner's manual
Features and Exceptional Frequency Extension
The CPX 165 car audio coaxial provides the thrill of listening to the Hertz sound even when the vehicle does not allow the installation of a two-way kit. The Tetolon dome tweeter and Neodymium magnet is provided with off-axis dispersion features and exceptional frequency extension for a detailed, airy sound. Radial Venting System technology ensures unparalleled cooling of the coil thanks to the eight holes at the base of the engine that allow air exchange with the tweeter support.

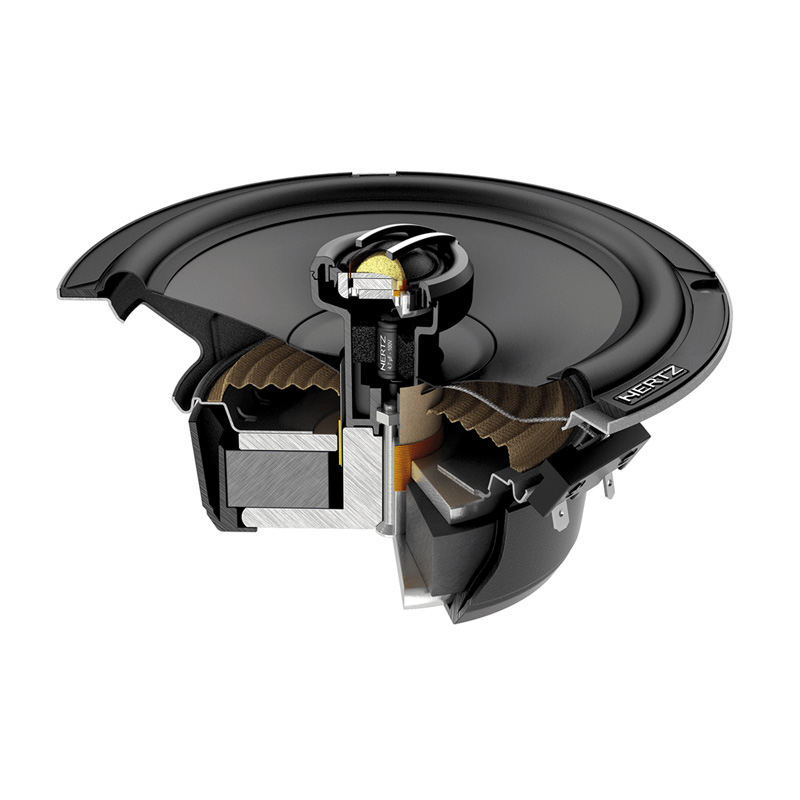

Features Durable High Resistance

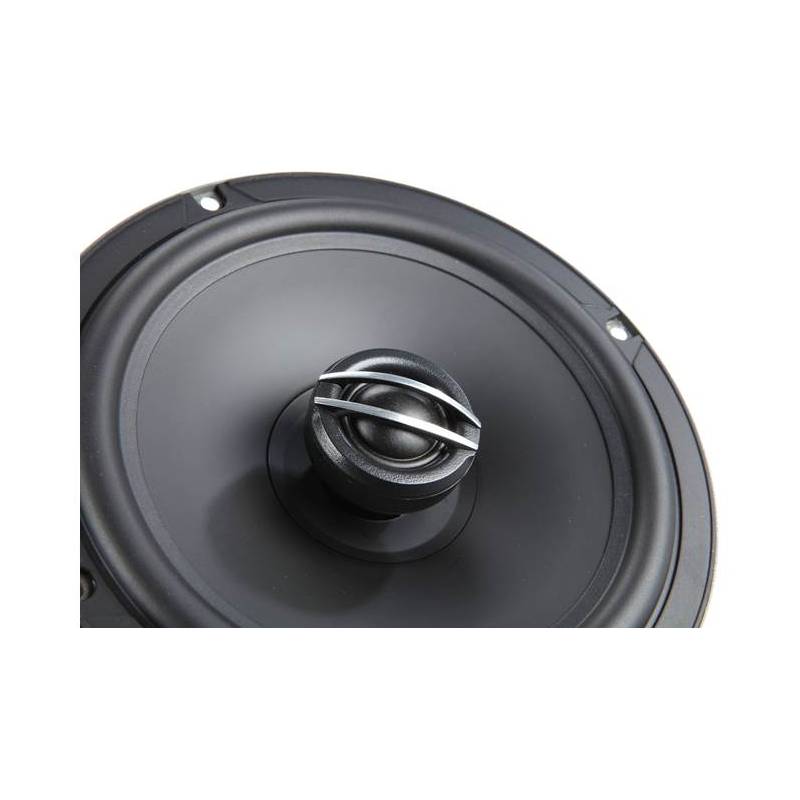

- 1. Soft Tetolon fiber dome tweeter featuring a 20 mm mobile voice coil cooled with ferrofluid, for natural and extended high frequencies.
- 2. Radial Venting System technology including 8 venting holes for excellent cooling of the voice coil and a natural midrange, featuring a low tweeter Fs, thanks to the air exchange with the support that acts as a large rear chamber.
- 3. 25mm diameter pure copper coil to guarantee high excursions.
- 4. Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.

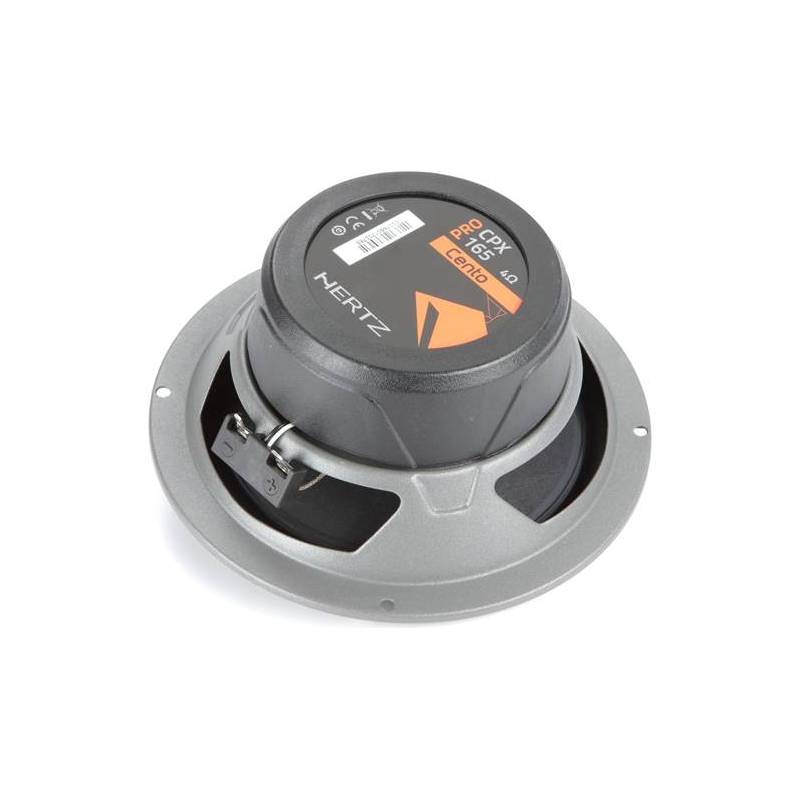

- 5. High density ferrite magnet in combination with low carbon polar plates for reduced distortion at high power levels.

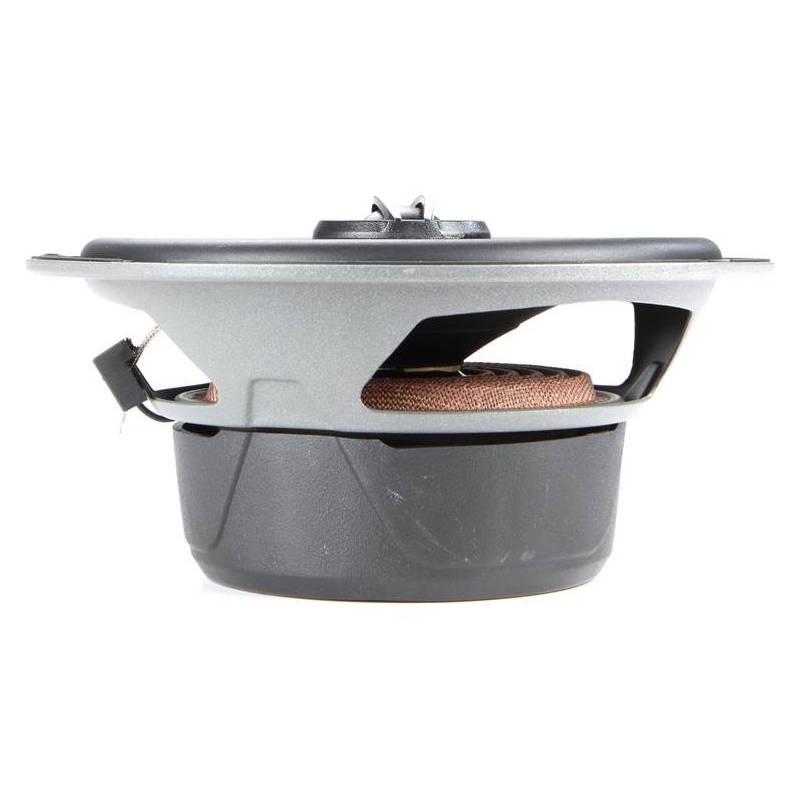

- 6. 3-spoke, compact, and transparent basket acoustically combined with an anti-vibration rubber magnet cover for overall damping of spurious vibrations.
- 7. Stylish grille with high-resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Frequency Response
The comprehensive frequency response of this system spans from a low of 45 Hz to an impressive upper limit of 22 kHz, ensuring a rich and detailed sound reproduction across a wide range of frequencies.
Physical Specifications
- • A 165 mm (6.5 in.)
- • B 141 mm (5.55 in.)
- • C 84.5 mm (3.33 in.)
- • D 65.5 mm (2.58 in.)
- • E 171 mm (6.73 in.)
- • F 24 mm (0.94 in.)
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 45-22000 Hz
- Peak Power Handling : 285 Watts
- Design : 2 Way
- RMS Power Handling : 95 Watts
Features:
- Soft Tetolon fiber dome tweeter featuring a 20 mm mobile voice coil cooled with ferrofluid, for natural and extended high frequencies.
- Radial Venting System technology including 8 venting holes for an excellent cooling of the voice coil and a natural mid range, featuring a low tweeter Fs, thanks to the air exchange with the support that acts as a large rear chamber
- 25mm diameter pure copper coil to guarantee high excursions.
- Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
- High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
- 3-spoke, compact and transparent basket acoustically combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
- Stylish grille with high resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Specifications:
- Power Handling - Peak W: 285
- Power Handling - Continuous W: 95
- Impedance: 4 ohms
- Frequency response Hz: 45 ÷ 22k
- Sensitivity dB SPL: 92
- Woofer size mm (in.): 165 (6.5)
- Woofer Voice Coil Ø mm (in.): 25 (1)
- Tweeter voice coil Ø mm (in.): 20 (0.8)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Pressed-paper cone
- Tweeter dome: Tetolon
Electro-Acoustic Specifications:
- Diameter (D): 131.5 mm
- DC Resistance (Re): 3.3 Ohm
- Resonant Frequency (Fs): 60 Hz
- Inductance (Le): 0.29 mH
- Equivalent Volume Compliance (Vas): 11.8 liters
- Moving Mass (Mms): 14.6 grams
- Mechanical Compliance (Cms): 0.47 mm/N
- Magnetic Flux Density (BL): 5.3 T*m
- Total Quality Factor (Qts): 0.55
- Electrical Quality Factor (Qes): 0.64
- Mechanical Quality Factor (Qms): 4.1
- Sound Pressure Level (SPL): 92 dB
- UPC: 8018823123990
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
