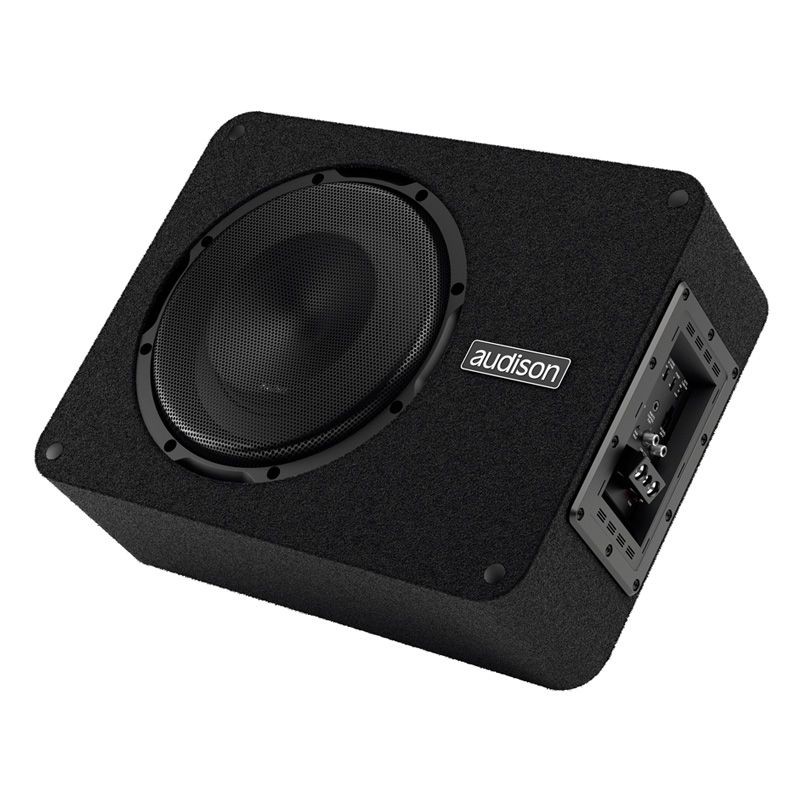

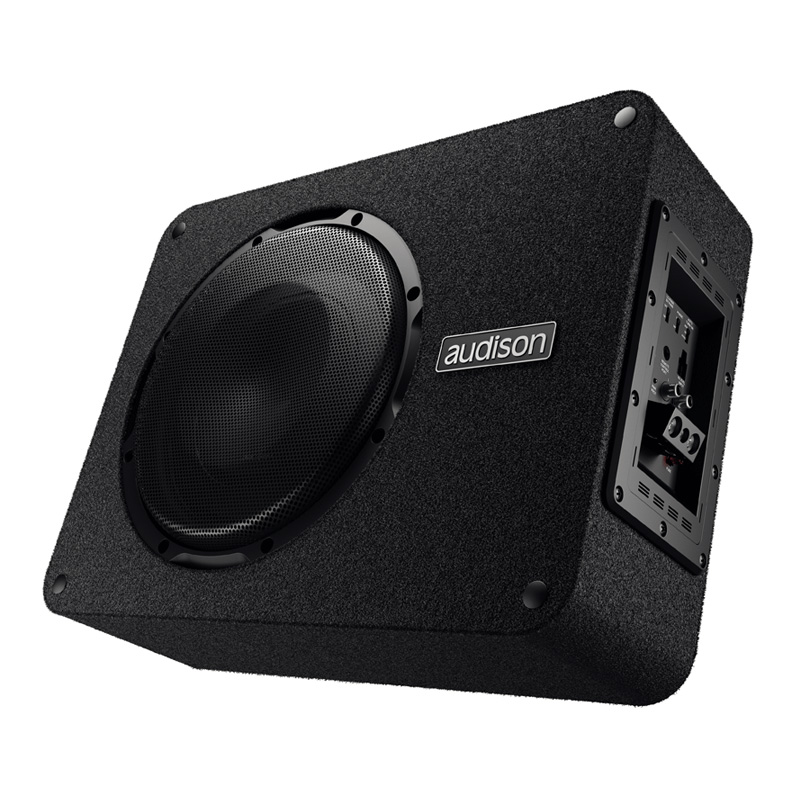

APBX 10AS 10" ACTIVE SUB BOX
The Prima APBX 10 AS active subwoofer, with 10-inch driver,features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.
The amplification module, with power outputs of 400W RMS is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class.
Eliminating the voltage booster was made possible thanks to the development of the new dual coil drivers, which inherit all the technological background of the Prima subwoofers, but differ for the ultra low impedance (0.16 ohms for APBX 10 AS).
This feature ensures a perfect synergy with the he-li (High Efficiency Low Impedance) technology, maximizing the combination of amplifier, speakers and sealed box, to obtain low, powerful and crisp frequencies.

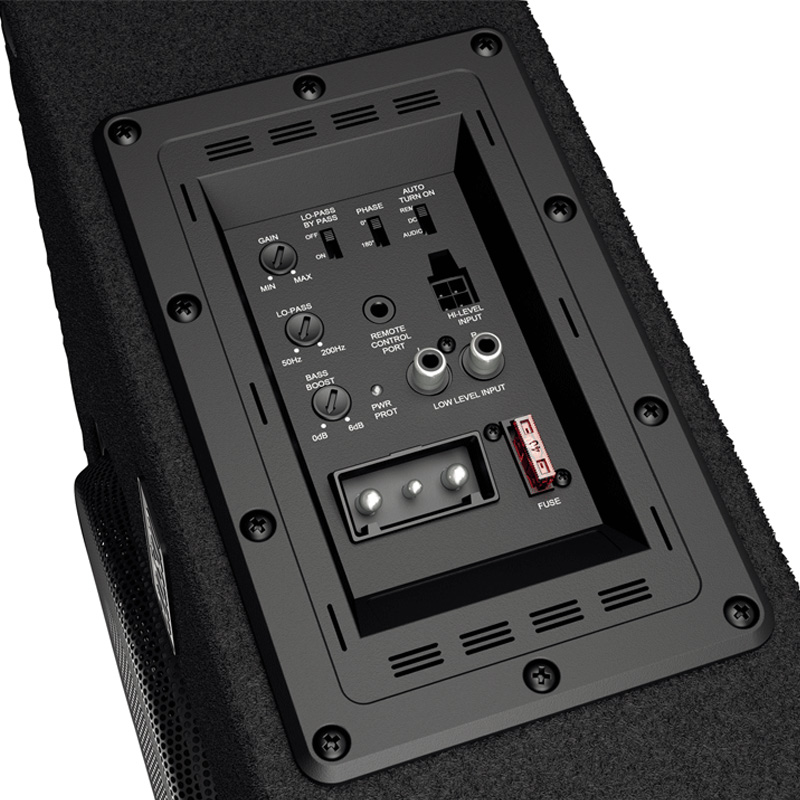

The controls section is complete and provides an optimal regulation of the low frequency emission in the car cabin. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an AP bit processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response in the lower side of the spectrum.
The high-level speaker-in input on multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after market sources. The subwoofer automatic turn on/off function ART (Automatic Remote Turn-On) can be configured to be controlled by the source’s remote signal, by the voltage variation on the high-level input or by the audio signal on both inputs. Phase control (0 – 180 °) completes the equipment.
The SSP (Sub Smart Plug) terminal block is provided with a single Plug&Play connector to be able to disconnect the box easily and safely.
Product Highlights:
- Integrated 400 W RMS @ 0.16 Ω D-Class amplifier featuring he-li technology (high efficiency / low impedance) without switching power supply, for a performance next to ideal.
- Dual coil dedicated speakers with extremely low impedance, to fully exploit the amplifier power
- Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-200 Hz), phase control (0 - 180 °) and adjustable bass-boost 0÷6 db @ 45Hz.
- Defeatable filter to use the sub dedicated output of a bit or AP bit processor.
- High level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources.
- ART turn on function (Automatic Remote Turn-On) selectable among: Remote-in, Hi-level, Audio signal.
- Box with ultra-low profile (6.22 in. / 158 mm) in air suspension, designed to take full advantage of the performance of the 10-inch APS 10 DL high-impedance driver.
- The SSP (Sub Smart Plug) terminal block is provided with a Plug&Play connector to be able to disconnect the box easily and safely.
- The 2S² (2 Sides / 2 Sounds) design provides the ability to select between Down-Firing positioning to increase the low frequency extension and Up-Firing install to obtain more punch and definition.
- Down-firing levelling feet with Velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal.
- Rounded corners allow easy placement in the trunk and act as a reinforcement to reduce enclosure resonances.
- Exclusive design of the cone, dust-cap and basket geometry toachieve a wide linear excursion (9 mm in one direction), keeping the depth required for assembly to a minimum.
- HRC AP remote control included.
- Sturdy metal grille included, for a total protection of the subwoofer driver.
Specifications:
- Comp: ACTIVE SUB BOX
- Subwoofer size mm (in.): 250 (10)
- Subwoofer Voice coil Ø mm (in.): 60 (2.36)
- Output power (RMS):
- 400 W Continuous Power
- 800 W Peak Power
- Impedance: 0.16 ohm
- Sub box size mm (in.): 460 (18.11) x 158 (6.22) x 338 (13.31)
- Magnet: High density flux ferrite
- Cone: Water-repellent pressed paper
- Weight of one component kg (lb): 9.4 (29.72)
- UPC: 8018823126328
- Weight: 10
